Implement the header for Action frames of type EML Operating Mode Notification. More...
#include "mgt-headers.h"
Classes | |
struct | EmlControl |
EML Control field. More... | |
struct | EmlsrParamUpdate |
EMLSR Parameter Update field. More... | |
Public Member Functions | |
MgtEmlOperatingModeNotification ()=default | |
uint32_t | Deserialize (Buffer::Iterator start) override |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
std::list< uint8_t > | GetLinkBitmap () const |
uint32_t | GetSerializedSize () const override |
void | Print (std::ostream &os) const override |
void | Serialize (Buffer::Iterator start) const override |
void | SetLinkIdInBitmap (uint8_t linkId) |
Set the bit position in the link bitmap corresponding to the given link. | |
![]() | |
~Header () override | |
uint32_t | Deserialize (Buffer::Iterator start) override=0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | GetSerializedSize () const =0 |
void | Print (std::ostream &os) const override=0 |
virtual void | Serialize (Buffer::Iterator start) const =0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual void | Print (std::ostream &os) const =0 |
Print the object contents. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Register this type. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Public Attributes | |
uint8_t | m_dialogToken {0} |
Dialog Token. | |
EmlControl | m_emlControl {} |
EML Control field. | |
std::optional< EmlsrParamUpdate > | m_emlsrParamUpdate {} |
EMLSR Parameter Update field. | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Implement the header for Action frames of type EML Operating Mode Notification.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).
Definition at line 1112 of file mgt-headers.h.
|
default |
|
overridevirtual |

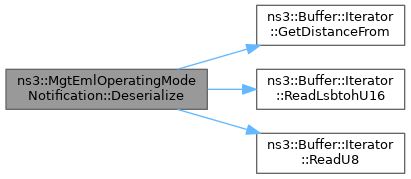

start | an iterator which points to where the header should read from. |
This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.
Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.
Implements ns3::Header.
Definition at line 1828 of file mgt-headers.cc.
References ns3::MgtEmlOperatingModeNotification::EmlControl::emlmrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrParamUpdateCtrl, ns3::Buffer::Iterator::GetDistanceFrom(), ns3::MgtEmlOperatingModeNotification::EmlControl::linkBitmap, m_dialogToken, m_emlControl, m_emlsrParamUpdate, NS_ABORT_MSG_IF, ns3::Buffer::Iterator::ReadLsbtohU16(), and ns3::Buffer::Iterator::ReadU8().
|
overridevirtual |

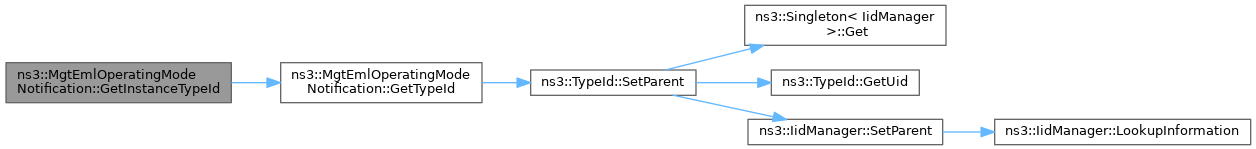

Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 1747 of file mgt-headers.cc.
References GetTypeId().

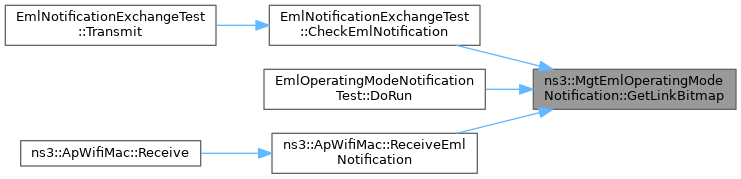

std::list< uint8_t > ns3::MgtEmlOperatingModeNotification::GetLinkBitmap | ( | ) | const |
Definition at line 1872 of file mgt-headers.cc.
References ns3::MgtEmlOperatingModeNotification::EmlControl::linkBitmap, list, m_emlControl, and NS_ASSERT_MSG.
Referenced by EmlNotificationExchangeTest::CheckEmlNotification(), EmlOperatingModeNotificationTest::DoRun(), and ns3::ApWifiMac::ReceiveEmlNotification().
|
overridevirtual |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.
Implements ns3::Header.
Definition at line 1773 of file mgt-headers.cc.
References ns3::MgtEmlOperatingModeNotification::EmlControl::linkBitmap, m_emlControl, m_emlsrParamUpdate, and ns3::MgtEmlOperatingModeNotification::EmlControl::mcsMapCountCtrl.
|

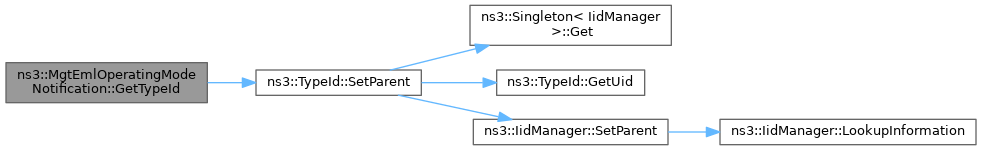

static |
Register this type.
Definition at line 1737 of file mgt-headers.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
overridevirtual |
os | output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Implements ns3::Header.
Definition at line 1753 of file mgt-headers.cc.
References ns3::Time::As(), ns3::CommonInfoBasicMle::DecodeEmlsrPaddingDelay(), ns3::CommonInfoBasicMle::DecodeEmlsrTransitionDelay(), ns3::MgtEmlOperatingModeNotification::EmlControl::emlmrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrParamUpdateCtrl, ns3::MgtEmlOperatingModeNotification::EmlControl::linkBitmap, m_emlControl, m_emlsrParamUpdate, and ns3::Time::US.
|
overridevirtual |
start | an iterator which points to where the header should be written. |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.
Implements ns3::Header.
Definition at line 1793 of file mgt-headers.cc.
References ns3::MgtEmlOperatingModeNotification::EmlControl::emlmrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrMode, ns3::MgtEmlOperatingModeNotification::EmlControl::emlsrParamUpdateCtrl, ns3::MgtEmlOperatingModeNotification::EmlControl::linkBitmap, m_dialogToken, m_emlControl, m_emlsrParamUpdate, and NS_ABORT_MSG_IF.

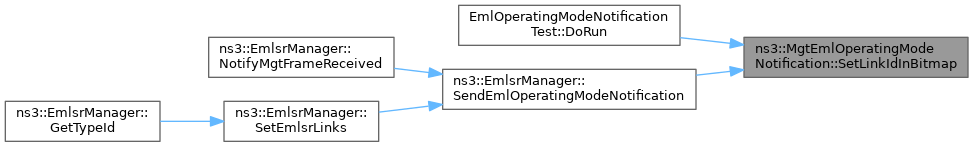

void ns3::MgtEmlOperatingModeNotification::SetLinkIdInBitmap | ( | uint8_t | linkId | ) |
Set the bit position in the link bitmap corresponding to the given link.
linkId | the ID of the given link |
Definition at line 1861 of file mgt-headers.cc.
References ns3::MgtEmlOperatingModeNotification::EmlControl::linkBitmap, m_emlControl, and NS_ABORT_MSG_IF.
Referenced by EmlOperatingModeNotificationTest::DoRun(), and ns3::EmlsrManager::SendEmlOperatingModeNotification().
uint8_t ns3::MgtEmlOperatingModeNotification::m_dialogToken {0} |
Dialog Token.
Definition at line 1162 of file mgt-headers.h.
Referenced by Deserialize(), and Serialize().
EmlControl ns3::MgtEmlOperatingModeNotification::m_emlControl {} |
EML Control field.
Definition at line 1163 of file mgt-headers.h.
Referenced by EmlNotificationExchangeTest::CheckEmlNotification(), Deserialize(), EmlOperatingModeNotificationTest::DoRun(), GetLinkBitmap(), GetSerializedSize(), Print(), ns3::ApWifiMac::ReceiveEmlNotification(), ns3::EmlsrManager::SendEmlOperatingModeNotification(), Serialize(), and SetLinkIdInBitmap().
std::optional<EmlsrParamUpdate> ns3::MgtEmlOperatingModeNotification::m_emlsrParamUpdate {} |
EMLSR Parameter Update field.
Definition at line 1164 of file mgt-headers.h.
Referenced by Deserialize(), EmlOperatingModeNotificationTest::DoRun(), GetSerializedSize(), Print(), ns3::ApWifiMac::ReceiveEmlNotification(), ns3::EmlsrManager::SendEmlOperatingModeNotification(), and Serialize().
