ns3::SeqTsSizeHeader Class Reference

Header with a sequence, a timestamp, and a "size" attribute. More...

#include "seq-ts-size-header.h"

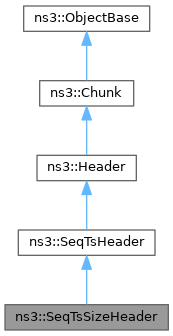

+ Inheritance diagram for ns3::SeqTsSizeHeader:

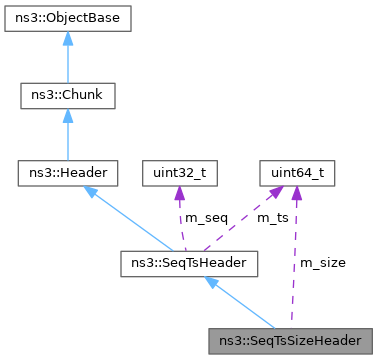

+ Collaboration diagram for ns3::SeqTsSizeHeader:

Public Member Functions

 SeqTsSizeHeader ()
 constructor

uint32_t Deserialize (Buffer::Iterator start) override

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

uint32_t GetSerializedSize () const override

uint64_t GetSize () const
 Get the size information that the header is carrying.

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override

void SetSize (uint64_t size)
 Set the size information that the header will carry.

- Public Member Functions inherited from ns3::SeqTsHeader
 SeqTsHeader ()

uint32_t Deserialize (Buffer::Iterator start) override

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

uint32_t GetSeq () const

uint32_t GetSerializedSize () const override

Time GetTs () const

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override

void SetSeq (uint32_t seq)

- Public Member Functions inherited from ns3::Header
 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::SeqTsHeader
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

uint64_t m_size {0}
 The 'size' information that the header is carrying.


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Header with a sequence, a timestamp, and a "size" attribute.

Introspection did not find any typical Config paths.

This header adds a size attribute to the sequence number and timestamp of class SeqTsHeader. The size attribute can be used to track application data units for stream-based sockets such as TCP.

See also
ns3::SeqTsHeader


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 37 of file seq-ts-size-header.h.

Constructor & Destructor Documentation

◆ SeqTsSizeHeader()

ns3::SeqTsSizeHeader::SeqTsSizeHeader ( )

constructor

Definition at line 32 of file seq-ts-size-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SeqTsSizeHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Reimplemented from ns3::SeqTsHeader.

Definition at line 90 of file seq-ts-size-header.cc.

References ns3::SeqTsHeader::Deserialize(), GetSerializedSize(), m_size, NS_LOG_FUNCTION, and ns3::Buffer::Iterator::ReadNtohU64().

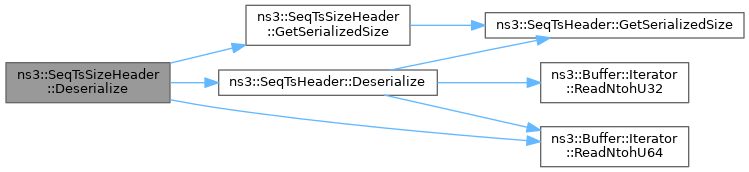

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SeqTsSizeHeader::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::SeqTsHeader.

Definition at line 49 of file seq-ts-size-header.cc.

References GetTypeId().

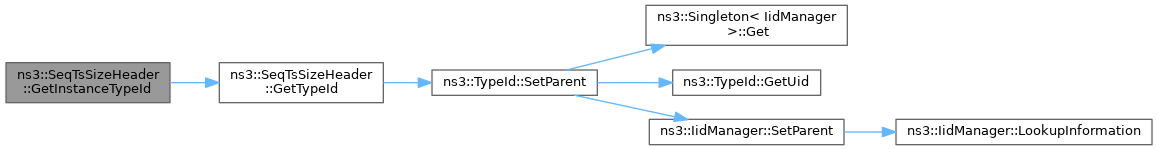

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SeqTsSizeHeader::GetSerializedSize ( ) const
overridevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Reimplemented from ns3::SeqTsHeader.

Definition at line 75 of file seq-ts-size-header.cc.

References ns3::SeqTsHeader::GetSerializedSize().

Referenced by Deserialize(), ns3::PacketSink::PacketReceived(), BulkSendSeqTsSizeTestCase::ReceiveRx(), ns3::BulkSendApplication::SendData(), ns3::OnOffApplication::SendPacket(), and BulkSendSeqTsSizeTestCase::SendTx().

+ Here is the call graph for this function:

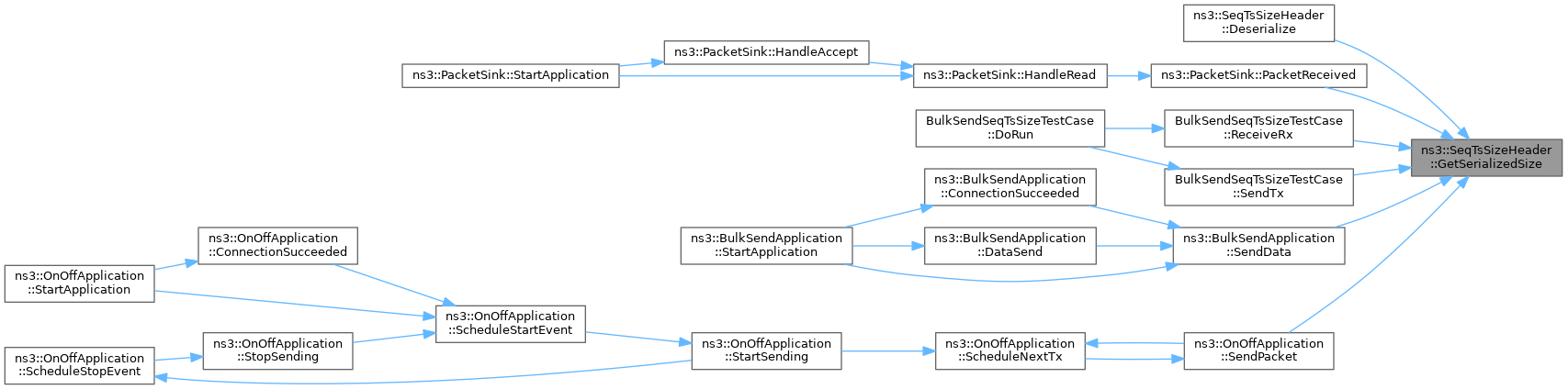

+ Here is the caller graph for this function:

◆ GetSize()

uint64_t ns3::SeqTsSizeHeader::GetSize ( ) const

Get the size information that the header is carrying.

Returns
the size

Definition at line 61 of file seq-ts-size-header.cc.

References m_size.

Referenced by ns3::PacketSink::PacketReceived().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SeqTsSizeHeader::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 39 of file seq-ts-size-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

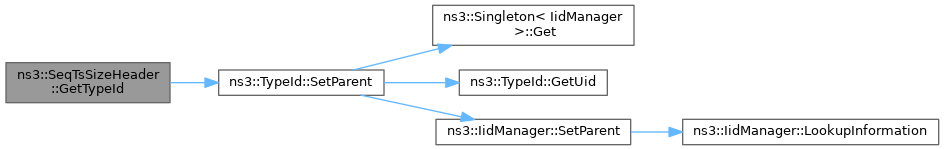

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::SeqTsSizeHeader::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::SeqTsHeader.

Definition at line 67 of file seq-ts-size-header.cc.

References m_size, NS_LOG_FUNCTION, and ns3::SeqTsHeader::Print().

+ Here is the call graph for this function:

◆ Serialize()

void ns3::SeqTsSizeHeader::Serialize ( Buffer::Iterator  start) const
overridevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Reimplemented from ns3::SeqTsHeader.

Definition at line 81 of file seq-ts-size-header.cc.

References m_size, NS_LOG_FUNCTION, ns3::SeqTsHeader::Serialize(), and ns3::Buffer::Iterator::WriteHtonU64().

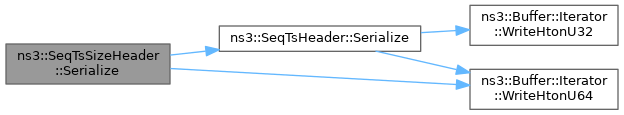

+ Here is the call graph for this function:

◆ SetSize()

void ns3::SeqTsSizeHeader::SetSize ( uint64_t  size)

Set the size information that the header will carry.

Parameters
sizethe size

Definition at line 55 of file seq-ts-size-header.cc.

References m_size.

Referenced by ns3::BulkSendApplication::SendData(), and ns3::OnOffApplication::SendPacket().

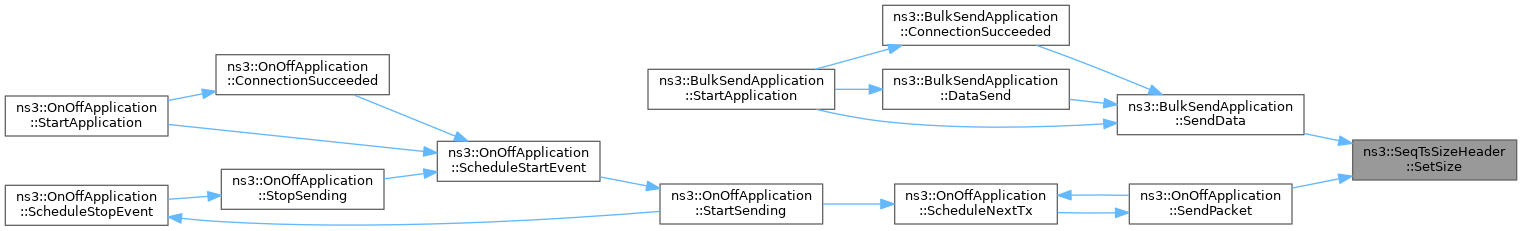

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_size

uint64_t ns3::SeqTsSizeHeader::m_size {0}
private

The 'size' information that the header is carrying.

Definition at line 71 of file seq-ts-size-header.h.

Referenced by Deserialize(), GetSize(), Print(), Serialize(), and SetSize().


The documentation for this class was generated from the following files:
