6LoWPAN HC1 header - see RFC 4944. More...

#include "sixlowpan-header.h"

Inheritance diagram for ns3::SixLowPanHc1:

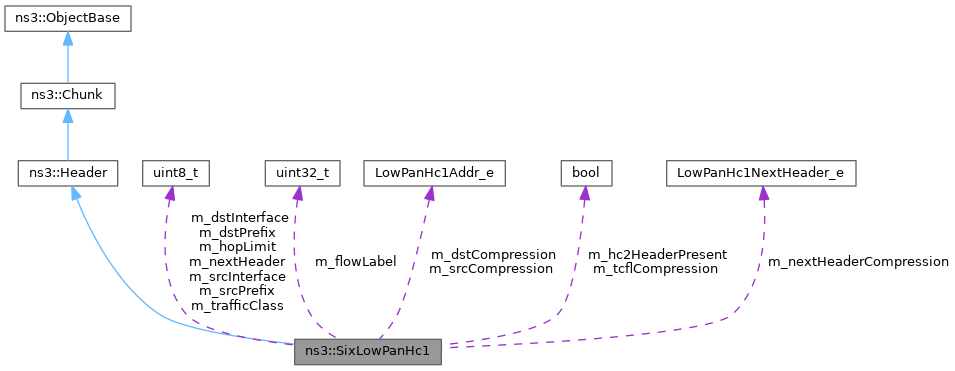

Collaboration diagram for ns3::SixLowPanHc1:

Public Types
enum	LowPanHc1Addr_e { HC1_PIII = 0x00 , HC1_PIIC = 0x01 , HC1_PCII = 0x02 , HC1_PCIC = 0x03 }
	Kind of address compression. More...

enum	LowPanHc1NextHeader_e { HC1_NC = 0x00 , HC1_UDP = 0x01 , HC1_ICMP = 0x02 , HC1_TCP = 0x03 }
	Next header information. More...

Public Member Functions
	SixLowPanHc1 ()

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet.

LowPanHc1Addr_e	GetDstCompression () const
	Get Destination Compression type.

const uint8_t *	GetDstInterface () const
	Get the destination interface.

const uint8_t *	GetDstPrefix () const
	Get the destination prefix.

uint32_t	GetFlowLabel () const
	Get the Flow Label value.

uint8_t	GetHopLimit () const
	Get the "Hop limit" field (TTL).

TypeId	GetInstanceTypeId () const override
	Return the instance type identifier.

uint8_t	GetNextHeader () const
	Get the Next Header value.

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet.

LowPanHc1Addr_e	GetSrcCompression () const
	Get Source Compression type.

const uint8_t *	GetSrcInterface () const
	Get the source interface.

const uint8_t *	GetSrcPrefix () const
	Get the source prefix.

uint8_t	GetTrafficClass () const
	Get the Traffic Class value.

bool	IsHc2HeaderPresent () const
	Check if there is a HC2 compressed header.

bool	IsTcflCompression () const
	Check if the Traffic Class and Flow Labels are compressed.

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet.

void	SetDstCompression (LowPanHc1Addr_e dstCompression)
	Set Destination Compression type.

void	SetDstInterface (const uint8_t *dstInterface)
	Set the destination interface.

void	SetDstPrefix (const uint8_t *dstPrefix)
	Set the destination prefix.

void	SetFlowLabel (uint32_t flowLabel)
	Set the Flow Label value.

void	SetHc2HeaderPresent (bool hc2HeaderPresent)
	Set the next header a HC2 compressed header.

void	SetHopLimit (uint8_t limit)
	Set the "Hop limit" field (TTL).

void	SetNextHeader (uint8_t nextHeader)
	Set the Next Header value.

void	SetSrcCompression (LowPanHc1Addr_e srcCompression)
	Set Source Compression type.

void	SetSrcInterface (const uint8_t *srcInterface)
	Set the source interface.

void	SetSrcPrefix (const uint8_t *srcPrefix)
	Set the source prefix.

void	SetTcflCompression (bool tcflCompression)
	Set the Traffic Class and Flow Labels as compressed.

void	SetTrafficClass (uint8_t trafficClass)
	Set the Traffic Class value.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
LowPanHc1Addr_e	m_dstCompression
	Destination compression type.

uint8_t	m_dstInterface [8]
	Destination interface.

uint8_t	m_dstPrefix [8]
	Destination prefix.

uint32_t	m_flowLabel
	Flow Label.

bool	m_hc2HeaderPresent
	Is next header HC2 compressed.

uint8_t	m_hopLimit
	Hop Limit.

uint8_t	m_nextHeader
	Next header.

LowPanHc1NextHeader_e	m_nextHeaderCompression
	Next header compression.

LowPanHc1Addr_e	m_srcCompression
	Source compression type.

uint8_t	m_srcInterface [8]
	Source interface.

uint8_t	m_srcPrefix [8]
	Source prefix.

bool	m_tcflCompression
	Is TC and FL compressed.

uint8_t	m_trafficClass
	Traffic Class.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

6LoWPAN HC1 header - see RFC 4944.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 130 of file sixlowpan-header.h.

Member Enumeration Documentation

◆ LowPanHc1Addr_e

enum ns3::SixLowPanHc1::LowPanHc1Addr_e

Kind of address compression.

The address compression is handled in 4 bits and might mean: PI: Prefix inline, PC: Prefix Compressed, II: Interface Identifier, Inline, IC: Interface Identifier Compressed.

Enumerator
HC1_PIII
HC1_PIIC
HC1_PCII
HC1_PCIC

Definition at line 140 of file sixlowpan-header.h.

◆ LowPanHc1NextHeader_e

enum ns3::SixLowPanHc1::LowPanHc1NextHeader_e

Next header information.

The Next header compression is handled in 4 bits and might mean: NC: Not Compressed, UDP, ICMP or TCP.

Enumerator
HC1_NC
HC1_UDP
HC1_ICMP
HC1_TCP

Definition at line 154 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanHc1()

ns3::SixLowPanHc1::SixLowPanHc1 ( )

Definition at line 98 of file sixlowpan-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SixLowPanHc1::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

[in] start Buffer iterator.

Returns: Size of the packet.

Implements ns3::Header.

Definition at line 276 of file sixlowpan-header.cc.

References GetSerializedSize(), HC1_ICMP, HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, HC1_TCP, HC1_UDP, ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Header::IPV6_TCP, ns3::Ipv6Header::IPV6_UDP, ns3::SixLowPanDispatch::LOWPAN_HC1, m_dstCompression, m_dstInterface, m_dstPrefix, m_flowLabel, m_hc2HeaderPresent, m_hopLimit, m_nextHeader, m_nextHeaderCompression, m_srcCompression, m_srcInterface, m_srcPrefix, m_tcflCompression, m_trafficClass, NS_ASSERT_MSG, ns3::Buffer::Iterator::Read(), and ns3::Buffer::Iterator::ReadU8().

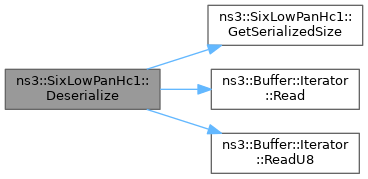

Here is the call graph for this function:

◆ GetDstCompression()

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetDstCompression ( ) const

Get Destination Compression type.

Returns: The kind of address compression.

Definition at line 394 of file sixlowpan-header.cc.

References m_dstCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetDstInterface()

const uint8_t * ns3::SixLowPanHc1::GetDstInterface ( ) const

Get the destination interface.

Returns: The destination interface.

Definition at line 400 of file sixlowpan-header.cc.

References m_dstInterface.

◆ GetDstPrefix()

const uint8_t * ns3::SixLowPanHc1::GetDstPrefix ( ) const

Get the destination prefix.

Returns: The destination prefix.

Definition at line 406 of file sixlowpan-header.cc.

References m_dstPrefix.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetFlowLabel()

uint32_t ns3::SixLowPanHc1::GetFlowLabel ( ) const

Get the Flow Label value.

Returns: The Flow Label.

Definition at line 412 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetHopLimit()

uint8_t ns3::SixLowPanHc1::GetHopLimit ( ) const

Get the "Hop limit" field (TTL).

Returns: The hop limit value.

Definition at line 388 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanHc1::GetInstanceTypeId ( ) const

overridevirtual

Return the instance type identifier.

Returns: Instance type ID.

Implements ns3::ObjectBase.

Definition at line 114 of file sixlowpan-header.cc.

References GetTypeId().

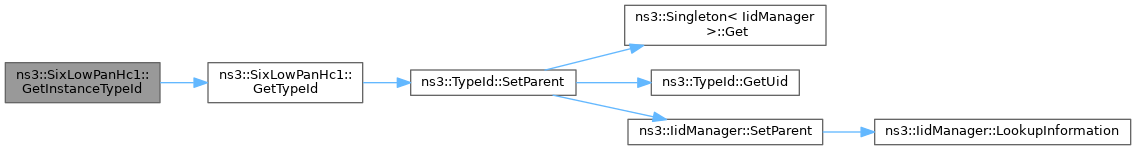

Here is the call graph for this function:

◆ GetNextHeader()

uint8_t ns3::SixLowPanHc1::GetNextHeader ( ) const

Get the Next Header value.

Returns: The Next Header value.

Definition at line 418 of file sixlowpan-header.cc.

References m_nextHeader.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SixLowPanHc1::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: Size.

Implements ns3::Header.

Definition at line 137 of file sixlowpan-header.cc.

References HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, m_dstCompression, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), and Deserialize().

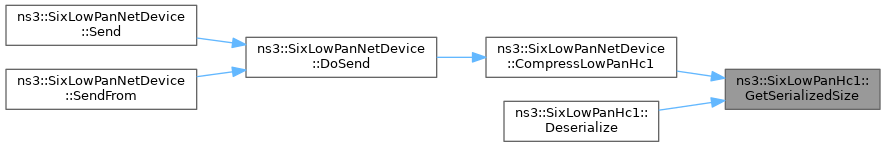

Here is the caller graph for this function:

◆ GetSrcCompression()

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetSrcCompression ( ) const

Get Source Compression type.

Returns: The kind of address compression.

Definition at line 424 of file sixlowpan-header.cc.

References m_srcCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetSrcInterface()

const uint8_t * ns3::SixLowPanHc1::GetSrcInterface ( ) const

Get the source interface.

Returns: The source interface.

Definition at line 430 of file sixlowpan-header.cc.

References m_srcInterface.

◆ GetSrcPrefix()

const uint8_t * ns3::SixLowPanHc1::GetSrcPrefix ( ) const

Get the source prefix.

Returns: The source prefix.

Definition at line 436 of file sixlowpan-header.cc.

References m_srcPrefix.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetTrafficClass()

uint8_t ns3::SixLowPanHc1::GetTrafficClass ( ) const

Get the Traffic Class value.

Returns: The Traffic Class value.

Definition at line 442 of file sixlowpan-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SixLowPanHc1::GetTypeId ( )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 104 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

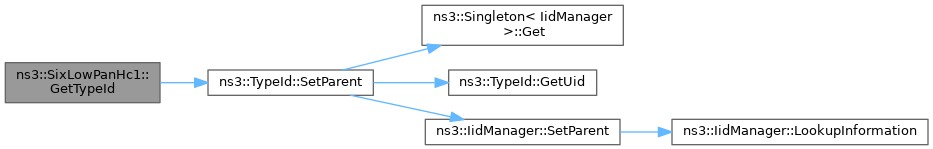

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsHc2HeaderPresent()

bool ns3::SixLowPanHc1::IsHc2HeaderPresent ( ) const

Check if there is a HC2 compressed header.

Returns: True if next header is HC2 compressed.

Definition at line 454 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ IsTcflCompression()

bool ns3::SixLowPanHc1::IsTcflCompression ( ) const

Check if the Traffic Class and Flow Labels are compressed.

Returns: True if TC and FL are compressed.

Definition at line 448 of file sixlowpan-header.cc.

References m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanHc1().

Here is the caller graph for this function:

◆ Print()

void ns3::SixLowPanHc1::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 120 of file sixlowpan-header.cc.

References m_dstCompression, m_hc2HeaderPresent, m_hopLimit, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ Serialize()

void ns3::SixLowPanHc1::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

[in] start Buffer iterator.

Implements ns3::Header.

Definition at line 184 of file sixlowpan-header.cc.

References HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, ns3::SixLowPanDispatch::LOWPAN_HC1, m_dstCompression, m_dstInterface, m_dstPrefix, m_flowLabel, m_hc2HeaderPresent, m_hopLimit, m_nextHeader, m_nextHeaderCompression, m_srcCompression, m_srcInterface, m_srcPrefix, m_tcflCompression, m_trafficClass, NS_ASSERT_MSG, ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SetDstCompression()

void ns3::SixLowPanHc1::SetDstCompression ( LowPanHc1Addr_e dstCompression )

Set Destination Compression type.

Parameters

[in] dstCompression The kind of address compression.

Definition at line 460 of file sixlowpan-header.cc.

References m_dstCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

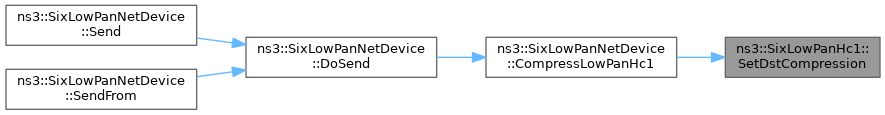

Here is the caller graph for this function:

◆ SetDstInterface()

void ns3::SixLowPanHc1::SetDstInterface ( const uint8_t * dstInterface )

Set the destination interface.

Parameters

[in] dstInterface The destination interface.

Definition at line 466 of file sixlowpan-header.cc.

References m_dstInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetDstPrefix()

void ns3::SixLowPanHc1::SetDstPrefix ( const uint8_t * dstPrefix )

Set the destination prefix.

Parameters

[in] dstPrefix The destination prefix.

Definition at line 475 of file sixlowpan-header.cc.

References m_dstPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetFlowLabel()

void ns3::SixLowPanHc1::SetFlowLabel ( uint32_t flowLabel )

Set the Flow Label value.

Parameters

[in] flowLabel The Flow Label.

Definition at line 484 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetHc2HeaderPresent()

void ns3::SixLowPanHc1::SetHc2HeaderPresent ( bool hc2HeaderPresent )

Set the next header a HC2 compressed header.

Parameters

[in] hc2HeaderPresent True if next header is HC2 compressed.

Definition at line 548 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

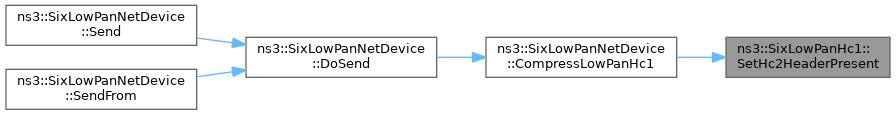

Here is the caller graph for this function:

◆ SetHopLimit()

void ns3::SixLowPanHc1::SetHopLimit ( uint8_t limit )

Set the "Hop limit" field (TTL).

Parameters

[in] limit The hop limit value.

Definition at line 382 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

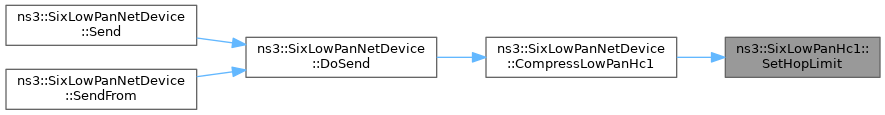

Here is the caller graph for this function:

◆ SetNextHeader()

void ns3::SixLowPanHc1::SetNextHeader ( uint8_t nextHeader )

Set the Next Header value.

Parameters

[in] nextHeader The Next Header value.

Definition at line 490 of file sixlowpan-header.cc.

References HC1_ICMP, HC1_NC, HC1_TCP, HC1_UDP, ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Header::IPV6_TCP, ns3::Ipv6Header::IPV6_UDP, m_nextHeader, and m_nextHeaderCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetSrcCompression()

void ns3::SixLowPanHc1::SetSrcCompression ( LowPanHc1Addr_e srcCompression )

Set Source Compression type.

Parameters

[in] srcCompression The kind of address compression.

Definition at line 512 of file sixlowpan-header.cc.

References m_srcCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetSrcInterface()

void ns3::SixLowPanHc1::SetSrcInterface ( const uint8_t * srcInterface )

Set the source interface.

Parameters

[in] srcInterface The source interface.

Definition at line 518 of file sixlowpan-header.cc.

References m_srcInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

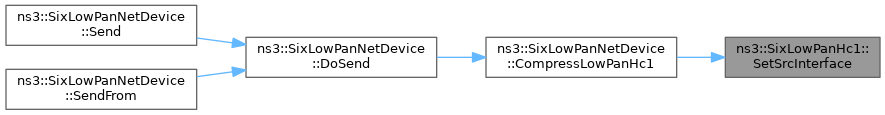

Here is the caller graph for this function:

◆ SetSrcPrefix()

void ns3::SixLowPanHc1::SetSrcPrefix ( const uint8_t * srcPrefix )

Set the source prefix.

Parameters

[in] srcPrefix The source prefix.

Definition at line 527 of file sixlowpan-header.cc.

References m_srcPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetTcflCompression()

void ns3::SixLowPanHc1::SetTcflCompression ( bool tcflCompression )

Set the Traffic Class and Flow Labels as compressed.

Parameters

[in] tcflCompression True if TC and FL are compressed.

Definition at line 536 of file sixlowpan-header.cc.

References m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetTrafficClass()

void ns3::SixLowPanHc1::SetTrafficClass ( uint8_t trafficClass )

Set the Traffic Class value.

Parameters

[in] trafficClass The Traffic Class value.

Definition at line 542 of file sixlowpan-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

Member Data Documentation

◆ m_dstCompression

LowPanHc1Addr_e ns3::SixLowPanHc1::m_dstCompression

private

Destination compression type.

Definition at line 352 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstCompression(), GetSerializedSize(), Print(), Serialize(), and SetDstCompression().

◆ m_dstInterface

uint8_t ns3::SixLowPanHc1::m_dstInterface[8]

private

Destination interface.

Definition at line 347 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstInterface(), Serialize(), and SetDstInterface().

◆ m_dstPrefix

uint8_t ns3::SixLowPanHc1::m_dstPrefix[8]

private

Destination prefix.

Definition at line 346 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstPrefix(), Serialize(), and SetDstPrefix().

◆ m_flowLabel

uint32_t ns3::SixLowPanHc1::m_flowLabel

private

Flow Label.

Definition at line 349 of file sixlowpan-header.h.

Referenced by Deserialize(), GetFlowLabel(), Serialize(), and SetFlowLabel().

◆ m_hc2HeaderPresent

bool ns3::SixLowPanHc1::m_hc2HeaderPresent

private

Is next header HC2 compressed.

Definition at line 355 of file sixlowpan-header.h.

Referenced by Deserialize(), IsHc2HeaderPresent(), Print(), Serialize(), and SetHc2HeaderPresent().

◆ m_hopLimit

uint8_t ns3::SixLowPanHc1::m_hopLimit

private

Hop Limit.

Definition at line 343 of file sixlowpan-header.h.

Referenced by Deserialize(), GetHopLimit(), Print(), Serialize(), and SetHopLimit().

◆ m_nextHeader

uint8_t ns3::SixLowPanHc1::m_nextHeader

private

Next header.

Definition at line 350 of file sixlowpan-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().

◆ m_nextHeaderCompression

LowPanHc1NextHeader_e ns3::SixLowPanHc1::m_nextHeaderCompression

private

Next header compression.

Definition at line 354 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), Print(), Serialize(), and SetNextHeader().

◆ m_srcCompression

LowPanHc1Addr_e ns3::SixLowPanHc1::m_srcCompression

private

Source compression type.

Definition at line 351 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), GetSrcCompression(), Print(), Serialize(), and SetSrcCompression().

◆ m_srcInterface

uint8_t ns3::SixLowPanHc1::m_srcInterface[8]

private

Source interface.

Definition at line 345 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcInterface(), Serialize(), and SetSrcInterface().

◆ m_srcPrefix

uint8_t ns3::SixLowPanHc1::m_srcPrefix[8]

private

Source prefix.

Definition at line 344 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcPrefix(), Serialize(), and SetSrcPrefix().

◆ m_tcflCompression

bool ns3::SixLowPanHc1::m_tcflCompression

private

Is TC and FL compressed.

Definition at line 353 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), IsTcflCompression(), Print(), Serialize(), and SetTcflCompression().

◆ m_trafficClass

uint8_t ns3::SixLowPanHc1::m_trafficClass

private

Traffic Class.

Definition at line 348 of file sixlowpan-header.h.

Referenced by Deserialize(), GetTrafficClass(), Serialize(), and SetTrafficClass().

The documentation for this class was generated from the following files:

src/sixlowpan/model/sixlowpan-header.h
src/sixlowpan/model/sixlowpan-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ LowPanHc1Addr_e

◆ LowPanHc1NextHeader_e

Constructor & Destructor Documentation

◆ SixLowPanHc1()

Member Function Documentation

◆ Deserialize()

◆ GetDstCompression()

◆ GetDstInterface()

◆ GetDstPrefix()

◆ GetFlowLabel()

◆ GetHopLimit()

◆ GetInstanceTypeId()

◆ GetNextHeader()

◆ GetSerializedSize()

◆ GetSrcCompression()

◆ GetSrcInterface()

◆ GetSrcPrefix()

◆ GetTrafficClass()

◆ GetTypeId()

◆ IsHc2HeaderPresent()

◆ IsTcflCompression()

◆ Print()

◆ Serialize()

◆ SetDstCompression()

◆ SetDstInterface()

◆ SetDstPrefix()

◆ SetFlowLabel()

◆ SetHc2HeaderPresent()

◆ SetHopLimit()

◆ SetNextHeader()

◆ SetSrcCompression()

◆ SetSrcInterface()

◆ SetSrcPrefix()

◆ SetTcflCompression()

◆ SetTrafficClass()

Member Data Documentation

◆ m_dstCompression

◆ m_dstInterface

◆ m_dstPrefix

◆ m_flowLabel

◆ m_hc2HeaderPresent

◆ m_hopLimit

◆ m_nextHeader

◆ m_nextHeaderCompression

◆ m_srcCompression

◆ m_srcInterface

◆ m_srcPrefix

◆ m_tcflCompression

◆ m_trafficClass
