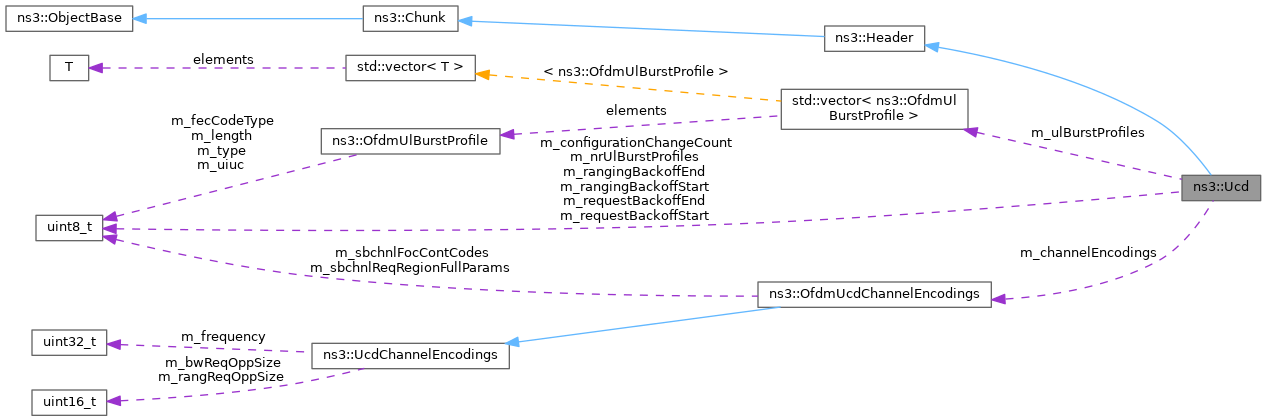

This class implements the UCD message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.3 Uplink Channel Descriptor (UCD) message, page 47. More...
#include "ul-mac-messages.h"
Public Member Functions | |
Ucd () | |
~Ucd () override | |
void | AddUlBurstProfile (OfdmUlBurstProfile ulBurstProfile) |
Add UL burst profile. | |
uint32_t | Deserialize (Buffer::Iterator start) override |
OfdmUcdChannelEncodings | GetChannelEncodings () const |
Get channel encodings. | |
uint8_t | GetConfigurationChangeCount () const |
Get configuration change count. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
std::string | GetName () const |
Get name. | |
uint8_t | GetNrUlBurstProfiles () const |
Get number UL burst profiles. | |
uint8_t | GetRangingBackoffEnd () const |
Get ranging backoff end. | |
uint8_t | GetRangingBackoffStart () const |
Get ranging backoff start. | |
uint8_t | GetRequestBackoffEnd () const |
Get request backoff end. | |
uint8_t | GetRequestBackoffStart () const |
Get request backoff start. | |
uint32_t | GetSerializedSize () const override |
std::vector< OfdmUlBurstProfile > | GetUlBurstProfiles () const |
Get UL burst profiles. | |
void | Print (std::ostream &os) const override |
void | Serialize (Buffer::Iterator start) const override |
void | SetChannelEncodings (OfdmUcdChannelEncodings channelEncodings) |
Set channel encodings. | |
void | SetConfigurationChangeCount (uint8_t ucdCount) |
Set configuration change count. | |
void | SetNrUlBurstProfiles (uint8_t nrUlBurstProfiles) |
Set NR UL burst profiles. | |
void | SetRangingBackoffEnd (uint8_t rangingBackoffEnd) |
Set ranging backoff end. | |
void | SetRangingBackoffStart (uint8_t rangingBackoffStart) |
Set ranging backoff start. | |
void | SetRequestBackoffEnd (uint8_t requestBackoffEnd) |
Set request backoff end. | |
void | SetRequestBackoffStart (uint8_t requestBackoffStart) |
Set request backoff start. | |
![]() | |
~Header () override | |
uint32_t | Deserialize (Buffer::Iterator start) override=0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | GetSerializedSize () const =0 |
void | Print (std::ostream &os) const override=0 |
virtual void | Serialize (Buffer::Iterator start) const =0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual void | Print (std::ostream &os) const =0 |
Print the object contents. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
OfdmUcdChannelEncodings | m_channelEncodings |
TLV Encoded information for the overall channel. | |
uint8_t | m_configurationChangeCount |
configuration change count | |
uint8_t | m_nrUlBurstProfiles |
number UL burst profiles | |
uint8_t | m_rangingBackoffEnd |
ranging backoff end | |
uint8_t | m_rangingBackoffStart |
ranging backoff start | |
uint8_t | m_requestBackoffEnd |
request backoff end | |
uint8_t | m_requestBackoffStart |
request backoff start | |
std::vector< OfdmUlBurstProfile > | m_ulBurstProfiles |
UL burst profiles. | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
This class implements the UCD message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.3 Uplink Channel Descriptor (UCD) message, page 47.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).
Definition at line 324 of file ul-mac-messages.h.
ns3::Ucd::Ucd | ( | ) |
Definition at line 256 of file ul-mac-messages.cc.
|
override |
Definition at line 266 of file ul-mac-messages.cc.
void ns3::Ucd::AddUlBurstProfile | ( | OfdmUlBurstProfile | ulBurstProfile | ) |
Add UL burst profile.
ulBurstProfile | the UL burst profile |
Definition at line 307 of file ul-mac-messages.cc.
References m_ulBurstProfiles.
Referenced by Deserialize(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().
|

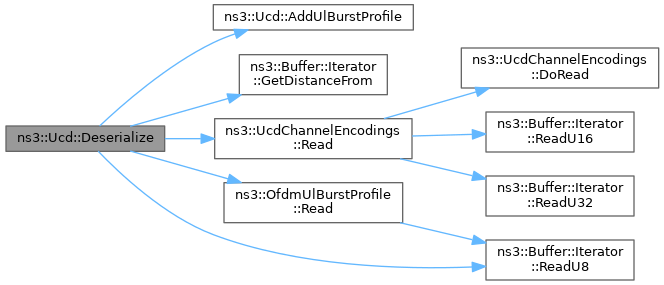

overridevirtual |
start | an iterator which points to where the header should read from. |
This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.
Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.
Implements ns3::Header.
Definition at line 429 of file ul-mac-messages.cc.
References AddUlBurstProfile(), ns3::Buffer::Iterator::GetDistanceFrom(), m_channelEncodings, m_configurationChangeCount, m_nrUlBurstProfiles, m_rangingBackoffEnd, m_rangingBackoffStart, m_requestBackoffEnd, m_requestBackoffStart, ns3::UcdChannelEncodings::Read(), ns3::OfdmUlBurstProfile::Read(), and ns3::Buffer::Iterator::ReadU8().
OfdmUcdChannelEncodings ns3::Ucd::GetChannelEncodings | ( | ) | const |
Get channel encodings.
Definition at line 350 of file ul-mac-messages.cc.
References m_channelEncodings.
Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().
uint8_t ns3::Ucd::GetConfigurationChangeCount | ( | ) | const |
Get configuration change count.
Definition at line 320 of file ul-mac-messages.cc.
References m_configurationChangeCount.
Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().
|

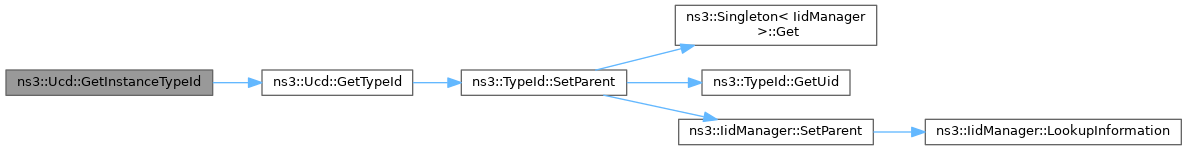

overridevirtual |
Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 382 of file ul-mac-messages.cc.
References GetTypeId().
std::string ns3::Ucd::GetName | ( | ) | const |
uint8_t ns3::Ucd::GetNrUlBurstProfiles | ( | ) | const |
Get number UL burst profiles.
Definition at line 362 of file ul-mac-messages.cc.
References m_nrUlBurstProfiles.
uint8_t ns3::Ucd::GetRangingBackoffEnd | ( | ) | const |
Get ranging backoff end.
Definition at line 332 of file ul-mac-messages.cc.
References m_rangingBackoffEnd.
uint8_t ns3::Ucd::GetRangingBackoffStart | ( | ) | const |
Get ranging backoff start.
Definition at line 326 of file ul-mac-messages.cc.
References m_rangingBackoffStart.
Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().
uint8_t ns3::Ucd::GetRequestBackoffEnd | ( | ) | const |
Get request backoff end.
Definition at line 344 of file ul-mac-messages.cc.
References m_requestBackoffEnd.
uint8_t ns3::Ucd::GetRequestBackoffStart | ( | ) | const |
Get request backoff start.
Definition at line 338 of file ul-mac-messages.cc.
References m_requestBackoffStart.
|
overridevirtual |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.
Implements ns3::Header.
Definition at line 399 of file ul-mac-messages.cc.
References ns3::OfdmUcdChannelEncodings::GetSize(), m_channelEncodings, and m_ulBurstProfiles.
|

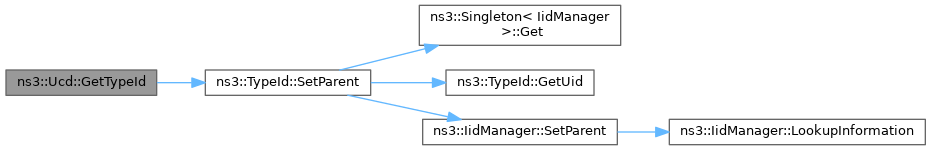

static |
Get the type ID.
Definition at line 374 of file ul-mac-messages.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
std::vector< OfdmUlBurstProfile > ns3::Ucd::GetUlBurstProfiles | ( | ) | const |
Get UL burst profiles.
Definition at line 356 of file ul-mac-messages.cc.
References m_ulBurstProfiles.
Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().
|
overridevirtual |
os | output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Implements ns3::Header.
Definition at line 388 of file ul-mac-messages.cc.
References m_configurationChangeCount, m_rangingBackoffEnd, m_rangingBackoffStart, m_requestBackoffEnd, m_requestBackoffStart, and m_ulBurstProfiles.
|

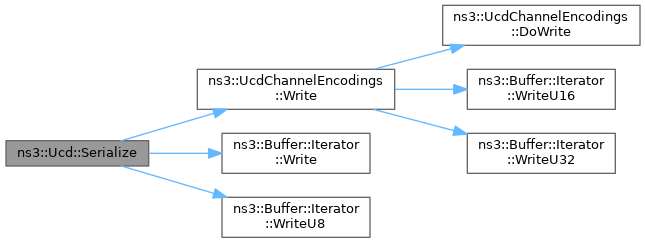

overridevirtual |
start | an iterator which points to where the header should be written. |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.
Implements ns3::Header.
Definition at line 412 of file ul-mac-messages.cc.
References m_channelEncodings, m_configurationChangeCount, m_rangingBackoffEnd, m_rangingBackoffStart, m_requestBackoffEnd, m_requestBackoffStart, m_ulBurstProfiles, ns3::UcdChannelEncodings::Write(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().
void ns3::Ucd::SetChannelEncodings | ( | OfdmUcdChannelEncodings | channelEncodings | ) |
Set channel encodings.
channelEncodings | the channel encodings |
Definition at line 301 of file ul-mac-messages.cc.
References m_channelEncodings.
Referenced by ns3::BaseStationNetDevice::CreateUcd().

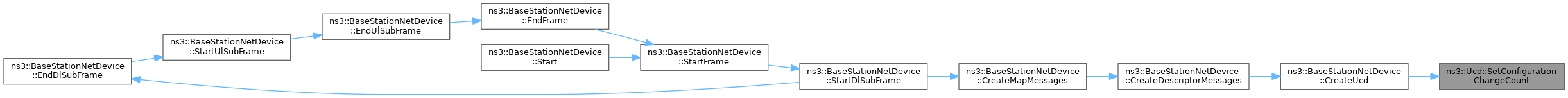

void ns3::Ucd::SetConfigurationChangeCount | ( | uint8_t | ucdCount | ) |
Set configuration change count.
ucdCount | the UCD count |
Definition at line 271 of file ul-mac-messages.cc.
References m_configurationChangeCount.
Referenced by ns3::BaseStationNetDevice::CreateUcd().
void ns3::Ucd::SetNrUlBurstProfiles | ( | uint8_t | nrUlBurstProfiles | ) |
Set NR UL burst profiles.
nrUlBurstProfiles | the NR UL burst profiles |
Definition at line 313 of file ul-mac-messages.cc.
References m_nrUlBurstProfiles.
Referenced by ns3::SubscriberStationNetDevice::DoReceive().

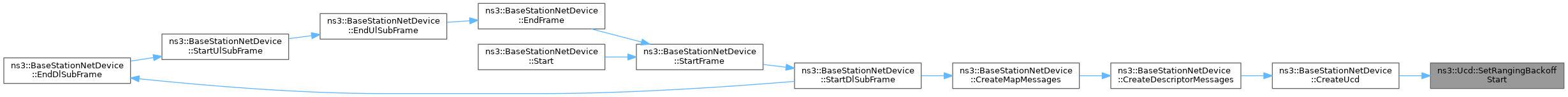

void ns3::Ucd::SetRangingBackoffEnd | ( | uint8_t | rangingBackoffEnd | ) |
Set ranging backoff end.
rangingBackoffEnd | the ranging backoff end |
Definition at line 283 of file ul-mac-messages.cc.
References m_rangingBackoffEnd.
Referenced by ns3::BaseStationNetDevice::CreateUcd().

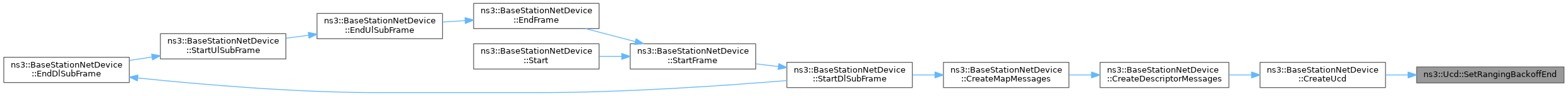

void ns3::Ucd::SetRangingBackoffStart | ( | uint8_t | rangingBackoffStart | ) |
Set ranging backoff start.
rangingBackoffStart | ranging backoff start |
Definition at line 277 of file ul-mac-messages.cc.
References m_rangingBackoffStart.
Referenced by ns3::BaseStationNetDevice::CreateUcd().
void ns3::Ucd::SetRequestBackoffEnd | ( | uint8_t | requestBackoffEnd | ) |
Set request backoff end.
requestBackoffEnd | the request backoff end |
Definition at line 295 of file ul-mac-messages.cc.
References m_requestBackoffEnd.
Referenced by ns3::BaseStationNetDevice::CreateUcd().
void ns3::Ucd::SetRequestBackoffStart | ( | uint8_t | requestBackoffStart | ) |
Set request backoff start.
requestBackoffStart | the request backoff start |
Definition at line 289 of file ul-mac-messages.cc.
References m_requestBackoffStart.
Referenced by ns3::BaseStationNetDevice::CreateUcd().
|
private |
TLV Encoded information for the overall channel.
Definition at line 434 of file ul-mac-messages.h.
Referenced by Deserialize(), GetChannelEncodings(), GetSerializedSize(), Serialize(), and SetChannelEncodings().
|
private |
configuration change count
Definition at line 429 of file ul-mac-messages.h.
Referenced by Deserialize(), GetConfigurationChangeCount(), Print(), Serialize(), and SetConfigurationChangeCount().
|
private |
number UL burst profiles
Definition at line 437 of file ul-mac-messages.h.
Referenced by Deserialize(), GetNrUlBurstProfiles(), and SetNrUlBurstProfiles().
|
private |
ranging backoff end
Definition at line 431 of file ul-mac-messages.h.
Referenced by Deserialize(), GetRangingBackoffEnd(), Print(), Serialize(), and SetRangingBackoffEnd().
|
private |
ranging backoff start
Definition at line 430 of file ul-mac-messages.h.
Referenced by Deserialize(), GetRangingBackoffStart(), Print(), Serialize(), and SetRangingBackoffStart().
|
private |
request backoff end
Definition at line 433 of file ul-mac-messages.h.
Referenced by Deserialize(), GetRequestBackoffEnd(), Print(), Serialize(), and SetRequestBackoffEnd().
|
private |
request backoff start
Definition at line 432 of file ul-mac-messages.h.
Referenced by Deserialize(), GetRequestBackoffStart(), Print(), Serialize(), and SetRequestBackoffStart().
|
private |
UL burst profiles.
Definition at line 435 of file ul-mac-messages.h.
Referenced by AddUlBurstProfile(), GetSerializedSize(), GetUlBurstProfiles(), Print(), and Serialize().
