6LoWPAN FRAGN header - see RFC 4944. More...

#include "sixlowpan-header.h"

Inheritance diagram for ns3::SixLowPanFragN:

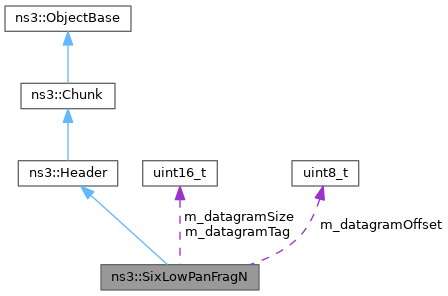

Collaboration diagram for ns3::SixLowPanFragN:

Public Member Functions
	SixLowPanFragN ()

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet.

uint8_t	GetDatagramOffset () const
	Get the datagram offset.

uint16_t	GetDatagramSize () const
	Get the datagram size.

uint16_t	GetDatagramTag () const
	Get the datagram tag.

TypeId	GetInstanceTypeId () const override
	Return the instance type identifier.

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet.

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet.

void	SetDatagramOffset (uint8_t datagramOffset)
	Set the datagram offset.

void	SetDatagramSize (uint16_t datagramSize)
	Set the datagram size.

void	SetDatagramTag (uint16_t datagramTag)
	Set the datagram tag.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
uint8_t	m_datagramOffset
	Datagram offset.

uint16_t	m_datagramSize
	Datagram size.

uint16_t	m_datagramTag
	Datagram tag.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

6LoWPAN FRAGN header - see RFC 4944.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 451 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanFragN()

ns3::SixLowPanFragN::SixLowPanFragN ( )

Definition at line 662 of file sixlowpan-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SixLowPanFragN::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

[in] start Buffer iterator.

Returns: Size of the packet.

Implements ns3::Header.

Definition at line 716 of file sixlowpan-header.cc.

References GetSerializedSize(), m_datagramOffset, m_datagramSize, m_datagramTag, ns3::Buffer::Iterator::ReadU16(), and ns3::Buffer::Iterator::ReadU8().

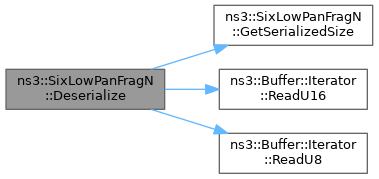

Here is the call graph for this function:

◆ GetDatagramOffset()

uint8_t ns3::SixLowPanFragN::GetDatagramOffset ( ) const

Get the datagram offset.

Returns: The datagram offset.

Definition at line 761 of file sixlowpan-header.cc.

References m_datagramOffset.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

Here is the caller graph for this function:

◆ GetDatagramSize()

uint16_t ns3::SixLowPanFragN::GetDatagramSize ( ) const

Get the datagram size.

Returns: The datagram size.

Definition at line 737 of file sixlowpan-header.cc.

References m_datagramSize.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

Here is the caller graph for this function:

◆ GetDatagramTag()

uint16_t ns3::SixLowPanFragN::GetDatagramTag ( ) const

Get the datagram tag.

Returns: The datagram tag.

Definition at line 749 of file sixlowpan-header.cc.

References m_datagramTag.

Referenced by ns3::SixLowPanNetDevice::ProcessFragment().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanFragN::GetInstanceTypeId ( ) const

overridevirtual

Return the instance type identifier.

Returns: Instance type ID.

Implements ns3::ObjectBase.

Definition at line 683 of file sixlowpan-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SixLowPanFragN::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: Size.

Implements ns3::Header.

Definition at line 696 of file sixlowpan-header.cc.

Referenced by Deserialize(), and ns3::SixLowPanNetDevice::DoFragmentation().

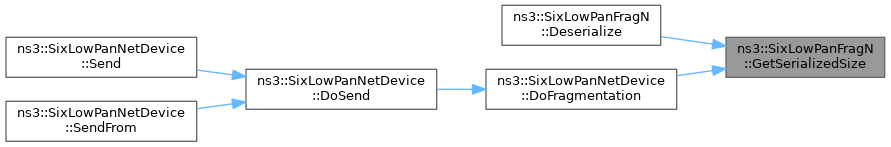

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SixLowPanFragN::GetTypeId ( )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 673 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

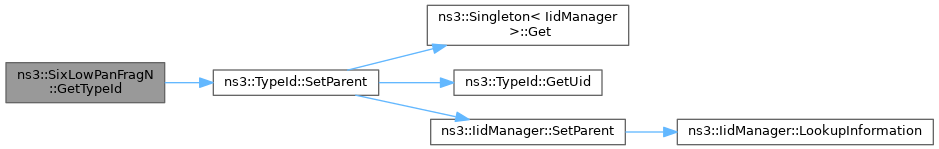

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::SixLowPanFragN::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 689 of file sixlowpan-header.cc.

References m_datagramOffset, m_datagramSize, and m_datagramTag.

Referenced by ns3::operator<<().

Here is the caller graph for this function:
