ns3::UanHeaderRcData Class Reference

Extra data header information. More...

#include "uan-header-rc.h"

+ Inheritance diagram for ns3::UanHeaderRcData:

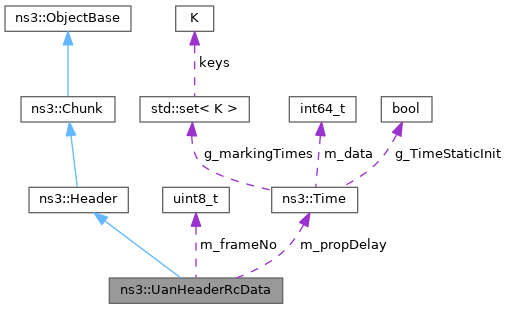

+ Collaboration diagram for ns3::UanHeaderRcData:

Public Member Functions

 UanHeaderRcData ()
 Default constructor.

 UanHeaderRcData (uint8_t frameNum, Time propDelay)
 Constructor.

 ~UanHeaderRcData () override
 Destructor.

uint32_t Deserialize (Buffer::Iterator start) override

uint8_t GetFrameNo () const
 Get the frame number of the reservation being transmitted.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

Time GetPropDelay () const
 Get the propagation delay found in handshaking.

uint32_t GetSerializedSize () const override

void Print (std::ostream &os) const override

void Print (std::ostream &os, Time::Unit unit) const
 Specialized Print with Time::Unit declared.

void Serialize (Buffer::Iterator start) const override

void SetFrameNo (uint8_t frameNum)
 Set the frame number of the reservation being transmitted.

void SetPropDelay (Time propDelay)
 Set the propagation delay as found in handshaking.

- Public Member Functions inherited from ns3::Header
 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

uint8_t m_frameNo
 Data frame number.

Time m_propDelay
 Propagation delay.


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Extra data header information.

Introspection did not find any typical Config paths.

Adds propagation delay measure, and frame number info to transmitted data packet.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 40 of file uan-header-rc.h.

Constructor & Destructor Documentation

◆ UanHeaderRcData() [1/2]

ns3::UanHeaderRcData::UanHeaderRcData ( )

Default constructor.

Definition at line 35 of file uan-header-rc.cc.

◆ UanHeaderRcData() [2/2]

ns3::UanHeaderRcData::UanHeaderRcData ( uint8_t  frameNum,
Time  propDelay
)

Constructor.

Parameters
frameNumData frame # of reservation being transmitted.
propDelayMeasured propagation delay found in handshaking.
Note
Prop. delay is transmitted with 16 bits and ms accuracy.

Definition at line 42 of file uan-header-rc.cc.

◆ ~UanHeaderRcData()

ns3::UanHeaderRcData::~UanHeaderRcData ( )
override

Destructor.

Definition at line 49 of file uan-header-rc.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::UanHeaderRcData::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 101 of file uan-header-rc.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_frameNo, m_propDelay, and ns3::Seconds().

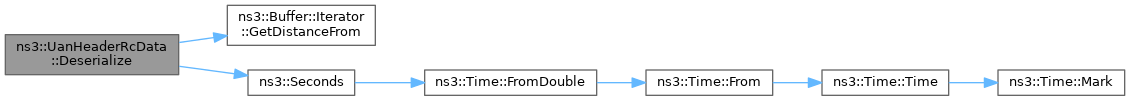

+ Here is the call graph for this function:

◆ GetFrameNo()

uint8_t ns3::UanHeaderRcData::GetFrameNo ( ) const

Get the frame number of the reservation being transmitted.

Returns
The data frame number.

Definition at line 76 of file uan-header-rc.cc.

References m_frameNo.

Referenced by ns3::UanMacRcGw::ReceivePacket().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::UanHeaderRcData::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 124 of file uan-header-rc.cc.

References GetTypeId().

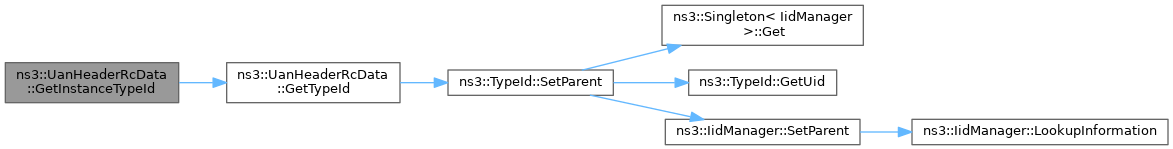

+ Here is the call graph for this function:

◆ GetPropDelay()

Time ns3::UanHeaderRcData::GetPropDelay ( ) const

Get the propagation delay found in handshaking.

Returns
The measured propagation delay.
Note
Prop. delay is transmitted with 16 bits and ms accuracy

Definition at line 82 of file uan-header-rc.cc.

References m_propDelay.

Referenced by ns3::UanMacRcGw::ReceivePacket().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::UanHeaderRcData::GetSerializedSize ( ) const
overridevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 88 of file uan-header-rc.cc.

Referenced by ns3::Reservation::Reservation().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::UanHeaderRcData::GetTypeId ( )
static

Register this type.

Returns
The TypeId.

Definition at line 54 of file uan-header-rc.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

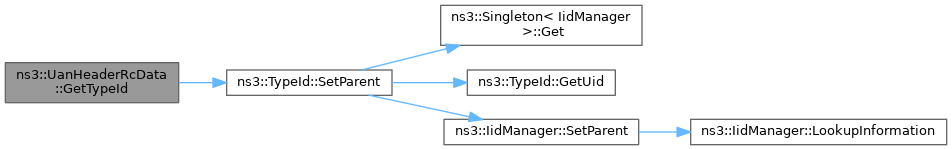

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print() [1/2]

void ns3::UanHeaderRcData::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 118 of file uan-header-rc.cc.

References Print(), and ns3::Time::S.

+ Here is the call graph for this function:

◆ Print() [2/2]

void ns3::UanHeaderRcData::Print ( std::ostream &  os,
Time::Unit  unit
) const

Specialized Print with Time::Unit declared.

Parameters
osostream.
unitTime unit.

Definition at line 112 of file uan-header-rc.cc.

References ns3::Time::As(), m_frameNo, and m_propDelay.

Referenced by Print().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Serialize()

void ns3::UanHeaderRcData::Serialize ( Buffer::Iterator  start) const
overridevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 94 of file uan-header-rc.cc.

References ns3::Time::GetMilliSeconds(), m_frameNo, m_propDelay, ns3::Time::MS, and ns3::Time::RoundTo().

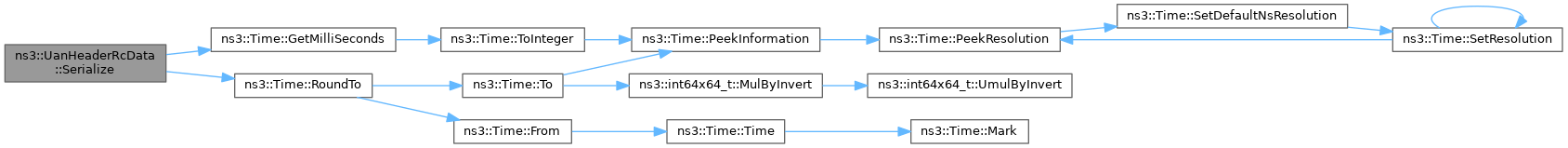

+ Here is the call graph for this function:

◆ SetFrameNo()

void ns3::UanHeaderRcData::SetFrameNo ( uint8_t  frameNum)

Set the frame number of the reservation being transmitted.

Parameters
frameNumThe data frame number.

Definition at line 64 of file uan-header-rc.cc.

References m_frameNo.

Referenced by ns3::UanMacRc::ScheduleData().

+ Here is the caller graph for this function:

◆ SetPropDelay()

void ns3::UanHeaderRcData::SetPropDelay ( Time  propDelay)

Set the propagation delay as found in handshaking.

Parameters
propDelayThe measured propagation delay.
Note
Prop. delay is transmitted with 16 bits and ms accuracy.

Definition at line 70 of file uan-header-rc.cc.

References m_propDelay.

Referenced by ns3::UanMacRc::ScheduleData().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_frameNo

uint8_t ns3::UanHeaderRcData::m_frameNo
private

Data frame number.

Definition at line 104 of file uan-header-rc.h.

Referenced by Deserialize(), GetFrameNo(), Print(), Serialize(), and SetFrameNo().

◆ m_propDelay

Time ns3::UanHeaderRcData::m_propDelay
private

Propagation delay.

Definition at line 105 of file uan-header-rc.h.

Referenced by Deserialize(), GetPropDelay(), Print(), Serialize(), and SetPropDelay().


The documentation for this class was generated from the following files:
