Implements the header for the MAC payload command frame according to the IEEE 802.15.4-2011 Std. More...

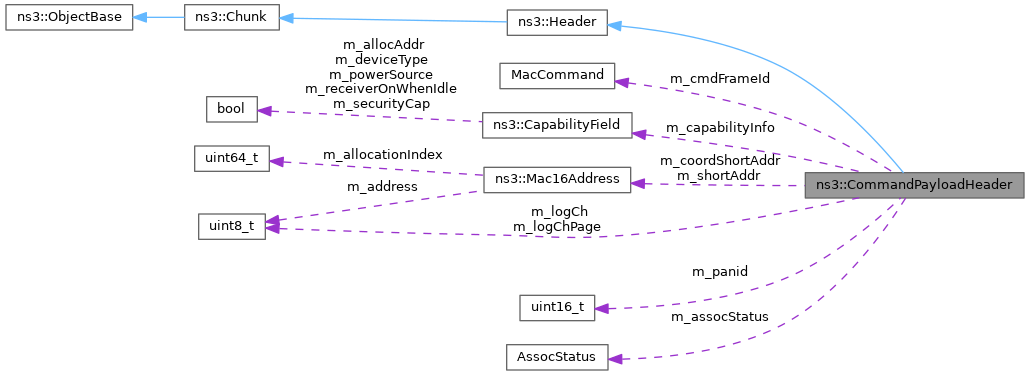

#include "lr-wpan-mac-pl-headers.h"
Public Types | |
enum | AssocStatus { SUCCESSFUL = 0x00 , FULL_CAPACITY = 0x01 , ACCESS_DENIED = 0x02 } |
Association Status Field values. More... | |
enum | MacCommand { ASSOCIATION_REQ = 0x01 , ASSOCIATION_RESP = 0x02 , DISASSOCIATION_NOTIF = 0x03 , DATA_REQ = 0x04 , PANID_CONFLICT = 0x05 , ORPHAN_NOTIF = 0x06 , BEACON_REQ = 0x07 , COOR_REALIGN = 0x08 , GTS_REQ = 0x09 , CMD_RESERVED = 0xff } |
The MAC command frames. More... | |
Public Member Functions | |
CommandPayloadHeader () | |
CommandPayloadHeader (MacCommand macCmd) | |
Constructor. | |
uint32_t | Deserialize (Buffer::Iterator start) override |
AssocStatus | GetAssociationStatus () const |
Get the status resulting from an association request (Association Response Command). | |
CapabilityField | GetCapabilityField () const |
Get the Capability Information Field from the command payload header. | |
uint8_t | GetChannel () const |
Get the logical channel number. | |
MacCommand | GetCommandFrameType () const |
Get the command frame type ID. | |
Mac16Address | GetCoordShortAddr () const |
Get the coordinator short address. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
uint8_t | GetPage () const |
Get the logical channel page number. | |
uint16_t | GetPanId () const |
Get the PAN identifier. | |
uint32_t | GetSerializedSize () const override |
Mac16Address | GetShortAddr () const |
Get the Short address assigned by the coordinator (Association Response and Coordinator Realigment commands). | |

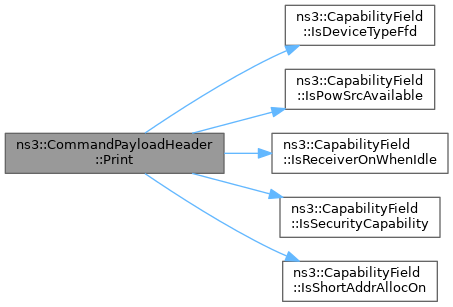

void | Print (std::ostream &os) const override |
void | Serialize (Buffer::Iterator start) const override |
void | SetAssociationStatus (AssocStatus status) |
Set status resulting from the association attempt (Association Response Command). | |
void | SetCapabilityField (CapabilityField cap) |
Set the Capability Information Field to the command payload header (Association Request Command). | |
void | SetChannel (uint8_t channel) |
Set the logical channel number. | |

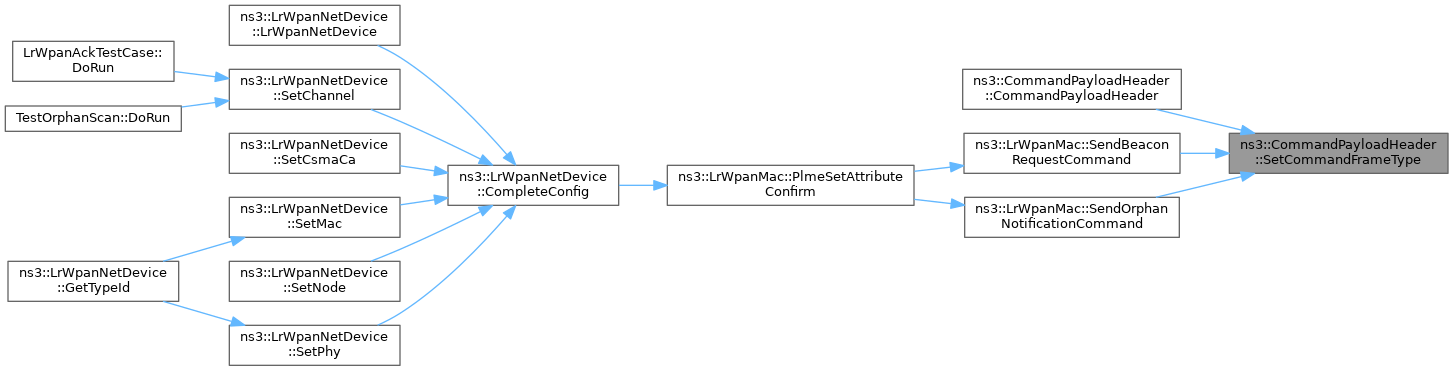

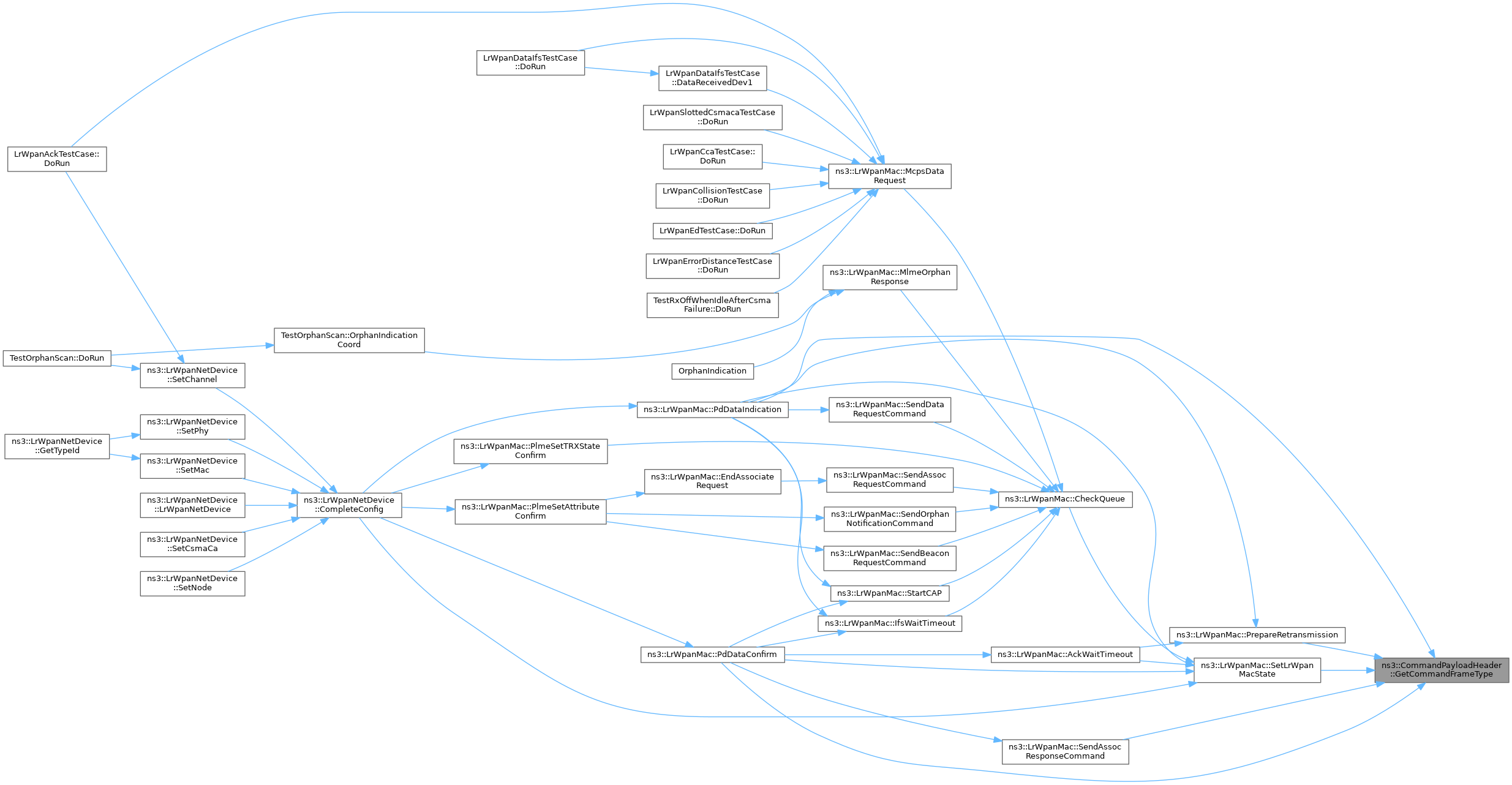

void | SetCommandFrameType (MacCommand macCmd) |
Set the command frame type. | |
void | SetCoordShortAddr (Mac16Address addr) |
Set the coordinator short address (16 bit address). | |
void | SetPage (uint8_t page) |
Set the logical channel page number. | |
void | SetPanId (uint16_t id) |
Get the PAN identifier. | |
void | SetShortAddr (Mac16Address shortAddr) |
Set the Short Address Assigned by the coordinator (Association Response and Coordinator Realigment Commands). | |
![]() | |
~Header () override | |
uint32_t | Deserialize (Buffer::Iterator start) override=0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | GetSerializedSize () const =0 |
void | Print (std::ostream &os) const override=0 |
virtual void | Serialize (Buffer::Iterator start) const =0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual void | Print (std::ostream &os) const =0 |
Print the object contents. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
AssocStatus | m_assocStatus |
Association Status (Association Response Command) | |
CapabilityField | m_capabilityInfo |
Capability Information Field (Association Request Command) | |
MacCommand | m_cmdFrameId |
The command Frame Identifier (Used by all commands) | |
Mac16Address | m_coordShortAddr |
The coordinator short address (Coordinator realigment command) | |
uint8_t | m_logCh |
The channel number (Coordinator realigment command) | |
uint8_t | m_logChPage |
The channel page number (Coordinator realigment command) | |
uint16_t | m_panid |
The PAN identifier (Coordinator realigment command) | |
Mac16Address | m_shortAddr |
Contains the short address assigned by the coordinator. | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Implements the header for the MAC payload command frame according to the IEEE 802.15.4-2011 Std.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).
Definition at line 105 of file lr-wpan-mac-pl-headers.h.
Association Status Field values.
See IEEE 802.15.4-2011, Table 6
Enumerator | |
---|---|
SUCCESSFUL | Association successful. |
FULL_CAPACITY | PAN at capacity. |
ACCESS_DENIED | PAN access denied. |
Definition at line 130 of file lr-wpan-mac-pl-headers.h.
The MAC command frames.
See IEEE 802.15.4-2011, Table 5
Definition at line 112 of file lr-wpan-mac-pl-headers.h.
ns3::CommandPayloadHeader::CommandPayloadHeader | ( | ) |
Definition at line 133 of file lr-wpan-mac-pl-headers.cc.
References CMD_RESERVED, and SetCommandFrameType().
ns3::CommandPayloadHeader::CommandPayloadHeader | ( | MacCommand | macCmd | ) |
Constructor.
macCmd | the command type of this command header |
Definition at line 138 of file lr-wpan-mac-pl-headers.cc.
References SetCommandFrameType().
|
overridevirtual |
start | an iterator which points to where the header should read from. |
This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.
Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

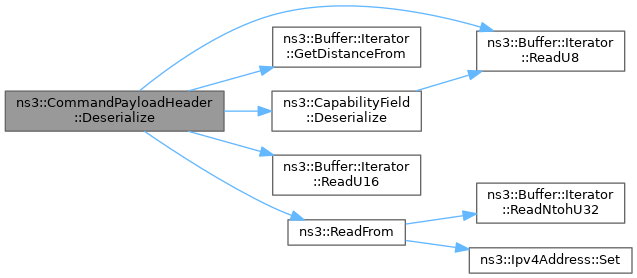

Implements ns3::Header.
Definition at line 235 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_REQ, ASSOCIATION_RESP, BEACON_REQ, CMD_RESERVED, COOR_REALIGN, DATA_REQ, ns3::CapabilityField::Deserialize(), DISASSOCIATION_NOTIF, ns3::Buffer::Iterator::GetDistanceFrom(), GTS_REQ, m_assocStatus, m_capabilityInfo, m_cmdFrameId, m_coordShortAddr, m_logCh, m_logChPage, m_panid, m_shortAddr, ORPHAN_NOTIF, PANID_CONFLICT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU16(), and ns3::Buffer::Iterator::ReadU8().
CommandPayloadHeader::AssocStatus ns3::CommandPayloadHeader::GetAssociationStatus | ( | ) | const |
Get the status resulting from an association request (Association Response Command).
Definition at line 406 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_RESP, m_assocStatus, m_cmdFrameId, and NS_ASSERT.
Referenced by ns3::LrWpanMac::PdDataConfirm().
CapabilityField ns3::CommandPayloadHeader::GetCapabilityField | ( | ) | const |
Get the Capability Information Field from the command payload header.
(Association Request Command)
Definition at line 413 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_REQ, m_capabilityInfo, m_cmdFrameId, and NS_ASSERT.
Referenced by ns3::LrWpanMac::PdDataConfirm().
uint8_t ns3::CommandPayloadHeader::GetChannel | ( | ) | const |
Get the logical channel number.
Definition at line 427 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_logCh, and NS_ASSERT.
CommandPayloadHeader::MacCommand ns3::CommandPayloadHeader::GetCommandFrameType | ( | ) | const |
Get the command frame type ID.
Definition at line 358 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_REQ, ASSOCIATION_RESP, BEACON_REQ, CMD_RESERVED, COOR_REALIGN, DATA_REQ, DISASSOCIATION_NOTIF, GTS_REQ, m_cmdFrameId, ORPHAN_NOTIF, and PANID_CONFLICT.
Referenced by ns3::LrWpanMac::PdDataConfirm(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::SendAssocResponseCommand(), and ns3::LrWpanMac::SetLrWpanMacState().

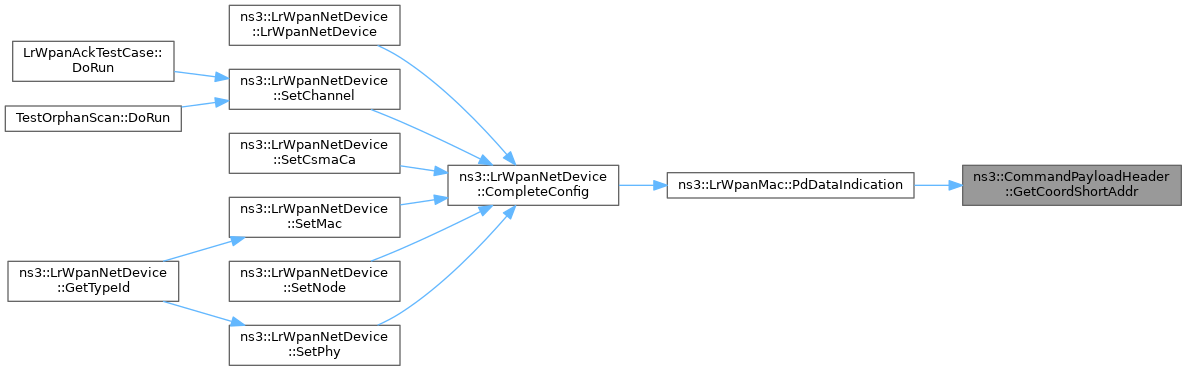

Mac16Address ns3::CommandPayloadHeader::GetCoordShortAddr | ( | ) | const |
Get the coordinator short address.
Definition at line 420 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_coordShortAddr, and NS_ASSERT.
Referenced by ns3::LrWpanMac::PdDataIndication().
|
overridevirtual |
Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.

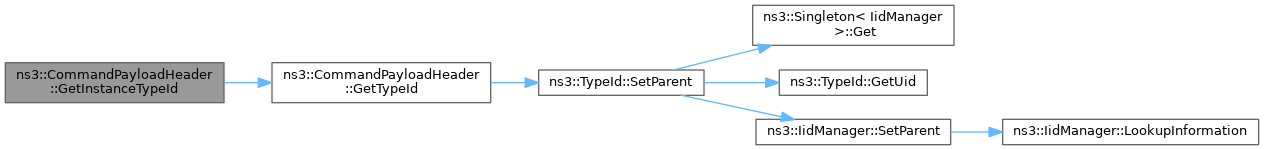

Definition at line 156 of file lr-wpan-mac-pl-headers.cc.
References GetTypeId().
uint8_t ns3::CommandPayloadHeader::GetPage | ( | ) | const |
Get the logical channel page number.
Definition at line 434 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_logChPage, and NS_ASSERT.
uint16_t ns3::CommandPayloadHeader::GetPanId | ( | ) | const |
Get the PAN identifier.
Definition at line 441 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_panid, and NS_ASSERT.
Referenced by ns3::LrWpanMac::PdDataIndication().
|
overridevirtual |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.
Implements ns3::Header.

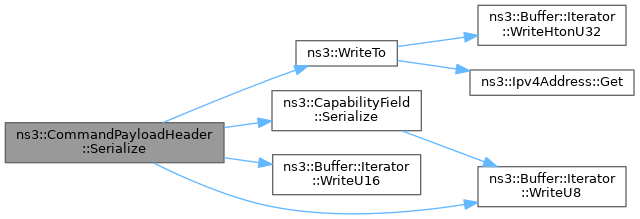

Definition at line 162 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_REQ, ASSOCIATION_RESP, BEACON_REQ, CMD_RESERVED, COOR_REALIGN, DATA_REQ, DISASSOCIATION_NOTIF, ns3::CapabilityField::GetSerializedSize(), GTS_REQ, m_capabilityInfo, m_cmdFrameId, ORPHAN_NOTIF, and PANID_CONFLICT.
Mac16Address ns3::CommandPayloadHeader::GetShortAddr | ( | ) | const |
Get the Short address assigned by the coordinator (Association Response and Coordinator Realigment commands).
Definition at line 400 of file lr-wpan-mac-pl-headers.cc.
References m_shortAddr.

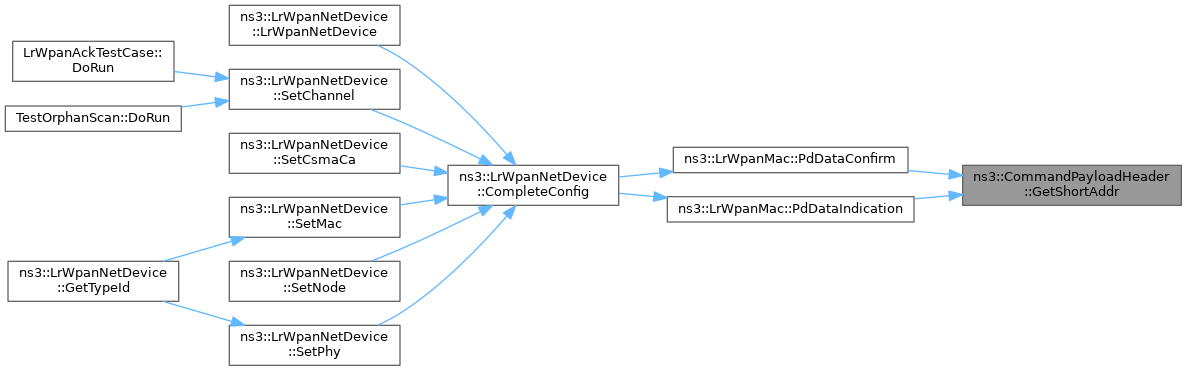

Referenced by ns3::LrWpanMac::PdDataConfirm(), and ns3::LrWpanMac::PdDataIndication().
|

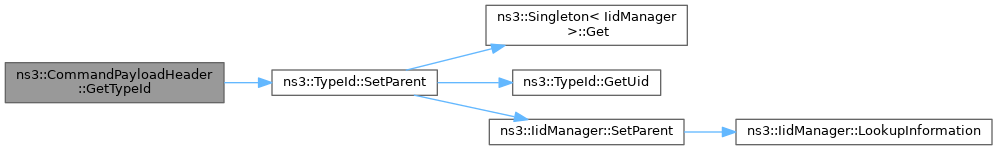

static |
Get the type ID.
Definition at line 146 of file lr-wpan-mac-pl-headers.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
overridevirtual |
os | output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Implements ns3::Header.
Definition at line 276 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_REQ, ASSOCIATION_RESP, BEACON_REQ, CMD_RESERVED, COOR_REALIGN, DATA_REQ, DISASSOCIATION_NOTIF, GTS_REQ, ns3::CapabilityField::IsDeviceTypeFfd(), ns3::CapabilityField::IsPowSrcAvailable(), ns3::CapabilityField::IsReceiverOnWhenIdle(), ns3::CapabilityField::IsSecurityCapability(), ns3::CapabilityField::IsShortAddrAllocOn(), m_assocStatus, m_capabilityInfo, m_cmdFrameId, m_coordShortAddr, m_logCh, m_logChPage, m_panid, m_shortAddr, ORPHAN_NOTIF, and PANID_CONFLICT.
|
overridevirtual |
start | an iterator which points to where the header should be written. |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.
Implements ns3::Header.
Definition at line 196 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_REQ, ASSOCIATION_RESP, BEACON_REQ, CMD_RESERVED, COOR_REALIGN, DATA_REQ, DISASSOCIATION_NOTIF, GTS_REQ, m_assocStatus, m_capabilityInfo, m_cmdFrameId, m_coordShortAddr, m_logCh, m_logChPage, m_panid, m_shortAddr, ORPHAN_NOTIF, PANID_CONFLICT, ns3::CapabilityField::Serialize(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().
void ns3::CommandPayloadHeader::SetAssociationStatus | ( | AssocStatus | status | ) |
Set status resulting from the association attempt (Association Response Command).
status | The status resulting from the association attempt |
Definition at line 393 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_RESP, m_assocStatus, m_cmdFrameId, and NS_ASSERT.
Referenced by ns3::LrWpanMac::MlmeAssociateResponse().
void ns3::CommandPayloadHeader::SetCapabilityField | ( | CapabilityField | cap | ) |
Set the Capability Information Field to the command payload header (Association Request Command).
cap | The capability Information field |

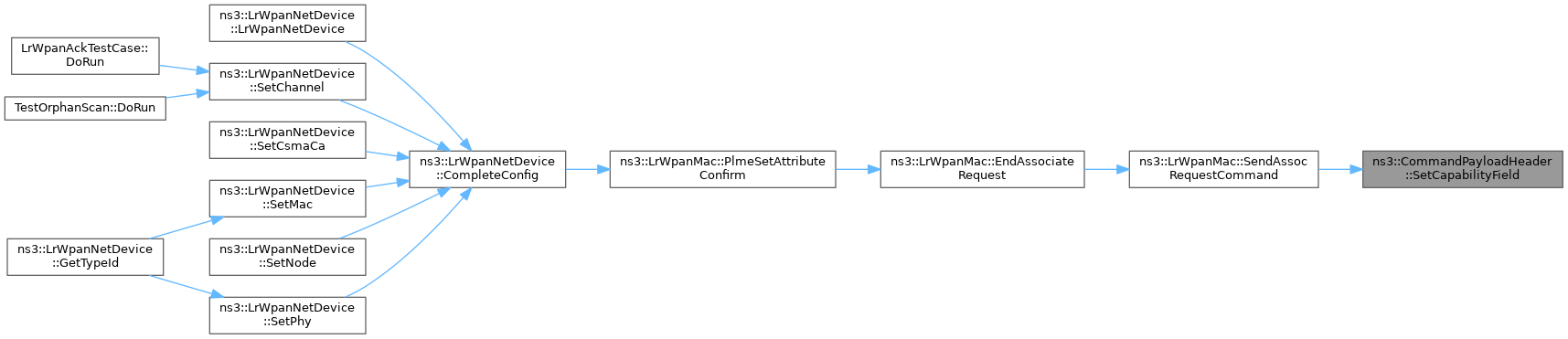

Definition at line 323 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_REQ, m_capabilityInfo, m_cmdFrameId, and NS_ASSERT.
Referenced by ns3::LrWpanMac::SendAssocRequestCommand().
void ns3::CommandPayloadHeader::SetChannel | ( | uint8_t | channel | ) |
Set the logical channel number.
channel | The channel number. |
Definition at line 337 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_logCh, and NS_ASSERT.
Referenced by ns3::LrWpanMac::MlmeOrphanResponse().
void ns3::CommandPayloadHeader::SetCommandFrameType | ( | MacCommand | macCmd | ) |
Set the command frame type.
macCmd | the command frame type |
Definition at line 317 of file lr-wpan-mac-pl-headers.cc.
References m_cmdFrameId.
Referenced by CommandPayloadHeader(), ns3::LrWpanMac::SendBeaconRequestCommand(), and ns3::LrWpanMac::SendOrphanNotificationCommand().
void ns3::CommandPayloadHeader::SetCoordShortAddr | ( | Mac16Address | addr | ) |
Set the coordinator short address (16 bit address).
addr | The coordinator short address. |
Definition at line 330 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_coordShortAddr, and NS_ASSERT.
Referenced by ns3::LrWpanMac::MlmeOrphanResponse().
void ns3::CommandPayloadHeader::SetPage | ( | uint8_t | page | ) |
Set the logical channel page number.
page | The page number. |
Definition at line 344 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_logChPage, and NS_ASSERT.
Referenced by ns3::LrWpanMac::MlmeOrphanResponse().

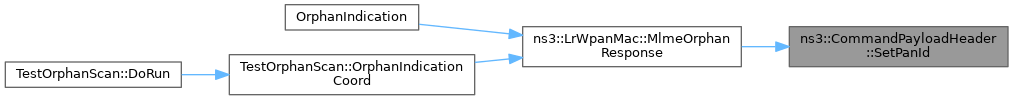

void ns3::CommandPayloadHeader::SetPanId | ( | uint16_t | id | ) |
Get the PAN identifier.
id | The PAN identifier. |
Definition at line 351 of file lr-wpan-mac-pl-headers.cc.
References COOR_REALIGN, m_cmdFrameId, m_panid, and NS_ASSERT.
Referenced by ns3::LrWpanMac::MlmeOrphanResponse().

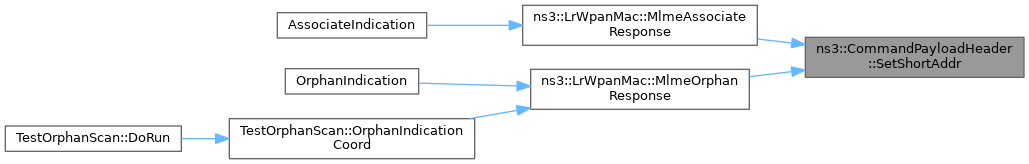

void ns3::CommandPayloadHeader::SetShortAddr | ( | Mac16Address | shortAddr | ) |
Set the Short Address Assigned by the coordinator (Association Response and Coordinator Realigment Commands).
shortAddr | The short address assigned by the coordinator |
Definition at line 386 of file lr-wpan-mac-pl-headers.cc.
References ASSOCIATION_RESP, COOR_REALIGN, m_cmdFrameId, m_shortAddr, and NS_ASSERT.
Referenced by ns3::LrWpanMac::MlmeAssociateResponse(), and ns3::LrWpanMac::MlmeOrphanResponse().
|
private |
Association Status (Association Response Command)
Definition at line 250 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetAssociationStatus(), Print(), Serialize(), and SetAssociationStatus().
|
private |
Capability Information Field (Association Request Command)
Definition at line 241 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetCapabilityField(), GetSerializedSize(), Print(), Serialize(), and SetCapabilityField().
|
private |
The command Frame Identifier (Used by all commands)
Definition at line 240 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetAssociationStatus(), GetCapabilityField(), GetChannel(), GetCommandFrameType(), GetCoordShortAddr(), GetPage(), GetPanId(), GetSerializedSize(), Print(), Serialize(), SetAssociationStatus(), SetCapabilityField(), SetChannel(), SetCommandFrameType(), SetCoordShortAddr(), SetPage(), SetPanId(), and SetShortAddr().
|
private |
The coordinator short address (Coordinator realigment command)
Definition at line 245 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetCoordShortAddr(), Print(), Serialize(), and SetCoordShortAddr().
|
private |
The channel number (Coordinator realigment command)
Definition at line 248 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetChannel(), Print(), Serialize(), and SetChannel().
|
private |
The channel page number (Coordinator realigment command)
Definition at line 249 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetPage(), Print(), Serialize(), and SetPage().
|
private |
The PAN identifier (Coordinator realigment command)
Definition at line 247 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetPanId(), Print(), Serialize(), and SetPanId().
|
private |
Contains the short address assigned by the coordinator.
(Association Response and Coordinator Realiagment Command)
Definition at line 243 of file lr-wpan-mac-pl-headers.h.
Referenced by Deserialize(), GetShortAddr(), Print(), Serialize(), and SetShortAddr().
