This class implements the DSA-REQ message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.10 DSA-REQ message, page 62. More...
#include "mac-messages.h"
Public Member Functions | |
DsaReq () | |
DsaReq (ServiceFlow sf) | |
Constructor. | |
~DsaReq () override | |
uint32_t | Deserialize (Buffer::Iterator start) override |
Cid | GetCid () const |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
std::string | GetName () const |
uint32_t | GetSerializedSize () const override |
ServiceFlow | GetServiceFlow () const |
uint32_t | GetSfid () const |
uint16_t | GetTransactionId () const |
void | Print (std::ostream &os) const override |
void | Serialize (Buffer::Iterator start) const override |
void | SetCid (Cid cid) |
set the connection identifier | |
void | SetServiceFlow (ServiceFlow sf) |
specify a service flow to be requested by this message | |
void | SetSfid (uint32_t sfid) |
set the service flow identifier | |
void | SetTransactionId (uint16_t transactionId) |
set the transaction ID | |
![]() | |
~Header () override | |
uint32_t | Deserialize (Buffer::Iterator start) override=0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | GetSerializedSize () const =0 |
void | Print (std::ostream &os) const override=0 |
virtual void | Serialize (Buffer::Iterator start) const =0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual void | Print (std::ostream &os) const =0 |
Print the object contents. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
Cid | m_cid |
CID. | |
ServiceFlow | m_serviceFlow |
service flow | |
uint32_t | m_sfid |
SFID. | |
uint16_t | m_transactionId |
transaction ID | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
This class implements the DSA-REQ message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.10 DSA-REQ message, page 62.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 288 bytes (on a 64-bit architecture).
Definition at line 385 of file mac-messages.h.
ns3::DsaReq::DsaReq | ( | ) |
Definition at line 516 of file mac-messages.cc.
|
override |
Definition at line 530 of file mac-messages.cc.
ns3::DsaReq::DsaReq | ( | ServiceFlow | sf | ) |
Constructor.
sf | service flow |
Definition at line 524 of file mac-messages.cc.
References m_serviceFlow, and m_transactionId.
|
overridevirtual |

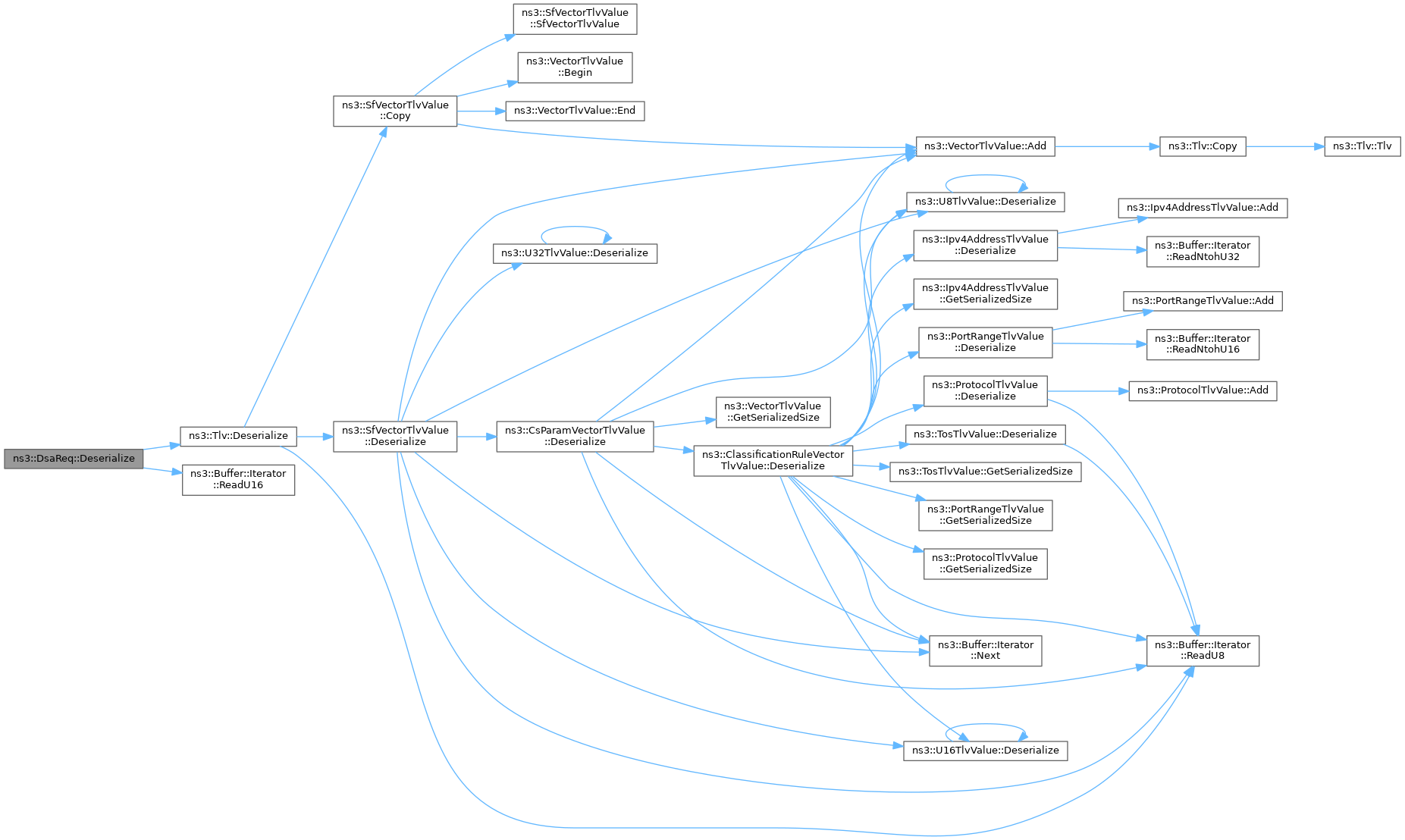

start | an iterator which points to where the header should read from. |
This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.
Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.
Implements ns3::Header.
Definition at line 615 of file mac-messages.cc.
References ns3::Tlv::Deserialize(), m_serviceFlow, m_transactionId, and ns3::Buffer::Iterator::ReadU16().

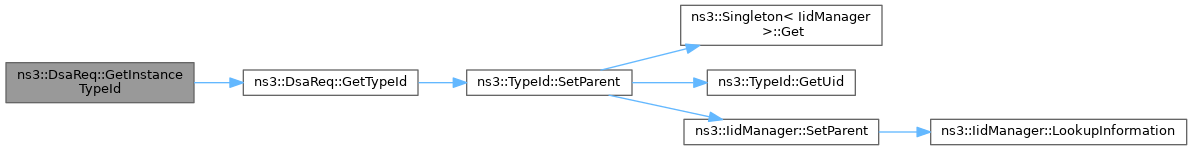

Cid ns3::DsaReq::GetCid | ( | ) | const |
|
overridevirtual |
Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 585 of file mac-messages.cc.
References GetTypeId().
std::string ns3::DsaReq::GetName | ( | ) | const |
Definition at line 571 of file mac-messages.cc.
|

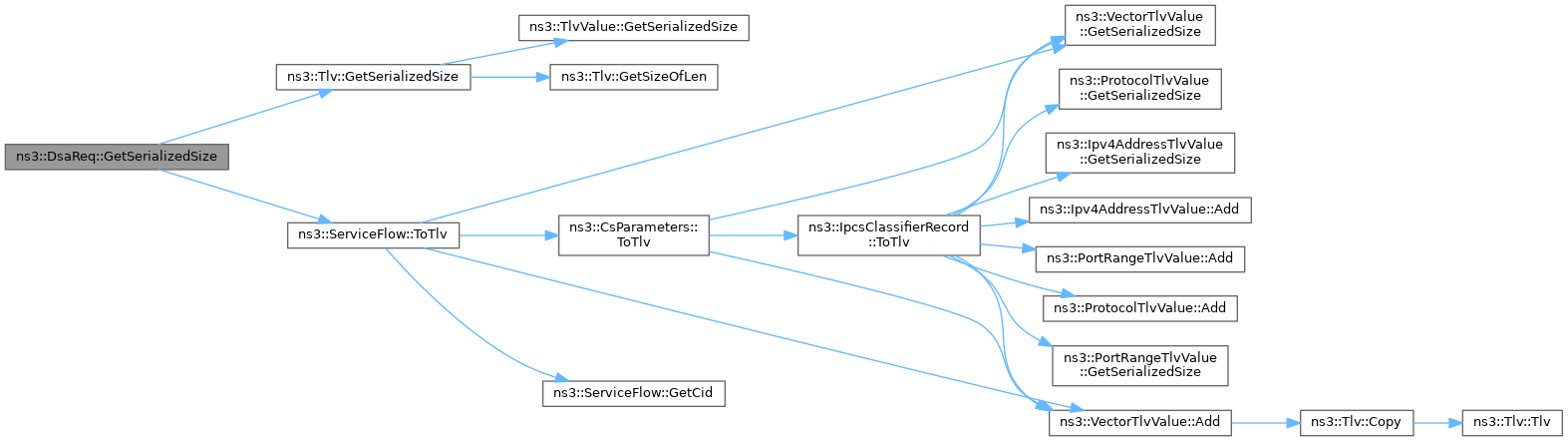

overridevirtual |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.
Implements ns3::Header.
Definition at line 598 of file mac-messages.cc.
References ns3::Tlv::GetSerializedSize(), m_serviceFlow, and ns3::ServiceFlow::ToTlv().

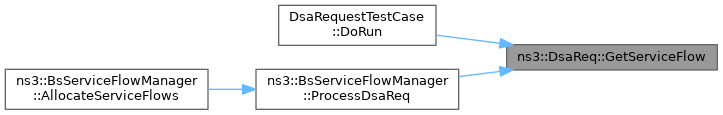

ServiceFlow ns3::DsaReq::GetServiceFlow | ( | ) | const |
Definition at line 626 of file mac-messages.cc.
References m_serviceFlow.
Referenced by DsaRequestTestCase::DoRun(), and ns3::BsServiceFlowManager::ProcessDsaReq().
uint32_t ns3::DsaReq::GetSfid | ( | ) | const |
Definition at line 553 of file mac-messages.cc.
References m_sfid.

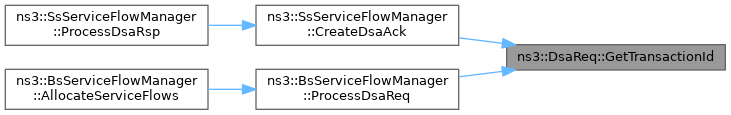

uint16_t ns3::DsaReq::GetTransactionId | ( | ) | const |
Definition at line 541 of file mac-messages.cc.
References m_transactionId.
Referenced by ns3::SsServiceFlowManager::CreateDsaAck(), and ns3::BsServiceFlowManager::ProcessDsaReq().
|

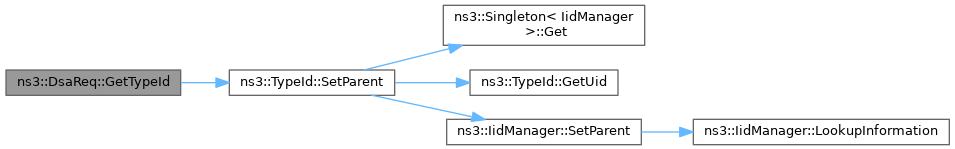

static |
Get the type ID.
Definition at line 577 of file mac-messages.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
overridevirtual |
os | output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Implements ns3::Header.
Definition at line 591 of file mac-messages.cc.
References m_cid, m_sfid, and m_transactionId.
|

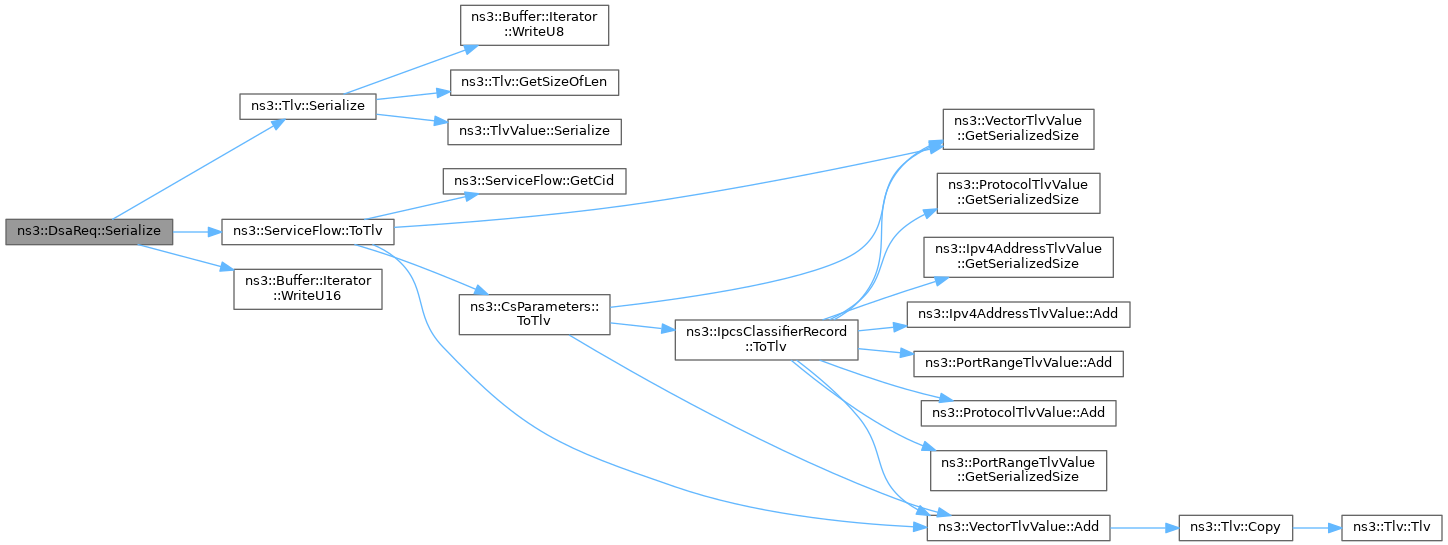

overridevirtual |
start | an iterator which points to where the header should be written. |
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.
Implements ns3::Header.
Definition at line 606 of file mac-messages.cc.
References m_serviceFlow, m_transactionId, ns3::Tlv::Serialize(), ns3::ServiceFlow::ToTlv(), and ns3::Buffer::Iterator::WriteU16().
void ns3::DsaReq::SetCid | ( | Cid | cid | ) |
set the connection identifier
cid | the connection identifier |
Definition at line 559 of file mac-messages.cc.
References m_cid.
void ns3::DsaReq::SetServiceFlow | ( | ServiceFlow | sf | ) |
specify a service flow to be requested by this message
sf | the service flow |
Definition at line 632 of file mac-messages.cc.
References m_serviceFlow.
Referenced by ns3::SsServiceFlowManager::CreateDsaReq().
void ns3::DsaReq::SetSfid | ( | uint32_t | sfid | ) |
set the service flow identifier
sfid | the service flow identifier |
Definition at line 547 of file mac-messages.cc.
References m_sfid.
void ns3::DsaReq::SetTransactionId | ( | uint16_t | transactionId | ) |
set the transaction ID
transactionId |
Definition at line 535 of file mac-messages.cc.
References m_transactionId.
Referenced by ns3::SsServiceFlowManager::CreateDsaReq().
|
private |
|
private |
service flow
Definition at line 452 of file mac-messages.h.
Referenced by DsaReq(), Deserialize(), GetSerializedSize(), GetServiceFlow(), Serialize(), and SetServiceFlow().
|
private |
SFID.
Definition at line 450 of file mac-messages.h.
|
private |
transaction ID
Definition at line 448 of file mac-messages.h.
Referenced by DsaReq(), Deserialize(), GetTransactionId(), Print(), Serialize(), and SetTransactionId().
