ns3::RrcConnectionRequestHeader Class Reference

This class manages the serialization/deserialization of RrcConnectionRequest IE. More...

#include "lte-rrc-header.h"

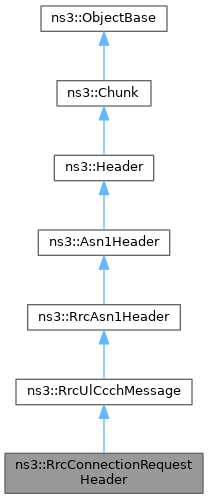

+ Inheritance diagram for ns3::RrcConnectionRequestHeader:

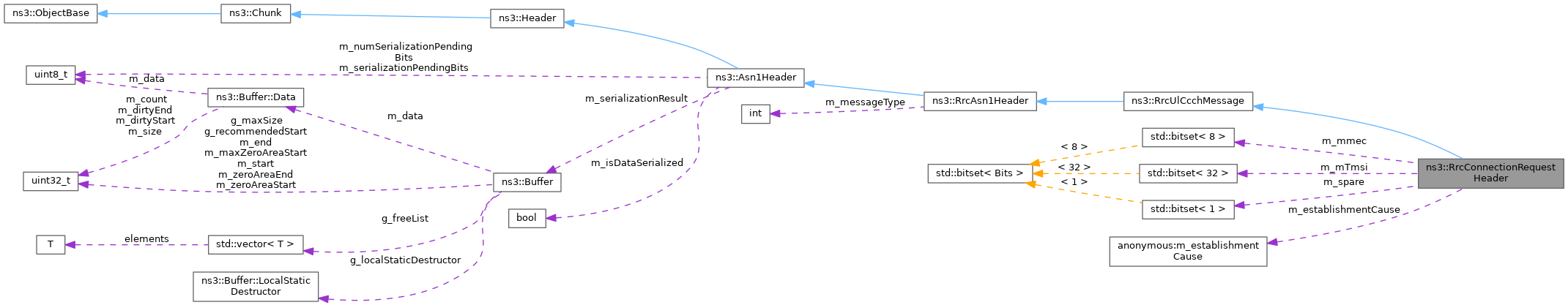

+ Collaboration diagram for ns3::RrcConnectionRequestHeader:

Public Member Functions

 RrcConnectionRequestHeader ()

 ~RrcConnectionRequestHeader () override

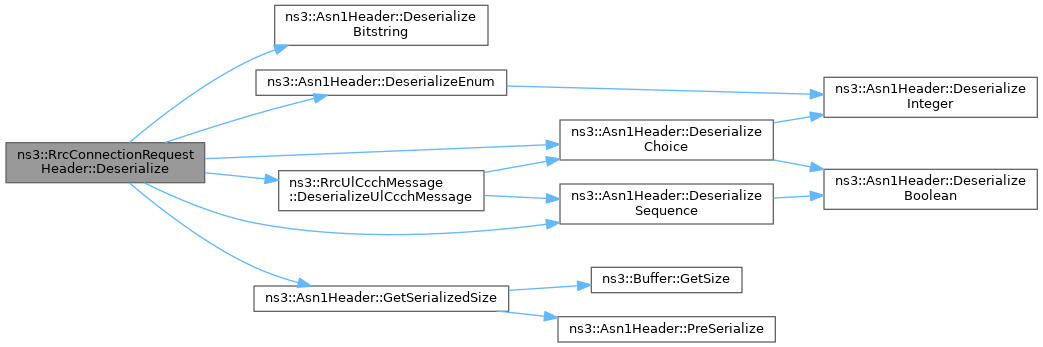

uint32_t Deserialize (Buffer::Iterator bIterator) override

LteRrcSap::RrcConnectionRequest GetMessage () const
 Returns a RrcConnectionRequest IE from the values in the class attributes.

std::bitset< 8 > GetMmec () const
 Get MMEC attribute.

std::bitset< 32 > GetMtmsi () const
 Get M-TMSI attribute.

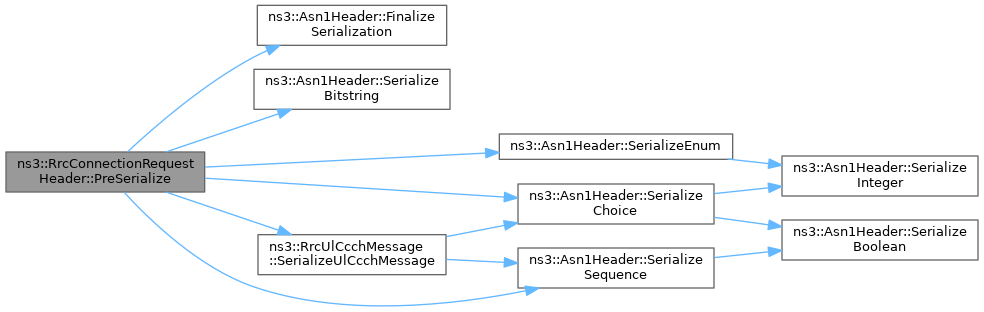

void PreSerialize () const override
 This function serializes class attributes to m_serializationResult local Buffer.

void Print (std::ostream &os) const override
 This function prints the object, for debugging purposes.

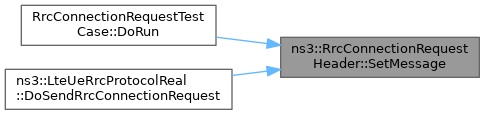

void SetMessage (LteRrcSap::RrcConnectionRequest msg)
 Receives a RrcConnectionRequest IE and stores the contents into the class attributes.

- Public Member Functions inherited from ns3::RrcUlCcchMessage
 RrcUlCcchMessage ()

 ~RrcUlCcchMessage () override

uint32_t Deserialize (Buffer::Iterator bIterator) override

void PreSerialize () const override
 This function serializes class attributes to m_serializationResult local Buffer.

void Print (std::ostream &os) const override
 This function prints the object, for debugging purposes.

- Public Member Functions inherited from ns3::RrcAsn1Header
 RrcAsn1Header ()

int GetMessageType () const
 Get message type.

- Public Member Functions inherited from ns3::Asn1Header
 Asn1Header ()

 ~Asn1Header () override

uint32_t Deserialize (Buffer::Iterator bIterator) override=0

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

uint32_t GetSerializedSize () const override

virtual void PreSerialize () const =0
 This function serializes class attributes to m_serializationResult local Buffer.

void Print (std::ostream &os) const override=0

void Serialize (Buffer::Iterator bIterator) const override

- Public Member Functions inherited from ns3::Header
 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

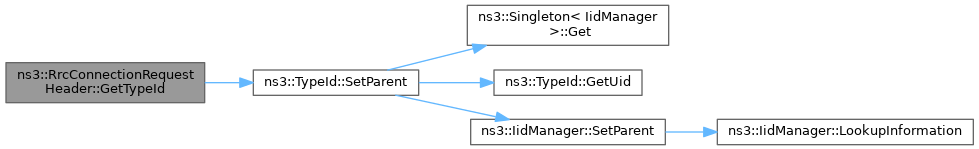

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Asn1Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Types

enum  {
  EMERGENCY = 0 , HIGHPRIORITYACCESS , MT_ACCESS , MO_SIGNALLING ,
  MO_DATA , SPARE3 , SPARE2 , SPARE1
}
 EstablishmentCause enumeration. More...


Private Attributes

enum ns3::RrcConnectionRequestHeader:: { ... }  m_establishmentCause
 EstablishmentCause enumeration.

std::bitset< 8 > m_mmec
 MMEC.

std::bitset< 32 > m_mTmsi
 TMSI.

std::bitset< 1 > m_spare
 spare bit


Additional Inherited Members

- Protected Member Functions inherited from ns3::RrcUlCcchMessage
Buffer::Iterator DeserializeUlCcchMessage (Buffer::Iterator bIterator)
 Deserialize DL CCCH message function.

void SerializeUlCcchMessage (int msgType) const
 Serialize UL CCCH message function.

- Protected Member Functions inherited from ns3::RrcAsn1Header
int BandwidthToEnum (uint16_t bandwidth) const
 Convert from bandwidth (in RBs) to ENUMERATED value.

uint32_t Deserialize (Buffer::Iterator bIterator) override=0

Buffer::Iterator DeserializeCellIdentification (LteRrcSap::CellIdentification *ci, Buffer::Iterator bIterator)
 Deserialize cell identification function.

Buffer::Iterator DeserializeDrbToAddModList (std::list< LteRrcSap::DrbToAddMod > *drbToAddModLis, Buffer::Iterator bIterator)
 Deserialize DRB to add mod list function.

Buffer::Iterator DeserializeLogicalChannelConfig (LteRrcSap::LogicalChannelConfig *logicalChannelConfig, Buffer::Iterator bIterator)
 Deserialize logical channel config function.

Buffer::Iterator DeserializeMeasConfig (LteRrcSap::MeasConfig *measConfig, Buffer::Iterator bIterator)
 Deserialize measure config function.

Buffer::Iterator DeserializeMeasResults (LteRrcSap::MeasResults *measResults, Buffer::Iterator bIterator)
 Deserialize measure results function.

Buffer::Iterator DeserializeNonCriticalExtensionConfig (LteRrcSap::NonCriticalExtensionConfiguration *nonCriticalExtension, Buffer::Iterator bIterator)
 Deserialize non critical extension config function.

Buffer::Iterator DeserializePhysicalConfigDedicated (LteRrcSap::PhysicalConfigDedicated *physicalConfigDedicated, Buffer::Iterator bIterator)
 Deserialize physical config dedicated function.

Buffer::Iterator DeserializePhysicalConfigDedicatedSCell (LteRrcSap::PhysicalConfigDedicatedSCell *pcdsc, Buffer::Iterator bIterator)
 Deserialize physical config dedicated SCell function.

Buffer::Iterator DeserializePlmnIdentity (uint32_t *plmnId, Buffer::Iterator bIterator)
 Deserialize PLMN identity function.

Buffer::Iterator DeserializeQoffsetRange (int8_t *qOffsetRange, Buffer::Iterator bIterator)
 Deserialize Qoffset range function.

Buffer::Iterator DeserializeRachConfigCommon (LteRrcSap::RachConfigCommon *rachConfigCommon, Buffer::Iterator bIterator)
 Deserialize RACH config common function.

Buffer::Iterator DeserializeRadioResourceConfigCommon (LteRrcSap::RadioResourceConfigCommon *radioResourceConfigCommon, Buffer::Iterator bIterator)
 Deserialize radio resource config common function.

Buffer::Iterator DeserializeRadioResourceConfigCommonSCell (LteRrcSap::RadioResourceConfigCommonSCell *rrccsc, Buffer::Iterator bIterator)
 Deserialize radio resource config common SCell function.

Buffer::Iterator DeserializeRadioResourceConfigCommonSib (LteRrcSap::RadioResourceConfigCommonSib *radioResourceConfigCommonSib, Buffer::Iterator bIterator)
 Deserialize radio resource config common SIB function.

Buffer::Iterator DeserializeRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated *radioResourceConfigDedicated, Buffer::Iterator bIterator)
 Deserialize radio resource config dedicated function.

Buffer::Iterator DeserializeRadioResourceConfigDedicatedSCell (LteRrcSap::RadioResourceConfigDedicatedSCell *rrcdsc, Buffer::Iterator bIterator)
 Deserialize radio resource config dedicated SCell function.

Buffer::Iterator DeserializeSrbToAddModList (std::list< LteRrcSap::SrbToAddMod > *srbToAddModList, Buffer::Iterator bIterator)
 Deserialize SRB to add mod list function.

Buffer::Iterator DeserializeSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 *systemInformationBlockType1, Buffer::Iterator bIterator)
 Deserialize system information block type 1 function.

Buffer::Iterator DeserializeSystemInformationBlockType2 (LteRrcSap::SystemInformationBlockType2 *systemInformationBlockType2, Buffer::Iterator bIterator)
 Deserialize system information block type 2 function.

Buffer::Iterator DeserializeThresholdEutra (LteRrcSap::ThresholdEutra *thresholdEutra, Buffer::Iterator bIterator)
 Deserialize threshold eutra function.

uint16_t EnumToBandwidth (int n) const
 Convert from ENUMERATED value to bandwidth (in RBs)

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

void PreSerialize () const override=0
 This function serializes class attributes to m_serializationResult local Buffer.

void Print (std::ostream &os) const override
 This function prints the object, for debugging purposes.

void Print (std::ostream &os, LteRrcSap::RadioResourceConfigDedicated radioResourceConfigDedicated) const
 This function prints RadioResourceConfigDedicated IE, for debugging purposes.

void SerializeDrbToAddModList (std::list< LteRrcSap::DrbToAddMod > drbToAddModList) const
 Serialize DRB to add mod list function.

void SerializeLogicalChannelConfig (LteRrcSap::LogicalChannelConfig logicalChannelConfig) const
 Serialize logicala channel config function.

void SerializeMeasConfig (LteRrcSap::MeasConfig measConfig) const
 Serialize measure config function.

void SerializeMeasResults (LteRrcSap::MeasResults measResults) const
 Serialize measure results function.

void SerializeNonCriticalExtensionConfiguration (LteRrcSap::NonCriticalExtensionConfiguration nonCriticalExtensionConfiguration) const
 Serialize non critical extension config function.

void SerializePhysicalConfigDedicated (LteRrcSap::PhysicalConfigDedicated physicalConfigDedicated) const
 Serialize physical config dedicated function.

void SerializePhysicalConfigDedicatedSCell (LteRrcSap::PhysicalConfigDedicatedSCell pcdsc) const
 Serialize physical config dedicated function.

void SerializePlmnIdentity (uint32_t plmnId) const
 Serialize PLMN identity function.

void SerializeQoffsetRange (int8_t qOffsetRange) const
 Serialize Q offset range function.

void SerializeRachConfigCommon (LteRrcSap::RachConfigCommon rachConfigCommon) const
 Serialize RACH config common function.

void SerializeRadioResourceConfigCommon (LteRrcSap::RadioResourceConfigCommon radioResourceConfigCommon) const
 Serialize system information block type 2 function.

void SerializeRadioResourceConfigCommonSCell (LteRrcSap::RadioResourceConfigCommonSCell rrccsc) const
 Serialize radio resource config common SCell function.

void SerializeRadioResourceConfigCommonSib (LteRrcSap::RadioResourceConfigCommonSib radioResourceConfigCommonSib) const
 Serialize radio resource config common SIB function.

void SerializeRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated radioResourceConfigDedicated) const
 Serialize radio resource config function.

void SerializeRadioResourceDedicatedSCell (LteRrcSap::RadioResourceConfigDedicatedSCell rrcdsc) const
 Serialize radio resource dedicated SCell function.

void SerializeSrbToAddModList (std::list< LteRrcSap::SrbToAddMod > srbToAddModList) const
 Serialize SRB to add mod list function.

void SerializeSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 systemInformationBlockType1) const
 Serialize system information block type 1 function.

void SerializeSystemInformationBlockType2 (LteRrcSap::SystemInformationBlockType2 systemInformationBlockType2) const
 Serialize system information block type 2 function.

void SerializeThresholdEutra (LteRrcSap::ThresholdEutra thresholdEutra) const
 Serialize threshold eutra function.

- Protected Member Functions inherited from ns3::Asn1Header
Buffer::Iterator DeserializeBitset (std::bitset< 8 > *data, Buffer::Iterator bIterator)
 Deserialize a bitset.

template<int N>
Buffer::Iterator DeserializeBitset (std::bitset< N > *data, Buffer::Iterator bIterator)
 Deserialize a bitset.

Buffer::Iterator DeserializeBitstring (std::bitset< 1 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBitstring (std::bitset< 10 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBitstring (std::bitset< 16 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBitstring (std::bitset< 2 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBitstring (std::bitset< 27 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBitstring (std::bitset< 28 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBitstring (std::bitset< 32 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBitstring (std::bitset< 8 > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

template<int N>
Buffer::Iterator DeserializeBitstring (std::bitset< N > *bitstring, Buffer::Iterator bIterator)
 Deserialize a bitstring.

Buffer::Iterator DeserializeBoolean (bool *value, Buffer::Iterator bIterator)
 Deserialize a boolean.

Buffer::Iterator DeserializeChoice (int numOptions, bool isExtensionMarkerPresent, int *selectedOption, Buffer::Iterator bIterator)
 Deserialize a Choice (set of options)

Buffer::Iterator DeserializeEnum (int numElems, int *selectedElem, Buffer::Iterator bIterator)
 Deserialize an Enum.

Buffer::Iterator DeserializeInteger (int *n, int nmin, int nmax, Buffer::Iterator bIterator)
 Deserialize an integer.

Buffer::Iterator DeserializeNull (Buffer::Iterator bIterator)
 Deserialize nothing (null op)

Buffer::Iterator DeserializeSequence (std::bitset< 0 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 1 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 10 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 11 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 2 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 3 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 4 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 5 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 6 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 7 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequence (std::bitset< 9 > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

template<int N>
Buffer::Iterator DeserializeSequence (std::bitset< N > *optionalOrDefaultMask, bool isExtensionMarkerPresent, Buffer::Iterator bIterator)
 Deserialize a sequence.

Buffer::Iterator DeserializeSequenceOf (int *numElems, int nMax, int nMin, Buffer::Iterator bIterator)
 Deserialize a Sequence.

void FinalizeSerialization () const
 Finalizes an in progress serialization.

template<int N>
void SerializeBitset (std::bitset< N > data) const
 Serialize a bitset.

void SerializeBitstring (std::bitset< 1 > bitstring) const
 Serialize a bitstring.

void SerializeBitstring (std::bitset< 10 > bitstring) const
 Serialize a bitstring.

void SerializeBitstring (std::bitset< 16 > bitstring) const
 Serialize a bitstring.

void SerializeBitstring (std::bitset< 2 > bitstring) const
 Serialize a bitstring.

void SerializeBitstring (std::bitset< 27 > bitstring) const
 Serialize a bitstring.

void SerializeBitstring (std::bitset< 28 > bitstring) const
 Serialize a bitstring.

void SerializeBitstring (std::bitset< 32 > bitstring) const
 Serialize a bitstring.

void SerializeBitstring (std::bitset< 8 > bitstring) const
 Serialize a bitstring.

template<int N>
void SerializeBitstring (std::bitset< N > bitstring) const
 Serialize a bitstring.

void SerializeBoolean (bool value) const
 Serialize a bool.

void SerializeChoice (int numOptions, int selectedOption, bool isExtensionMarkerPresent) const
 Serialize a Choice (set of options)

void SerializeEnum (int numElems, int selectedElem) const
 Serialize an Enum.

void SerializeInteger (int n, int nmin, int nmax) const
 Serialize an Integer.

void SerializeNull () const
 Serialize nothing (null op)

void SerializeSequence (std::bitset< 0 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 1 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 10 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 11 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 2 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 3 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 4 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 5 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 6 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 7 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequence (std::bitset< 9 > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

template<int N>
void SerializeSequence (std::bitset< N > optionalOrDefaultMask, bool isExtensionMarkerPresent) const
 Serialize a sequence.

void SerializeSequenceOf (int numElems, int nMax, int nMin) const
 Serialize a Sequence.

void WriteOctet (uint8_t octet) const
 Function to write in m_serializationResult, after resizing its size.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.

- Static Protected Member Functions inherited from ns3::RrcAsn1Header
static TypeId GetTypeId ()
 Get the type ID.

- Protected Attributes inherited from ns3::RrcAsn1Header
int m_messageType
 Stores RRC message type, according to 3GPP TS 36.331.

- Protected Attributes inherited from ns3::Asn1Header
bool m_isDataSerialized
 true if data is serialized

uint8_t m_numSerializationPendingBits
 number of pending bits

uint8_t m_serializationPendingBits
 pending bits

Buffer m_serializationResult
 serialization result


Detailed Description

This class manages the serialization/deserialization of RrcConnectionRequest IE.

Definition at line 543 of file lte-rrc-header.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
private

EstablishmentCause enumeration.

Enumerator
EMERGENCY
HIGHPRIORITYACCESS
MT_ACCESS
MO_SIGNALLING
MO_DATA
SPARE3
SPARE2
SPARE1

Definition at line 588 of file lte-rrc-header.h.

Constructor & Destructor Documentation

◆ RrcConnectionRequestHeader()

ns3::RrcConnectionRequestHeader::RrcConnectionRequestHeader ( )

Definition at line 4784 of file lte-rrc-header.cc.

References m_establishmentCause, m_mmec, m_mTmsi, m_spare, and MO_SIGNALLING.

◆ ~RrcConnectionRequestHeader()

ns3::RrcConnectionRequestHeader::~RrcConnectionRequestHeader ( )
override

Definition at line 4794 of file lte-rrc-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::RrcConnectionRequestHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Reimplemented from ns3::RrcUlCcchMessage.

Definition at line 4859 of file lte-rrc-header.cc.

References ns3::Asn1Header::DeserializeBitstring(), ns3::Asn1Header::DeserializeChoice(), ns3::Asn1Header::DeserializeEnum(), ns3::Asn1Header::DeserializeSequence(), ns3::RrcUlCcchMessage::DeserializeUlCcchMessage(), ns3::Asn1Header::GetSerializedSize(), m_mmec, and m_mTmsi.

+ Here is the call graph for this function:

◆ GetMessage()

LteRrcSap::RrcConnectionRequest ns3::RrcConnectionRequestHeader::GetMessage ( ) const

Returns a RrcConnectionRequest IE from the values in the class attributes.

Returns
A RrcConnectionRequest, as defined in LteRrcSap

Definition at line 4906 of file lte-rrc-header.cc.

References m_mmec, m_mTmsi, and ns3::LteRrcSap::RrcConnectionRequest::ueIdentity.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu().

+ Here is the caller graph for this function:

◆ GetMmec()

std::bitset< 8 > ns3::RrcConnectionRequestHeader::GetMmec ( ) const

Get MMEC attribute.

Returns
m_mmec attribute

Definition at line 4915 of file lte-rrc-header.cc.

References m_mmec.

Referenced by RrcConnectionRequestTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetMtmsi()

std::bitset< 32 > ns3::RrcConnectionRequestHeader::GetMtmsi ( ) const

Get M-TMSI attribute.

Returns
m_tmsi attribute

Definition at line 4921 of file lte-rrc-header.cc.

References m_mTmsi.

Referenced by RrcConnectionRequestTestCase::DoRun().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RrcConnectionRequestHeader::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 4799 of file lte-rrc-header.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ PreSerialize()

void ns3::RrcConnectionRequestHeader::PreSerialize ( ) const
overridevirtual

This function serializes class attributes to m_serializationResult local Buffer.

As ASN1 encoding produces a bitstream that does not have a fixed length, this function is needed to store the result, so its length can be retrieved with Header::GetSerializedSize() function. This method is pure virtual in this class (needs to be implemented in child classes) as the meaningful information elements are in the subclasses.

Reimplemented from ns3::RrcUlCcchMessage.

Definition at line 4816 of file lte-rrc-header.cc.

References ns3::Asn1Header::FinalizeSerialization(), m_establishmentCause, m_mmec, m_mTmsi, ns3::Asn1Header::m_serializationResult, ns3::Asn1Header::SerializeBitstring(), ns3::Asn1Header::SerializeChoice(), ns3::Asn1Header::SerializeEnum(), ns3::Asn1Header::SerializeSequence(), and ns3::RrcUlCcchMessage::SerializeUlCcchMessage().

+ Here is the call graph for this function:

◆ Print()

void ns3::RrcConnectionRequestHeader::Print ( std::ostream &  os) const
overridevirtual

This function prints the object, for debugging purposes.

Parameters
osThe output stream to use (i.e. std::cout)

Reimplemented from ns3::RrcUlCcchMessage.

Definition at line 4807 of file lte-rrc-header.cc.

References m_establishmentCause, m_mmec, m_mTmsi, and m_spare.

◆ SetMessage()

void ns3::RrcConnectionRequestHeader::SetMessage ( LteRrcSap::RrcConnectionRequest  msg)

Receives a RrcConnectionRequest IE and stores the contents into the class attributes.

Parameters
msgThe information element to parse

Definition at line 4898 of file lte-rrc-header.cc.

References ns3::Asn1Header::m_isDataSerialized, m_mmec, m_mTmsi, and ns3::LteRrcSap::RrcConnectionRequest::ueIdentity.

Referenced by RrcConnectionRequestTestCase::DoRun(), and ns3::LteUeRrcProtocolReal::DoSendRrcConnectionRequest().

+ Here is the caller graph for this function:

Member Data Documentation

◆

enum { ... } ns3::RrcConnectionRequestHeader::m_establishmentCause

EstablishmentCause enumeration.

the establishent cause

Referenced by RrcConnectionRequestHeader(), PreSerialize(), and Print().

◆ m_mmec

std::bitset<8> ns3::RrcConnectionRequestHeader::m_mmec
private

◆ m_mTmsi

std::bitset<32> ns3::RrcConnectionRequestHeader::m_mTmsi
private

◆ m_spare

std::bitset<1> ns3::RrcConnectionRequestHeader::m_spare
private

spare bit

Definition at line 600 of file lte-rrc-header.h.

Referenced by RrcConnectionRequestHeader(), and Print().


The documentation for this class was generated from the following files:
