6LoWPAN IPv6 uncompressed header - see RFC 4944. More...
#include "sixlowpan-header.h"
Public Member Functions | |
SixLowPanIpv6 () | |
uint32_t | Deserialize (Buffer::Iterator start) override |
Deserialize the packet. | |
TypeId | GetInstanceTypeId () const override |
Return the instance type identifier. | |
uint32_t | GetSerializedSize () const override |
Get the serialized size of the packet. | |
void | Print (std::ostream &os) const override |
void | Serialize (Buffer::Iterator start) const override |
Serialize the packet. | |
![]() | |
~Header () override | |
uint32_t | Deserialize (Buffer::Iterator start) override=0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | GetSerializedSize () const =0 |
void | Print (std::ostream &os) const override=0 |
virtual void | Serialize (Buffer::Iterator start) const =0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual void | Print (std::ostream &os) const =0 |
Print the object contents. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
6LoWPAN IPv6 uncompressed header - see RFC 4944.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 8 bytes (on a 64-bit architecture).
Definition at line 544 of file sixlowpan-header.h.
ns3::SixLowPanIpv6::SixLowPanIpv6 | ( | ) |
Definition at line 779 of file sixlowpan-header.cc.
|
overridevirtual |

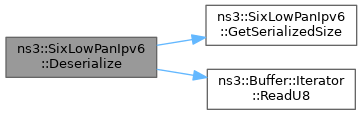

Deserialize the packet.
[in] | start | Buffer iterator. |
Implements ns3::Header.
Definition at line 820 of file sixlowpan-header.cc.
References GetSerializedSize(), and ns3::Buffer::Iterator::ReadU8().
|
overridevirtual |

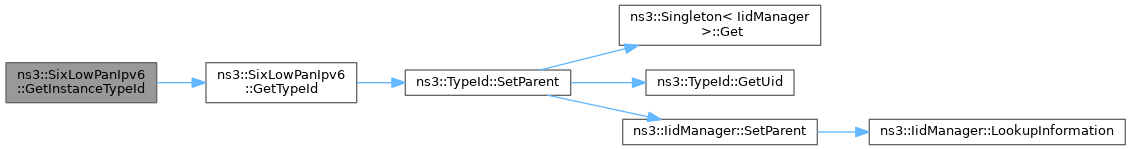

Return the instance type identifier.
Implements ns3::ObjectBase.
Definition at line 794 of file sixlowpan-header.cc.
References GetTypeId().
|
overridevirtual |
Get the serialized size of the packet.
Implements ns3::Header.
Definition at line 806 of file sixlowpan-header.cc.
Referenced by Deserialize().
|
static |

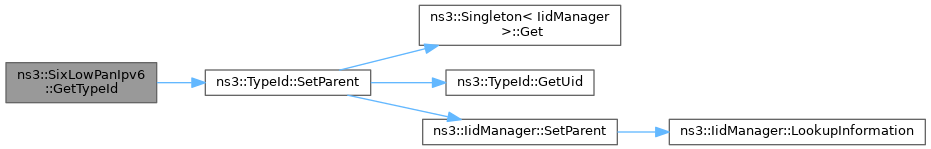

Get the type ID.
Definition at line 784 of file sixlowpan-header.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
overridevirtual |
os | output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Implements ns3::Header.
Definition at line 800 of file sixlowpan-header.cc.
Referenced by ns3::operator<<().
|
overridevirtual |
Serialize the packet.
[in] | start | Buffer iterator. |
Implements ns3::Header.
Definition at line 812 of file sixlowpan-header.cc.
References ns3::SixLowPanDispatch::LOWPAN_IPv6, and ns3::Buffer::Iterator::WriteU8().
