6LoWPAN Mesh header - see RFC 4944. More...
#include "sixlowpan-header.h"
Public Member Functions | |
SixLowPanMesh () | |
uint32_t | Deserialize (Buffer::Iterator start) override |
Deserialize the packet. | |
Address | GetFinalDst () const |
Get the "Final Destination" address. | |
uint8_t | GetHopsLeft () const |
Get the "Hops Left" field. | |
TypeId | GetInstanceTypeId () const override |
Return the instance type identifier. | |
Address | GetOriginator () const |
Get the "Originator" address. | |
uint32_t | GetSerializedSize () const override |
Get the serialized size of the packet. | |
void | Print (std::ostream &os) const override |
void | Serialize (Buffer::Iterator start) const override |
Serialize the packet. | |
void | SetFinalDst (Address finalDst) |
Set the "Final Destination" address. | |
void | SetHopsLeft (uint8_t hopsLeft) |
Set the "Hops Left" field. | |
void | SetOriginator (Address originator) |
Set the "Originator" address. | |
![]() | |
~Header () override | |
uint32_t | Deserialize (Buffer::Iterator start) override=0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | GetSerializedSize () const =0 |
void | Print (std::ostream &os) const override=0 |
virtual void | Serialize (Buffer::Iterator start) const =0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual void | Print (std::ostream &os) const =0 |
Print the object contents. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
Address | m_dst |
Destination (final) address. | |
bool | m_f |
True if Destination address is 16 bit. | |
uint8_t | m_hopsLeft |
Hops left. | |
Address | m_src |
Originator (source) address. | |
bool | m_v |
True if Originator address is 16 bit. | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |

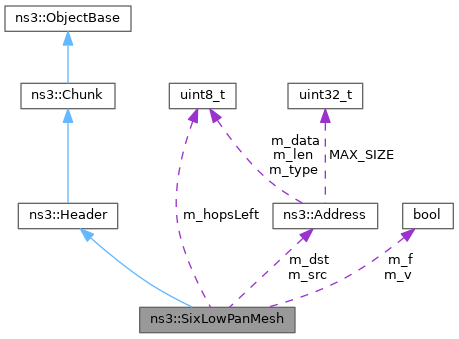

6LoWPAN Mesh header - see RFC 4944.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).
Definition at line 1295 of file sixlowpan-header.h.
ns3::SixLowPanMesh::SixLowPanMesh | ( | ) |
Definition at line 1959 of file sixlowpan-header.cc.
References m_dst, m_f, m_hopsLeft, m_src, and m_v.
|
overridevirtual |

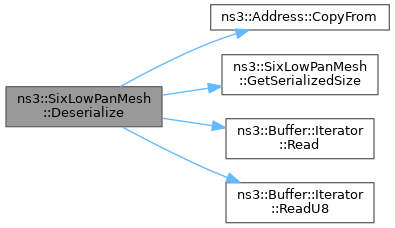

Deserialize the packet.
[in] | start | Buffer iterator. |
Implements ns3::Header.
Definition at line 2090 of file sixlowpan-header.cc.
References ns3::Address::CopyFrom(), GetSerializedSize(), m_dst, m_f, m_hopsLeft, m_src, m_v, ns3::Buffer::Iterator::Read(), and ns3::Buffer::Iterator::ReadU8().
Address ns3::SixLowPanMesh::GetFinalDst | ( | ) | const |
Get the "Final Destination" address.
Definition at line 2182 of file sixlowpan-header.cc.
References m_dst.
Referenced by ns3::SixLowPanNetDevice::ReceiveFromDevice().
uint8_t ns3::SixLowPanMesh::GetHopsLeft | ( | ) | const |
Get the "Hops Left" field.
Definition at line 2194 of file sixlowpan-header.cc.
References m_hopsLeft.
Referenced by ns3::SixLowPanNetDevice::ReceiveFromDevice().
|
overridevirtual |

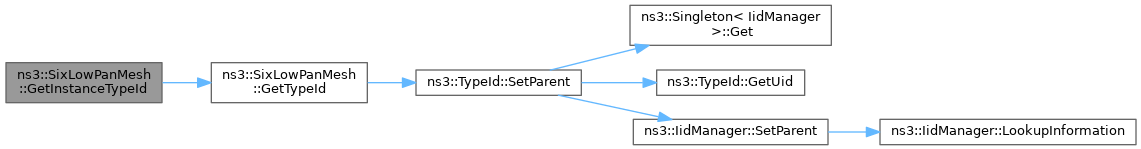

Return the instance type identifier.
Implements ns3::ObjectBase.
Definition at line 1979 of file sixlowpan-header.cc.
References GetTypeId().
Address ns3::SixLowPanMesh::GetOriginator | ( | ) | const |
Get the "Originator" address.
Definition at line 2157 of file sixlowpan-header.cc.
References m_src.
Referenced by ns3::SixLowPanNetDevice::ReceiveFromDevice().
|
overridevirtual |

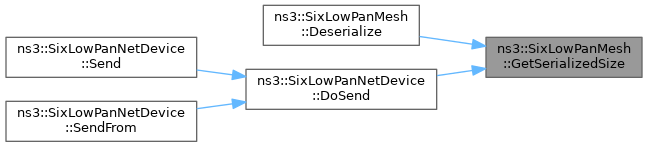

Get the serialized size of the packet.
Implements ns3::Header.
Definition at line 2008 of file sixlowpan-header.cc.
References m_f, m_hopsLeft, and m_v.
Referenced by Deserialize(), and ns3::SixLowPanNetDevice::DoSend().
|
static |

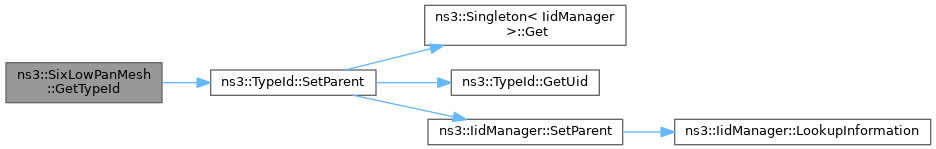

Get the type ID.
Definition at line 1969 of file sixlowpan-header.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
overridevirtual |

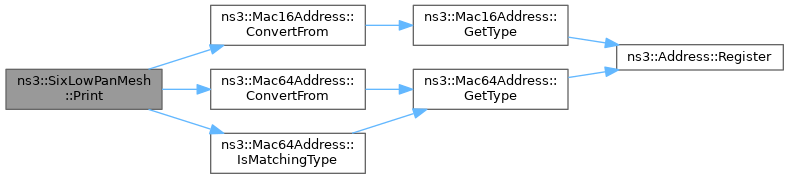

os | output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Implements ns3::Header.
Definition at line 1985 of file sixlowpan-header.cc.
References ns3::Mac16Address::ConvertFrom(), ns3::Mac64Address::ConvertFrom(), ns3::Mac64Address::IsMatchingType(), m_dst, m_hopsLeft, and m_src.
Referenced by ns3::operator<<().
|
overridevirtual |

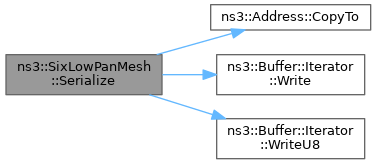

Serialize the packet.
[in] | start | Buffer iterator. |
Implements ns3::Header.
Definition at line 2039 of file sixlowpan-header.cc.
References ns3::Address::CopyTo(), m_dst, m_f, m_hopsLeft, m_src, m_v, ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().
void ns3::SixLowPanMesh::SetFinalDst | ( | Address | finalDst | ) |

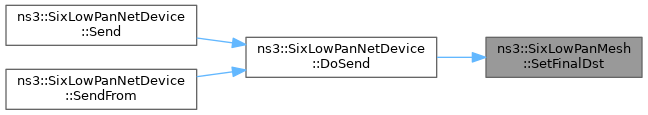

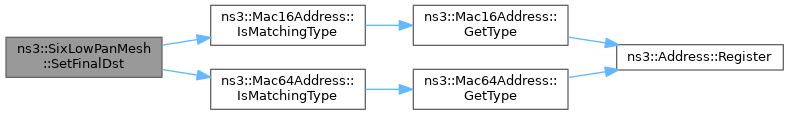

Set the "Final Destination" address.
[in] | finalDst | The Final Destination address (Mac64Address or Mac16Address). |
Definition at line 2163 of file sixlowpan-header.cc.
References ns3::Mac16Address::IsMatchingType(), ns3::Mac64Address::IsMatchingType(), m_dst, m_f, and NS_ABORT_MSG.
Referenced by ns3::SixLowPanNetDevice::DoSend().
void ns3::SixLowPanMesh::SetHopsLeft | ( | uint8_t | hopsLeft | ) |
Set the "Hops Left" field.
[in] | hopsLeft | The number of hops left. |
Definition at line 2188 of file sixlowpan-header.cc.
References m_hopsLeft.
Referenced by ns3::SixLowPanNetDevice::DoSend(), and ns3::SixLowPanNetDevice::ReceiveFromDevice().
void ns3::SixLowPanMesh::SetOriginator | ( | Address | originator | ) |

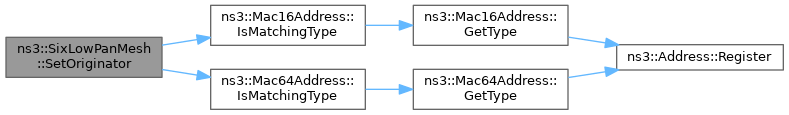

Set the "Originator" address.
[in] | originator | The Originator address (Mac64Address or Mac16Address). |
Definition at line 2138 of file sixlowpan-header.cc.
References ns3::Mac16Address::IsMatchingType(), ns3::Mac64Address::IsMatchingType(), m_src, m_v, and NS_ABORT_MSG.
Referenced by ns3::SixLowPanNetDevice::DoSend().
|
private |
Destination (final) address.
Definition at line 1374 of file sixlowpan-header.h.
Referenced by SixLowPanMesh(), Deserialize(), GetFinalDst(), Print(), Serialize(), and SetFinalDst().
|
private |
True if Destination address is 16 bit.
Definition at line 1372 of file sixlowpan-header.h.
Referenced by SixLowPanMesh(), Deserialize(), GetSerializedSize(), Serialize(), and SetFinalDst().
|
private |
Hops left.
Definition at line 1370 of file sixlowpan-header.h.
Referenced by SixLowPanMesh(), Deserialize(), GetHopsLeft(), GetSerializedSize(), Print(), Serialize(), and SetHopsLeft().
|
private |
Originator (source) address.
Definition at line 1373 of file sixlowpan-header.h.
Referenced by SixLowPanMesh(), Deserialize(), GetOriginator(), Print(), Serialize(), and SetOriginator().
|
private |
True if Originator address is 16 bit.
Definition at line 1371 of file sixlowpan-header.h.
Referenced by SixLowPanMesh(), Deserialize(), GetSerializedSize(), Serialize(), and SetOriginator().
