Header used by web browsing applications to transmit information about content type, content length and timestamps for delay statistics. More...

#include "three-gpp-http-header.h"

Inheritance diagram for ns3::ThreeGppHttpHeader:

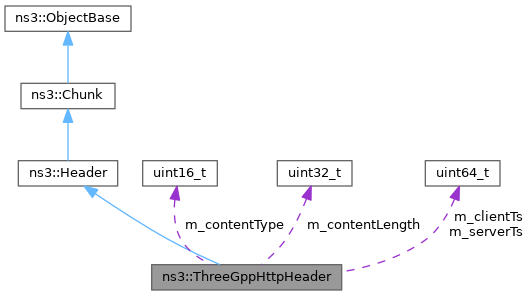

Collaboration diagram for ns3::ThreeGppHttpHeader:

Public Types
enum	ContentType_t { NOT_SET , MAIN_OBJECT , EMBEDDED_OBJECT }
	The possible types of content (default = NOT_SET). More...

Public Member Functions
	ThreeGppHttpHeader ()
	Creates an empty instance.

uint32_t	Deserialize (Buffer::Iterator start) override

Time	GetClientTs () const

uint32_t	GetContentLength () const

ContentType_t	GetContentType () const

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

uint32_t	GetSerializedSize () const override

Time	GetServerTs () const

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetClientTs (Time clientTs)

void	SetContentLength (uint32_t contentLength)

void	SetContentType (ContentType_t contentType)

void	SetServerTs (Time serverTs)

std::string	ToString () const

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Returns the object TypeId.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
uint64_t	m_clientTs
	" Client time stamp field (in time step unit).

uint32_t	m_contentLength
	" Content length field (in bytes unit).

uint16_t	m_contentType
	" Content type field in integer format.

uint64_t	m_serverTs
	" Server time stamp field (in time step unit).

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Header used by web browsing applications to transmit information about content type, content length and timestamps for delay statistics.

Introspection did not find any typical Config paths.

The header contains the following fields (and their respective size when serialized):

content type (2 bytes);
content length (4 bytes);
client time stamp (8 bytes); and
server time stamp (8 bytes).

The header is attached to every packet transmitted by ThreeGppHttpClient and ThreeGppHttpServer applications. In received, split packets, only the first packet of transmitted object contains the header, which helps to identify how many bytes are left to be received.

The last 2 fields allow the applications to compute the propagation delay of each packet. The client TS field indicates the time when the request packet is sent by the ThreeGppHttpClient, while the server TS field indicates the time when the response packet is sent by the ThreeGppHttpServer.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 54 of file three-gpp-http-header.h.

Member Enumeration Documentation

◆ ContentType_t

enum ns3::ThreeGppHttpHeader::ContentType_t

The possible types of content (default = NOT_SET).

Enumerator
NOT_SET	Integer equivalent = 0.
MAIN_OBJECT	Integer equivalent = 1.
EMBEDDED_OBJECT	Integer equivalent = 2.

Definition at line 81 of file three-gpp-http-header.h.

Constructor & Destructor Documentation

◆ ThreeGppHttpHeader()

ns3::ThreeGppHttpHeader::ThreeGppHttpHeader ( )

Creates an empty instance.

Definition at line 35 of file three-gpp-http-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::ThreeGppHttpHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 77 of file three-gpp-http-header.cc.

References m_clientTs, m_contentLength, m_contentType, m_serverTs, and NS_LOG_FUNCTION.

◆ GetClientTs()

Time ns3::ThreeGppHttpHeader::GetClientTs ( ) const

Returns: The client time stamp.

Definition at line 183 of file three-gpp-http-header.cc.

References m_clientTs.

Referenced by ThreeGppHttpObjectTestCase::ClientRxEmbeddedObjectCallback(), ThreeGppHttpObjectTestCase::ClientRxMainObjectCallback(), ns3::ThreeGppHttpClient::Receive(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ServeFromTxBuffer(), and ThreeGppHttpObjectTestCase::ServerRxCallback().

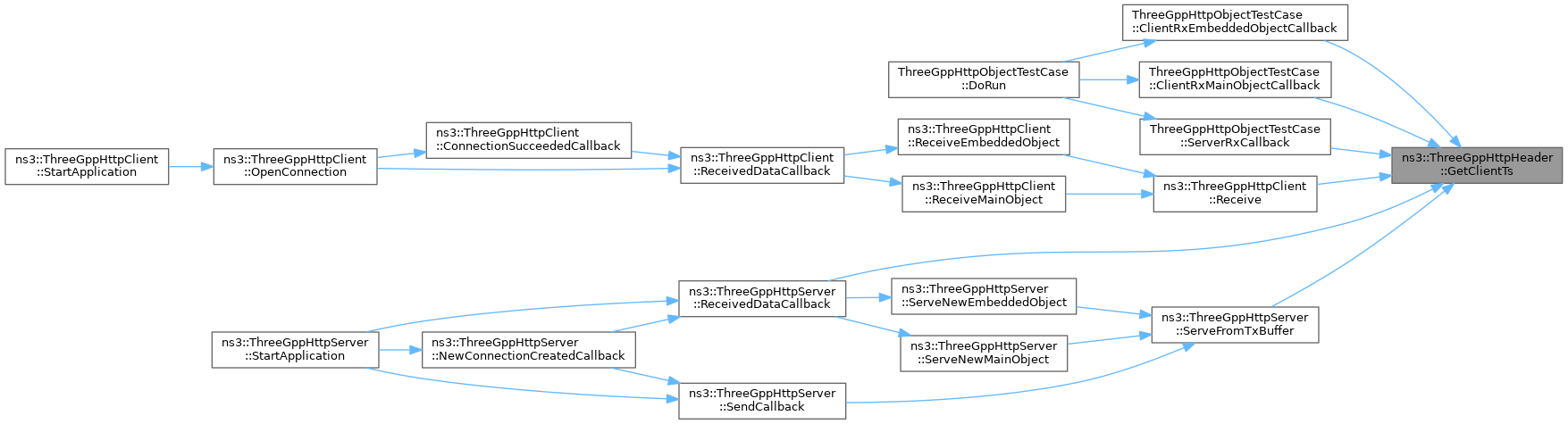

Here is the caller graph for this function:

◆ GetContentLength()

uint32_t ns3::ThreeGppHttpHeader::GetContentLength ( ) const

Returns: The content length (in bytes).

Definition at line 170 of file three-gpp-http-header.cc.

References m_contentLength.

Referenced by ClientEmbeddedObjectReceived(), ClientMainObjectReceived(), ThreeGppHttpObjectTestCase::ClientRxEmbeddedObjectCallback(), ThreeGppHttpObjectTestCase::ClientRxMainObjectCallback(), and ns3::ThreeGppHttpClient::Receive().

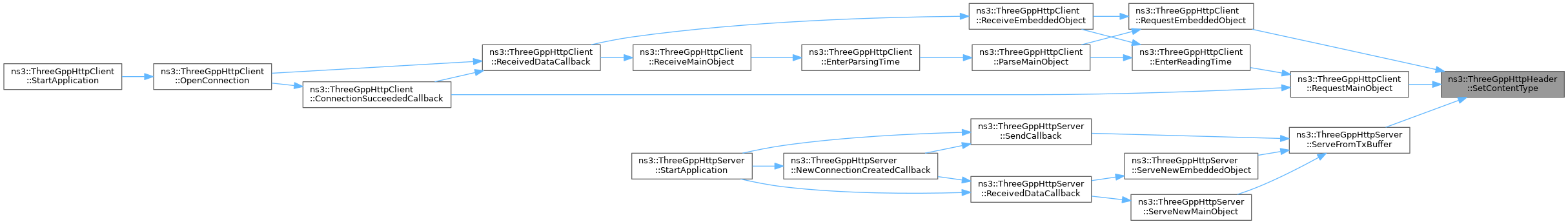

Here is the caller graph for this function:

◆ GetContentType()

ThreeGppHttpHeader::ContentType_t ns3::ThreeGppHttpHeader::GetContentType ( ) const

Returns: The content type.

Definition at line 141 of file three-gpp-http-header.cc.

References EMBEDDED_OBJECT, m_contentType, MAIN_OBJECT, NOT_SET, and NS_FATAL_ERROR.

Referenced by ClientEmbeddedObjectReceived(), ClientMainObjectReceived(), ThreeGppHttpObjectTestCase::ClientRxEmbeddedObjectCallback(), ThreeGppHttpObjectTestCase::ClientRxMainObjectCallback(), and ns3::ThreeGppHttpServer::ReceivedDataCallback().

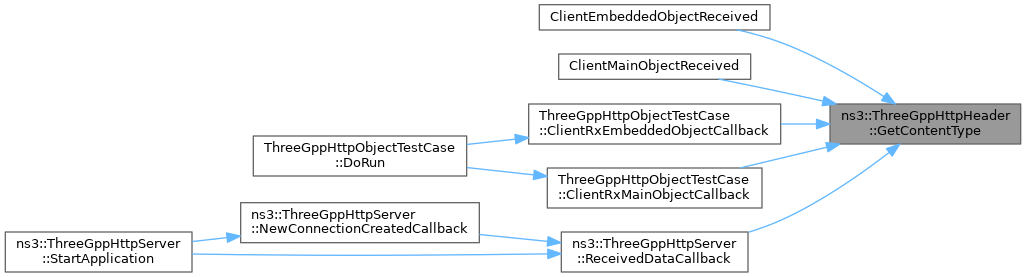

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::ThreeGppHttpHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 55 of file three-gpp-http-header.cc.

References GetTypeId().

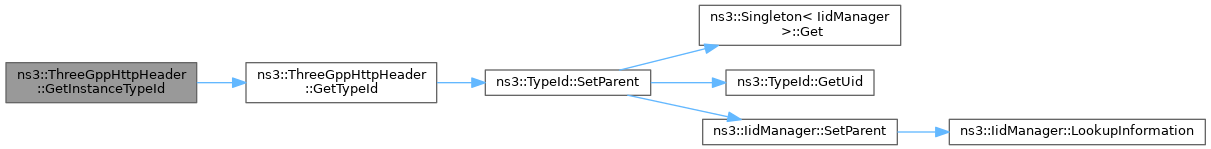

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::ThreeGppHttpHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 61 of file three-gpp-http-header.cc.

Referenced by ns3::ThreeGppHttpServer::ServeFromTxBuffer().

Here is the caller graph for this function:

◆ GetServerTs()

Time ns3::ThreeGppHttpHeader::GetServerTs ( ) const

Returns: The server time stamp.

Definition at line 196 of file three-gpp-http-header.cc.

References m_serverTs.

Referenced by ThreeGppHttpObjectTestCase::ClientRxEmbeddedObjectCallback(), ThreeGppHttpObjectTestCase::ClientRxMainObjectCallback(), and ns3::ThreeGppHttpClient::Receive().

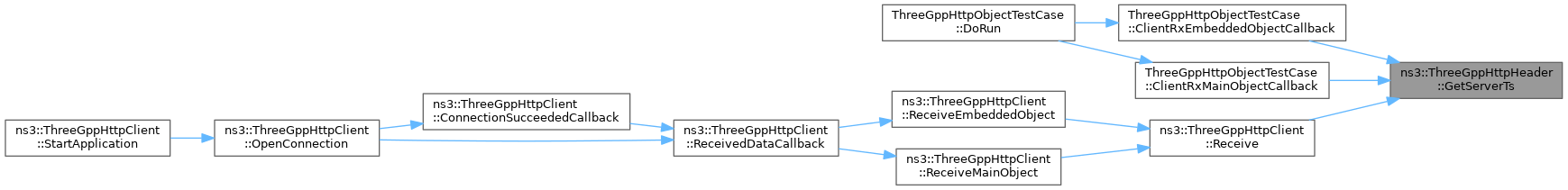

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ThreeGppHttpHeader::GetTypeId ( )

static

Returns the object TypeId.

Returns: The object TypeId.

Definition at line 47 of file three-gpp-http-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

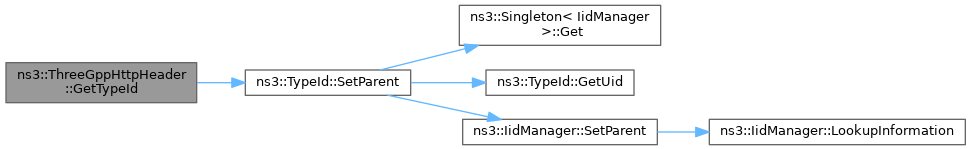

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::ThreeGppHttpHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 102 of file three-gpp-http-header.cc.

References m_clientTs, m_contentLength, m_contentType, m_serverTs, NS_LOG_FUNCTION, and ns3::Time::S.

Referenced by ToString().

Here is the caller graph for this function:

◆ Serialize()

void ns3::ThreeGppHttpHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 67 of file three-gpp-http-header.cc.

References m_clientTs, m_contentLength, m_contentType, m_serverTs, and NS_LOG_FUNCTION.
