6LoWPAN FRAG1 header - see RFC 4944. More...
#include "sixlowpan-header.h"
Public Member Functions | |
SixLowPanFrag1 () | |
uint32_t | Deserialize (Buffer::Iterator start) override |
Deserialize the packet. | |
uint16_t | GetDatagramSize () const |
Get the datagram size. | |
uint16_t | GetDatagramTag () const |
Get the datagram tag. | |
TypeId | GetInstanceTypeId () const override |
Return the instance type identifier. | |
uint32_t | GetSerializedSize () const override |
Get the serialized size of the packet. | |
void | Print (std::ostream &os) const override |
void | Serialize (Buffer::Iterator start) const override |
Serialize the packet. | |
void | SetDatagramSize (uint16_t datagramSize) |
Set the datagram size. | |
void | SetDatagramTag (uint16_t datagramTag) |
Set the datagram tag. | |
![]() | |
~Header () override | |
uint32_t | Deserialize (Buffer::Iterator start) override=0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | GetSerializedSize () const =0 |
void | Print (std::ostream &os) const override=0 |
virtual void | Serialize (Buffer::Iterator start) const =0 |
virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
Deserialize the object from a buffer iterator. | |
virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
Deserialize the object from a buffer iterator. | |
virtual void | Print (std::ostream &os) const =0 |
Print the object contents. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
uint16_t | m_datagramSize |
Datagram size. | |
uint16_t | m_datagramTag |
Datagram tag. | |
Additional Inherited Members | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
6LoWPAN FRAG1 header - see RFC 4944.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).
Definition at line 371 of file sixlowpan-header.h.
ns3::SixLowPanFrag1::SixLowPanFrag1 | ( | ) |
Definition at line 565 of file sixlowpan-header.cc.
|
overridevirtual |

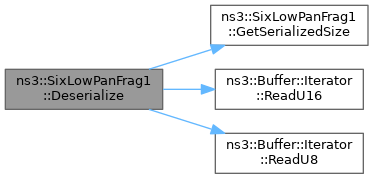

Deserialize the packet.
[in] | start | Buffer iterator. |
Implements ns3::Header.
Definition at line 613 of file sixlowpan-header.cc.
References GetSerializedSize(), m_datagramSize, m_datagramTag, ns3::Buffer::Iterator::ReadU16(), and ns3::Buffer::Iterator::ReadU8().
uint16_t ns3::SixLowPanFrag1::GetDatagramSize | ( | ) | const |
Get the datagram size.
Definition at line 632 of file sixlowpan-header.cc.
References m_datagramSize.
Referenced by ns3::SixLowPanNetDevice::ProcessFragment().
uint16_t ns3::SixLowPanFrag1::GetDatagramTag | ( | ) | const |
Get the datagram tag.
Definition at line 644 of file sixlowpan-header.cc.
References m_datagramTag.
Referenced by ns3::SixLowPanNetDevice::ProcessFragment().
|
overridevirtual |

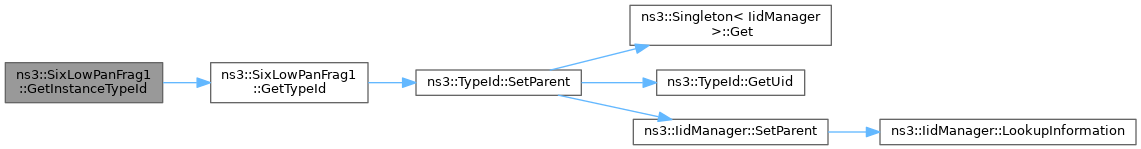

Return the instance type identifier.
Implements ns3::ObjectBase.
Definition at line 582 of file sixlowpan-header.cc.
References GetTypeId().
|
overridevirtual |

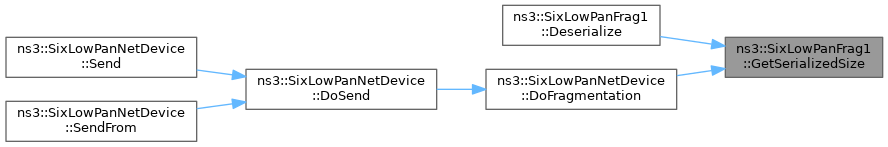

Get the serialized size of the packet.
Implements ns3::Header.
Definition at line 594 of file sixlowpan-header.cc.
Referenced by Deserialize(), and ns3::SixLowPanNetDevice::DoFragmentation().
|
static |

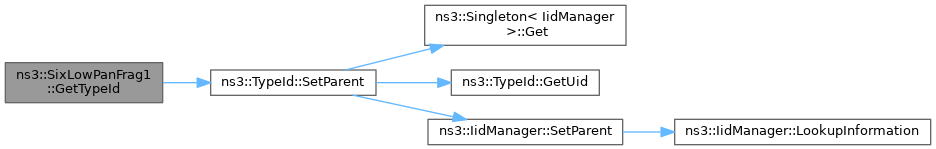

Get the type ID.
Definition at line 572 of file sixlowpan-header.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
overridevirtual |
os | output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5 |
Implements ns3::Header.
Definition at line 588 of file sixlowpan-header.cc.
References m_datagramSize, and m_datagramTag.
Referenced by ns3::operator<<().
|
overridevirtual |

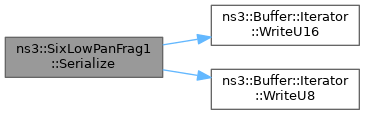

Serialize the packet.
[in] | start | Buffer iterator. |
Implements ns3::Header.
Definition at line 600 of file sixlowpan-header.cc.
References ns3::SixLowPanDispatch::LOWPAN_FRAG1, m_datagramSize, m_datagramTag, ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

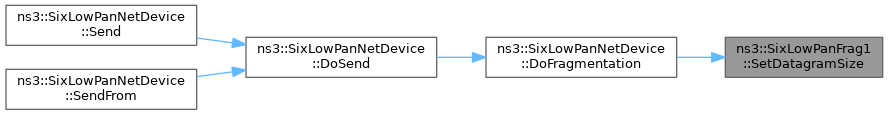

void ns3::SixLowPanFrag1::SetDatagramSize | ( | uint16_t | datagramSize | ) |
Set the datagram size.
[in] | datagramSize | The datagram size. |
Definition at line 626 of file sixlowpan-header.cc.
References m_datagramSize.
Referenced by ns3::SixLowPanNetDevice::DoFragmentation().
void ns3::SixLowPanFrag1::SetDatagramTag | ( | uint16_t | datagramTag | ) |
Set the datagram tag.
[in] | datagramTag | The datagram tag. |
Definition at line 638 of file sixlowpan-header.cc.
References m_datagramTag.
Referenced by ns3::SixLowPanNetDevice::DoFragmentation().
|
private |
Datagram size.
Definition at line 434 of file sixlowpan-header.h.
Referenced by Deserialize(), GetDatagramSize(), Print(), Serialize(), and SetDatagramSize().
|
private |
Datagram tag.
Definition at line 435 of file sixlowpan-header.h.
Referenced by Deserialize(), GetDatagramTag(), Print(), Serialize(), and SetDatagramTag().
