Header of Dsr Option Route Error. More...

#include "dsr-option-header.h"

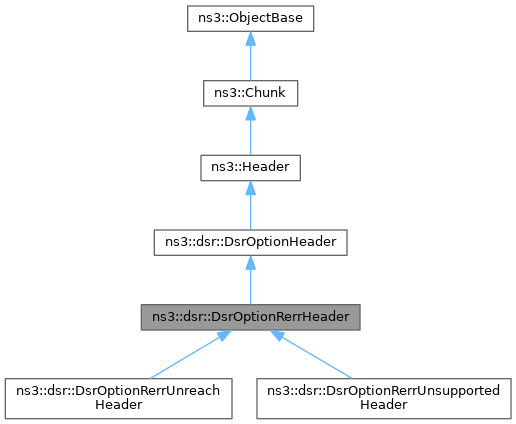

Inheritance diagram for ns3::dsr::DsrOptionRerrHeader:

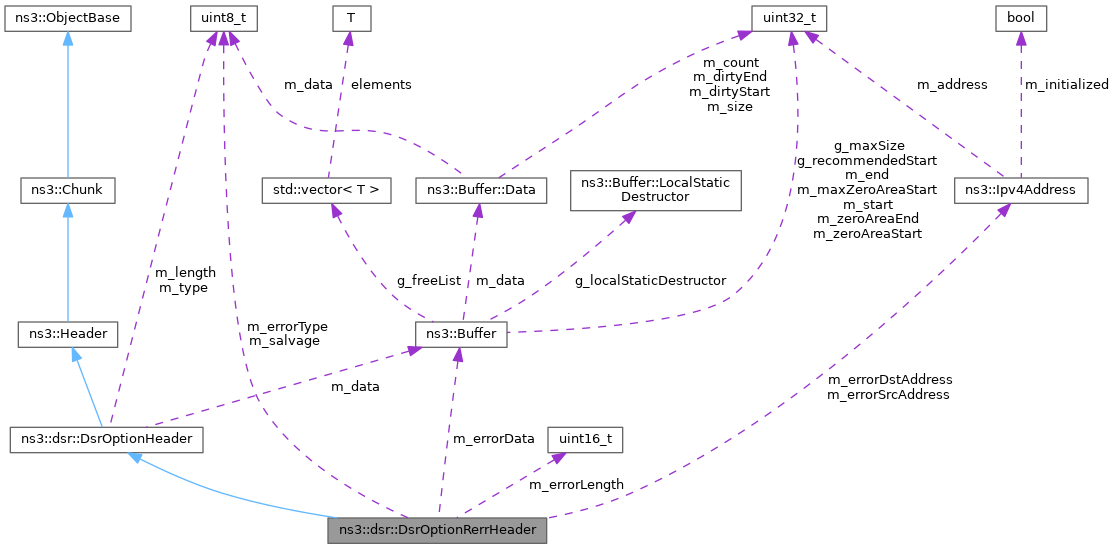

Collaboration diagram for ns3::dsr::DsrOptionRerrHeader:

Public Member Functions
	DsrOptionRerrHeader ()
	Constructor.

	~DsrOptionRerrHeader () override
	Destructor.

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet.

Alignment	GetAlignment () const override
	Get the Alignment requirement of this option header.

virtual Ipv4Address	GetErrorDst () const
	Get the error destination ip address.

virtual Ipv4Address	GetErrorSrc () const
	Get the route error source address.

uint8_t	GetErrorType () const
	Get the route error type.

TypeId	GetInstanceTypeId () const override
	Get the instance type ID.

virtual uint8_t	GetSalvage () const
	Get the salvage value of the packet.

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet.

void	Print (std::ostream &os) const override
	Print some information about the packet.

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet.

virtual void	SetErrorDst (Ipv4Address errorDstAddress)
	Set the error destination ip address.

virtual void	SetErrorSrc (Ipv4Address errorSrcAddress)
	Set the route error source address.

void	SetErrorType (uint8_t errorType)
	Set the route error type.

virtual void	SetSalvage (uint8_t salvage)
	Set the salvage value of the packet.

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor.

	~DsrOptionHeader () override
	Destructor.

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet.

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header.

TypeId	GetInstanceTypeId () const override
	Get the instance type ID.

uint8_t	GetLength () const
	Get the option length.

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet.

uint8_t	GetType () const
	Get the type of the option.

void	Print (std::ostream &os) const override
	Print some information about the packet.

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet.

void	SetLength (uint8_t length)
	Set the option length.

void	SetType (uint8_t type)
	Set the type of the option.

Public Member Functions inherited from ns3::Header
	~Header () override

uint32_t	Deserialize (Buffer::Iterator start) override=0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual uint32_t	GetSerializedSize () const =0

void	Print (std::ostream &os) const override=0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator.

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator.

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
Buffer	m_errorData
	The anonymous data of this option.

Ipv4Address	m_errorDstAddress
	The error destination address.

uint16_t	m_errorLength
	The specific error message length.

Ipv4Address	m_errorSrcAddress
	The error source address.

uint8_t	m_errorType
	The error type or route error option.

uint8_t	m_salvage
	The salavage field.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Header of Dsr Option Route Error.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 730 of file dsr-option-header.h.

Constructor & Destructor Documentation

◆ DsrOptionRerrHeader()

ns3::dsr::DsrOptionRerrHeader::DsrOptionRerrHeader ( )

Constructor.

Definition at line 750 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

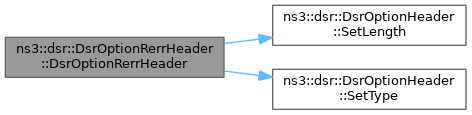

Here is the call graph for this function:

◆ ~DsrOptionRerrHeader()

ns3::dsr::DsrOptionRerrHeader::~DsrOptionRerrHeader ( )

override

Destructor.

Definition at line 759 of file dsr-option-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dsr::DsrOptionRerrHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 840 of file dsr-option-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::Begin(), GetSerializedSize(), m_errorData, m_errorDstAddress, m_errorLength, m_errorSrcAddress, m_errorType, m_salvage, ns3::Buffer::Iterator::Next(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), ns3::dsr::DsrOptionHeader::SetType(), and ns3::Buffer::Iterator::Write().

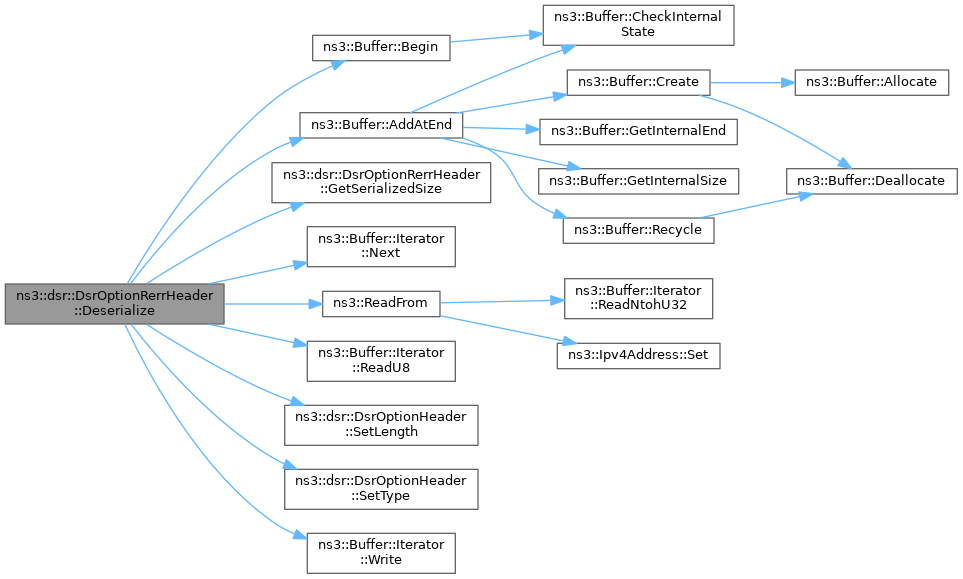

Here is the call graph for this function:

◆ GetAlignment()

DsrOptionHeader::Alignment ns3::dsr::DsrOptionRerrHeader::GetAlignment ( ) const

overridevirtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 862 of file dsr-option-header.cc.

◆ GetErrorDst()

Ipv4Address ns3::dsr::DsrOptionRerrHeader::GetErrorDst ( ) const

virtual

Get the error destination ip address.

Returns: The error destination address

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 806 of file dsr-option-header.cc.

References m_errorDstAddress.

◆ GetErrorSrc()

Ipv4Address ns3::dsr::DsrOptionRerrHeader::GetErrorSrc ( ) const

virtual

Get the route error source address.

Returns: The error source address

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 794 of file dsr-option-header.cc.

References m_errorSrcAddress.

◆ GetErrorType()

uint8_t ns3::dsr::DsrOptionRerrHeader::GetErrorType ( ) const

Get the route error type.

Returns: The error type

Definition at line 770 of file dsr-option-header.cc.

References m_errorType.

Referenced by ns3::dsr::DsrOptionRerrUnreachHeader::Serialize(), and ns3::dsr::DsrOptionRerrUnsupportedHeader::Serialize().

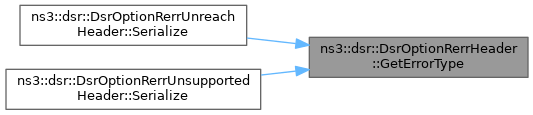

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::dsr::DsrOptionRerrHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 745 of file dsr-option-header.cc.

References GetTypeId().

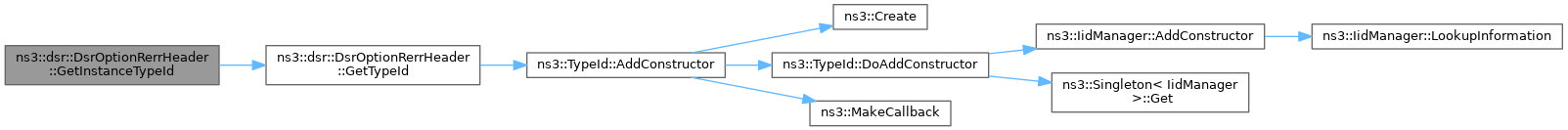

Here is the call graph for this function:

◆ GetSalvage()

uint8_t ns3::dsr::DsrOptionRerrHeader::GetSalvage ( ) const

virtual

Get the salvage value of the packet.

Returns: The salvage value of the packet

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 782 of file dsr-option-header.cc.

References m_salvage.

◆ GetSerializedSize()

uint32_t ns3::dsr::DsrOptionRerrHeader::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 820 of file dsr-option-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::dsr::DsrOptionRerrHeader::GetTypeId ( )

static

Get the type identificator.

Returns: type identificator

Definition at line 735 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

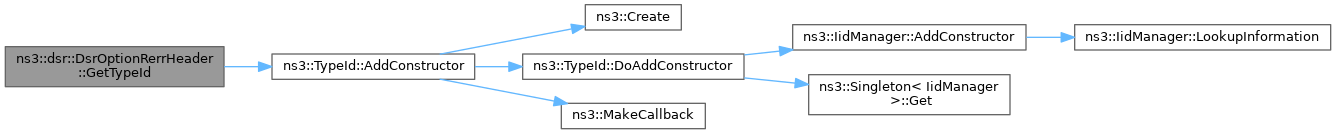

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::dsr::DsrOptionRerrHeader::Print ( std::ostream & os ) const

overridevirtual

Print some information about the packet.

Parameters

os	output stream

Reimplemented from ns3::dsr::DsrOptionHeader.

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 812 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_errorDstAddress, m_errorSrcAddress, m_errorType, and m_salvage.

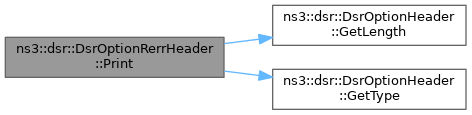

Here is the call graph for this function:

◆ Serialize()

void ns3::dsr::DsrOptionRerrHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 826 of file dsr-option-header.cc.

References ns3::Buffer::Begin(), ns3::Buffer::End(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_errorData, m_errorDstAddress, m_errorSrcAddress, m_errorType, m_salvage, ns3::Buffer::Iterator::Write(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

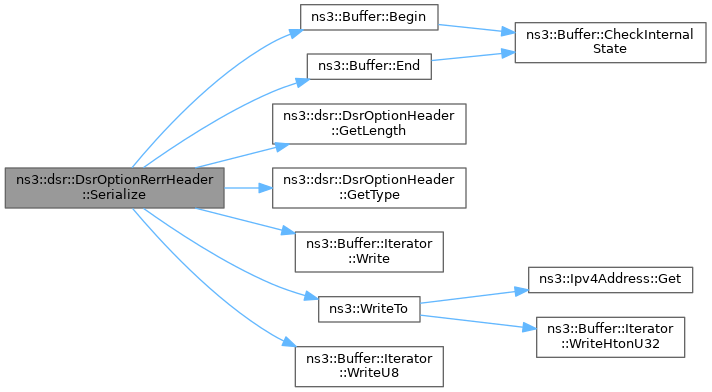

Here is the call graph for this function:

◆ SetErrorDst()

void ns3::dsr::DsrOptionRerrHeader::SetErrorDst ( Ipv4Address errorDstAddress )

virtual

Set the error destination ip address.

Parameters

errorDstAddress The error destination address

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 800 of file dsr-option-header.cc.

References m_errorDstAddress.

◆ SetErrorSrc()

void ns3::dsr::DsrOptionRerrHeader::SetErrorSrc ( Ipv4Address errorSrcAddress )

virtual

Set the route error source address.

Parameters

errorSrcAddress The error source address

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 788 of file dsr-option-header.cc.

References m_errorSrcAddress.

◆ SetErrorType()

void ns3::dsr::DsrOptionRerrHeader::SetErrorType ( uint8_t errorType )

Set the route error type.

Parameters

errorType The error type

Definition at line 764 of file dsr-option-header.cc.

References m_errorType.

Referenced by ns3::dsr::DsrOptionRerrUnreachHeader::DsrOptionRerrUnreachHeader(), ns3::dsr::DsrOptionRerrUnsupportedHeader::DsrOptionRerrUnsupportedHeader(), ns3::dsr::DsrRouting::CheckSendBuffer(), ns3::dsr::DsrOptionRerrUnreachHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnsupportedHeader::Deserialize(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrRouting::Receive(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), and ns3::dsr::DsrRouting::SendUnreachError().

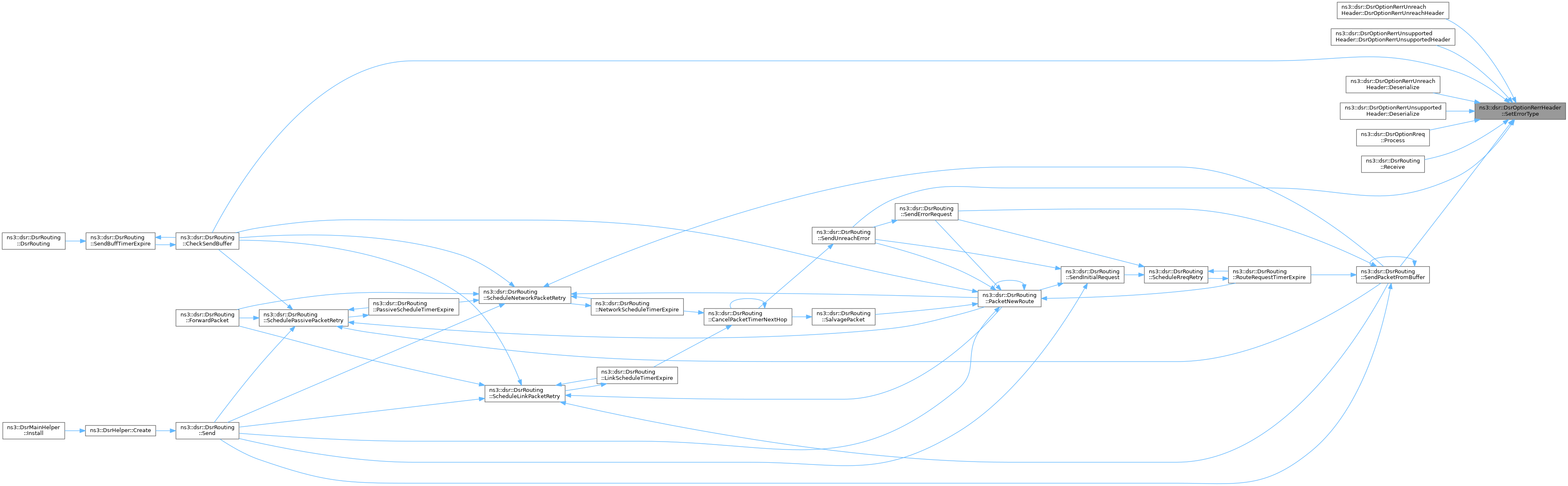

Here is the caller graph for this function:

◆ SetSalvage()

void ns3::dsr::DsrOptionRerrHeader::SetSalvage ( uint8_t salvage )

virtual

Set the salvage value of the packet.

Parameters

salvage The salvage value of the packet

Reimplemented in ns3::dsr::DsrOptionRerrUnreachHeader, and ns3::dsr::DsrOptionRerrUnsupportedHeader.

Definition at line 776 of file dsr-option-header.cc.

References m_salvage.

Member Data Documentation

◆ m_errorData

Buffer ns3::dsr::DsrOptionRerrHeader::m_errorData

private

The anonymous data of this option.

Definition at line 842 of file dsr-option-header.h.

Referenced by Deserialize(), and Serialize().

◆ m_errorDstAddress

Ipv4Address ns3::dsr::DsrOptionRerrHeader::m_errorDstAddress

private

The error destination address.

Definition at line 838 of file dsr-option-header.h.

Referenced by Deserialize(), GetErrorDst(), Print(), Serialize(), and SetErrorDst().

◆ m_errorLength

uint16_t ns3::dsr::DsrOptionRerrHeader::m_errorLength

private

The specific error message length.

Definition at line 830 of file dsr-option-header.h.

Referenced by Deserialize().

◆ m_errorSrcAddress

Ipv4Address ns3::dsr::DsrOptionRerrHeader::m_errorSrcAddress

private

The error source address.

Definition at line 834 of file dsr-option-header.h.

Referenced by Deserialize(), GetErrorSrc(), Print(), Serialize(), and SetErrorSrc().

◆ m_errorType

uint8_t ns3::dsr::DsrOptionRerrHeader::m_errorType

private

The error type or route error option.

Definition at line 822 of file dsr-option-header.h.

Referenced by Deserialize(), GetErrorType(), Print(), Serialize(), and SetErrorType().

◆ m_salvage

uint8_t ns3::dsr::DsrOptionRerrHeader::m_salvage

private

The salavage field.

Definition at line 826 of file dsr-option-header.h.

Referenced by Deserialize(), GetSalvage(), Print(), Serialize(), and SetSalvage().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DsrOptionRerrHeader()

◆ ~DsrOptionRerrHeader()

Member Function Documentation

◆ Deserialize()

◆ GetAlignment()

◆ GetErrorDst()

◆ GetErrorSrc()

◆ GetErrorType()

◆ GetInstanceTypeId()

◆ GetSalvage()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetErrorDst()

◆ SetErrorSrc()

◆ SetErrorType()

◆ SetSalvage()

Member Data Documentation

◆ m_errorData

◆ m_errorDstAddress

◆ m_errorLength

◆ m_errorSrcAddress

◆ m_errorType

◆ m_salvage
