ns3::ArpHeader Class Reference

The packet header for an ARP packet. More...

#include "arp-header.h"

+ Inheritance diagram for ns3::ArpHeader:

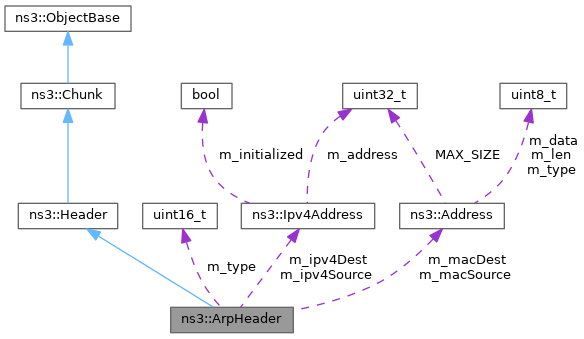

+ Collaboration diagram for ns3::ArpHeader:

Public Types

enum  ArpType_e { ARP_TYPE_REQUEST = 1 , ARP_TYPE_REPLY = 2 }
 Enumeration listing the possible ARP types. More...


Public Member Functions

uint32_t Deserialize (Buffer::Iterator start) override

Address GetDestinationHardwareAddress () const
 Returns the destination hardware address.

Ipv4Address GetDestinationIpv4Address () const
 Returns the destination IP address.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

uint32_t GetSerializedSize () const override

Address GetSourceHardwareAddress () const
 Returns the source hardware address.

Ipv4Address GetSourceIpv4Address () const
 Returns the source IP address.

bool IsReply () const
 Check if the ARP is a reply.

bool IsRequest () const
 Check if the ARP is a request.

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override

void SetReply (Address sourceHardwareAddress, Ipv4Address sourceProtocolAddress, Address destinationHardwareAddress, Ipv4Address destinationProtocolAddress)
 Set the ARP reply parameters.

void SetRequest (Address sourceHardwareAddress, Ipv4Address sourceProtocolAddress, Address destinationHardwareAddress, Ipv4Address destinationProtocolAddress)
 Set the ARP request parameters.

- Public Member Functions inherited from ns3::Header
 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Public Attributes

Ipv4Address m_ipv4Dest
 IP destination address.

Ipv4Address m_ipv4Source
 IP source address.

Address m_macDest
 hardware destination address

Address m_macSource
 hardware source address

uint16_t m_type
 type of the ICMP (ARP_TYPE_REQUEST)


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

The packet header for an ARP packet.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 35 of file arp-header.h.

Member Enumeration Documentation

◆ ArpType_e

Enumeration listing the possible ARP types.

Enumerator
ARP_TYPE_REQUEST
ARP_TYPE_REPLY

Definition at line 113 of file arp-header.h.

Member Function Documentation

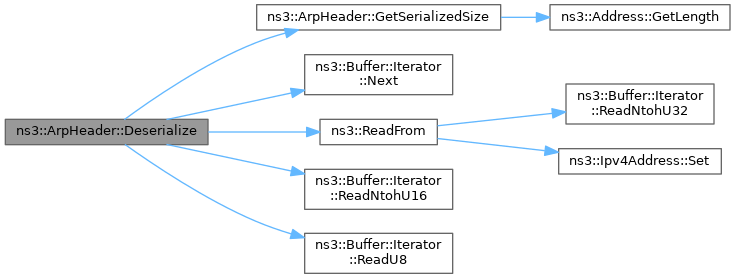

◆ Deserialize()

uint32_t ns3::ArpHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 179 of file arp-header.cc.

References GetSerializedSize(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), and ns3::Buffer::Iterator::ReadU8().

+ Here is the call graph for this function:

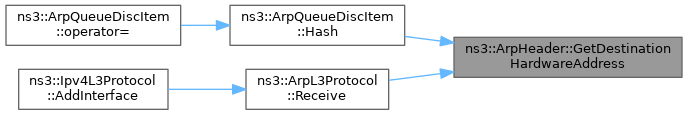

◆ GetDestinationHardwareAddress()

Address ns3::ArpHeader::GetDestinationHardwareAddress ( ) const

Returns the destination hardware address.

Returns
the destination hardware address

Definition at line 85 of file arp-header.cc.

References m_macDest, and NS_LOG_FUNCTION.

Referenced by ns3::ArpQueueDiscItem::Hash(), and ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

◆ GetDestinationIpv4Address()

Ipv4Address ns3::ArpHeader::GetDestinationIpv4Address ( ) const

Returns the destination IP address.

Returns
the destination IP address

Definition at line 99 of file arp-header.cc.

References m_ipv4Dest, and NS_LOG_FUNCTION.

Referenced by ns3::ArpQueueDiscItem::Hash(), and ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::ArpHeader::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 116 of file arp-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

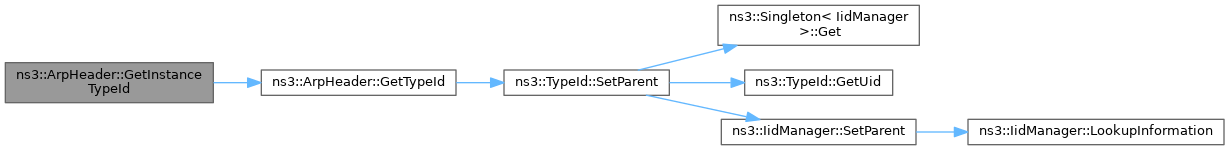

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::ArpHeader::GetSerializedSize ( ) const
overridevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 145 of file arp-header.cc.

References ns3::Address::GetLength(), m_macDest, m_macSource, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::ArpQueueDiscItem::GetSize().

+ Here is the call graph for this function:

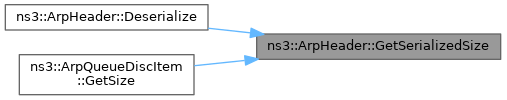

+ Here is the caller graph for this function:

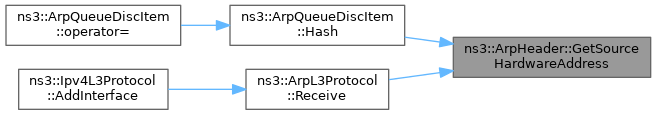

◆ GetSourceHardwareAddress()

Address ns3::ArpHeader::GetSourceHardwareAddress ( ) const

Returns the source hardware address.

Returns
the source hardware address

Definition at line 78 of file arp-header.cc.

References m_macSource, and NS_LOG_FUNCTION.

Referenced by ns3::ArpQueueDiscItem::Hash(), and ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

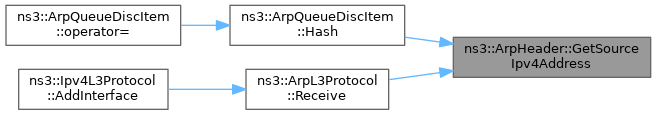

◆ GetSourceIpv4Address()

Ipv4Address ns3::ArpHeader::GetSourceIpv4Address ( ) const

Returns the source IP address.

Returns
the source IP address

Definition at line 92 of file arp-header.cc.

References m_ipv4Source, and NS_LOG_FUNCTION.

Referenced by ns3::ArpQueueDiscItem::Hash(), and ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ArpHeader::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 106 of file arp-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

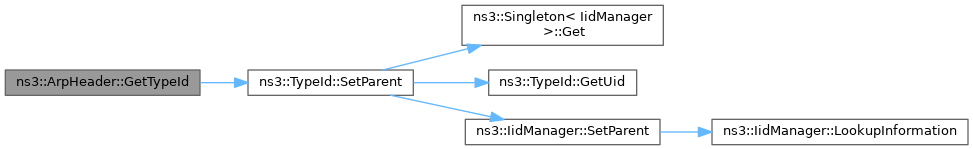

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

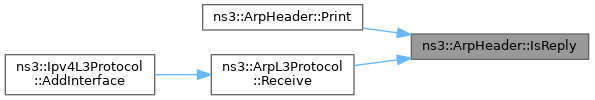

◆ IsReply()

bool ns3::ArpHeader::IsReply ( ) const

Check if the ARP is a reply.

Returns
true if it is a reply

Definition at line 71 of file arp-header.cc.

References ARP_TYPE_REPLY, m_type, and NS_LOG_FUNCTION.

Referenced by Print(), and ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

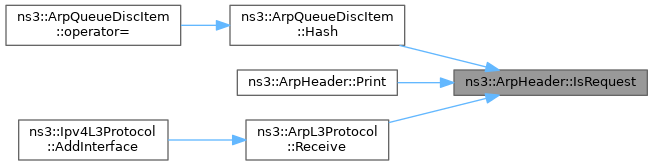

◆ IsRequest()

bool ns3::ArpHeader::IsRequest ( ) const

Check if the ARP is a request.

Returns
true if it is a request

Definition at line 64 of file arp-header.cc.

References ARP_TYPE_REQUEST, m_type, and NS_LOG_FUNCTION.

Referenced by ns3::ArpQueueDiscItem::Hash(), Print(), and ns3::ArpL3Protocol::Receive().

+ Here is the caller graph for this function:

◆ Print()

void ns3::ArpHeader::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 123 of file arp-header.cc.

References IsReply(), IsRequest(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, NS_ASSERT, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ Serialize()

void ns3::ArpHeader::Serialize ( Buffer::Iterator  start) const
overridevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 159 of file arp-header.cc.

References ns3::Address::GetLength(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, NS_ASSERT, NS_LOG_FUNCTION, ns3::Buffer::Iterator::WriteHtonU16(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

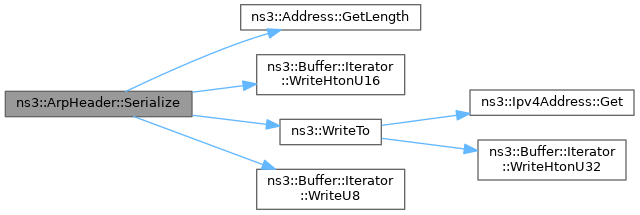

+ Here is the call graph for this function:

◆ SetReply()

void ns3::ArpHeader::SetReply ( Address  sourceHardwareAddress,
Ipv4Address  sourceProtocolAddress,
Address  destinationHardwareAddress,
Ipv4Address  destinationProtocolAddress
)

Set the ARP reply parameters.

Parameters
sourceHardwareAddressthe source hardware address
sourceProtocolAddressthe source IP address
destinationHardwareAddressthe destination hardware address (usually the broadcast address)
destinationProtocolAddressthe destination IP address

Definition at line 49 of file arp-header.cc.

References ARP_TYPE_REPLY, m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::SendArpReply().

+ Here is the caller graph for this function:

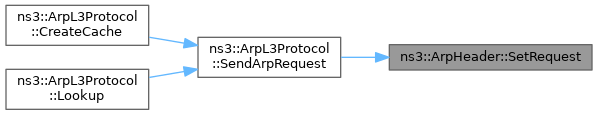

◆ SetRequest()

void ns3::ArpHeader::SetRequest ( Address  sourceHardwareAddress,
Ipv4Address  sourceProtocolAddress,
Address  destinationHardwareAddress,
Ipv4Address  destinationProtocolAddress
)

Set the ARP request parameters.

Parameters
sourceHardwareAddressthe source hardware address
sourceProtocolAddressthe source IP address
destinationHardwareAddressthe destination hardware address (usually the broadcast address)
destinationProtocolAddressthe destination IP address

Definition at line 34 of file arp-header.cc.

References ARP_TYPE_REQUEST, m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::SendArpRequest().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_ipv4Dest

Ipv4Address ns3::ArpHeader::m_ipv4Dest

IP destination address.

Definition at line 123 of file arp-header.h.

Referenced by Deserialize(), GetDestinationIpv4Address(), Print(), Serialize(), SetReply(), and SetRequest().

◆ m_ipv4Source

Ipv4Address ns3::ArpHeader::m_ipv4Source

IP source address.

Definition at line 122 of file arp-header.h.

Referenced by Deserialize(), GetSourceIpv4Address(), Print(), Serialize(), SetReply(), and SetRequest().

◆ m_macDest

Address ns3::ArpHeader::m_macDest

hardware destination address

Definition at line 121 of file arp-header.h.

Referenced by Deserialize(), GetDestinationHardwareAddress(), GetSerializedSize(), Print(), Serialize(), SetReply(), and SetRequest().

◆ m_macSource

Address ns3::ArpHeader::m_macSource

hardware source address

Definition at line 120 of file arp-header.h.

Referenced by Deserialize(), GetSerializedSize(), GetSourceHardwareAddress(), Print(), Serialize(), SetReply(), and SetRequest().

◆ m_type

uint16_t ns3::ArpHeader::m_type

type of the ICMP (ARP_TYPE_REQUEST)

Definition at line 119 of file arp-header.h.

Referenced by Deserialize(), IsReply(), IsRequest(), Serialize(), SetReply(), and SetRequest().


The documentation for this class was generated from the following files:
