ns3::SixLowPanBc0 Class Reference

6LoWPAN BC0 header - see RFC 4944. More...

#include "sixlowpan-header.h"

+ Inheritance diagram for ns3::SixLowPanBc0:
+ Collaboration diagram for ns3::SixLowPanBc0:

Public Member Functions

 SixLowPanBc0 ()

uint32_t Deserialize (Buffer::Iterator start) override
 Deserialize the packet.

TypeId GetInstanceTypeId () const override
 Return the instance type identifier.

uint8_t GetSequenceNumber () const
 Get the "Sequence Number" field.

uint32_t GetSerializedSize () const override
 Get the serialized size of the packet.

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override
 Serialize the packet.

void SetSequenceNumber (uint8_t seqNumber)
 Set the "Sequence Number" field.

- Public Member Functions inherited from ns3::Header
 ~Header () override

uint32_t Deserialize (Buffer::Iterator start) override=0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual uint32_t GetSerializedSize () const =0

void Print (std::ostream &os) const override=0

virtual void Serialize (Buffer::Iterator start) const =0

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator.

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator.

virtual void Print (std::ostream &os) const =0
 Print the object contents.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

uint8_t m_seqNumber
 Sequence number.


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

6LoWPAN BC0 header - see RFC 4944.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 1228 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanBc0()

ns3::SixLowPanBc0::SixLowPanBc0 ( )

Definition at line 1878 of file sixlowpan-header.cc.

References m_seqNumber.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SixLowPanBc0::Deserialize ( Buffer::Iterator  start)
overridevirtual

Deserialize the packet.

Parameters
[in]startBuffer iterator.
Returns
Size of the packet.

Implements ns3::Header.

Definition at line 1920 of file sixlowpan-header.cc.

References GetSerializedSize(), m_seqNumber, and ns3::Buffer::Iterator::ReadU8().

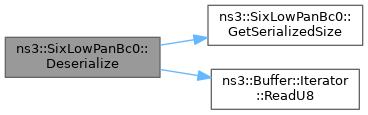

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanBc0::GetInstanceTypeId ( ) const
overridevirtual

Return the instance type identifier.

Returns
Instance type ID.

Implements ns3::ObjectBase.

Definition at line 1894 of file sixlowpan-header.cc.

References GetTypeId().

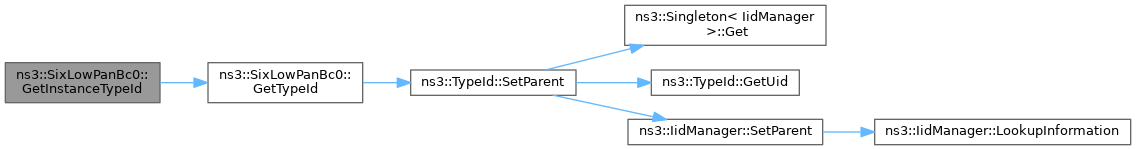

+ Here is the call graph for this function:

◆ GetSequenceNumber()

uint8_t ns3::SixLowPanBc0::GetSequenceNumber ( ) const

Get the "Sequence Number" field.

Returns
The sequence number value.

Definition at line 1942 of file sixlowpan-header.cc.

References m_seqNumber.

Referenced by ns3::SixLowPanNetDevice::ReceiveFromDevice().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SixLowPanBc0::GetSerializedSize ( ) const
overridevirtual

Get the serialized size of the packet.

Returns
Size.

Implements ns3::Header.

Definition at line 1906 of file sixlowpan-header.cc.

Referenced by Deserialize(), and ns3::SixLowPanNetDevice::DoSend().

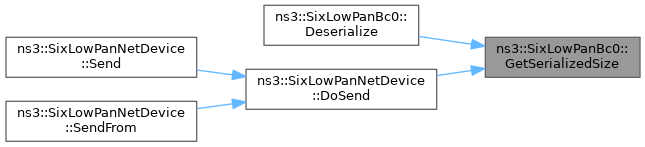

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SixLowPanBc0::GetTypeId ( )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 1884 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

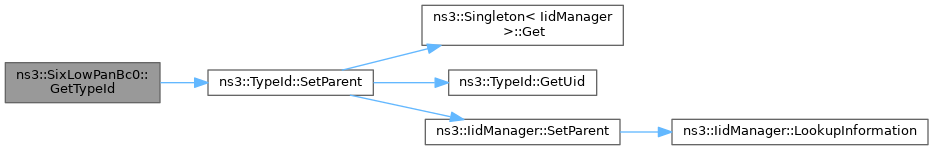

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::SixLowPanBc0::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1900 of file sixlowpan-header.cc.

References m_seqNumber.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

◆ Serialize()

void ns3::SixLowPanBc0::Serialize ( Buffer::Iterator  start) const
overridevirtual

Serialize the packet.

Parameters
[in]startBuffer iterator.

Implements ns3::Header.

Definition at line 1912 of file sixlowpan-header.cc.

References m_seqNumber, and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

◆ SetSequenceNumber()

void ns3::SixLowPanBc0::SetSequenceNumber ( uint8_t  seqNumber)

Set the "Sequence Number" field.

Parameters
[in]seqNumberThe sequence number value.

Definition at line 1936 of file sixlowpan-header.cc.

References m_seqNumber.

Referenced by ns3::SixLowPanNetDevice::DoSend().

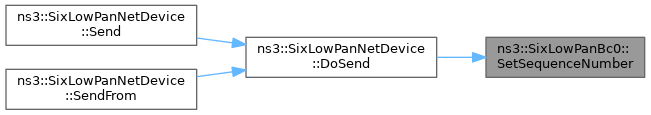

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_seqNumber

uint8_t ns3::SixLowPanBc0::m_seqNumber
private

Sequence number.

Definition at line 1279 of file sixlowpan-header.h.

Referenced by SixLowPanBc0(), Deserialize(), GetSequenceNumber(), Print(), Serialize(), and SetSequenceNumber().


The documentation for this class was generated from the following files:
