IPv6 Extension "Hop By Hop". More...
#include "ipv6-extension.h"
Public Member Functions | |
Ipv6ExtensionHopByHop () | |
Constructor. | |
~Ipv6ExtensionHopByHop () override | |
Destructor. | |
uint8_t | GetExtensionNumber () const override |
Get the extension number. | |
uint8_t | Process (Ptr< Packet > &packet, uint8_t offset, const Ipv6Header &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &stopProcessing, bool &isDropped, Ipv6L3Protocol::DropReason &dropReason) override |
Process method Called from Ipv6L3Protocol::Receive. | |
Public Member Functions inherited from ns3::Ipv6Extension | |
Ipv6Extension () | |
Constructor. | |
~Ipv6Extension () override | |
Destructor. | |
int64_t | AssignStreams (int64_t stream) |
Assign a fixed random variable stream number to the random variables used by this model. | |
virtual uint8_t | GetExtensionNumber () const =0 |
Get the extension number. | |
Ptr< Node > | GetNode () const |
Get the node. | |
virtual uint8_t | Process (Ptr< Packet > &packet, uint8_t offset, const Ipv6Header &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &stopProcessing, bool &isDropped, Ipv6L3Protocol::DropReason &dropReason)=0 |
Process method Called from Ipv6L3Protocol::Receive. | |
virtual uint8_t | ProcessOptions (Ptr< Packet > &packet, uint8_t offset, uint8_t length, const Ipv6Header &ipv6Header, Ipv6Address dst, uint8_t *nextHeader, bool &stopProcessing, bool &isDropped, Ipv6L3Protocol::DropReason &dropReason) |
Process options Called by implementing classes to process the options. | |
void | SetNode (Ptr< Node > node) |
Set the node. | |
Public Member Functions inherited from ns3::Object | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type identificator. | |
Static Public Member Functions inherited from ns3::Ipv6Extension | |
static TypeId | GetTypeId () |
Get the type identificator. | |
Static Public Member Functions inherited from ns3::Object | |
static TypeId | GetTypeId () |
Register this type. | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Attributes | |
static const uint8_t | EXT_NUMBER = 0 |
Hop-by-hop extension number. | |
Additional Inherited Members | |
Protected Member Functions inherited from ns3::Object | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Protected Attributes inherited from ns3::Ipv6Extension | |
Ptr< UniformRandomVariable > | m_uvar |
Provides uniform random variables. | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
IPv6 Extension "Hop By Hop".
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).
Definition at line 169 of file ipv6-extension.h.
ns3::Ipv6ExtensionHopByHop::Ipv6ExtensionHopByHop | ( | ) |
Constructor.
Definition at line 207 of file ipv6-extension.cc.
|
override |
Destructor.
Definition at line 211 of file ipv6-extension.cc.
|
overridevirtual |
Get the extension number.
Implements ns3::Ipv6Extension.
Definition at line 216 of file ipv6-extension.cc.
References EXT_NUMBER.
|
static |

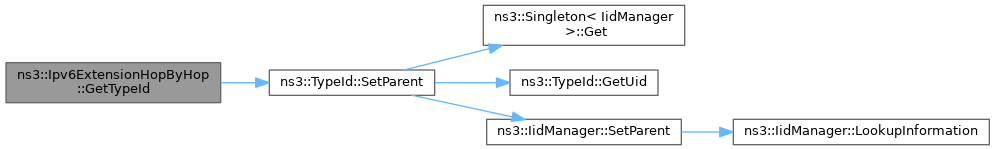

Get the type identificator.
Definition at line 198 of file ipv6-extension.cc.
References ns3::TypeId::SetParent().
|
overridevirtual |

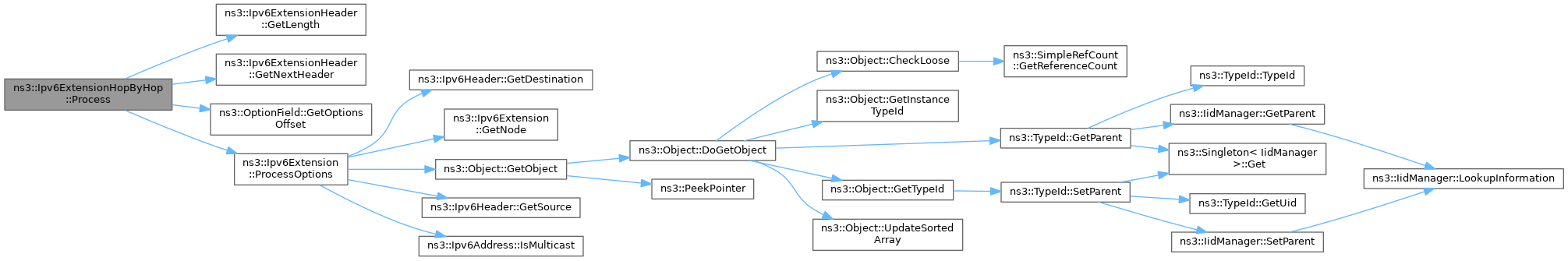

Process method Called from Ipv6L3Protocol::Receive.
packet | the packet |
offset | the offset of the extension to process |
ipv6Header | the IPv6 header of packet received |
dst | destination address of the packet received (i.e. us) |
nextHeader | the next header |
stopProcessing | true if the packet must not be further processed |
isDropped | true if the packet must be dropped |
dropReason | dropping reason |
Implements ns3::Ipv6Extension.
Definition at line 222 of file ipv6-extension.cc.
References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), ns3::OptionField::GetOptionsOffset(), NS_LOG_FUNCTION, and ns3::Ipv6Extension::ProcessOptions().
|
static |
Hop-by-hop extension number.
Definition at line 175 of file ipv6-extension.h.
Referenced by GetExtensionNumber().
