Test EHT Operation information element serialization and deserialization. More...

Inheritance diagram for EhtOperationElementTest:

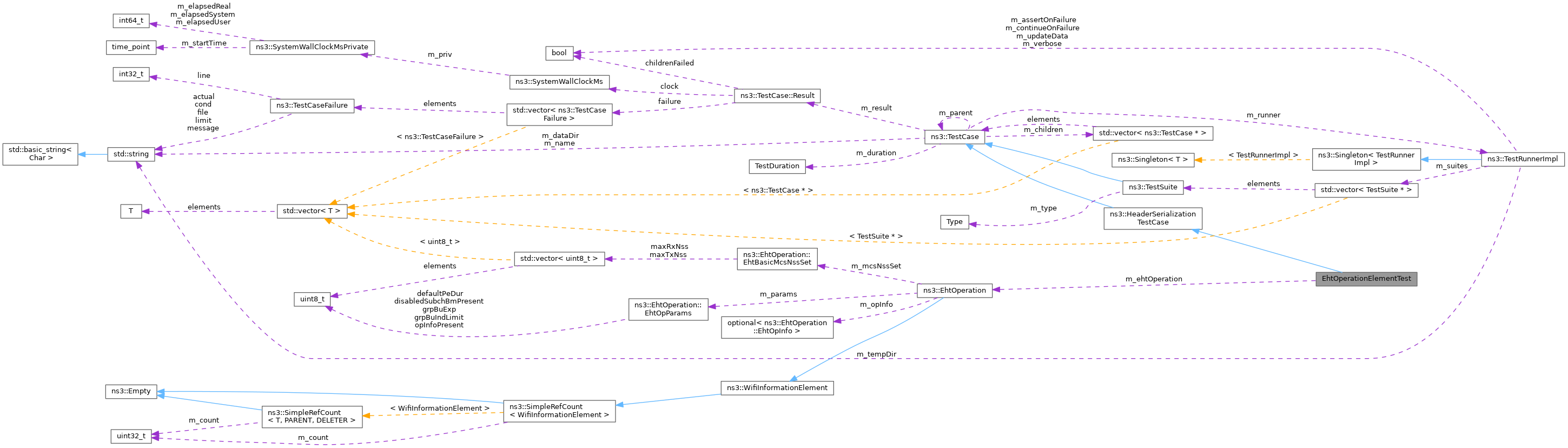

Collaboration diagram for EhtOperationElementTest:

Public Member Functions
	EhtOperationElementTest (const EhtOperation::EhtOpParams &params, uint8_t rxMaxNss0_7, uint8_t txMaxNss0_7, uint8_t rxMaxNss8_9, uint8_t txMaxNss8_9, uint8_t rxMaxNss10_11, uint8_t txMaxNss10_11, uint8_t rxMaxNss12_13, uint8_t txMaxNss12_13, std::optional< EhtOperation::EhtOpInfo > opInfo)
	Constructor.

	~EhtOperationElementTest () override=default

Public Member Functions inherited from ns3::HeaderSerializationTestCase
template<typename T , typename... Args>
void	TestHeaderSerialization (const T &hdr, Args &&... args)
	Serialize the given header in a buffer, then create a new header by deserializing from the buffer and serialize the new header into a new buffer.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions

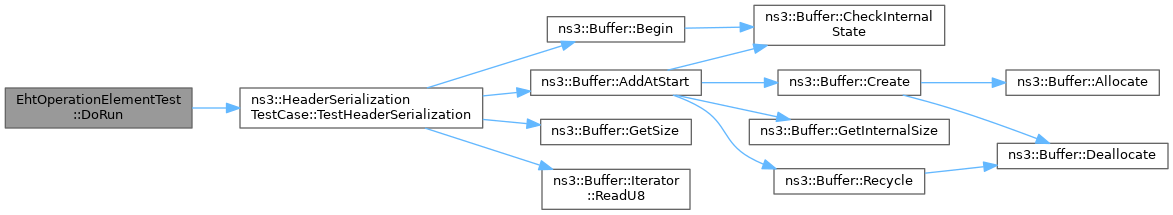

void	DoRun () override
	Implementation to actually run this TestCase.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::HeaderSerializationTestCase
	HeaderSerializationTestCase (std::string name)
	Constructor.

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Test EHT Operation information element serialization and deserialization.

Constructor & Destructor Documentation

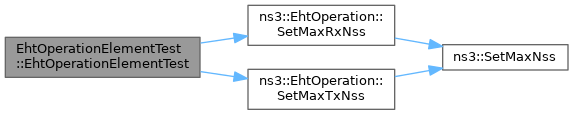

EhtOperationElementTest::EhtOperationElementTest	(	const EhtOperation::EhtOpParams &	params,
		uint8_t	rxMaxNss0_7,
		uint8_t	txMaxNss0_7,
		uint8_t	rxMaxNss8_9,
		uint8_t	txMaxNss8_9,
		uint8_t	rxMaxNss10_11,
		uint8_t	txMaxNss10_11,
		uint8_t	rxMaxNss12_13,
		uint8_t	txMaxNss12_13,
		std::optional< EhtOperation::EhtOpInfo >	opInfo
	)

Constructor.

Parameters

params	the EHT Operation Parameters field
rxMaxNss0_7	RX max NSS that supports EHT MCS 0-7
txMaxNss0_7	TX max NSS that supports EHT MCS 0-7
rxMaxNss8_9	RX max NSS that supports EHT MCS 8-9
txMaxNss8_9	TX max NSS that supports EHT MCS 8-9
rxMaxNss10_11	RX max NSS that supports EHT MCS 10-11
txMaxNss10_11	TX max NSS that supports EHT MCS 10-11
rxMaxNss12_13	RX max NSS that supports EHT MCS 12-13
txMaxNss12_13	TX max NSS that supports EHT MCS 12-13
opInfo	the EHT Operation Information field
