#include <assert.h>
#include <errno.h>
#include "ns3/address.h"
#include "ns3/log.h"
#include "ns3/mac48-address.h"
#include "ns3/net-device.h"
#include "ns3/nstime.h"
#include "ns3/packet.h"
#include "ns3/simulator.h"
#include <limits>
#include <map>
#include <set>
#include "openflow/ericsson-ext.h"
#include "openflow/nicira-ext.h"
#include "openflow/openflow.h"
#include "openflow/private/csum.h"
#include "openflow/private/poll-loop.h"
#include "openflow/private/rconn.h"
#include "openflow/private/stp.h"
#include "openflow/private/vconn.h"
#include "openflow/private/xtoxll.h"
#include "openflow/private/chain.h"
#include "openflow/private/datapath.h"
#include "openflow/private/table.h"
#include "openflow/private/dp_act.h"
#include "openflow/private/pt_act.h"

Include dependency graph for openflow-interface.h:

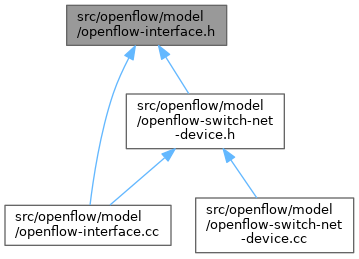

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::ofi::Action
	Class for handling flow table actions. More...

class	ns3::ofi::Controller
	An interface for a Controller of OpenFlowSwitchNetDevices. More...

class	ns3::ofi::DropController
	Demonstration of a Drop controller. More...

struct	ns3::ofi::EricssonAction
	Class for handling Ericsson Vendor-defined actions. More...

struct	ns3::ofi::Stats::FlowStatsState
	State of the FlowStats request/reply. More...

struct	ns3::ofi::LearningController::LearnedState
	Learned state. More...

class	ns3::ofi::LearningController
	Demonstration of a Learning controller. More...

struct	ns3::ofi::Port
	Port and its metadata. More...

struct	ns3::ofi::Stats::PortStatsState
	State of the PortStats request/reply. More...

class	ns3::ofi::Stats
	OpenFlow statistics. More...

struct	ns3::ofi::StatsDumpCallback
	Callback for a stats dump request. More...

struct	ns3::ofi::SwitchPacketMetadata
	Packet Metadata, allows us to track the packet's metadata as it passes through the switch. More...

struct	ns3::ofi::VPortAction
	Class for handling virtual port table actions. More...

Namespaces
namespace	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

namespace	ns3::ofi

Macros
#define	delete _delete

#define	list List

#define	N_PKT_BUFFERS (1 << PKT_BUFFER_BITS)

#define	OFP_SUPPORTED_ACTIONS

#define	OFP_SUPPORTED_CAPABILITIES (OFPC_FLOW_STATS \| OFPC_TABLE_STATS \| OFPC_PORT_STATS \| OFPC_MULTI_PHY_TX \| OFPC_VPORT_TABLE)

#define	OFP_SUPPORTED_VPORT_TABLE_ACTIONS

#define	PKT_BUFFER_BITS 8

#define	PKT_BUFFER_MASK (N_PKT_BUFFERS - 1)

#define	PKT_COOKIE_BITS (32 - PKT_BUFFER_BITS)

#define	private _private

Functions

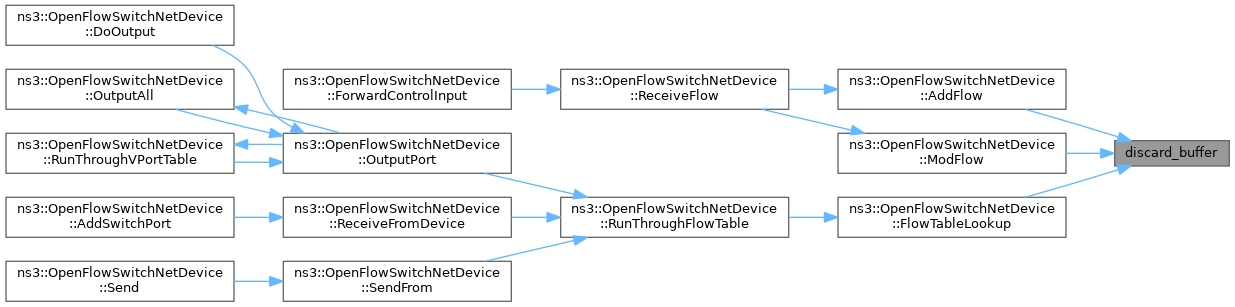

void	discard_buffer (uint32_t id)

void	ns3::ofi::ExecuteActions (Ptr< OpenFlowSwitchNetDevice > swtch, uint64_t packet_uid, ofpbuf buffer, sw_flow_key key, const ofp_action_header *actions, size_t actions_len, int ignore_no_fwd)
	Executes a list of flow table actions.

void	ns3::ofi::ExecuteVendor (ofpbuf buffer, const sw_flow_key key, const ofp_action_header *ah)
	Executes a vendor-defined action.

void	ns3::ofi::ExecuteVPortActions (Ptr< OpenFlowSwitchNetDevice > swtch, uint64_t packet_uid, ofpbuf buffer, sw_flow_key key, const ofp_action_header *actions, size_t actions_len)
	Executes a list of virtual port table entry actions.

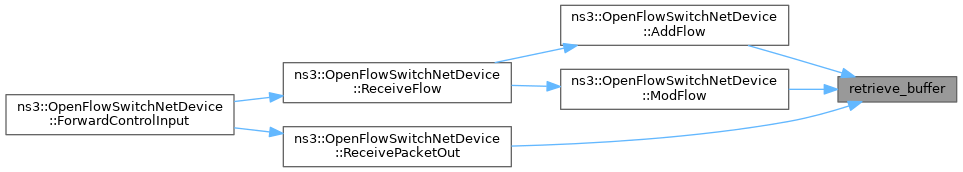

ofpbuf *	retrieve_buffer (uint32_t id)

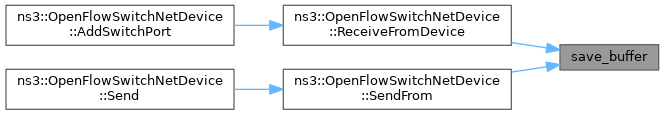

uint32_t	save_buffer (ofpbuf *)

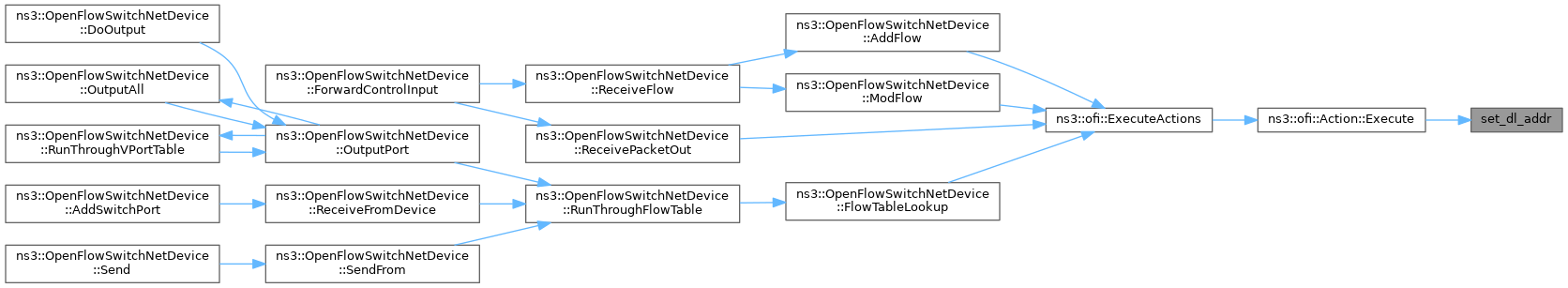

void	set_dl_addr (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_mpls_exp (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

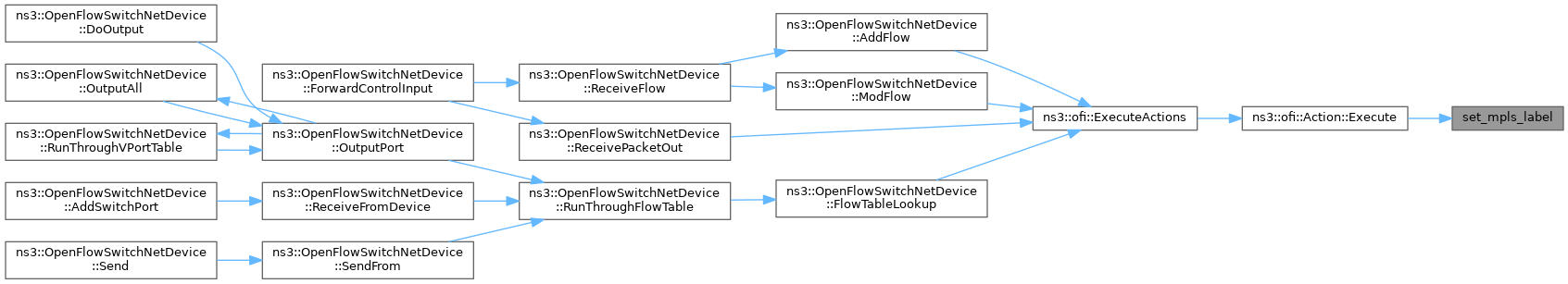

void	set_mpls_label (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_nw_addr (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_tp_port (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

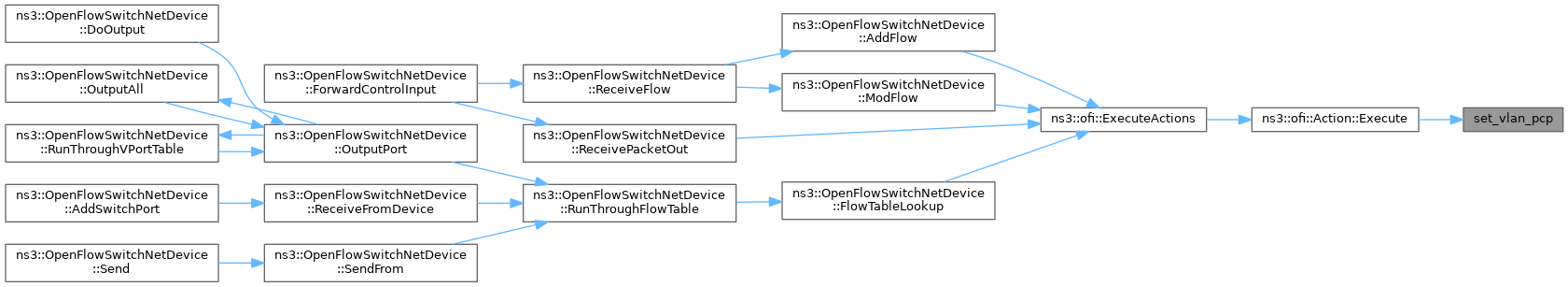

void	set_vlan_pcp (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

void	set_vlan_vid (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

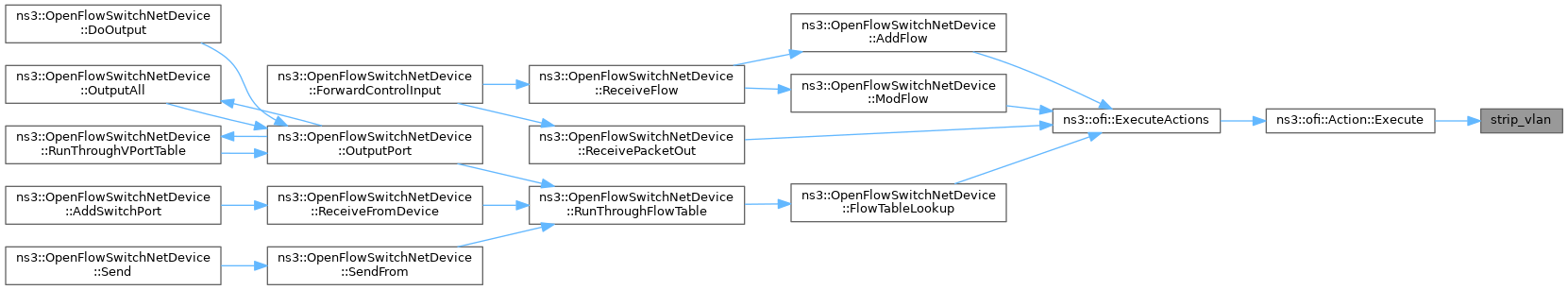

void	strip_vlan (ofpbuf buffer, sw_flow_key key, const ofp_action_header *ah)

uint16_t	ns3::ofi::ValidateActions (const sw_flow_key key, const ofp_action_header actions, size_t actions_len)
	Validates a list of flow table actions.

uint16_t	ns3::ofi::ValidateVendor (const sw_flow_key key, const ofp_action_header ah, uint16_t len)
	Validates a vendor-defined action.

uint16_t	ns3::ofi::ValidateVPortActions (const ofp_action_header *actions, size_t actions_len)
	Validates a list of virtual port table entry actions.

Macro Definition Documentation

◆ delete

#define delete _delete

Definition at line 45 of file openflow-interface.h.

◆ list

#define list List

Definition at line 46 of file openflow-interface.h.

◆ N_PKT_BUFFERS

#define N_PKT_BUFFERS (1 << PKT_BUFFER_BITS)

Definition at line 640 of file openflow-interface.h.

◆ OFP_SUPPORTED_ACTIONS

#define OFP_SUPPORTED_ACTIONS

Value:

    ((1 << OFPAT_OUTPUT) | (1 << OFPAT_SET_VLAN_VID) | (1 << OFPAT_SET_VLAN_PCP) |                 \
     (1 << OFPAT_STRIP_VLAN) | (1 << OFPAT_SET_DL_SRC) | (1 << OFPAT_SET_DL_DST) |                 \
     (1 << OFPAT_SET_NW_SRC) | (1 << OFPAT_SET_NW_DST) | (1 << OFPAT_SET_TP_SRC) |                 \
     (1 << OFPAT_SET_TP_DST) | (1 << OFPAT_SET_MPLS_LABEL) | (1 << OFPAT_SET_MPLS_EXP))

Definition at line 87 of file openflow-interface.h.
