ns3::OfdmUcdChannelEncodings Class Reference

This class implements the OFDM UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651. More...

#include "ul-mac-messages.h"

Inheritance diagram for ns3::OfdmUcdChannelEncodings:

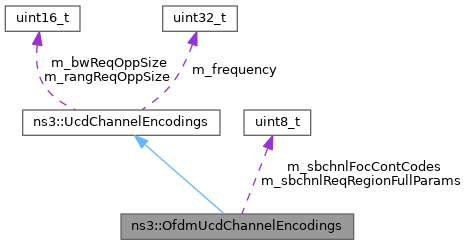

Collaboration diagram for ns3::OfdmUcdChannelEncodings:

Public Member Functions
	OfdmUcdChannelEncodings ()
	~OfdmUcdChannelEncodings () override
uint8_t	GetSbchnlFocContCodes () const
	Get SB channel for control codes.
uint8_t	GetSbchnlReqRegionFullParams () const
	Get SB channel request region full parameters.
uint16_t	GetSize () const
	Get size.
void	SetSbchnlFocContCodes (uint8_t sbchnlFocContCodes)
	Set SB channel for control codes.
void	SetSbchnlReqRegionFullParams (uint8_t sbchnlReqRegionFullParams)
	Set SB channel reguest region full parameters.
Public Member Functions inherited from ns3::UcdChannelEncodings
	UcdChannelEncodings ()
virtual	~UcdChannelEncodings ()
uint16_t	GetBwReqOppSize () const
	Get BW request opp size.
uint32_t	GetFrequency () const
	Get frequency.
uint16_t	GetRangReqOppSize () const
	Get range request opp size.
uint16_t	GetSize () const
	Get size.
Buffer::Iterator	Read (Buffer::Iterator start)
	Read item.
void	SetBwReqOppSize (uint16_t bwReqOppSize)
	Set BW request opp size.
void	SetFrequency (uint32_t frequency)
	Set frequency.
void	SetRangReqOppSize (uint16_t rangReqOppSize)
	Set range request opp size.
Buffer::Iterator	Write (Buffer::Iterator start) const
	Write item.

Private Member Functions
Buffer::Iterator	DoRead (Buffer::Iterator start) override
	Read item.
Buffer::Iterator	DoWrite (Buffer::Iterator start) const override
	Write item.

Private Attributes
uint8_t	m_sbchnlFocContCodes
	SB channel for control codes.
uint8_t	m_sbchnlReqRegionFullParams
	SB channel request region full parameters.

Detailed Description

This class implements the OFDM UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651.

Definition at line 134 of file ul-mac-messages.h.

Constructor & Destructor Documentation

OfdmUcdChannelEncodings()

ns3::OfdmUcdChannelEncodings::OfdmUcdChannelEncodings

(

)

Definition at line 106 of file ul-mac-messages.cc.

~OfdmUcdChannelEncodings()

ns3::OfdmUcdChannelEncodings::~OfdmUcdChannelEncodings ( )

override

Definition at line 112 of file ul-mac-messages.cc.

Member Function Documentation

DoRead()

Buffer::Iterator ns3::OfdmUcdChannelEncodings::DoRead ( Buffer::Iterator  start )

overrideprivatevirtual

Read item.

Parameters

start

the iterator

Returns

the updated iterator

Implements ns3::UcdChannelEncodings.

Definition at line 156 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes, m_sbchnlReqRegionFullParams, and ns3::Buffer::Iterator::ReadU8().

Here is the call graph for this function:

DoWrite()

Buffer::Iterator ns3::OfdmUcdChannelEncodings::DoWrite ( Buffer::Iterator  start ) const

overrideprivatevirtual

Write item.

Parameters

start

the iterator

Returns

the updated iterator

Implements ns3::UcdChannelEncodings.

Definition at line 147 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes, m_sbchnlReqRegionFullParams, and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

GetSbchnlFocContCodes()

uint8_t ns3::OfdmUcdChannelEncodings::GetSbchnlFocContCodes

(

)

const

Get SB channel for control codes.

Returns

the channel for control codes

Definition at line 135 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes.

GetSbchnlReqRegionFullParams()

uint8_t ns3::OfdmUcdChannelEncodings::GetSbchnlReqRegionFullParams

(

)

const

Get SB channel request region full parameters.

Returns

the channel request region full parameters

Definition at line 129 of file ul-mac-messages.cc.

References m_sbchnlReqRegionFullParams.

GetSize()

uint16_t ns3::OfdmUcdChannelEncodings::GetSize

(

)

const

Get size.

Returns

the size

Definition at line 141 of file ul-mac-messages.cc.

References ns3::UcdChannelEncodings::GetSize().

Referenced by ns3::Ucd::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

SetSbchnlFocContCodes()

void ns3::OfdmUcdChannelEncodings::SetSbchnlFocContCodes

(

uint8_t

sbchnlFocContCodes

)

Set SB channel for control codes.

Parameters

sbchnlFocContCodes

the channel control codes

Definition at line 123 of file ul-mac-messages.cc.

References m_sbchnlFocContCodes.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

Here is the caller graph for this function:

SetSbchnlReqRegionFullParams()

void ns3::OfdmUcdChannelEncodings::SetSbchnlReqRegionFullParams

(

uint8_t

sbchnlReqRegionFullParams

)

Set SB channel reguest region full parameters.

Parameters

sbchnlReqRegionFullParams

the channel request region full parameters

Definition at line 117 of file ul-mac-messages.cc.

References m_sbchnlReqRegionFullParams.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

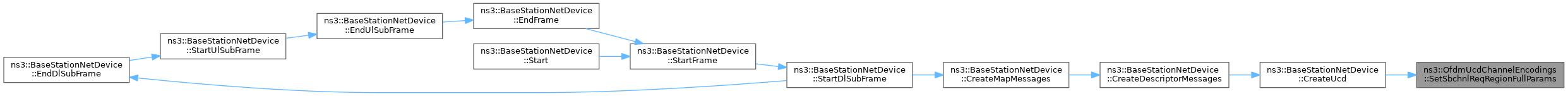

Here is the caller graph for this function:

Member Data Documentation

m_sbchnlFocContCodes

uint8_t ns3::OfdmUcdChannelEncodings::m_sbchnlFocContCodes

private

SB channel for control codes.

Definition at line 183 of file ul-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetSbchnlFocContCodes(), and SetSbchnlFocContCodes().

m_sbchnlReqRegionFullParams

uint8_t ns3::OfdmUcdChannelEncodings::m_sbchnlReqRegionFullParams

private

SB channel request region full parameters.

Definition at line 182 of file ul-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetSbchnlReqRegionFullParams(), and SetSbchnlReqRegionFullParams().

---

The documentation for this class was generated from the following files:

• src/wimax/model/ul-mac-messages.h
• src/wimax/model/ul-mac-messages.cc
