This class implements the UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651. More...

#include "ul-mac-messages.h"

Inheritance diagram for ns3::UcdChannelEncodings:

Collaboration diagram for ns3::UcdChannelEncodings:

Public Member Functions
	UcdChannelEncodings ()

virtual	~UcdChannelEncodings ()

uint16_t	GetBwReqOppSize () const
	Get BW request opp size.

uint32_t	GetFrequency () const
	Get frequency.

uint16_t	GetRangReqOppSize () const
	Get range request opp size.

uint16_t	GetSize () const
	Get size.

Buffer::Iterator	Read (Buffer::Iterator start)
	Read item.

void	SetBwReqOppSize (uint16_t bwReqOppSize)
	Set BW request opp size.

void	SetFrequency (uint32_t frequency)
	Set frequency.

void	SetRangReqOppSize (uint16_t rangReqOppSize)
	Set range request opp size.

Buffer::Iterator	Write (Buffer::Iterator start) const
	Write item.

Private Member Functions
virtual Buffer::Iterator	DoRead (Buffer::Iterator start)=0
	Read item.

virtual Buffer::Iterator	DoWrite (Buffer::Iterator start) const =0
	Write item.

Private Attributes
uint16_t	m_bwReqOppSize
	BW request opp size.

uint32_t	m_frequency
	frequency

uint16_t	m_rangReqOppSize
	range request opp size

Detailed Description

This class implements the UCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.3.1 UCD channel encodings, page 651.

Definition at line 39 of file ul-mac-messages.h.

Constructor & Destructor Documentation

◆ UcdChannelEncodings()

ns3::UcdChannelEncodings::UcdChannelEncodings ( )

Definition at line 31 of file ul-mac-messages.cc.

◆ ~UcdChannelEncodings()

ns3::UcdChannelEncodings::~UcdChannelEncodings ( )

virtual

Definition at line 38 of file ul-mac-messages.cc.

Member Function Documentation

◆ DoRead()

virtual Buffer::Iterator ns3::UcdChannelEncodings::DoRead ( Buffer::Iterator start )

privatepure virtual

Read item.

Parameters

start the iterator

Returns: the updated iterator

Implemented in ns3::OfdmUcdChannelEncodings.

Referenced by Read().

Here is the caller graph for this function:

◆ DoWrite()

virtual Buffer::Iterator ns3::UcdChannelEncodings::DoWrite ( Buffer::Iterator start ) const

privatepure virtual

Write item.

Parameters

start the iterator

Returns: the updated iterator

Implemented in ns3::OfdmUcdChannelEncodings.

Referenced by Write().

Here is the caller graph for this function:

◆ GetBwReqOppSize()

uint16_t ns3::UcdChannelEncodings::GetBwReqOppSize ( ) const

Get BW request opp size.

Returns: the bandwidth request opp size

Definition at line 61 of file ul-mac-messages.cc.

References m_bwReqOppSize.

◆ GetFrequency()

uint32_t ns3::UcdChannelEncodings::GetFrequency ( ) const

Get frequency.

Returns: the frequency

Definition at line 73 of file ul-mac-messages.cc.

References m_frequency.

◆ GetRangReqOppSize()

uint16_t ns3::UcdChannelEncodings::GetRangReqOppSize ( ) const

Get range request opp size.

Returns: the ragning request opp size

Definition at line 67 of file ul-mac-messages.cc.

References m_rangReqOppSize.

◆ GetSize()

uint16_t ns3::UcdChannelEncodings::GetSize ( ) const

Get size.

Returns: the size

Definition at line 79 of file ul-mac-messages.cc.

Referenced by ns3::OfdmUcdChannelEncodings::GetSize().

Here is the caller graph for this function:

◆ Read()

Buffer::Iterator ns3::UcdChannelEncodings::Read ( Buffer::Iterator start )

Read item.

Parameters

start the iterator

Returns: the updated iterator

Definition at line 95 of file ul-mac-messages.cc.

References DoRead(), m_bwReqOppSize, m_frequency, m_rangReqOppSize, ns3::Buffer::Iterator::ReadU16(), and ns3::Buffer::Iterator::ReadU32().

Referenced by ns3::Ucd::Deserialize().

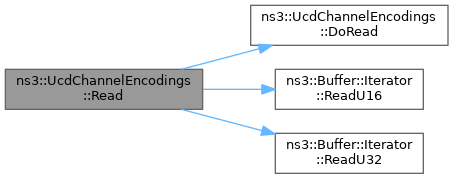

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBwReqOppSize()

void ns3::UcdChannelEncodings::SetBwReqOppSize ( uint16_t bwReqOppSize )

Set BW request opp size.

Parameters

bwReqOppSize the bandwidth request opp size

Definition at line 43 of file ul-mac-messages.cc.

References m_bwReqOppSize.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

Here is the caller graph for this function:

◆ SetFrequency()

void ns3::UcdChannelEncodings::SetFrequency ( uint32_t frequency )

Set frequency.

Parameters

frequency the frequency

Definition at line 55 of file ul-mac-messages.cc.

References m_frequency.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

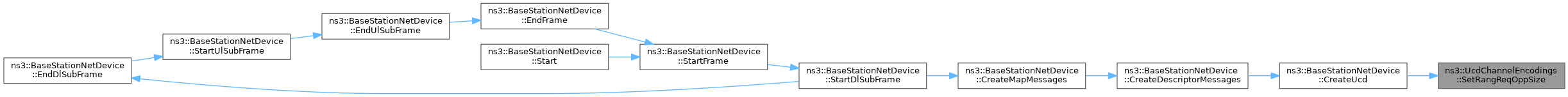

Here is the caller graph for this function:

◆ SetRangReqOppSize()

void ns3::UcdChannelEncodings::SetRangReqOppSize ( uint16_t rangReqOppSize )

Set range request opp size.

Parameters

rangReqOppSize the ranging request opp size

Definition at line 49 of file ul-mac-messages.cc.

References m_rangReqOppSize.

Referenced by ns3::BaseStationNetDevice::CreateUcd().

Here is the caller graph for this function:

◆ Write()

Buffer::Iterator ns3::UcdChannelEncodings::Write ( Buffer::Iterator start ) const

Write item.

Parameters

start the iterator

Returns: the updated iterator

Definition at line 85 of file ul-mac-messages.cc.

References DoWrite(), m_bwReqOppSize, m_frequency, m_rangReqOppSize, ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU32().

Referenced by ns3::Ucd::Serialize().

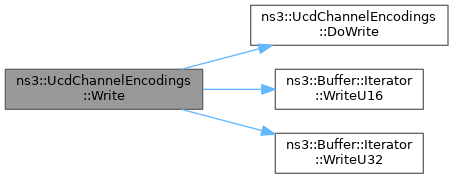

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_bwReqOppSize

uint16_t ns3::UcdChannelEncodings::m_bwReqOppSize

private

BW request opp size.

Definition at line 110 of file ul-mac-messages.h.

Referenced by GetBwReqOppSize(), Read(), SetBwReqOppSize(), and Write().

◆ m_frequency

uint32_t ns3::UcdChannelEncodings::m_frequency

private

frequency

Definition at line 112 of file ul-mac-messages.h.

Referenced by GetFrequency(), Read(), SetFrequency(), and Write().

◆ m_rangReqOppSize

uint16_t ns3::UcdChannelEncodings::m_rangReqOppSize

private

range request opp size

Definition at line 111 of file ul-mac-messages.h.

Referenced by GetRangReqOppSize(), Read(), SetRangReqOppSize(), and Write().

The documentation for this class was generated from the following files:

src/wimax/model/ul-mac-messages.h
src/wimax/model/ul-mac-messages.cc
