Lena PfFf Mac Scheduler Test Case 2. More...

#include "lte-test-pf-ff-mac-scheduler.h"

Inheritance diagram for LenaPfFfMacSchedulerTestCase2:

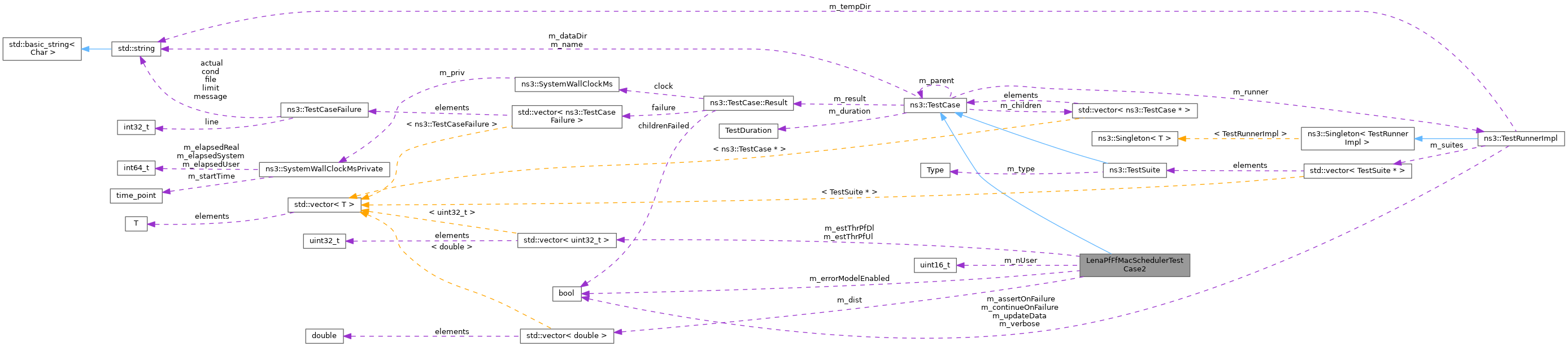

Collaboration diagram for LenaPfFfMacSchedulerTestCase2:

Public Member Functions
	LenaPfFfMacSchedulerTestCase2 (std::vector< double > dist, std::vector< uint32_t > estThrPfDl, std::vector< uint32_t > estThrPfUl, bool errorModelEnabled)
	Constructor.

	~LenaPfFfMacSchedulerTestCase2 () override

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase.

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, std::vector< double > dist)
	Builds the test name string based on provided parameter values.

Private Attributes
std::vector< double >	m_dist
	the distance between nodes

bool	m_errorModelEnabled
	indicates whether the error model is enabled

std::vector< uint32_t >	m_estThrPfDl
	the estimated DL throughput

std::vector< uint32_t >	m_estThrPfUl
	the estimated UL throughput

uint16_t	m_nUser
	number of UE nodes

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Lena PfFf Mac Scheduler Test Case 2.

Definition at line 80 of file lte-test-pf-ff-mac-scheduler.h.

Constructor & Destructor Documentation

◆ LenaPfFfMacSchedulerTestCase2()

LenaPfFfMacSchedulerTestCase2::LenaPfFfMacSchedulerTestCase2	(	std::vector< double >	dist,
		std::vector< uint32_t >	estThrPfDl,
		std::vector< uint32_t >	estThrPfUl,
		bool	errorModelEnabled
	)

Constructor.

Parameters

dist	the distance between nodes
estThrPfDl	the estimated DL throughput PF
estThrPfUl	the estimated UL throughput PF
errorModelEnabled	if true the error model is enabled

Definition at line 410 of file lte-test-pf-ff-mac-scheduler.cc.

◆ ~LenaPfFfMacSchedulerTestCase2()

LenaPfFfMacSchedulerTestCase2::~LenaPfFfMacSchedulerTestCase2 ( )

override

Definition at line 423 of file lte-test-pf-ff-mac-scheduler.cc.

Member Function Documentation

◆ BuildNameString()

std::string LenaPfFfMacSchedulerTestCase2::BuildNameString	(	uint16_t	nUser,
		std::vector< double >	dist
	)

staticprivate

Builds the test name string based on provided parameter values.

Parameters

nUser	the number of UE nodes
dist	the distance between nodes

Returns: the name string

Definition at line 398 of file lte-test-pf-ff-mac-scheduler.cc.

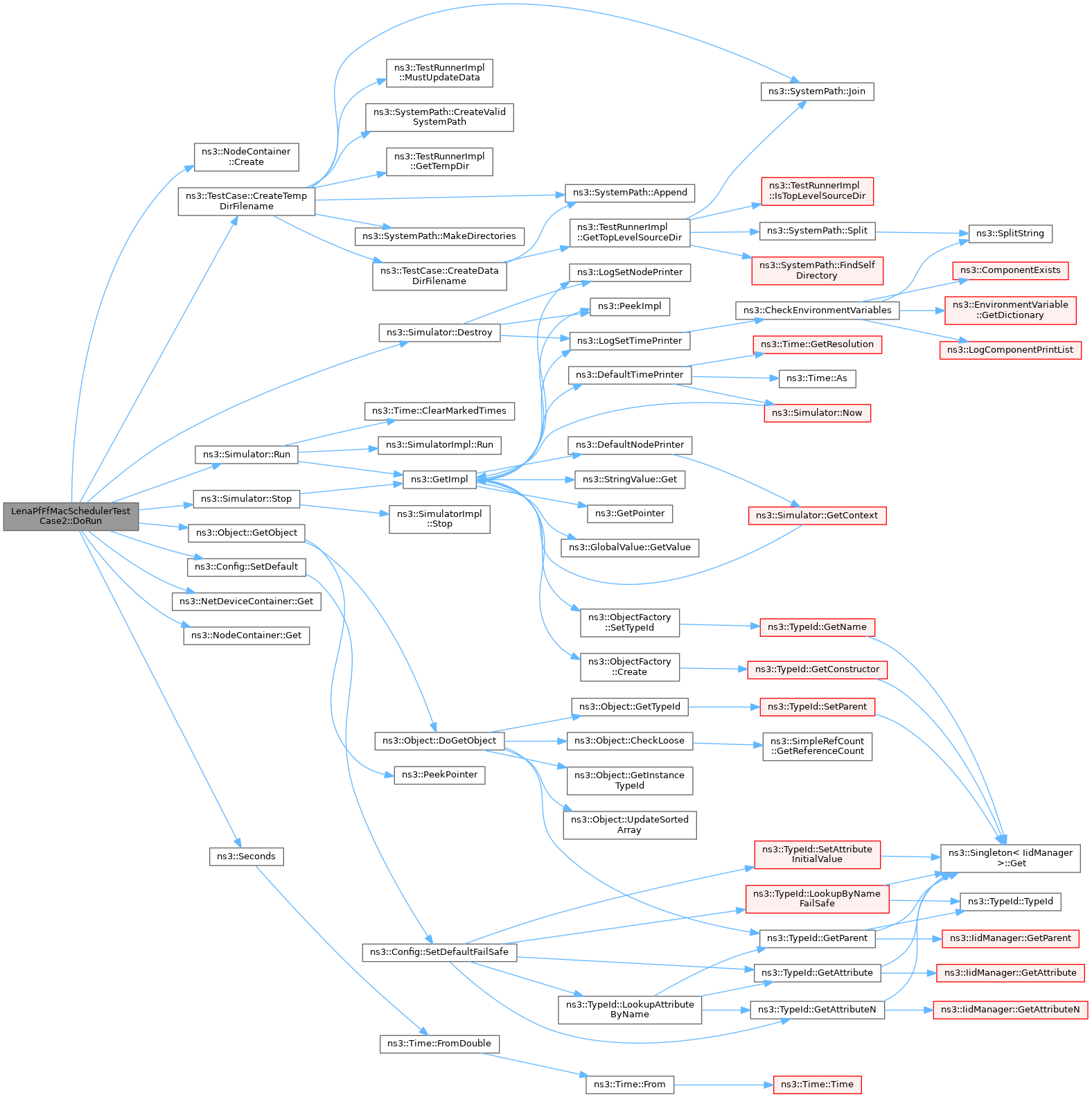

◆ DoRun()

void LenaPfFfMacSchedulerTestCase2::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignment is done in a "proportional fair" manner among users with different SINRs: the bandwidth should be distributed according to the ratio of the estimated throughput per TTI of each user.

Check that the assignment in uplink is done in a round robin manner.

Implements ns3::TestCase.

Definition at line 428 of file lte-test-pf-ff-mac-scheduler.cc.

References ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::Simulator::Destroy(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), m_dist, m_errorModelEnabled, m_estThrPfDl, m_estThrPfUl, m_nUser, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Simulator::Run(), ns3::Seconds(), ns3::Config::SetDefault(), ns3::FfMacScheduler::SRS_UL_CQI, and ns3::Simulator::Stop().
