store information on active data radio bearer instance More...

#include "lte-radio-bearer-info.h"

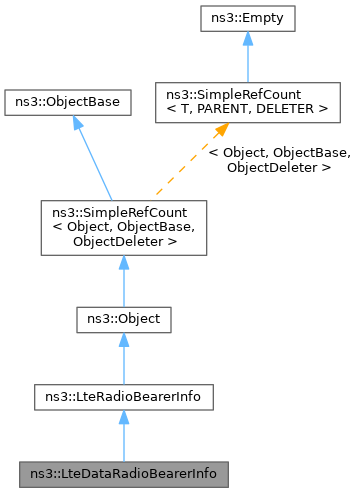

Inheritance diagram for ns3::LteDataRadioBearerInfo:

Collaboration diagram for ns3::LteDataRadioBearerInfo:

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::LteRadioBearerInfo
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Public Attributes
uint8_t	m_drbIdentity
	DRB identity.

EpsBearer	m_epsBearer
	EPS bearer.

uint8_t	m_epsBearerIdentity
	EPS bearer identity.

uint32_t	m_gtpTeid
	S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1.

LteRrcSap::LogicalChannelConfig	m_logicalChannelConfig
	logical channel config

uint8_t	m_logicalChannelIdentity
	logical channel identity

LteRrcSap::RlcConfig	m_rlcConfig
	RLC config.

Ipv4Address	m_transportLayerAddress
	IP Address of the SGW, see 36.423 9.2.1.

Public Attributes inherited from ns3::LteRadioBearerInfo
Ptr< LtePdcp >	m_pdcp
	PDCP.

Ptr< LteRlc >	m_rlc
	RLC.

Additional Inherited Members
Public Member Functions inherited from ns3::LteRadioBearerInfo
	LteRadioBearerInfo ()

	~LteRadioBearerInfo () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

store information on active data radio bearer instance

Config Paths

ns3::LteDataRadioBearerInfo is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]"

Attributes

DrbIdentity: The id of this Data Radio Bearer
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
EpsBearerIdentity: The id of the EPS bearer corresponding to this Data Radio Bearer
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
LtePdcp: PDCP instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LtePdcp>
- Initial value: 0
- Flags: constructwriteread
LteRlc: RLC instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteRlc>
- Initial value: 0
- Flags: constructwriteread
logicalChannelIdentity: The id of the Logical Channel corresponding to this Data Radio Bearer
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources are defined for this type.
Size of this type is 18446744073709551615 bytes (on a 64-bit architecture).

Definition at line 76 of file lte-radio-bearer-info.h.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::LteDataRadioBearerInfo::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 49 of file lte-radio-bearer-info.cc.

References ns3::TypeId::ATTR_GET, m_drbIdentity, m_epsBearerIdentity, m_logicalChannelIdentity, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

◆ m_drbIdentity

uint8_t ns3::LteDataRadioBearerInfo::m_drbIdentity

DRB identity.

Definition at line 87 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

◆ m_epsBearer

EpsBearer ns3::LteDataRadioBearerInfo::m_epsBearer

EPS bearer.

Definition at line 85 of file lte-radio-bearer-info.h.

◆ m_epsBearerIdentity

uint8_t ns3::LteDataRadioBearerInfo::m_epsBearerIdentity

EPS bearer identity.

Definition at line 86 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

◆ m_gtpTeid

uint32_t ns3::LteDataRadioBearerInfo::m_gtpTeid

S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1.

Definition at line 91 of file lte-radio-bearer-info.h.

◆ m_logicalChannelConfig

LteRrcSap::LogicalChannelConfig ns3::LteDataRadioBearerInfo::m_logicalChannelConfig

logical channel config

Definition at line 90 of file lte-radio-bearer-info.h.

◆ m_logicalChannelIdentity

uint8_t ns3::LteDataRadioBearerInfo::m_logicalChannelIdentity

logical channel identity

Definition at line 89 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

◆ m_rlcConfig

LteRrcSap::RlcConfig ns3::LteDataRadioBearerInfo::m_rlcConfig

RLC config.

Definition at line 88 of file lte-radio-bearer-info.h.

◆ m_transportLayerAddress

Ipv4Address ns3::LteDataRadioBearerInfo::m_transportLayerAddress

IP Address of the SGW, see 36.423 9.2.1.

Definition at line 92 of file lte-radio-bearer-info.h.

The documentation for this class was generated from the following files:

src/lte/model/lte-radio-bearer-info.h
src/lte/model/lte-radio-bearer-info.cc
