Helper class that adds ns3::Ipv6StaticRouting objects. More...

#include "ipv6-static-routing-helper.h"

Inheritance diagram for ns3::Ipv6StaticRoutingHelper:

Collaboration diagram for ns3::Ipv6StaticRoutingHelper:

Public Member Functions
	Ipv6StaticRoutingHelper ()
	Constructor.

	Ipv6StaticRoutingHelper (const Ipv6StaticRoutingHelper &o)
	Construct an Ipv6ListRoutingHelper from another previously initialized instance (Copy Constructor).

void	AddMulticastRoute (Ptr< Node > n, Ipv6Address source, Ipv6Address group, Ptr< NetDevice > input, NetDeviceContainer output)
	Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice>

void	AddMulticastRoute (Ptr< Node > n, Ipv6Address source, Ipv6Address group, std::string inputName, NetDeviceContainer output)
	Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service.

void	AddMulticastRoute (std::string n, Ipv6Address source, Ipv6Address group, Ptr< NetDevice > input, NetDeviceContainer output)
	Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice>

void	AddMulticastRoute (std::string nName, Ipv6Address source, Ipv6Address group, std::string inputName, NetDeviceContainer output)
	Add a multicast route to a node and device using name strings previously associated to both the node and device using the Object Name Service.

Ipv6StaticRoutingHelper *	Copy () const override

Ptr< Ipv6RoutingProtocol >	Create (Ptr< Node > node) const override

Ptr< Ipv6StaticRouting >	GetStaticRouting (Ptr< Ipv6 > ipv6) const
	Get Ipv6StaticRouting pointer from IPv6 stack.

Ipv6StaticRoutingHelper &	operator= (const Ipv6StaticRoutingHelper &)=delete

Public Member Functions inherited from ns3::Ipv6RoutingHelper
virtual	~Ipv6RoutingHelper ()
	Destroy an Ipv6 Ipv6RoutingHelper.

virtual Ipv6RoutingHelper *	Copy () const =0
	virtual constructor

virtual Ptr< Ipv6RoutingProtocol >	Create (Ptr< Node > node) const =0

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv6RoutingHelper
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv6RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv6RoutingProtocol protocol.

static void	PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at a particular time.

static void	PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at regular intervals specified by user.

static void	PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at a particular time.

static void	PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at regular intervals specified by user.

static void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at a particular time.

static void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at regular intervals specified by user.

static void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at a particular time.

static void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at regular intervals specified by user.

Detailed Description

Helper class that adds ns3::Ipv6StaticRouting objects.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 43 of file ipv6-static-routing-helper.h.

Constructor & Destructor Documentation

◆ Ipv6StaticRoutingHelper() [1/2]

ns3::Ipv6StaticRoutingHelper::Ipv6StaticRoutingHelper ( )

Constructor.

Definition at line 38 of file ipv6-static-routing-helper.cc.

Referenced by Copy().

Here is the caller graph for this function:

◆ Ipv6StaticRoutingHelper() [2/2]

ns3::Ipv6StaticRoutingHelper::Ipv6StaticRoutingHelper ( const Ipv6StaticRoutingHelper & o )

Construct an Ipv6ListRoutingHelper from another previously initialized instance (Copy Constructor).

Parameters

o	object to be copied

Definition at line 42 of file ipv6-static-routing-helper.cc.

Member Function Documentation

◆ AddMulticastRoute() [1/4]

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	Ptr< Node >	n,
		Ipv6Address	source,
		Ipv6Address	group,
		Ptr< NetDevice >	input,
		NetDeviceContainer	output
	)

Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice>

Parameters

n	The node.
source	Source address.
group	Multicast group.
input	Input NetDevice.
output	Output NetDevices.

Definition at line 89 of file ipv6-static-routing-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), GetStaticRouting(), and NS_ASSERT_MSG.

Referenced by AddMulticastRoute().

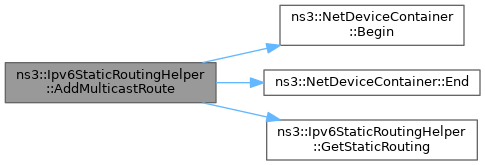

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddMulticastRoute() [2/4]

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	Ptr< Node >	n,
		Ipv6Address	source,
		Ipv6Address	group,
		std::string	inputName,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service.

Parameters

n	The node.
source	Source address.
group	Multicast group.
inputName	Input NetDevice.
output	Output NetDevices.

Definition at line 126 of file ipv6-static-routing-helper.cc.

References AddMulticastRoute().

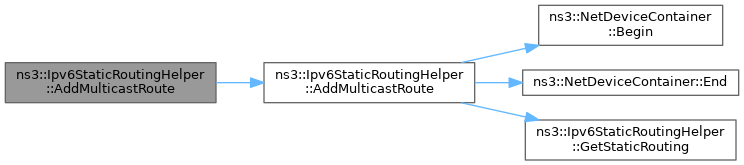

Here is the call graph for this function:

◆ AddMulticastRoute() [3/4]

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	std::string	n,
		Ipv6Address	source,
		Ipv6Address	group,
		Ptr< NetDevice >	input,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice>

Parameters

n	The node.
source	Source address.
group	Multicast group.
input	Input NetDevice.
output	Output NetDevices.

Definition at line 137 of file ipv6-static-routing-helper.cc.

References AddMulticastRoute().

Here is the call graph for this function:

◆ AddMulticastRoute() [4/4]

void ns3::Ipv6StaticRoutingHelper::AddMulticastRoute	(	std::string	nName,
		Ipv6Address	source,
		Ipv6Address	group,
		std::string	inputName,
		NetDeviceContainer	output
	)
