Test functions returning the indices of primary and secondary channels of different width. More...

Inheritance diagram for Wifi20MHzChannelIndicesTest:

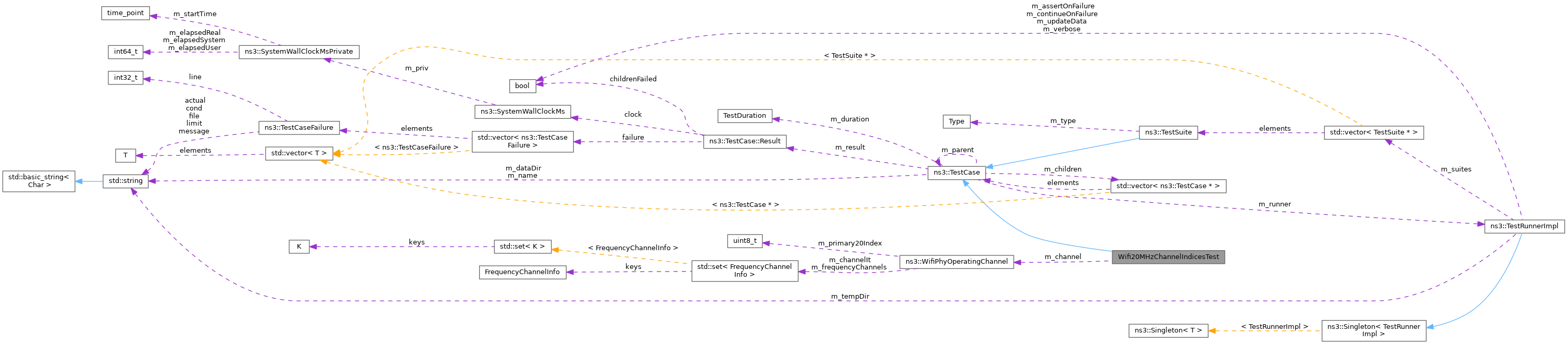

Collaboration diagram for Wifi20MHzChannelIndicesTest:

Public Member Functions
	Wifi20MHzChannelIndicesTest ()
	Constructor.

	~Wifi20MHzChannelIndicesTest () override=default

void	RunOne (uint8_t primary20, const std::set< uint8_t > &secondary20, const std::set< uint8_t > &primary40, const std::set< uint8_t > &secondary40, const std::set< uint8_t > &primary80, const std::set< uint8_t > &secondary80)
	Check that the indices of the 20 MHz channels included in all the primary and secondary channels are correct when setting the given primary20 channel.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase.

Private Attributes
WifiPhyOperatingChannel	m_channel
	operating channel

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Test functions returning the indices of primary and secondary channels of different width.

Definition at line 1229 of file wifi-primary-channels-test.cc.

Constructor & Destructor Documentation

◆ Wifi20MHzChannelIndicesTest()

Wifi20MHzChannelIndicesTest::Wifi20MHzChannelIndicesTest ( )

Constructor.

Definition at line 1262 of file wifi-primary-channels-test.cc.

◆ ~Wifi20MHzChannelIndicesTest()

Wifi20MHzChannelIndicesTest::~Wifi20MHzChannelIndicesTest ( )

overridedefault

Member Function Documentation

◆ DoRun()

void Wifi20MHzChannelIndicesTest::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1330 of file wifi-primary-channels-test.cc.

References m_channel, RunOne(), ns3::WifiPhyOperatingChannel::SetDefault(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_STANDARD_80211ax.

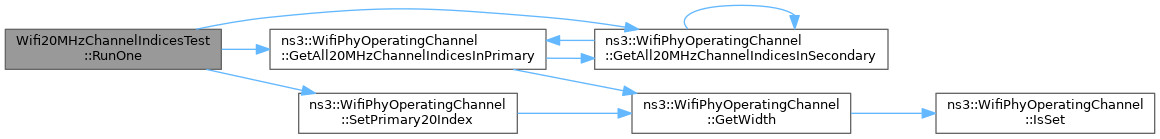

Here is the call graph for this function:

◆ RunOne()

void Wifi20MHzChannelIndicesTest::RunOne	(	uint8_t	primary20,
		const std::set< uint8_t > &	secondary20,
		const std::set< uint8_t > &	primary40,
		const std::set< uint8_t > &	secondary40,
		const std::set< uint8_t > &	primary80,
		const std::set< uint8_t > &	secondary80
	)

Check that the indices of the 20 MHz channels included in all the primary and secondary channels are correct when setting the given primary20 channel.

Parameters

primary20	the index of the primary20 channel to configure
secondary20	the expected index of the secondary20 channel
primary40	the expected indices of the 20 MHz channels in the primary40 channel
secondary40	the expected indices of the 20 MHz channels in the secondary40 channel
primary80	the expected indices of the 20 MHz channels in the primary80 channel
secondary80	the expected indices of the 20 MHz channels in the secondary80 channel
