EmlsrManager is an abstract base class defining the API that EHT non-AP MLDs with EMLSR activated can use to handle the operations on the EMLSR links. More...

#include "emlsr-manager.h"

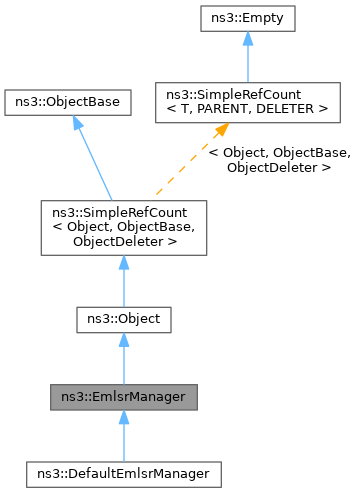

Inheritance diagram for ns3::EmlsrManager:

Collaboration diagram for ns3::EmlsrManager:

Public Member Functions
	EmlsrManager ()

	~EmlsrManager () override

bool	GetCamStateReset () const

const std::set< uint8_t > &	GetEmlsrLinks () const

uint8_t	GetMainPhyId () const

std::optional< Time >	GetTransitionTimeout () const

void	NotifyIcfReceived (uint8_t linkId)
	Notify the reception of an initial Control frame on the given link.

void	NotifyMgtFrameReceived (Ptr< const WifiMpdu > mpdu, uint8_t linkId)
	Notify the reception of a management frame addressed to us.

void	NotifyTxopEnd (uint8_t linkId)
	Notify the end of a TXOP on the given link.

void	NotifyUlTxopStart (uint8_t linkId)
	Notify the start of an UL TXOP on the given link.

void	SetCamStateReset (bool enable)
	Set the member variable indicating whether the state of the CAM should be reset when the main PHY switches channel and operates on the link associated with the CAM.

void	SetEmlsrLinks (const std::set< uint8_t > &linkIds)
	Take actions to enable EMLSR mode on the given set of links, if non-empty, or disable EMLSR mode, otherwise.

void	SetMainPhyId (uint8_t mainPhyId)
	Set the ID of main PHY (position in the vector of PHYs held by WifiNetDevice).

void	SetTransitionTimeout (Time timeout)
	Set the Transition Timeout advertised by the associated AP with EMLSR activated.

void	SetWifiMac (Ptr< StaWifiMac > mac)
	Set the wifi MAC.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions
void	DoDispose () override
	Destructor implementation.

const WifiPhyOperatingChannel &	GetChannelForAuxPhy (uint8_t linkId) const

const WifiPhyOperatingChannel &	GetChannelForMainPhy (uint8_t linkId) const

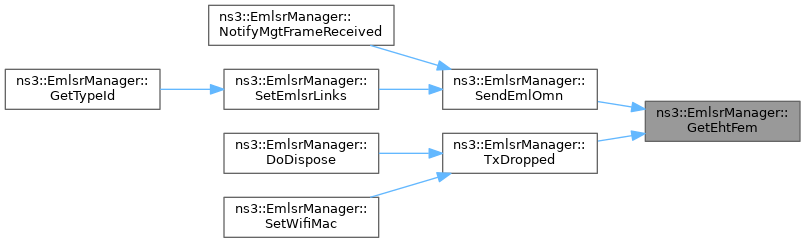

Ptr< EhtFrameExchangeManager >	GetEhtFem (uint8_t linkId) const

MgtEmlOmn	GetEmlOmn ()

virtual uint8_t	GetLinkToSendEmlOmn ()=0

Ptr< StaWifiMac >	GetStaMac () const

virtual std::optional< uint8_t >	ResendNotification (Ptr< const WifiMpdu > mpdu)=0
	A previous EML Operating Mode Notification frame was dropped.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Protected Attributes
uint16_t	m_auxPhyMaxWidth
	max channel width (MHz) supported by aux PHYs

Time	m_emlsrPaddingDelay
	EMLSR Padding delay.

Time	m_emlsrTransitionDelay
	EMLSR Transition delay.

uint8_t	m_mainPhyId
	ID of main PHY (position in the vector of PHYs held by WifiNetDevice)

Private Member Functions
void	ApplyMaxChannelWidthOnAuxPhys ()
	Adjust the operating channel of all the aux PHYs to meet the constraint on the maximum channel width supported by aux PHYs.

void	ChangeEmlsrMode ()
	This method is called to make an EMLSR mode change effective after the transition delay has elapsed or a notification response has been received from the AP.

void	ComputeOperatingChannels ()
	Compute the operating channels that the main PHY and the aux PHY(s) must switch to in order to operate on each of the setup links.

virtual void	DoNotifyMgtFrameReceived (Ptr< const WifiMpdu > mpdu, uint8_t linkId)=0
	Notify the subclass of the reception of a management frame addressed to us.

virtual void	NotifyEmlsrModeChanged ()=0
	Notify subclass that EMLSR mode changed.

virtual void	NotifyMainPhySwitch (uint8_t currLinkId, uint8_t nextLinkId)=0
	Notify subclass that the main PHY is switching channel to operate on another link.

void	SendEmlOmn ()
	Send an EML Operating Mode Notification frame.

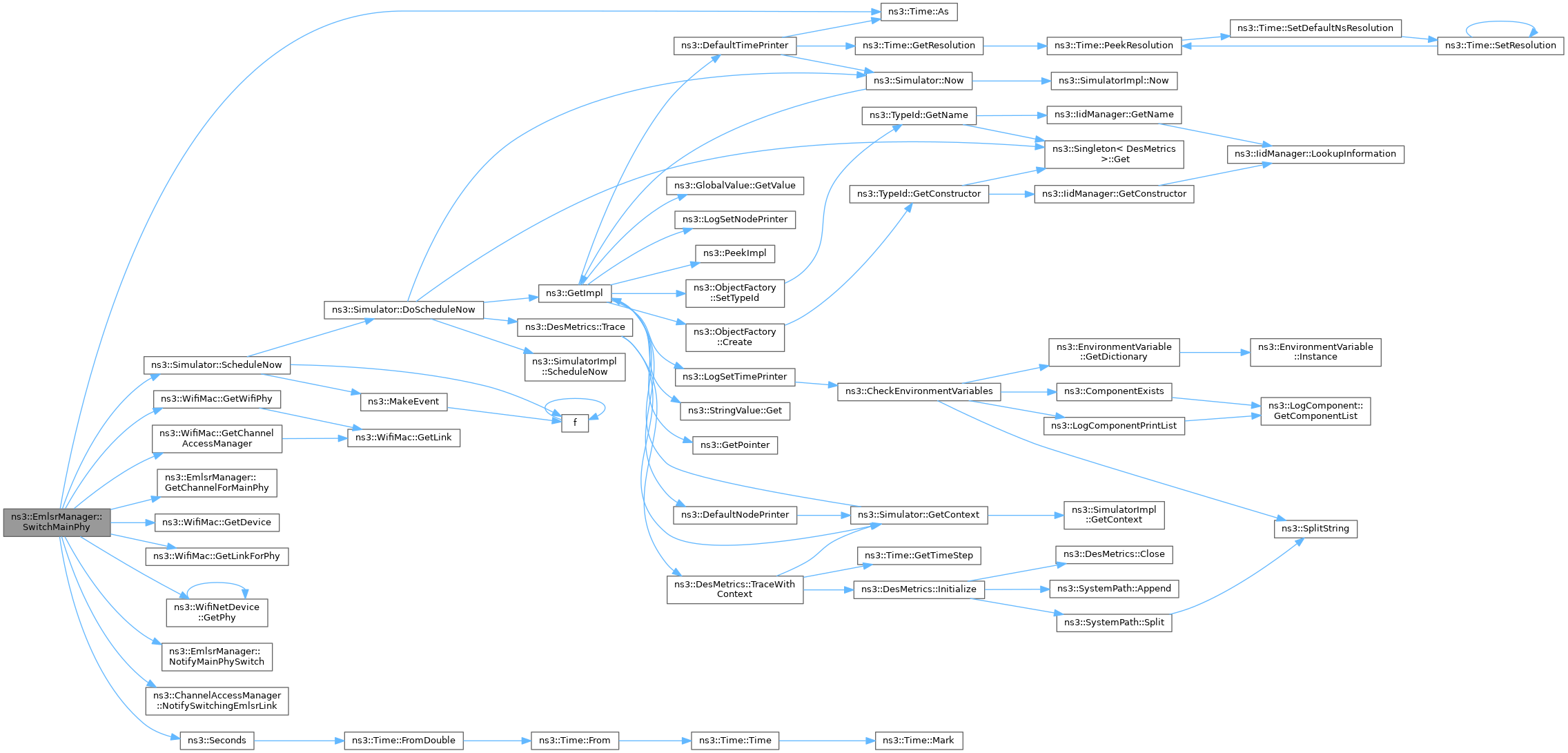

void	SwitchMainPhy (uint8_t linkId, bool noSwitchDelay)
	Switch channel on the Main PHY so that it operates on the given link.

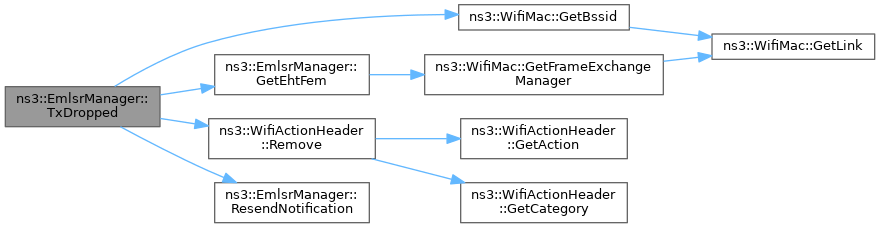

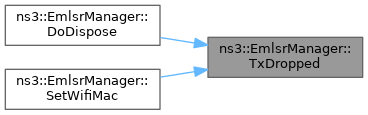

void	TxDropped (WifiMacDropReason reason, Ptr< const WifiMpdu > mpdu)
	Notify that the given MPDU has been discarded for the given reason.

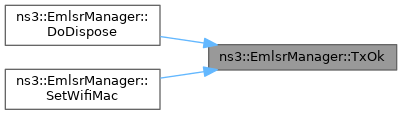

void	TxOk (Ptr< const WifiMpdu > mpdu)
	Notify the acknowledgment of the given MPDU.

Private Attributes
std::map< uint8_t, WifiPhyOperatingChannel >	m_auxPhyChannels
	link ID-indexed map of operating channels for the aux PHYs

std::set< uint8_t >	m_emlsrLinks
	ID of the EMLSR links (empty if EMLSR mode is disabled)

std::optional< Time >	m_emlsrTransitionTimeout
	Transition timeout advertised by APs with EMLSR activated.

Time	m_lastAdvPaddingDelay
	last advertised padding delay

Time	m_lastAdvTransitionDelay
	last advertised transition delay

std::map< uint8_t, WifiPhyOperatingChannel >	m_mainPhyChannels
	link ID-indexed map of operating channels for the main PHY

std::optional< std::set< uint8_t > >	m_nextEmlsrLinks
	ID of the links that will become the EMLSR links when the pending notification frame is acknowledged.

bool	m_resetCamState
	whether to reset the state of CAM when main PHY switches channel

Ptr< StaWifiMac >	m_staMac
	the MAC of the managed non-AP MLD

EventId	m_transitionTimeoutEvent
	Timer started after the successful transmission of an EML Operating Mode Notification frame.

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

EmlsrManager is an abstract base class defining the API that EHT non-AP MLDs with EMLSR activated can use to handle the operations on the EMLSR links.

Introspection did not find any typical Config paths.

Attributes

AuxPhyChannelWidth: The maximum channel width (MHz) supported by Aux PHYs
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 20:160
- Initial value: 20
- Flags: constructwriteread
EmlsrLinkSet: IDs of the links on which EMLSR mode will be enabled. An empty set indicates to disable EMLSR.
- Set with class: ns3::AttributeContainerValue<N3ns313UintegerValueE, St4listIN3ns33PtrINS0_13UintegerValueEEESaIS3_EE>
- Underlying type: ns3::Ptr<N3ns313UintegerValueE>
- Initial value:
- Flags: constructwrite
EmlsrPaddingDelay: The EMLSR Paddind Delay (not used by AP MLDs). Possible values are 0 us, 32 us, 64 us, 128 us or 256 us.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+256000ns
- Initial value: +0ns
- Flags: constructwriteread
EmlsrTransitionDelay: The EMLSR Transition Delay (not used by AP MLDs). Possible values are 0 us, 16 us, 32 us, 64 us, 128 us or 256 us.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+256000ns
- Initial value: +0ns
- Flags: constructwriteread
MainPhyId: The ID of the main PHY (position in the vector of PHYs held by WifiNetDevice). This attribute cannot be set after initialization.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: constructwriteread
ResetCamState: Whether to reset the state of the ChannelAccessManager associated with the link on which the main PHY has just switched to.
- Set with class: ns3::BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 328 bytes (on a 64-bit architecture).

Definition at line 46 of file emlsr-manager.h.

Constructor & Destructor Documentation

◆ EmlsrManager()

ns3::EmlsrManager::EmlsrManager ( )

Definition at line 88 of file emlsr-manager.cc.

References NS_LOG_FUNCTION.

◆ ~EmlsrManager()

ns3::EmlsrManager::~EmlsrManager ( )

override

Definition at line 93 of file emlsr-manager.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ ApplyMaxChannelWidthOnAuxPhys()

void ns3::EmlsrManager::ApplyMaxChannelWidthOnAuxPhys ( )

private

Adjust the operating channel of all the aux PHYs to meet the constraint on the maximum channel width supported by aux PHYs.

Definition at line 544 of file emlsr-manager.cc.

References ns3::WifiMac::GetChannelAccessManager(), GetChannelForAuxPhy(), ns3::WifiMac::GetLinkForPhy(), ns3::WifiMac::GetLinkIds(), ns3::WifiMac::GetWifiPhy(), ns3::StaWifiMac::IsEmlsrLink(), m_mainPhyId, m_staMac, ns3::ChannelAccessManager::NotifySwitchingEmlsrLink(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and ns3::WifiPhy::SetOperatingChannel().

Referenced by ChangeEmlsrMode().

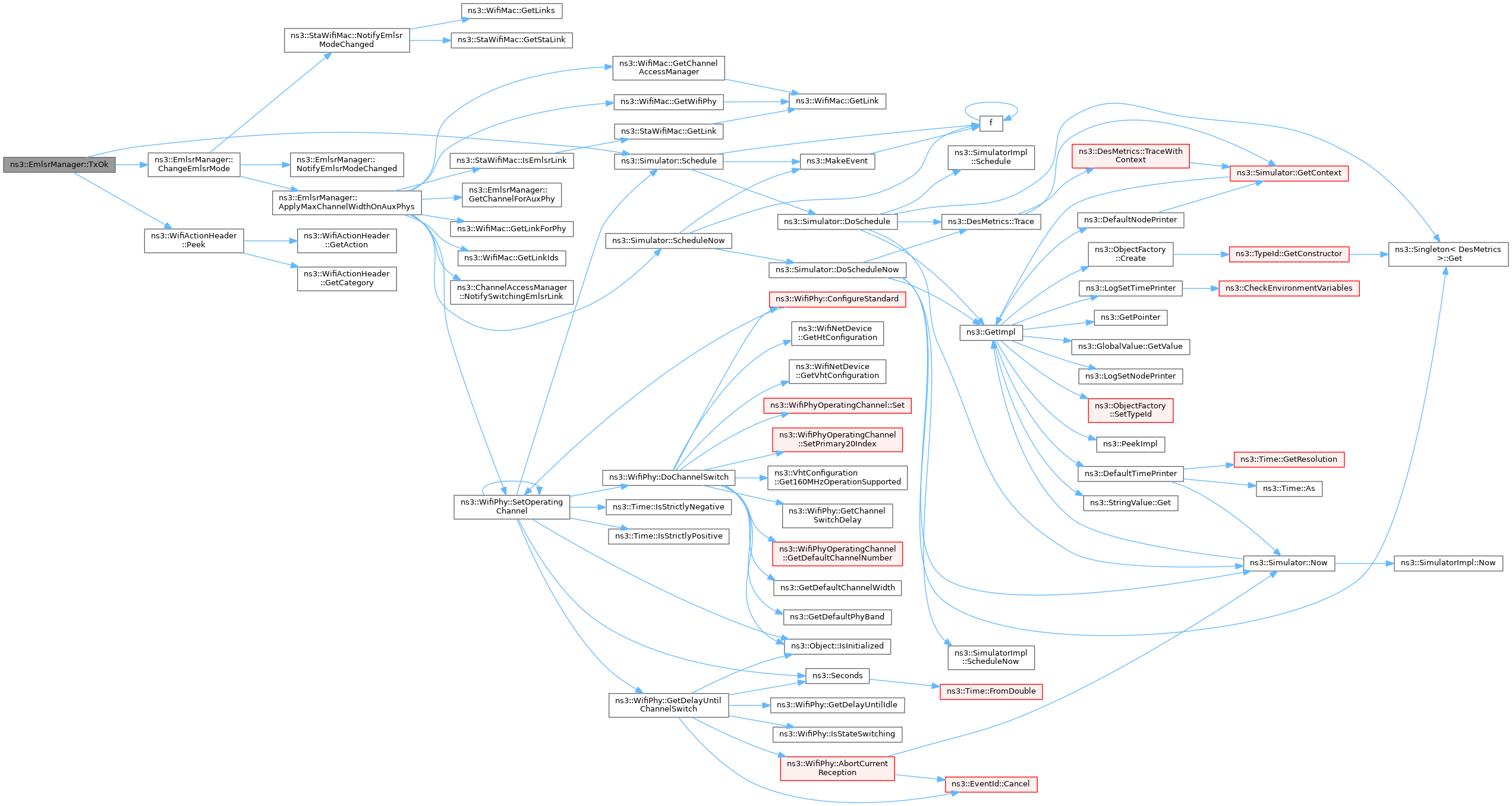

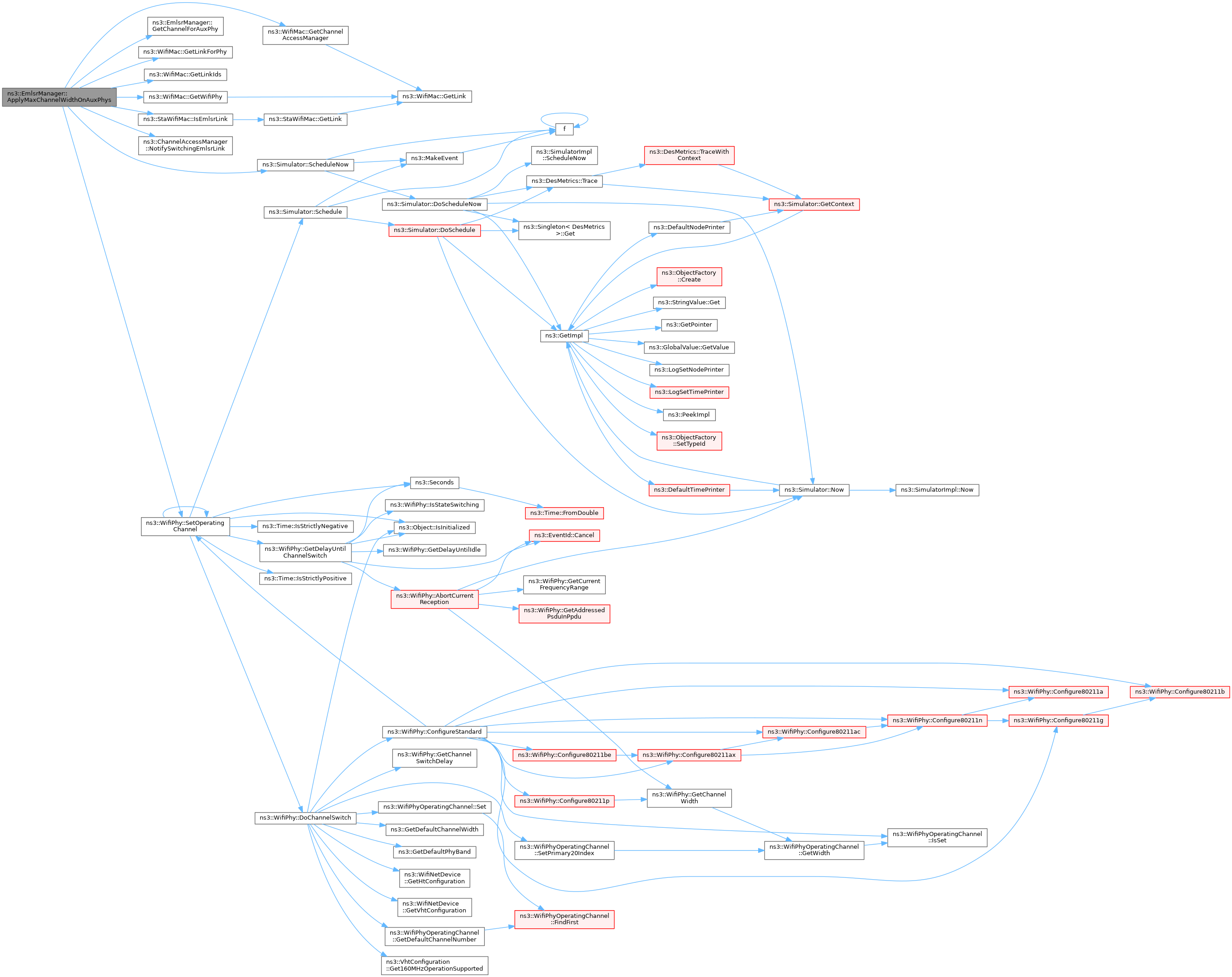

Here is the call graph for this function:

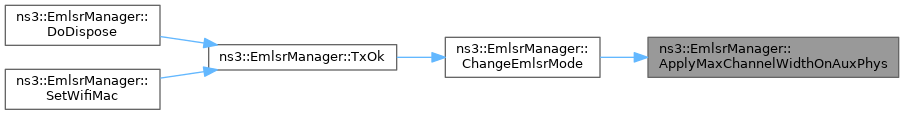

Here is the caller graph for this function:

◆ ChangeEmlsrMode()

void ns3::EmlsrManager::ChangeEmlsrMode ( )

private

This method is called to make an EMLSR mode change effective after the transition delay has elapsed or a notification response has been received from the AP.

Definition at line 519 of file emlsr-manager.cc.

References ApplyMaxChannelWidthOnAuxPhys(), m_emlsrLinks, m_nextEmlsrLinks, m_staMac, NotifyEmlsrModeChanged(), ns3::StaWifiMac::NotifyEmlsrModeChanged(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by TxOk().

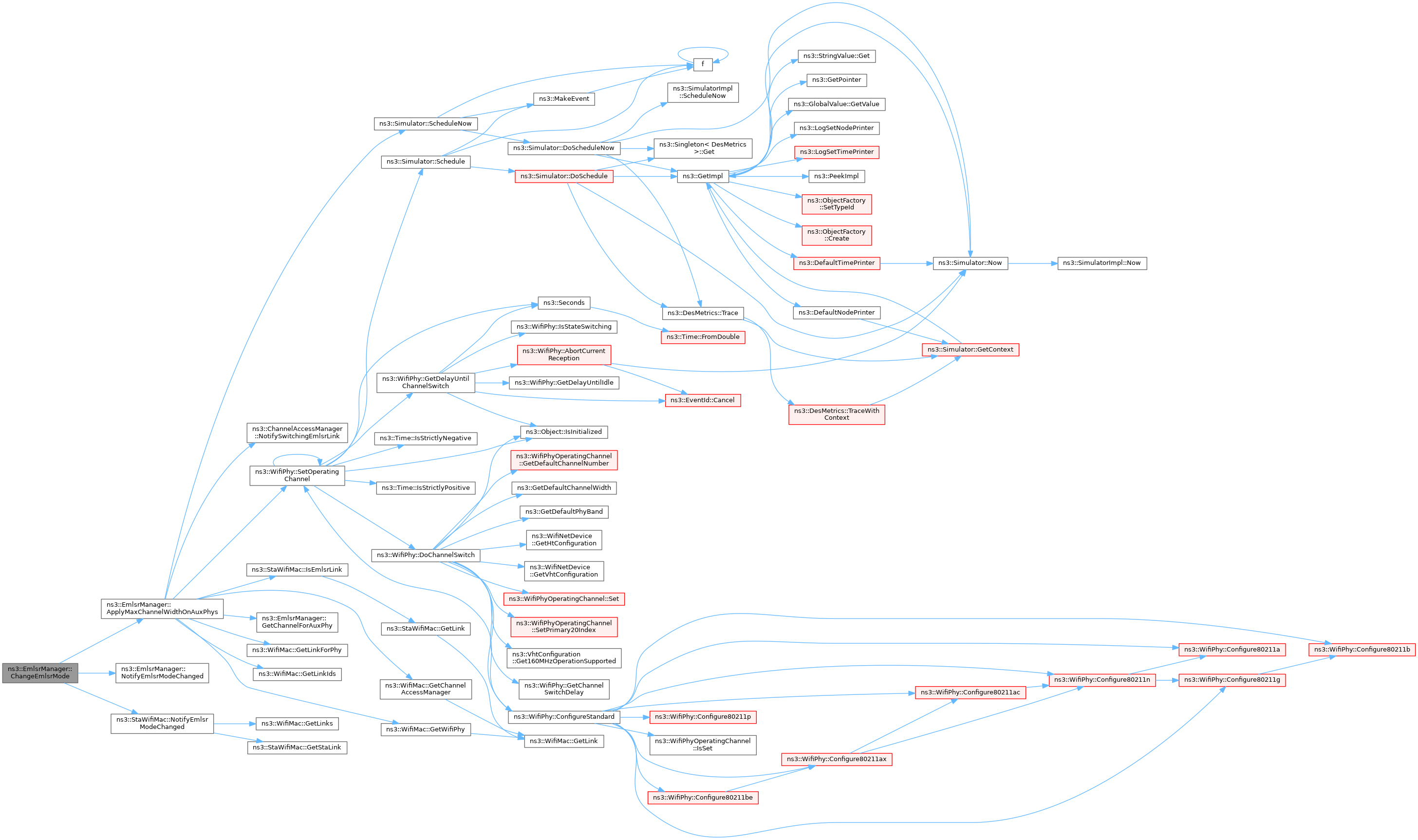

Here is the call graph for this function:

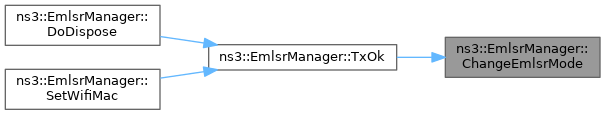

Here is the caller graph for this function:

◆ ComputeOperatingChannels()

void ns3::EmlsrManager::ComputeOperatingChannels ( )

private

Compute the operating channels that the main PHY and the aux PHY(s) must switch to in order to operate on each of the setup links.

The operating channels may be different due to limited channel width capabilities of the aux PHY(s). This method shall be called upon completion of ML setup.

Definition at line 578 of file emlsr-manager.cc.

References ns3::WifiPhyOperatingChannel::FindFirst(), ns3::WifiPhy::GetOperatingChannel(), ns3::StaWifiMac::GetSetupLinkIds(), ns3::WifiMac::GetWifiPhy(), m_auxPhyChannels, m_auxPhyMaxWidth, ns3::WifiPhyOperatingChannel::m_frequencyChannels, m_mainPhyChannels, m_staMac, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::WIFI_STANDARD_UNSPECIFIED.

Referenced by NotifyMgtFrameReceived().

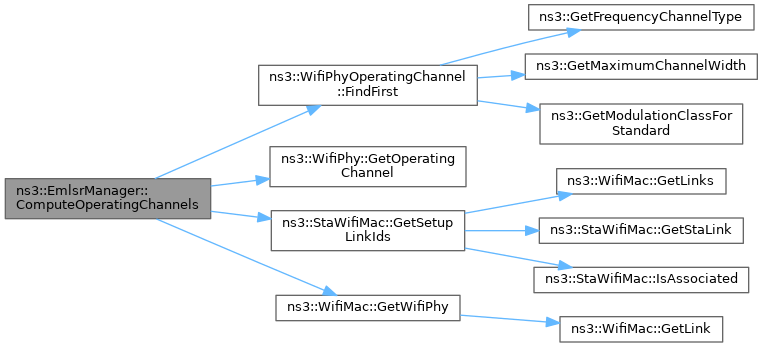

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::EmlsrManager::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 99 of file emlsr-manager.cc.

References ns3::EventId::Cancel(), ns3::Object::DoDispose(), m_staMac, m_transitionTimeoutEvent, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::ObjectBase::TraceDisconnectWithoutContext(), TxDropped(), and TxOk().

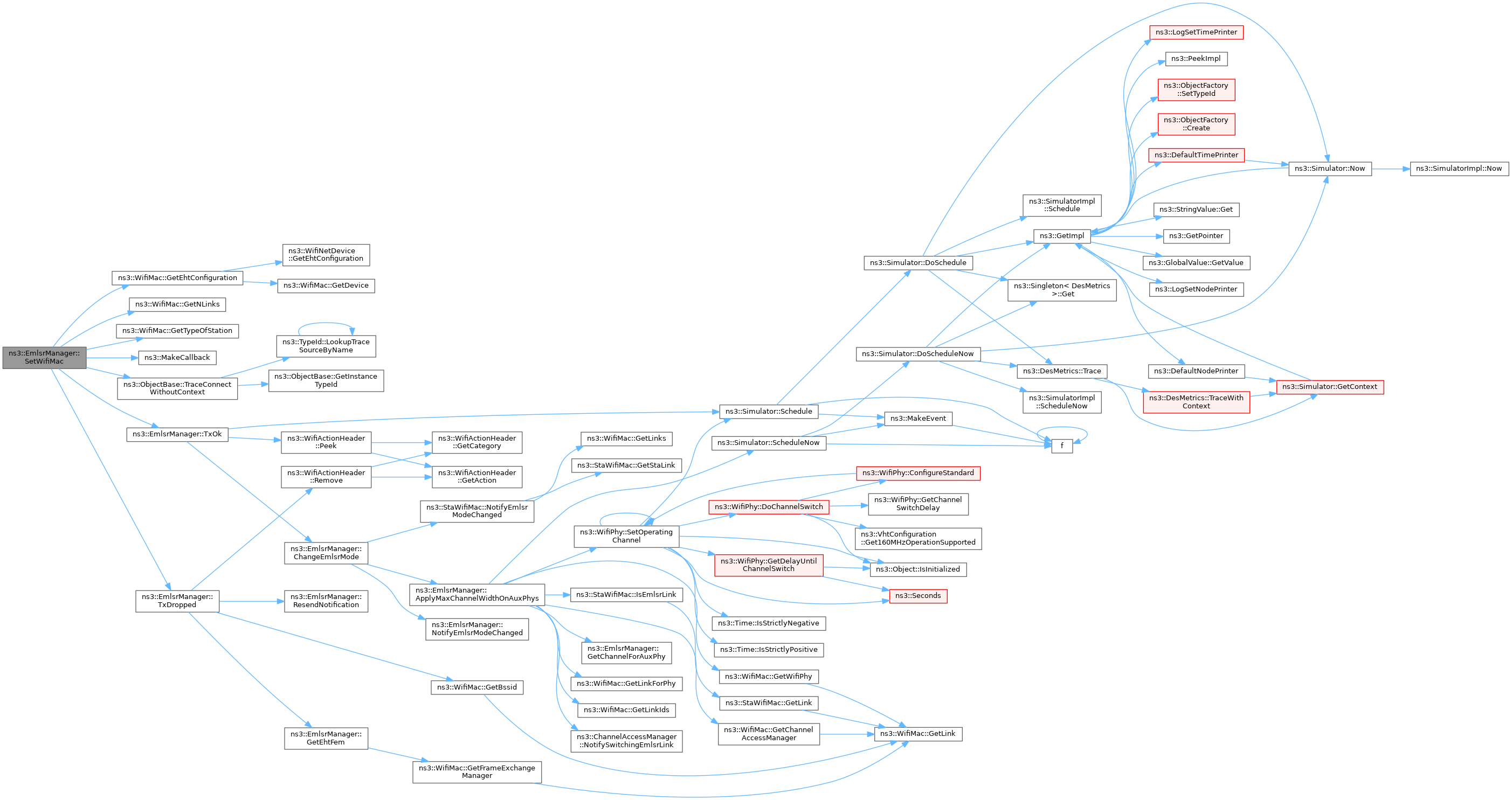

Here is the call graph for this function:

◆ DoNotifyMgtFrameReceived()

virtual void ns3::EmlsrManager::DoNotifyMgtFrameReceived	(	Ptr< const WifiMpdu >	mpdu,
		uint8_t	linkId
	)

privatepure virtual

Notify the subclass of the reception of a management frame addressed to us.

Parameters

mpdu	the received MPDU
linkId	the ID of the link over which the MPDU was received

Implemented in ns3::DefaultEmlsrManager.

Referenced by NotifyMgtFrameReceived().

Here is the caller graph for this function:

◆ GetCamStateReset()

bool ns3::EmlsrManager::GetCamStateReset ( ) const

Returns: the value of the member variable indicating whether the state of the CAM should be reset when the main PHY switches channel and operates on the link associated with the CAM.

Definition at line 148 of file emlsr-manager.cc.

References m_resetCamState.

Referenced by GetTypeId().

Here is the caller graph for this function:

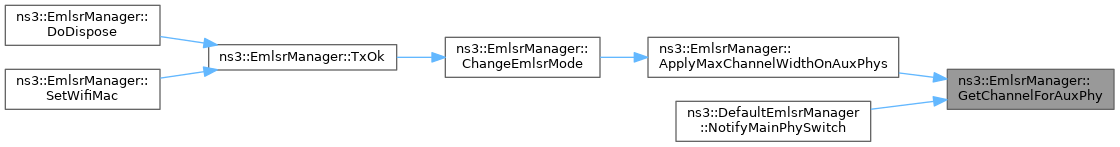

◆ GetChannelForAuxPhy()

const WifiPhyOperatingChannel & ns3::EmlsrManager::GetChannelForAuxPhy ( uint8_t linkId ) const

protected

Parameters

linkId the ID of the given link

Returns: the operating channel an aux PHY must switch to in order to operate on the given link

Definition at line 630 of file emlsr-manager.cc.

References m_auxPhyChannels, and NS_ASSERT_MSG.

Referenced by ApplyMaxChannelWidthOnAuxPhys(), and ns3::DefaultEmlsrManager::NotifyMainPhySwitch().

Here is the caller graph for this function:

◆ GetChannelForMainPhy()

const WifiPhyOperatingChannel & ns3::EmlsrManager::GetChannelForMainPhy ( uint8_t linkId ) const

protected

Parameters

linkId the ID of the given link

Returns: the operating channel the main PHY must switch to in order to operate on the given link

Definition at line 621 of file emlsr-manager.cc.

References m_mainPhyChannels, and NS_ASSERT_MSG.

Referenced by SwitchMainPhy().

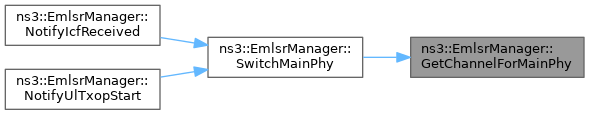

Here is the caller graph for this function:

◆ GetEhtFem()

Ptr< EhtFrameExchangeManager > ns3::EmlsrManager::GetEhtFem ( uint8_t linkId ) const

protected

Parameters

linkId the ID of the given link

Returns: the EHT FrameExchangeManager attached to the non-AP STA operating on the given link

Definition at line 166 of file emlsr-manager.cc.

References ns3::WifiMac::GetFrameExchangeManager(), and m_staMac.

Referenced by SendEmlOmn(), and TxDropped().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEmlOmn()

MgtEmlOmn ns3::EmlsrManager::GetEmlOmn ( )

protected

Returns: the EML Operating Mode Notification to send

Definition at line 386 of file emlsr-manager.cc.

References ns3::MgtEmlOmn::EmlControl::emlsrMode, ns3::MgtEmlOmn::EmlControl::emlsrParamUpdateCtrl, ns3::CommonInfoBasicMle::EncodeEmlsrPaddingDelay(), ns3::CommonInfoBasicMle::EncodeEmlsrTransitionDelay(), ns3::StaWifiMac::GetSetupLinkIds(), ns3::MgtEmlOmn::m_emlControl, m_emlsrPaddingDelay, ns3::MgtEmlOmn::m_emlsrParamUpdate, m_emlsrTransitionDelay, m_lastAdvPaddingDelay, m_lastAdvTransitionDelay, m_nextEmlsrLinks, m_staMac, NS_LOG_DEBUG, and ns3::MgtEmlOmn::SetLinkIdInBitmap().

Referenced by SendEmlOmn().

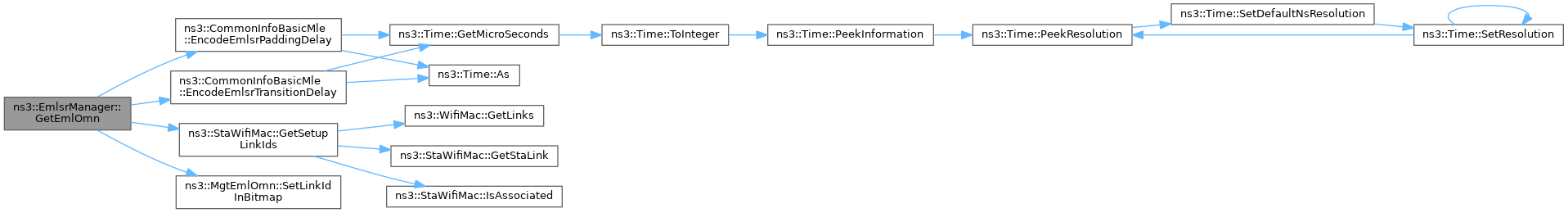

Here is the call graph for this function:

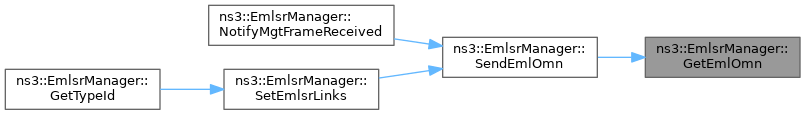

Here is the caller graph for this function:

◆ GetEmlsrLinks()

const std::set< uint8_t > & ns3::EmlsrManager::GetEmlsrLinks ( ) const

Returns: the set of links on which EMLSR mode is enabled

Definition at line 154 of file emlsr-manager.cc.

References m_emlsrLinks.

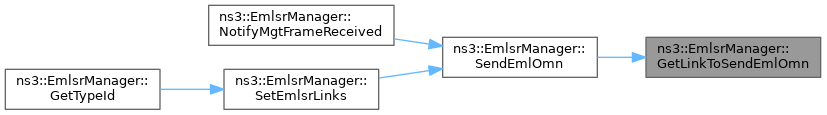

◆ GetLinkToSendEmlOmn()

virtual uint8_t ns3::EmlsrManager::GetLinkToSendEmlOmn ( )

protectedpure virtual

Returns: the ID of the link on which the EML Operating Mode Notification frame has to be sent

Implemented in ns3::DefaultEmlsrManager.

Referenced by SendEmlOmn().

Here is the caller graph for this function:

◆ GetMainPhyId()

uint8_t ns3::EmlsrManager::GetMainPhyId ( ) const

Returns: the ID of main PHY (position in the vector of PHYs held by WifiNetDevice)

Definition at line 136 of file emlsr-manager.cc.

References m_mainPhyId.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetStaMac()

Ptr< StaWifiMac > ns3::EmlsrManager::GetStaMac ( ) const

protected

Returns: the MAC of the non-AP MLD managed by this EMLSR Manager.

Definition at line 160 of file emlsr-manager.cc.

References m_staMac.

Referenced by ns3::DefaultEmlsrManager::GetLinkToSendEmlOmn(), ns3::DefaultEmlsrManager::NotifyMainPhySwitch(), NotifyMgtFrameReceived(), ns3::DefaultEmlsrManager::ResendNotification(), and SetEmlsrLinks().

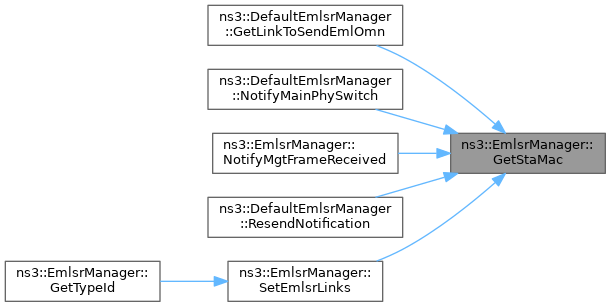

Here is the caller graph for this function:

◆ GetTransitionTimeout()

std::optional< Time > ns3::EmlsrManager::GetTransitionTimeout ( ) const

Returns: the Transition Timeout, if advertised by the associated AP

Definition at line 179 of file emlsr-manager.cc.

References m_emlsrTransitionTimeout.

Referenced by NotifyMgtFrameReceived(), and SetEmlsrLinks().

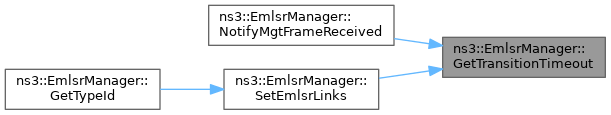

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EmlsrManager::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 41 of file emlsr-manager.cc.

References GetCamStateReset(), GetMainPhyId(), m_auxPhyMaxWidth, m_emlsrPaddingDelay, m_emlsrTransitionDelay, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MicroSeconds(), SetCamStateReset(), SetEmlsrLinks(), SetMainPhyId(), and ns3::TypeId::SetParent().

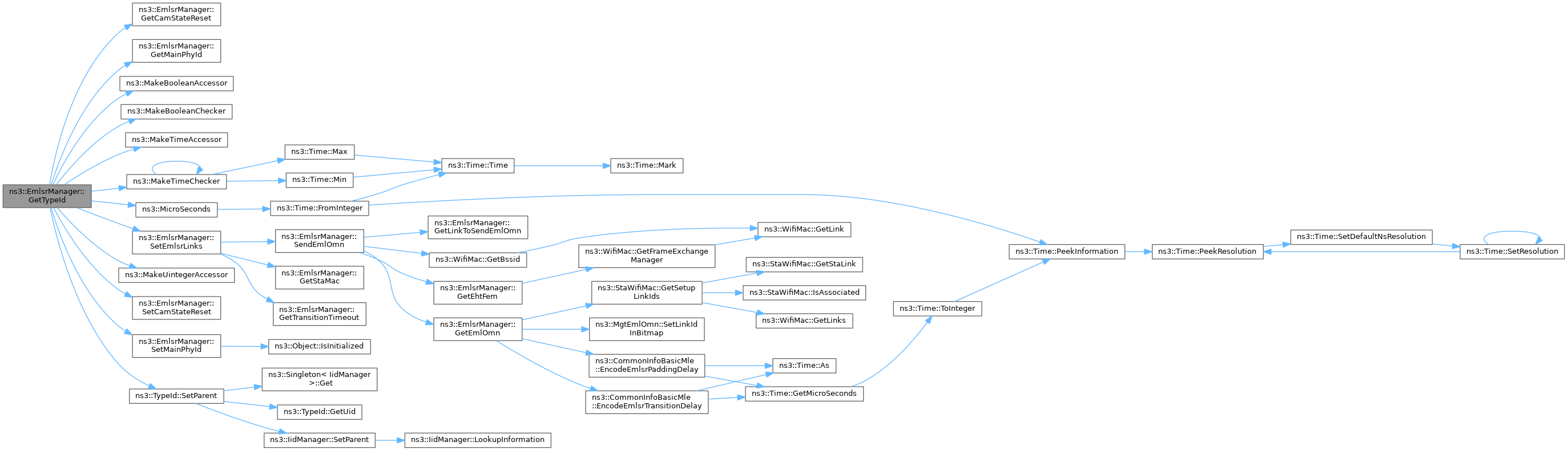

Here is the call graph for this function:

◆ NotifyEmlsrModeChanged()

virtual void ns3::EmlsrManager::NotifyEmlsrModeChanged ( )

privatepure virtual

Notify subclass that EMLSR mode changed.

Implemented in ns3::DefaultEmlsrManager.

Referenced by ChangeEmlsrMode().

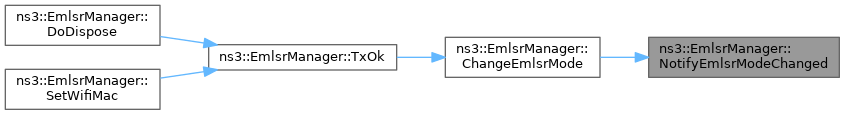

Here is the caller graph for this function:

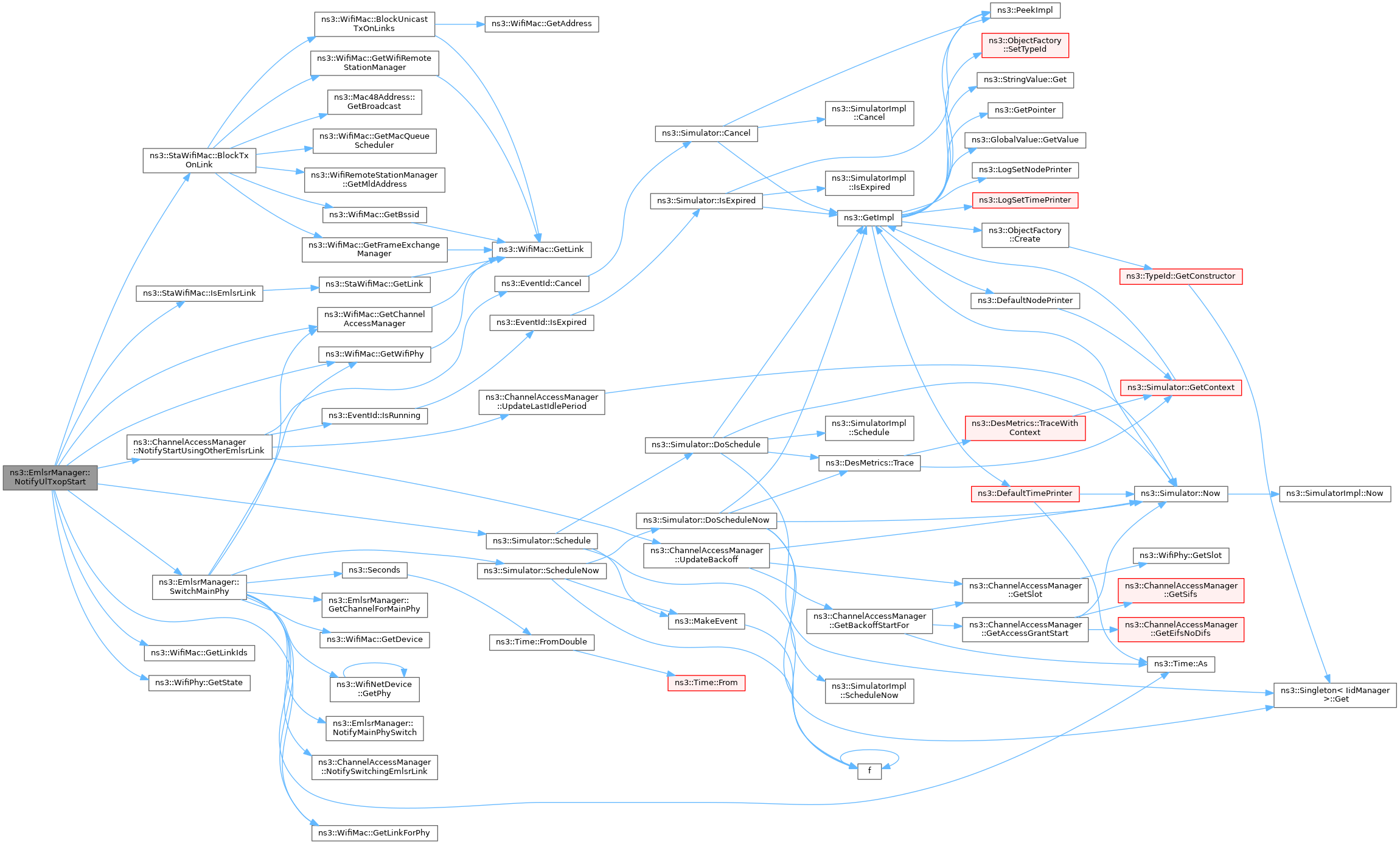

◆ NotifyIcfReceived()

void ns3::EmlsrManager::NotifyIcfReceived ( uint8_t linkId )

Notify the reception of an initial Control frame on the given link.

Parameters

linkId the ID of the link on which the initial Control frame was received

Definition at line 243 of file emlsr-manager.cc.

References ns3::StaWifiMac::BlockTxOnLink(), ns3::WifiMac::GetChannelAccessManager(), ns3::WifiMac::GetDevice(), ns3::WifiMac::GetLinkIds(), ns3::WifiNetDevice::GetPhy(), ns3::WifiMac::GetWifiPhy(), ns3::StaWifiMac::IsEmlsrLink(), m_mainPhyId, m_staMac, ns3::ChannelAccessManager::NotifyStartUsingOtherEmlsrLink(), NS_ASSERT, NS_LOG_FUNCTION, SwitchMainPhy(), and ns3::USING_OTHER_EMLSR_LINK.

Here is the call graph for this function:

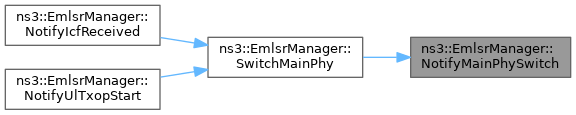

◆ NotifyMainPhySwitch()

virtual void ns3::EmlsrManager::NotifyMainPhySwitch	(	uint8_t	currLinkId,
		uint8_t	nextLinkId
	)

privatepure virtual

Notify subclass that the main PHY is switching channel to operate on another link.

Parameters

currLinkId	the ID of the link on which the main PHY is operating
nextLinkId	the ID of the link on which the main PHY will be operating

Implemented in ns3::DefaultEmlsrManager.

Referenced by SwitchMainPhy().

Here is the caller graph for this function:

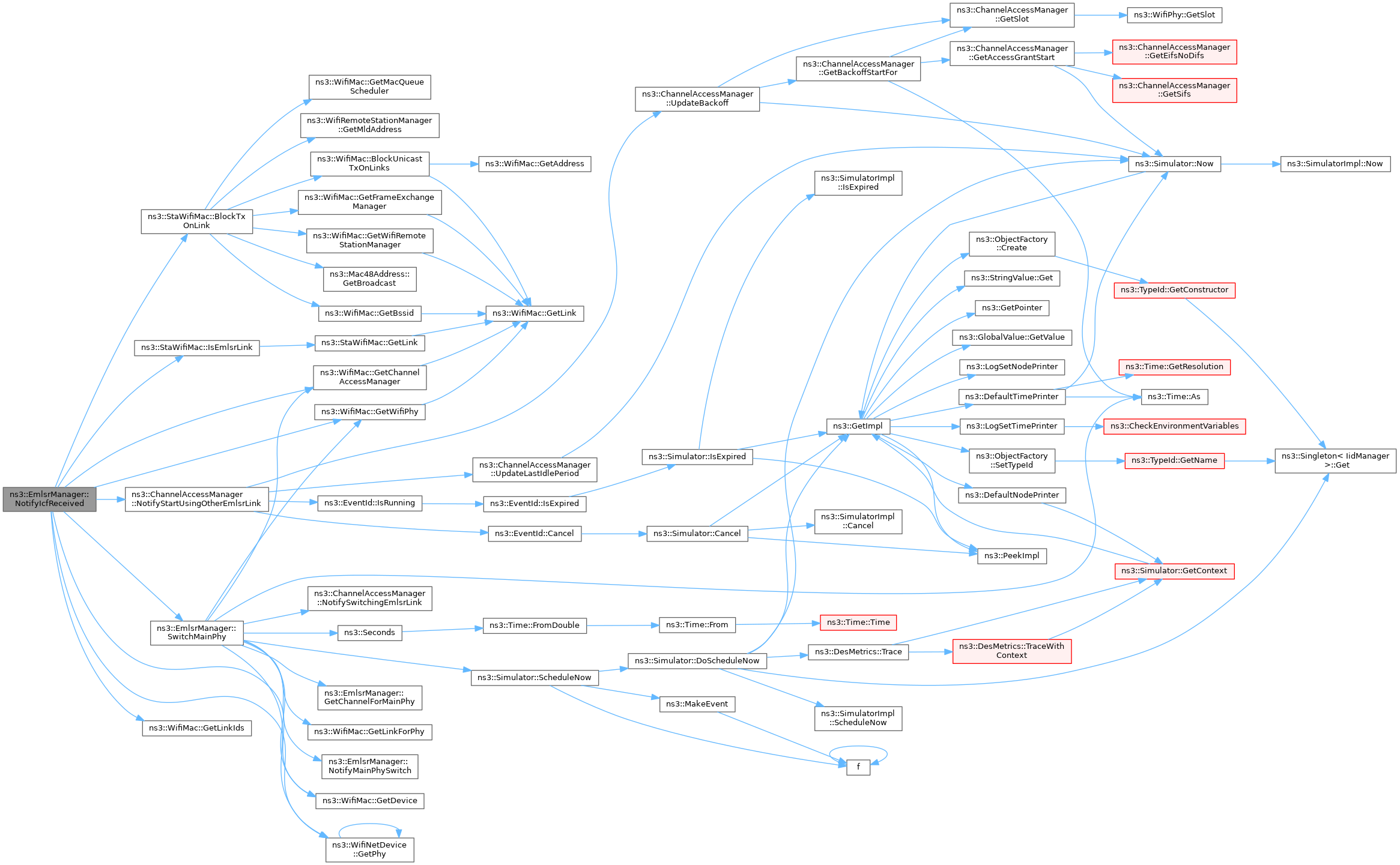

◆ NotifyMgtFrameReceived()

void ns3::EmlsrManager::NotifyMgtFrameReceived	(	Ptr< const WifiMpdu >	mpdu,
		uint8_t	linkId
	)

Notify the reception of a management frame addressed to us.

Parameters

mpdu	the received MPDU
linkId	the ID of the link over which the MPDU was received

Definition at line 203 of file emlsr-manager.cc.

References ns3::EventId::Cancel(), ComputeOperatingChannels(), DoNotifyMgtFrameReceived(), ns3::WifiMac::GetBssid(), GetStaMac(), GetTransitionTimeout(), ns3::EventImpl::Invoke(), ns3::EventId::IsRunning(), m_nextEmlsrLinks, m_staMac, m_transitionTimeoutEvent, NS_LOG_FUNCTION, ns3::WifiActionHeader::Peek(), ns3::EventId::PeekEventImpl(), ns3::WifiActionHeader::PROTECTED_EHT, ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION, and SendEmlOmn().

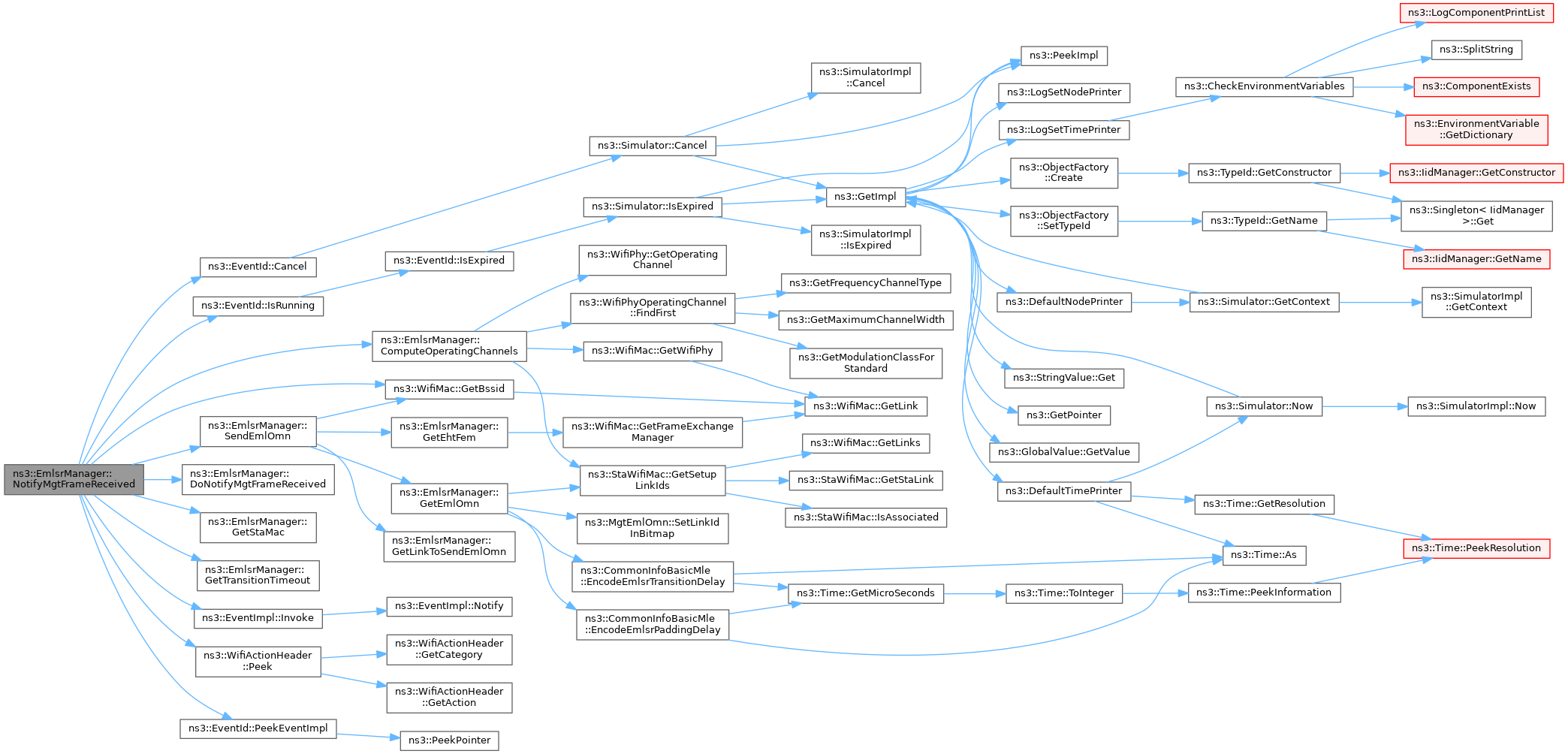

Here is the call graph for this function:

◆ NotifyTxopEnd()

void ns3::EmlsrManager::NotifyTxopEnd ( uint8_t linkId )

Notify the end of a TXOP on the given link.

Parameters

linkId the ID of the given link

Definition at line 315 of file emlsr-manager.cc.

References ns3::WifiMac::GetChannelAccessManager(), ns3::WifiMac::GetLinkIds(), ns3::StaWifiMac::IsEmlsrLink(), m_staMac, ns3::ChannelAccessManager::NotifyStopUsingOtherEmlsrLink(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::StaWifiMac::UnblockTxOnLink(), and ns3::USING_OTHER_EMLSR_LINK.

Here is the call graph for this function:

◆ NotifyUlTxopStart()

void ns3::EmlsrManager::NotifyUlTxopStart ( uint8_t linkId )

Notify the start of an UL TXOP on the given link.

Parameters

linkId the ID of the given link

Definition at line 276 of file emlsr-manager.cc.

References ns3::StaWifiMac::BlockTxOnLink(), ns3::WifiMac::GetChannelAccessManager(), ns3::WifiMac::GetLinkForPhy(), ns3::WifiMac::GetLinkIds(), ns3::WifiPhy::GetState(), ns3::WifiMac::GetWifiPhy(), ns3::StaWifiMac::IsEmlsrLink(), m_mainPhyId, m_staMac, ns3::ChannelAccessManager::NotifyStartUsingOtherEmlsrLink(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SwitchMainPhy(), TX, and ns3::USING_OTHER_EMLSR_LINK.

Here is the call graph for this function:

◆ ResendNotification()

virtual std::optional< uint8_t > ns3::EmlsrManager::ResendNotification ( Ptr< const WifiMpdu > mpdu )

protectedpure virtual

A previous EML Operating Mode Notification frame was dropped.

Ask the subclass whether the frame needs to be re-sent on the given link (if any).

Parameters

mpdu	the dropped MPDU that includes the EML Operating Mode Notification frame

Returns: the ID of the link over which to re-send the frame, if needed

Implemented in ns3::DefaultEmlsrManager.

Referenced by TxDropped().

Here is the caller graph for this function:

◆ SendEmlOmn()

void ns3::EmlsrManager::SendEmlOmn ( )

private

Send an EML Operating Mode Notification frame.

Definition at line 429 of file emlsr-manager.cc.

References ns3::WifiMac::GetBssid(), GetEhtFem(), GetEmlOmn(), GetLinkToSendEmlOmn(), m_emlsrTransitionTimeout, m_nextEmlsrLinks, m_staMac, NS_ABORT_MSG_IF, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by NotifyMgtFrameReceived(), and SetEmlsrLinks().

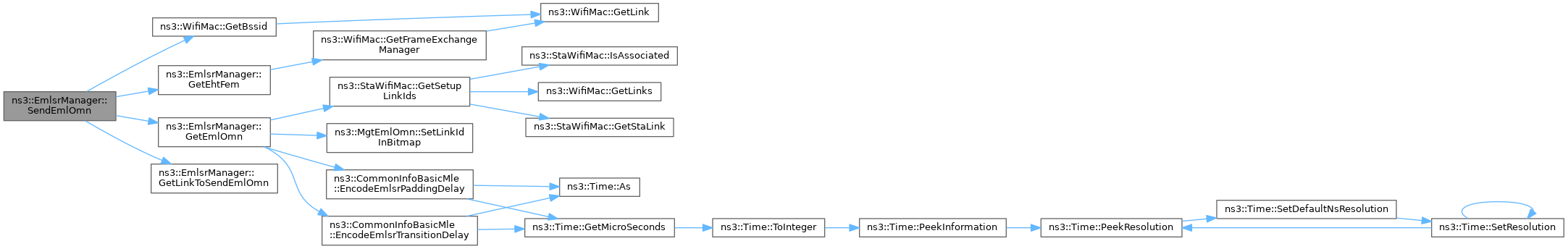

Here is the call graph for this function:

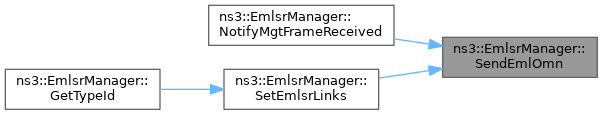

Here is the caller graph for this function:

◆ SetCamStateReset()

void ns3::EmlsrManager::SetCamStateReset ( bool enable )

Set the member variable indicating whether the state of the CAM should be reset when the main PHY switches channel and operates on the link associated with the CAM.

Parameters

enable whether the CAM state should be reset

Definition at line 142 of file emlsr-manager.cc.

References m_resetCamState.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetEmlsrLinks()

void ns3::EmlsrManager::SetEmlsrLinks ( const std::set< uint8_t > & linkIds )

Take actions to enable EMLSR mode on the given set of links, if non-empty, or disable EMLSR mode, otherwise.

Parameters

linkIds the IDs of the links on which EMLSR mode should be enabled (empty to disable EMLSR mode)

Definition at line 185 of file emlsr-manager.cc.

References GetStaMac(), GetTransitionTimeout(), m_emlsrLinks, m_nextEmlsrLinks, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and SendEmlOmn().

Referenced by GetTypeId().

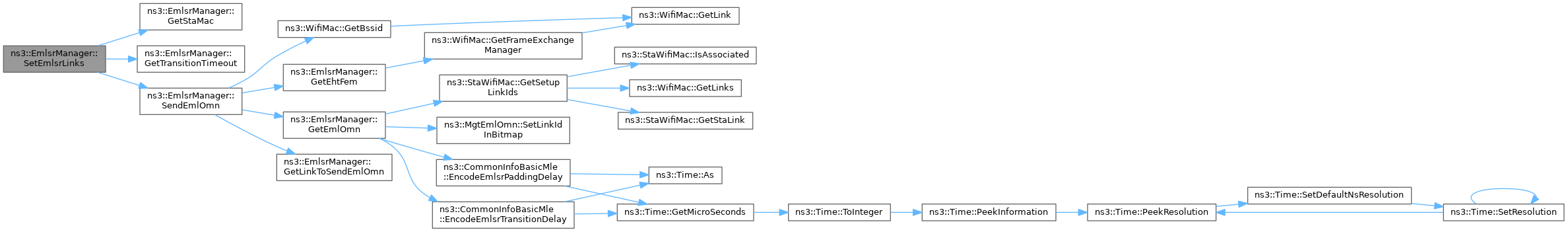

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMainPhyId()

void ns3::EmlsrManager::SetMainPhyId ( uint8_t mainPhyId )

Set the ID of main PHY (position in the vector of PHYs held by WifiNetDevice).

This method cannot be called during or after initialization.

Parameters

mainPhyId the ID of the main PHY

Definition at line 128 of file emlsr-manager.cc.

References ns3::Object::IsInitialized(), m_mainPhyId, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTransitionTimeout()

void ns3::EmlsrManager::SetTransitionTimeout ( Time timeout )

Set the Transition Timeout advertised by the associated AP with EMLSR activated.

Parameters

timeout the advertised Transition Timeout

Definition at line 172 of file emlsr-manager.cc.

References ns3::Time::As(), m_emlsrTransitionTimeout, NS_LOG_FUNCTION, timeout, and ns3::Time::US.

Here is the call graph for this function:

◆ SetWifiMac()

void ns3::EmlsrManager::SetWifiMac ( Ptr< StaWifiMac > mac )

Set the wifi MAC.

Note that it must be the MAC of an EHT non-AP MLD.

Parameters

mac	the wifi MAC

Definition at line 111 of file emlsr-manager.cc.

References ns3::WifiMac::GetEhtConfiguration(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetTypeOfStation(), m_staMac, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::STA, ns3::ObjectBase::TraceConnectWithoutContext(), TxDropped(), and TxOk().

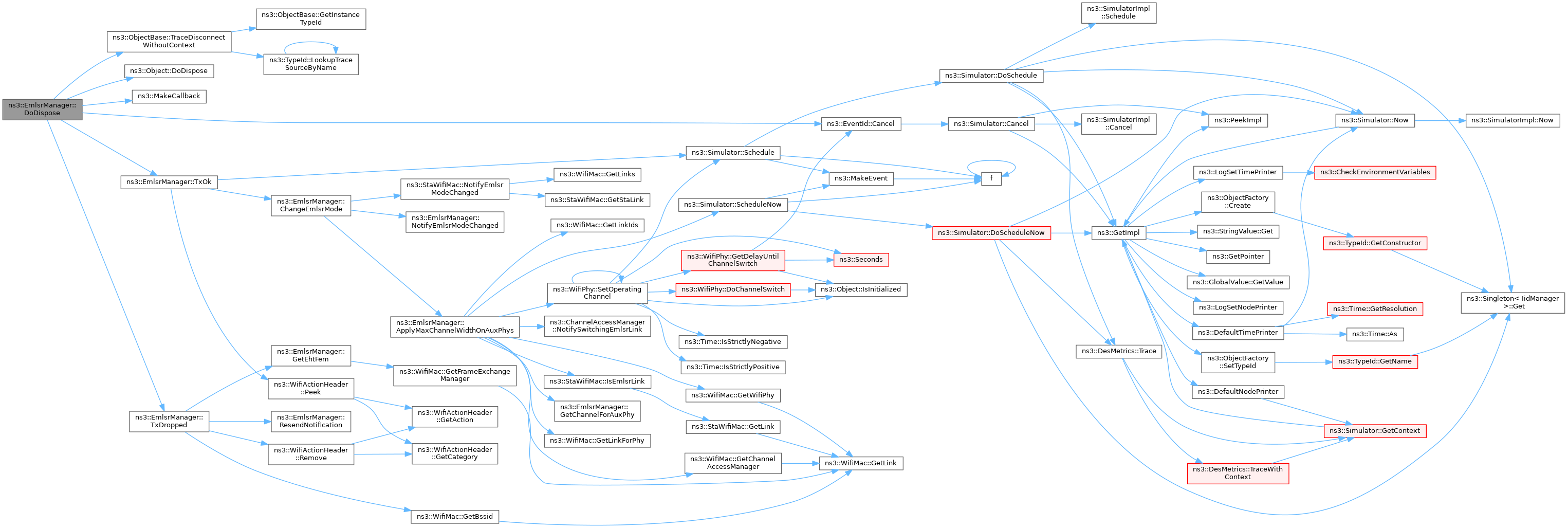

Here is the call graph for this function:

◆ SwitchMainPhy()

void ns3::EmlsrManager::SwitchMainPhy	(	uint8_t	linkId,
		bool	noSwitchDelay
	)

private

Switch channel on the Main PHY so that it operates on the given link.

Parameters

linkId	the ID of the link on which the main PHY has to operate
noSwitchDelay	whether switching delay should be zero

Definition at line 337 of file emlsr-manager.cc.

References ns3::Time::As(), ns3::WifiMac::GetChannelAccessManager(), GetChannelForMainPhy(), ns3::WifiMac::GetDevice(), ns3::WifiMac::GetLinkForPhy(), ns3::WifiNetDevice::GetPhy(), ns3::WifiMac::GetWifiPhy(), m_lastAdvTransitionDelay, m_mainPhyId, m_staMac, NotifyMainPhySwitch(), ns3::ChannelAccessManager::NotifySwitchingEmlsrLink(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), ns3::Seconds(), and ns3::Time::US.

Referenced by NotifyIcfReceived(), and NotifyUlTxopStart().

Here is the call graph for this function:

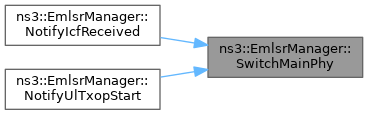

Here is the caller graph for this function:

◆ TxDropped()

void ns3::EmlsrManager::TxDropped	(	WifiMacDropReason	reason,
		Ptr< const WifiMpdu >	mpdu
	)

private

Notify that the given MPDU has been discarded for the given reason.

Parameters

reason	the reason why the MPDU was dropped
mpdu	the dropped MPDU

Definition at line 487 of file emlsr-manager.cc.

References ns3::WifiMac::GetBssid(), GetEhtFem(), m_nextEmlsrLinks, m_staMac, NS_LOG_FUNCTION, ns3::WifiActionHeader::PROTECTED_EHT, ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION, ns3::WifiActionHeader::Remove(), and ResendNotification().

Referenced by DoDispose(), and SetWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TxOk()

void ns3::EmlsrManager::TxOk ( Ptr< const WifiMpdu > mpdu )

private

Notify the acknowledgment of the given MPDU.

Parameters

mpdu	the acknowledged MPDU

Definition at line 452 of file emlsr-manager.cc.

References ChangeEmlsrMode(), m_emlsrTransitionTimeout, m_lastAdvPaddingDelay, m_lastAdvTransitionDelay, m_transitionTimeoutEvent, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::WifiActionHeader::Peek(), ns3::WifiActionHeader::PROTECTED_EHT, ns3::WifiActionHeader::PROTECTED_EHT_EML_OPERATING_MODE_NOTIFICATION, and ns3::Simulator::Schedule().

Referenced by DoDispose(), and SetWifiMac().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_auxPhyChannels

std::map<uint8_t, WifiPhyOperatingChannel> ns3::EmlsrManager::m_auxPhyChannels

private

link ID-indexed map of operating channels for the aux PHYs

Definition at line 283 of file emlsr-manager.h.

Referenced by ComputeOperatingChannels(), and GetChannelForAuxPhy().

◆ m_auxPhyMaxWidth

uint16_t ns3::EmlsrManager::m_auxPhyMaxWidth

protected

max channel width (MHz) supported by aux PHYs

Definition at line 196 of file emlsr-manager.h.

Referenced by ComputeOperatingChannels(), and GetTypeId().

◆ m_emlsrLinks

std::set<uint8_t> ns3::EmlsrManager::m_emlsrLinks

private

ID of the EMLSR links (empty if EMLSR mode is disabled)

Definition at line 271 of file emlsr-manager.h.

Referenced by ChangeEmlsrMode(), GetEmlsrLinks(), and SetEmlsrLinks().

◆ m_emlsrPaddingDelay

Time ns3::EmlsrManager::m_emlsrPaddingDelay

protected

EMLSR Padding delay.

Definition at line 193 of file emlsr-manager.h.

Referenced by GetEmlOmn(), and GetTypeId().

◆ m_emlsrTransitionDelay

Time ns3::EmlsrManager::m_emlsrTransitionDelay

protected

EMLSR Transition delay.

Definition at line 194 of file emlsr-manager.h.

Referenced by GetEmlOmn(), and GetTypeId().

◆ m_emlsrTransitionTimeout

std::optional<Time> ns3::EmlsrManager::m_emlsrTransitionTimeout

private

Transition timeout advertised by APs with EMLSR activated.

Definition at line 269 of file emlsr-manager.h.

Referenced by GetTransitionTimeout(), SendEmlOmn(), SetTransitionTimeout(), and TxOk().

◆ m_lastAdvPaddingDelay

Time ns3::EmlsrManager::m_lastAdvPaddingDelay

private

last advertised padding delay

Definition at line 275 of file emlsr-manager.h.

Referenced by GetEmlOmn(), and TxOk().

◆ m_lastAdvTransitionDelay

Time ns3::EmlsrManager::m_lastAdvTransitionDelay

private

last advertised transition delay

Definition at line 276 of file emlsr-manager.h.

Referenced by GetEmlOmn(), SwitchMainPhy(), and TxOk().

◆ m_mainPhyChannels

std::map<uint8_t, WifiPhyOperatingChannel> ns3::EmlsrManager::m_mainPhyChannels

private

link ID-indexed map of operating channels for the main PHY

Definition at line 281 of file emlsr-manager.h.

Referenced by ComputeOperatingChannels(), and GetChannelForMainPhy().

◆ m_mainPhyId

uint8_t ns3::EmlsrManager::m_mainPhyId

protected

ID of main PHY (position in the vector of PHYs held by WifiNetDevice)

Definition at line 195 of file emlsr-manager.h.

Referenced by ApplyMaxChannelWidthOnAuxPhys(), ns3::DefaultEmlsrManager::GetLinkToSendEmlOmn(), GetMainPhyId(), NotifyIcfReceived(), NotifyUlTxopStart(), ns3::DefaultEmlsrManager::ResendNotification(), SetMainPhyId(), and SwitchMainPhy().

◆ m_nextEmlsrLinks

std::optional<std::set<uint8_t> > ns3::EmlsrManager::m_nextEmlsrLinks

private

ID of the links that will become the EMLSR links when the pending notification frame is acknowledged.

Definition at line 272 of file emlsr-manager.h.

Referenced by ChangeEmlsrMode(), GetEmlOmn(), NotifyMgtFrameReceived(), SendEmlOmn(), SetEmlsrLinks(), and TxDropped().

◆ m_resetCamState

bool ns3::EmlsrManager::m_resetCamState

private

whether to reset the state of CAM when main PHY switches channel

Definition at line 279 of file emlsr-manager.h.

Referenced by GetCamStateReset(), and SetCamStateReset().

◆ m_staMac

Ptr<StaWifiMac> ns3::EmlsrManager::m_staMac

private

the MAC of the managed non-AP MLD

Definition at line 268 of file emlsr-manager.h.

Referenced by ApplyMaxChannelWidthOnAuxPhys(), ChangeEmlsrMode(), ComputeOperatingChannels(), DoDispose(), GetEhtFem(), GetEmlOmn(), GetStaMac(), NotifyIcfReceived(), NotifyMgtFrameReceived(), NotifyTxopEnd(), NotifyUlTxopStart(), SendEmlOmn(), SetWifiMac(), SwitchMainPhy(), and TxDropped().

◆ m_transitionTimeoutEvent

EventId ns3::EmlsrManager::m_transitionTimeoutEvent

private

Timer started after the successful transmission of an EML Operating Mode Notification frame.

Definition at line 277 of file emlsr-manager.h.

Referenced by DoDispose(), NotifyMgtFrameReceived(), and TxOk().

The documentation for this class was generated from the following files:

src/wifi/model/eht/emlsr-manager.h
src/wifi/model/eht/emlsr-manager.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Constructor & Destructor Documentation

◆ EmlsrManager()

◆ ~EmlsrManager()

Member Function Documentation

◆ ApplyMaxChannelWidthOnAuxPhys()

◆ ChangeEmlsrMode()

◆ ComputeOperatingChannels()

◆ DoDispose()

◆ DoNotifyMgtFrameReceived()

◆ GetCamStateReset()

◆ GetChannelForAuxPhy()

◆ GetChannelForMainPhy()

◆ GetEhtFem()

◆ GetEmlOmn()

◆ GetEmlsrLinks()

◆ GetLinkToSendEmlOmn()

◆ GetMainPhyId()

◆ GetStaMac()

◆ GetTransitionTimeout()

◆ GetTypeId()

◆ NotifyEmlsrModeChanged()

◆ NotifyIcfReceived()

◆ NotifyMainPhySwitch()

◆ NotifyMgtFrameReceived()

◆ NotifyTxopEnd()

◆ NotifyUlTxopStart()

◆ ResendNotification()

◆ SendEmlOmn()

◆ SetCamStateReset()

◆ SetEmlsrLinks()

◆ SetMainPhyId()

◆ SetTransitionTimeout()

◆ SetWifiMac()

◆ SwitchMainPhy()

◆ TxDropped()

◆ TxOk()

Member Data Documentation

◆ m_auxPhyChannels

◆ m_auxPhyMaxWidth

◆ m_emlsrLinks

◆ m_emlsrPaddingDelay

◆ m_emlsrTransitionDelay

◆ m_emlsrTransitionTimeout

◆ m_lastAdvPaddingDelay

◆ m_lastAdvTransitionDelay

◆ m_mainPhyChannels

◆ m_mainPhyId

◆ m_nextEmlsrLinks

◆ m_resetCamState

◆ m_staMac

◆ m_transitionTimeoutEvent
