#include "channel-access-manager.h"

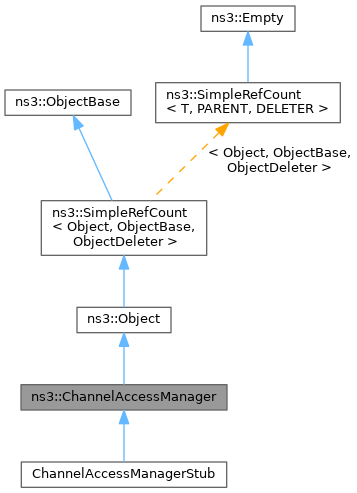

Inheritance diagram for ns3::ChannelAccessManager:

Collaboration diagram for ns3::ChannelAccessManager:

Classes
struct	EmlsrLinkSwitchInfo
	Information associated with each PHY that is going to operate on another EMLSR link. More...

struct	Timespan
	Structure defining start time and end time for a given state. More...

Public Member Functions
	ChannelAccessManager ()

	~ChannelAccessManager () override

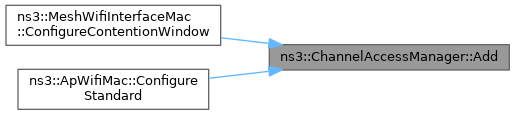

void	Add (Ptr< Txop > txop)

void	DeactivatePhyListener (Ptr< WifiPhy > phy)
	Deactivate current registered listener for PHY events on the given PHY.

void	DisableEdcaFor (Ptr< Txop > qosTxop, Time duration)

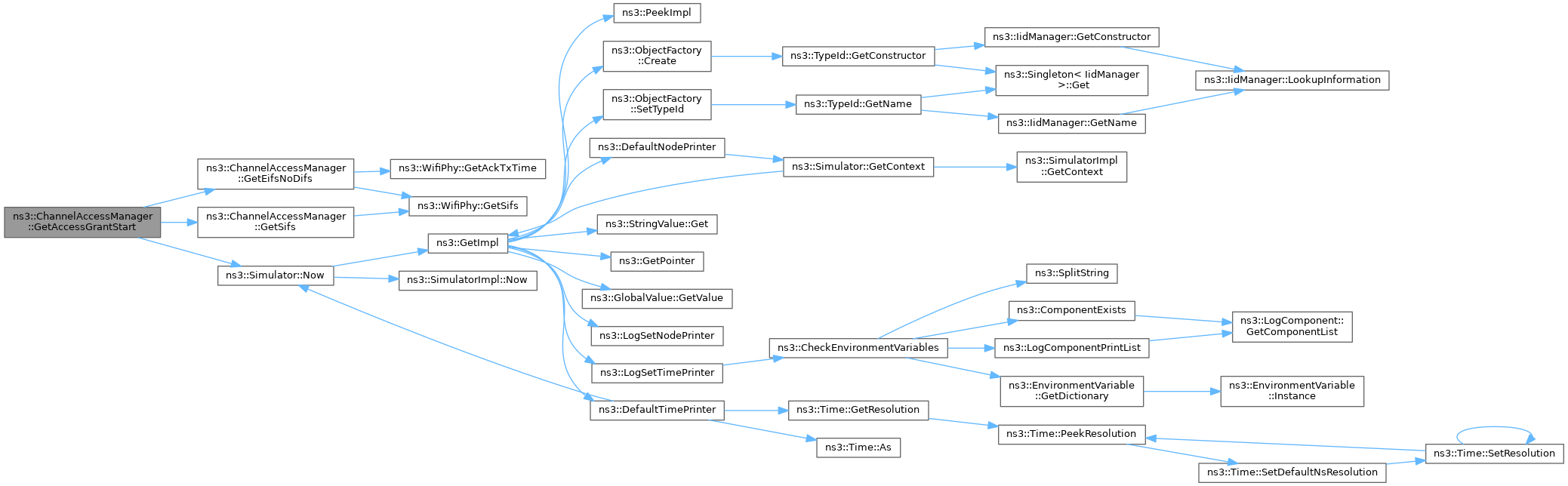

Time	GetAccessGrantStart (bool ignoreNav=false) const
	Access will never be granted to the medium before the time returned by this method.

uint16_t	GetLargestIdlePrimaryChannel (Time interval, Time end)
	Return the width of the largest primary channel that has been idle for the given time interval before the given time, if any primary channel has been idle, or zero, otherwise.

bool	GetPer20MHzBusy (const std::set< uint8_t > &indices) const

bool	IsBusy () const
	Check if the device is busy sending or receiving, or NAV or CCA busy.

bool	NeedBackoffUponAccess (Ptr< Txop > txop)
	Determine if a new backoff needs to be generated when a packet is queued for transmission.

void	NotifyAckTimeoutResetNow ()
	Notify that ack timer has reset.

void	NotifyAckTimeoutStartNow (Time duration)
	Notify that ack timer has started for the given duration.

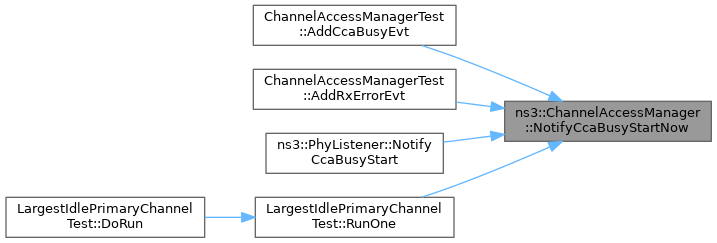

void	NotifyCcaBusyStartNow (Time duration, WifiChannelListType channelType, const std::vector< Time > &per20MhzDurations)

void	NotifyCtsTimeoutResetNow ()
	Notify that CTS timer has reset.

void	NotifyCtsTimeoutStartNow (Time duration)
	Notify that CTS timer has started for the given duration.

void	NotifyNavResetNow (Time duration)

void	NotifyNavStartNow (Time duration)

void	NotifyOffNow ()
	Notify the Txop that the device has been put in off mode.

void	NotifyOnNow ()
	Notify the Txop that the device has been resumed from off mode.

void	NotifyRxEndErrorNow ()
	Notify the Txop that a packet reception was just completed unsuccessfuly.

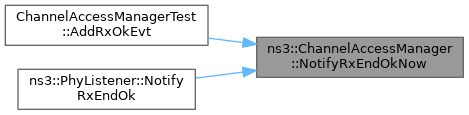

void	NotifyRxEndOkNow ()
	Notify the Txop that a packet reception was just completed successfully.

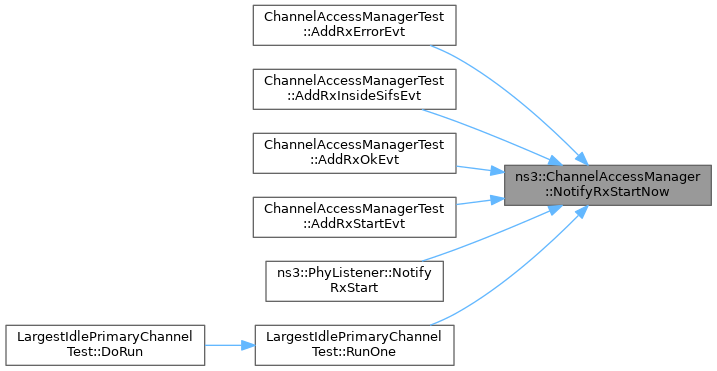

void	NotifyRxStartNow (Time duration)

void	NotifySleepNow ()
	Notify the Txop that the device has been put in sleep mode.

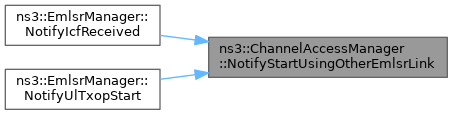

void	NotifyStartUsingOtherEmlsrLink ()
	Notify that another EMLSR link is being used, hence medium access should be disabled.

void	NotifyStopUsingOtherEmlsrLink ()
	Notify that another EMLSR link is no longer being used, hence medium access can be resumed.

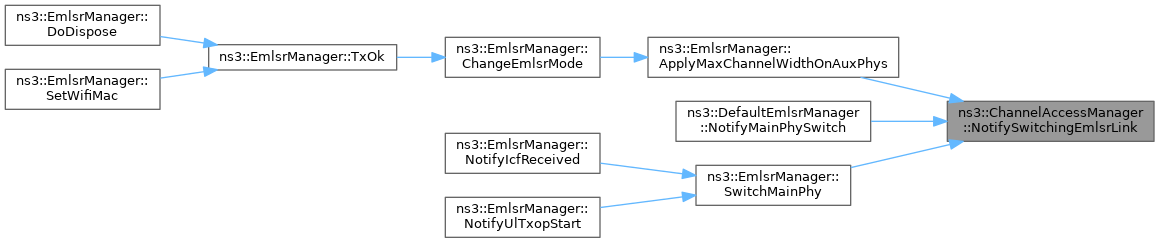

void	NotifySwitchingEmlsrLink (Ptr< WifiPhy > phy, const WifiPhyOperatingChannel &channel, uint8_t linkId)
	Notify that the given PHY is about to switch to the given operating channel, which is used by the given link.

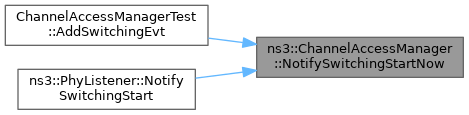

void	NotifySwitchingStartNow (PhyListener *phyListener, Time duration)

void	NotifyTxStartNow (Time duration)

void	NotifyWakeupNow ()
	Notify the Txop that the device has been resumed from sleep mode.

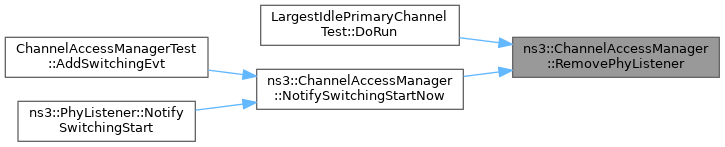

void	RemovePhyListener (Ptr< WifiPhy > phy)
	Remove current registered listener for PHY events on the given PHY.

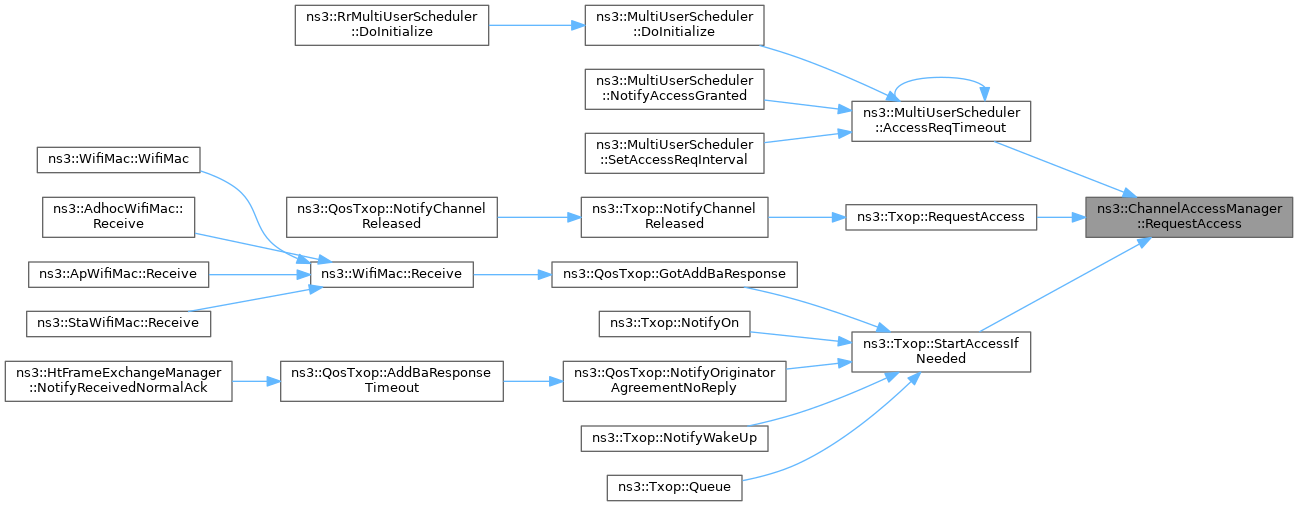

void	RequestAccess (Ptr< Txop > txop)

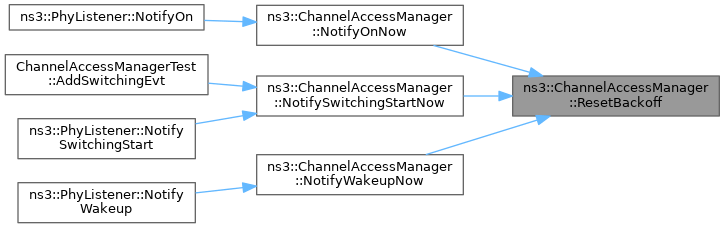

void	ResetBackoff (Ptr< Txop > txop)
	Reset the backoff for the given DCF/EDCAF.

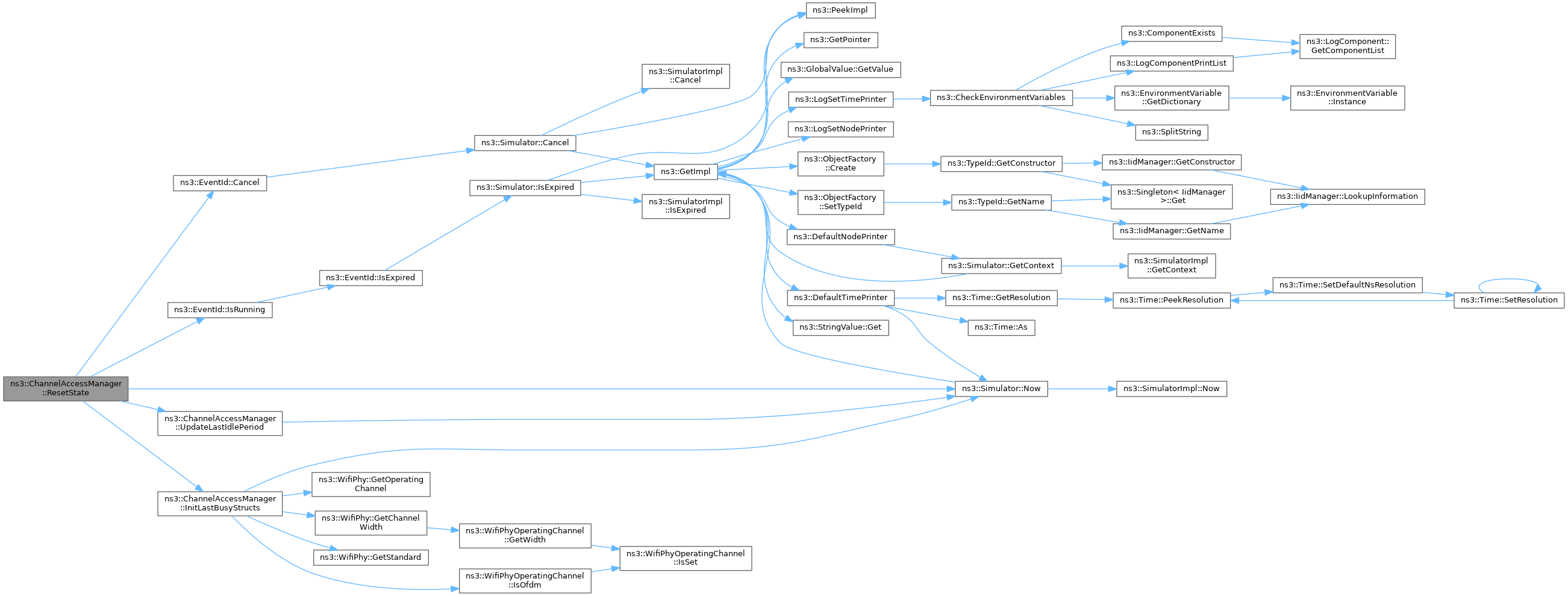

void	ResetState ()
	Reset the state variables of this channel access manager.

void	SetLinkId (uint8_t linkId)
	Set the ID of the link this Channel Access Manager is associated with.

void	SetupFrameExchangeManager (Ptr< FrameExchangeManager > feManager)
	Set up the Frame Exchange Manager.

void	SetupPhyListener (Ptr< WifiPhy > phy)
	Set up (or reactivate) listener for PHY events on the given PHY.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Protected Member Functions
void	DoDispose () override
	Destructor implementation.

void	DoInitialize () override
	Initialize() implementation.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Private Types
using	PhyListenerMap = std::unordered_map< Ptr< WifiPhy >, std::unique_ptr< PhyListener > >
	Maps each PHY listener to the associated PHY.

typedef std::vector< Ptr< Txop > >	Txops
	typedef for a vector of Txops

Private Member Functions
void	AccessTimeout ()
	Called when access timeout should occur (e.g.

void	DoGrantDcfAccess ()
	Grant access to Txop using DCF/EDCF contention rules.

void	DoRestartAccessTimeoutIfNeeded ()

Time	GetBackoffEndFor (Ptr< Txop > txop)
	Return the time when the backoff procedure ended (or will ended) for the given Txop.

Time	GetBackoffStartFor (Ptr< Txop > txop)
	Return the time when the backoff procedure started for the given Txop.

virtual Time	GetEifsNoDifs () const
	Return the EIFS duration minus a DIFS.

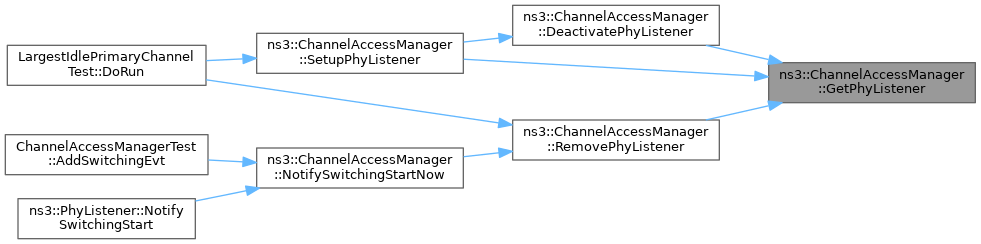

PhyListener *	GetPhyListener (Ptr< WifiPhy > phy) const
	Get current registered listener for PHY events on the given PHY.

virtual Time	GetSifs () const
	Return the Short Interframe Space (SIFS) for this PHY.

virtual Time	GetSlot () const
	Return the slot duration for this PHY.

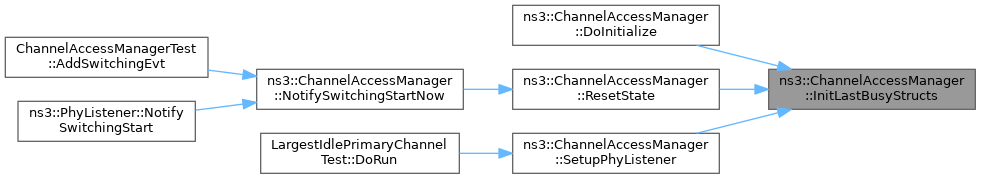

void	InitLastBusyStructs ()
	Initialize the structures holding busy end times per channel type (primary, secondary, etc.) and per 20 MHz channel.

void	UpdateBackoff ()
	Update backoff slots for all Txops.

void	UpdateLastIdlePeriod ()
	This method determines whether the medium has been idle during a period (of non-null duration) immediately preceding the time this method is called.

Private Attributes
EventId	m_accessTimeout
	the access timeout ID

Time	m_eifsNoDifs
	EIFS no DIFS time.

Ptr< FrameExchangeManager >	m_feManager
	pointer to the Frame Exchange Manager

Time	m_lastAckTimeoutEnd
	the last Ack timeout end time

std::map< WifiChannelListType, Time >	m_lastBusyEnd
	the last busy end time for each channel type

Time	m_lastCtsTimeoutEnd
	the last CTS timeout end time

std::map< WifiChannelListType, Timespan >	m_lastIdle
	the last idle start and end time for each channel type

Time	m_lastNavEnd
	the last NAV end time

std::vector< Time >	m_lastPer20MHzBusyEnd
	the last busy end time per 20 MHz channel (HE stations and channel width > 20 MHz only)

Timespan	m_lastRx
	the last receive start and end time

bool	m_lastRxReceivedOk
	the last receive OK

Time	m_lastSwitchingEnd
	the last switching end time

Time	m_lastTxEnd
	the last transmit end time

Time	m_lastUsingOtherEmlsrLinkEnd
	the last time we were blocked because using another EMLSR link

uint8_t	m_linkId
	the ID of the link this object is associated with

bool	m_off
	flag whether it is in off state

Ptr< WifiPhy >	m_phy
	pointer to the unique active PHY

PhyListenerMap	m_phyListeners
	the PHY listeners

bool	m_sleeping
	flag whether it is in sleeping state

std::unordered_map< Ptr< WifiPhy >, EmlsrLinkSwitchInfo >	m_switchingEmlsrLinks
	Store information about the PHY objects that are going to operate on another EMLSR link.

Txops	m_txops
	the vector of managed Txops

bool	m_usingOtherEmlsrLink
	whether another EMLSR link is being used

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Manage a set of ns3::Txop.

Handle a set of independent ns3::Txop, each of which represents a single DCF within a MAC stack. Each ns3::Txop has a priority implicitly associated with it (the priority is determined when the ns3::Txop is added to the ChannelAccessManager: the first Txop to be added gets the highest priority, the second, the second highest priority, and so on.) which is used to handle "internal" collisions. i.e., when two local Txop are expected to get access to the medium at the same time, the highest priority local Txop wins access to the medium and the other Txop suffers a "internal" collision.

Definition at line 59 of file channel-access-manager.h.

Member Typedef Documentation

◆ PhyListenerMap

using ns3::ChannelAccessManager::PhyListenerMap = std::unordered_map<Ptr<WifiPhy>, std::unique_ptr<PhyListener> >

private

Maps each PHY listener to the associated PHY.

Definition at line 437 of file channel-access-manager.h.

◆ Txops

typedef std::vector<Ptr<Txop> > ns3::ChannelAccessManager::Txops

private

typedef for a vector of Txops

Definition at line 402 of file channel-access-manager.h.

Constructor & Destructor Documentation

◆ ChannelAccessManager()

ns3::ChannelAccessManager::ChannelAccessManager ( )

Definition at line 171 of file channel-access-manager.cc.

References ns3::MicroSeconds().

Here is the call graph for this function:

◆ ~ChannelAccessManager()

ns3::ChannelAccessManager::~ChannelAccessManager ( )

override

Definition at line 189 of file channel-access-manager.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

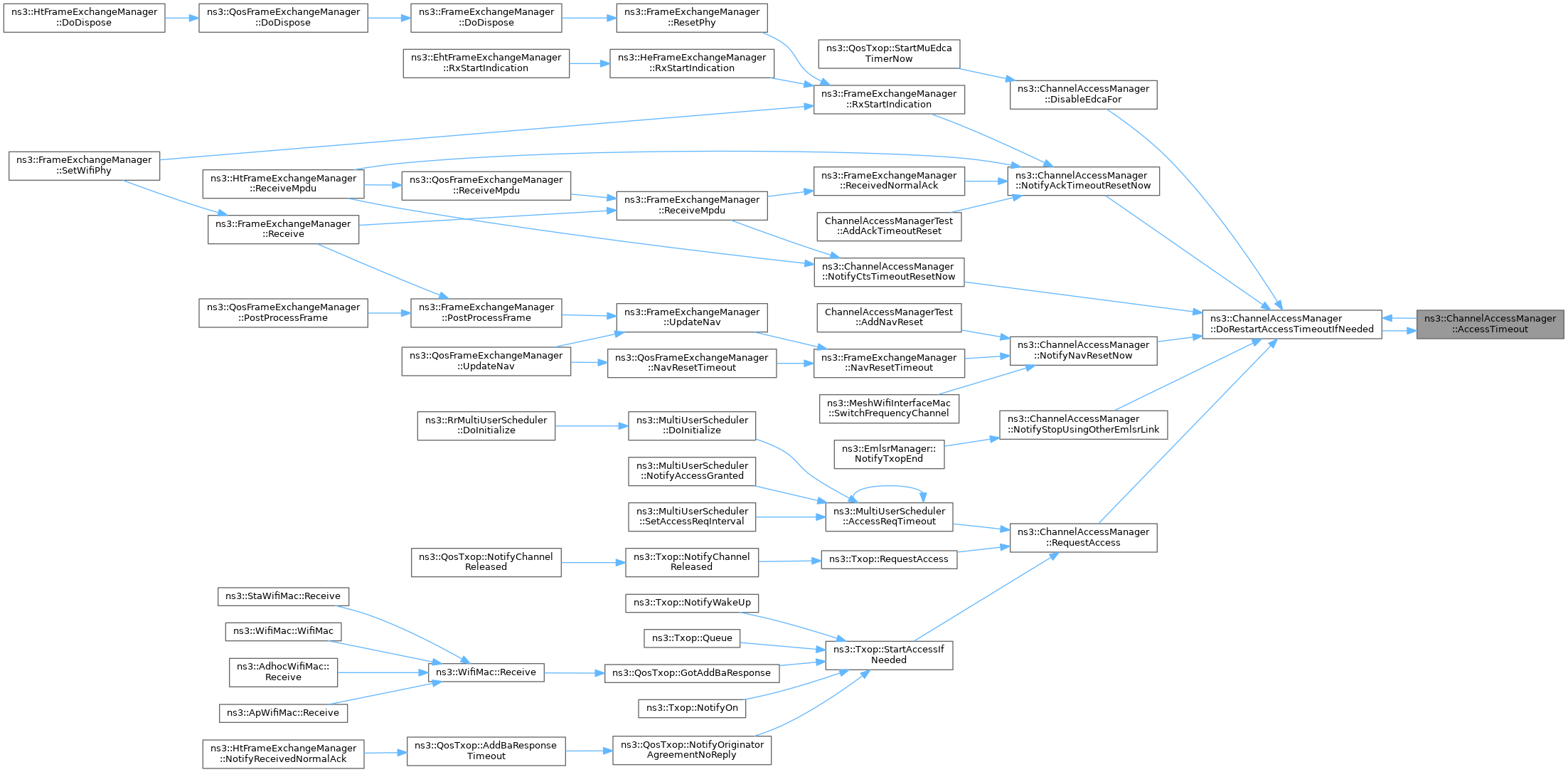

◆ AccessTimeout()

void ns3::ChannelAccessManager::AccessTimeout ( )

private

Called when access timeout should occur (e.g.

backoff procedure expired).

Definition at line 572 of file channel-access-manager.cc.

References DoGrantDcfAccess(), DoRestartAccessTimeoutIfNeeded(), NS_LOG_FUNCTION, and UpdateBackoff().

Referenced by DoRestartAccessTimeoutIfNeeded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Add()

void ns3::ChannelAccessManager::Add ( Ptr< Txop > txop )

Parameters

txop	a new Txop.

The ChannelAccessManager does not take ownership of this pointer so, the callee must make sure that the Txop pointer will stay valid as long as the ChannelAccessManager is valid. Note that the order in which Txop objects are added to a ChannelAccessManager matters: the first Txop added has the highest priority, the second Txop added, has the second highest priority, etc.

Definition at line 335 of file channel-access-manager.cc.

References m_txops, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::ConfigureContentionWindow(), and ns3::ApWifiMac::ConfigureStandard().

Here is the caller graph for this function:

◆ DeactivatePhyListener()

void ns3::ChannelAccessManager::DeactivatePhyListener ( Ptr< WifiPhy > phy )

Deactivate current registered listener for PHY events on the given PHY.

All notifications but channel switch notifications coming from an inactive listener are ignored.

Parameters

phy	the WifiPhy to listen to

Definition at line 277 of file channel-access-manager.cc.

References GetPhyListener(), m_phy, and NS_LOG_FUNCTION.

Referenced by SetupPhyListener().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DisableEdcaFor()

void ns3::ChannelAccessManager::DisableEdcaFor	(	Ptr< Txop >	qosTxop,
		Time	duration
	)

Parameters

qosTxop	a QosTxop that needs to be disabled
duration	the amount of time during which the QosTxop is disabled

Disable the given EDCA for the given amount of time. This EDCA will not be granted channel access during this period and the backoff timer will be frozen. After this period, the EDCA will start normal operations again by resuming the backoff timer.

Definition at line 791 of file channel-access-manager.cc.

References DoRestartAccessTimeoutIfNeeded(), m_linkId, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and UpdateBackoff().

Referenced by ns3::QosTxop::StartMuEdcaTimerNow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::ChannelAccessManager::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 202 of file channel-access-manager.cc.

References m_feManager, m_phy, m_phyListeners, m_txops, and NS_LOG_FUNCTION.

◆ DoGrantDcfAccess()

void ns3::ChannelAccessManager::DoGrantDcfAccess ( )

private

Grant access to Txop using DCF/EDCF contention rules.

This is the first Txop we find with an expired backoff and which needs access to the medium. i.e., it has data to send.

all other Txops with a lower priority whose backoff has expired and which needed access to the medium must be notified that we did get an internal collision.

Now, we notify all of these changes in one go if the EDCAF winning the contention actually transmitted a frame. It is necessary to perform first the calculations of which Txops are colliding and then only apply the changes because applying the changes through notification could change the global state of the manager, and, thus, could change the result of the calculations.

Definition at line 493 of file channel-access-manager.cc.

References GetBackoffEndFor(), ns3::WifiPhy::GetChannelWidth(), GetLargestIdlePrimaryChannel(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhy::GetPhyBand(), ns3::WifiPhy::GetPifs(), GetSifs(), GetSlot(), ns3::WifiPhyOperatingChannel::IsOfdm(), m_feManager, m_linkId, m_phy, m_txops, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Txop::REQUESTED, and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by AccessTimeout(), and RequestAccess().

Here is the call graph for this function:

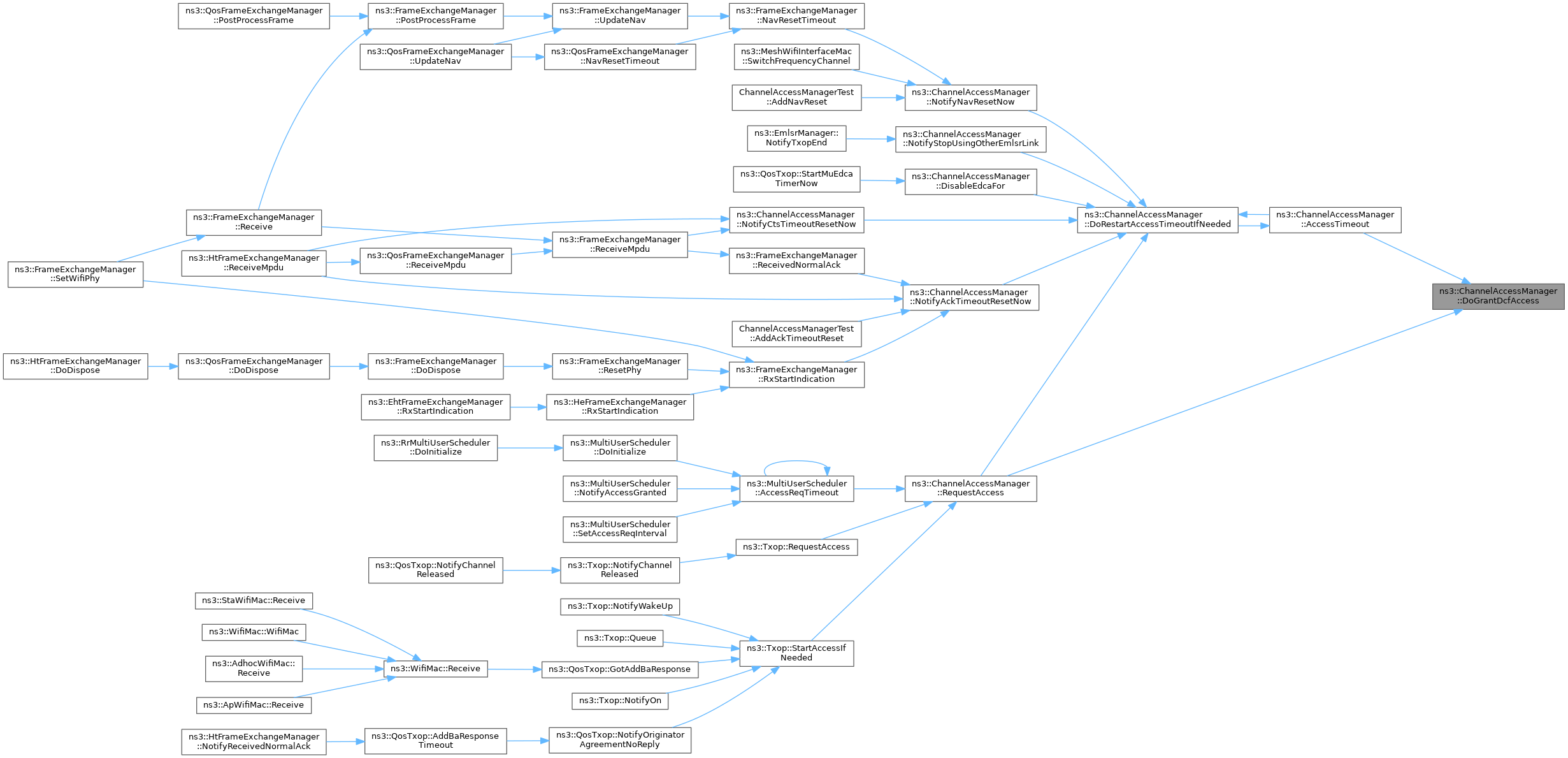

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::ChannelAccessManager::DoInitialize ( )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 195 of file channel-access-manager.cc.

References InitLastBusyStructs(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoRestartAccessTimeoutIfNeeded()

void ns3::ChannelAccessManager::DoRestartAccessTimeoutIfNeeded ( )

private

Is there a Txop which needs to access the medium, and, if there is one, how many slots for AIFS+backoff does it require ?

Definition at line 692 of file channel-access-manager.cc.

References AccessTimeout(), ns3::EventId::Cancel(), GetBackoffEndFor(), ns3::Simulator::GetDelayLeft(), ns3::Simulator::GetMaximumSimulationTime(), ns3::EventId::IsExpired(), ns3::EventId::IsRunning(), m_accessTimeout, m_linkId, m_txops, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Txop::REQUESTED, and ns3::Simulator::Schedule().

Referenced by AccessTimeout(), DisableEdcaFor(), NotifyAckTimeoutResetNow(), NotifyCtsTimeoutResetNow(), NotifyNavResetNow(), NotifyStopUsingOtherEmlsrLink(), and RequestAccess().

Here is the call graph for this function:

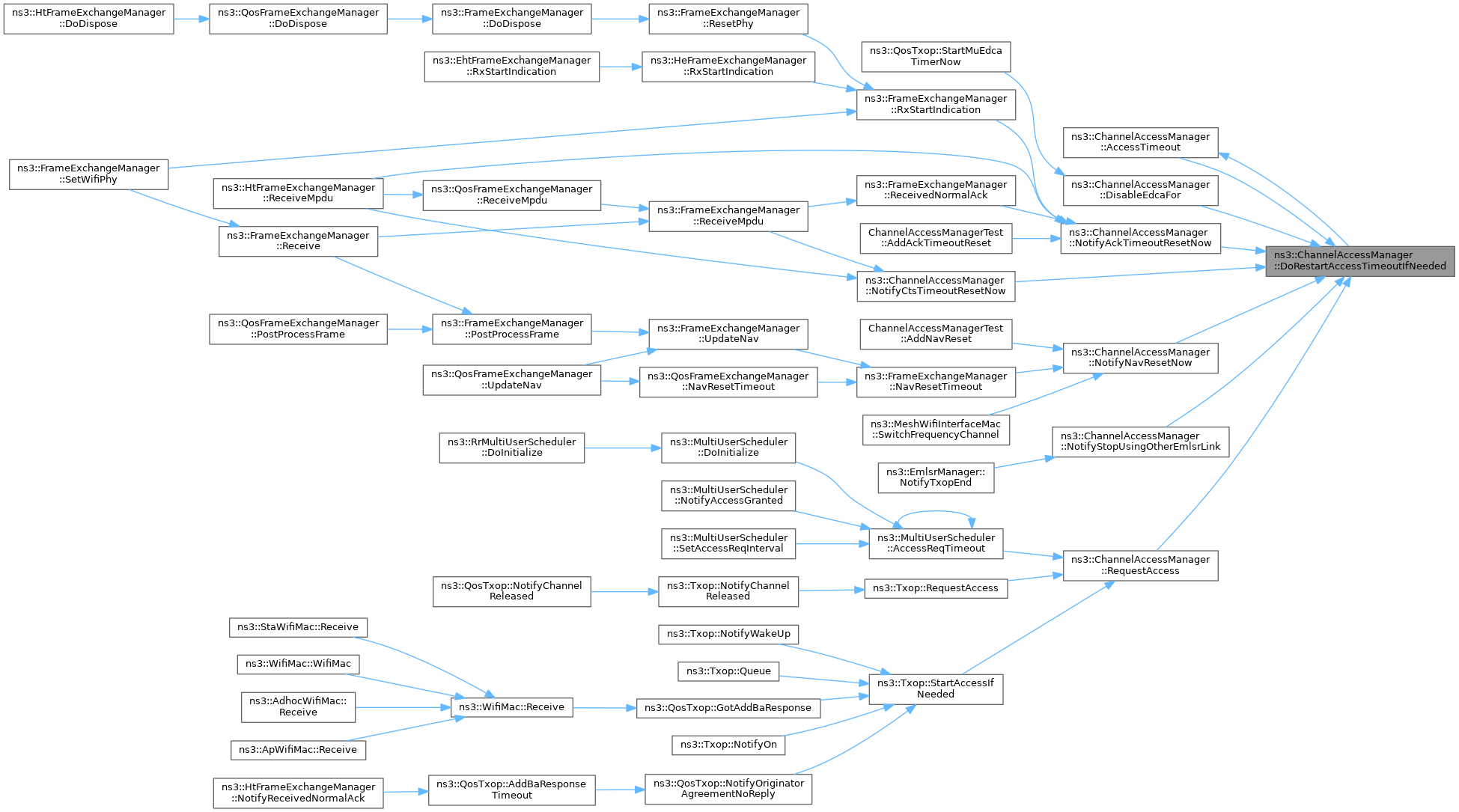

Here is the caller graph for this function:

◆ GetAccessGrantStart()

Time ns3::ChannelAccessManager::GetAccessGrantStart ( bool ignoreNav = false ) const

Access will never be granted to the medium before the time returned by this method.

Parameters

ignoreNav flag whether NAV should be ignored

Returns: the absolute time at which access could start to be granted

Definition at line 581 of file channel-access-manager.cc.

References ns3::ChannelAccessManager::Timespan::end, GetEifsNoDifs(), GetSifs(), m_lastAckTimeoutEnd, m_lastBusyEnd, m_lastCtsTimeoutEnd, m_lastNavEnd, m_lastRx, m_lastRxReceivedOk, m_lastSwitchingEnd, m_lastTxEnd, m_lastUsingOtherEmlsrLinkEnd, m_usingOtherEmlsrLink, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::WIFI_CHANLIST_PRIMARY.

Referenced by GetBackoffStartFor(), ns3::QosFrameExchangeManager::PifsRecovery(), and RequestAccess().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBackoffEndFor()

Time ns3::ChannelAccessManager::GetBackoffEndFor ( Ptr< Txop > txop )

private

Return the time when the backoff procedure ended (or will ended) for the given Txop.

Parameters

txop the Txop

Returns: the time when the backoff procedure ended (or will ended)

Definition at line 647 of file channel-access-manager.cc.

References ns3::Time::As(), GetBackoffStartFor(), GetSlot(), m_linkId, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Time::US.

Referenced by DoGrantDcfAccess(), and DoRestartAccessTimeoutIfNeeded().

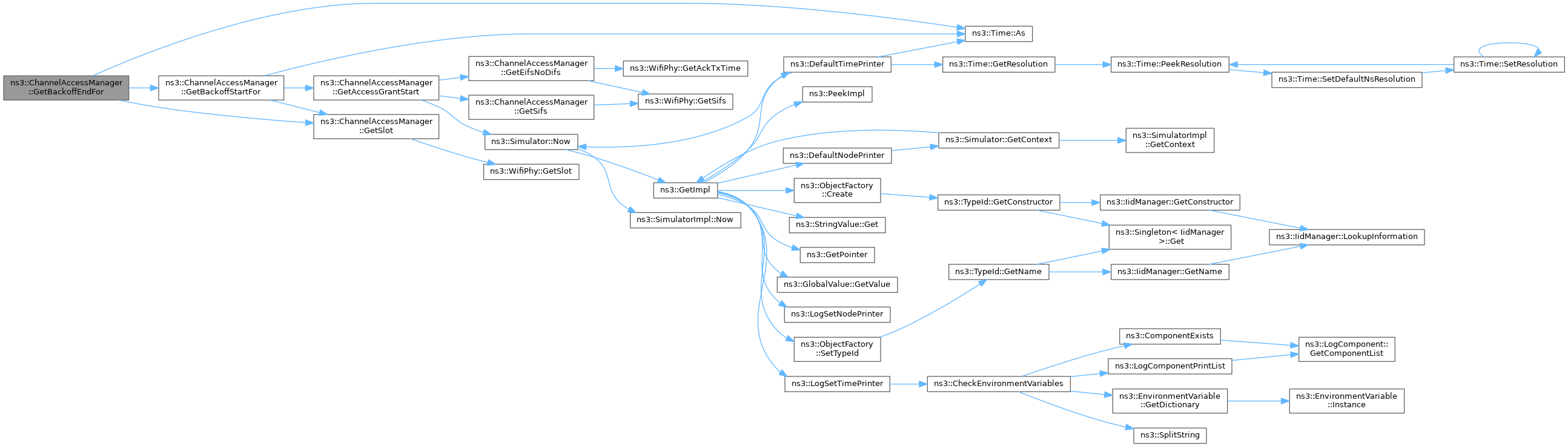

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBackoffStartFor()

Time ns3::ChannelAccessManager::GetBackoffStartFor ( Ptr< Txop > txop )

private

Return the time when the backoff procedure started for the given Txop.

Parameters

txop the Txop

Returns: the time when the backoff procedure started

Definition at line 635 of file channel-access-manager.cc.

References ns3::Time::As(), GetAccessGrantStart(), GetSlot(), m_linkId, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Time::US.

Referenced by GetBackoffEndFor(), and UpdateBackoff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEifsNoDifs()

Time ns3::ChannelAccessManager::GetEifsNoDifs ( ) const

privatevirtual

Return the EIFS duration minus a DIFS.

Returns: the EIFS duration minus a DIFS

Reimplemented in ChannelAccessManagerStub.

Definition at line 329 of file channel-access-manager.cc.

References ns3::WifiPhy::GetAckTxTime(), ns3::WifiPhy::GetSifs(), and m_phy.

Referenced by GetAccessGrantStart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLargestIdlePrimaryChannel()

uint16_t ns3::ChannelAccessManager::GetLargestIdlePrimaryChannel	(	Time	interval,
		Time	end
	)

Return the width of the largest primary channel that has been idle for the given time interval before the given time, if any primary channel has been idle, or zero, otherwise.

Parameters

interval	the given time interval
end	the given end time

Returns: the width of the largest primary channel that has been idle for the given time interval before the given time, if any primary channel has been idle, or zero, otherwise

Definition at line 733 of file channel-access-manager.cc.

References ns3::Time::As(), m_lastIdle, NS_LOG_FUNCTION, ns3::Time::S, UpdateLastIdlePeriod(), and ns3::Time::US.

Referenced by DoGrantDcfAccess(), and LargestIdlePrimaryChannelTest::RunOne().

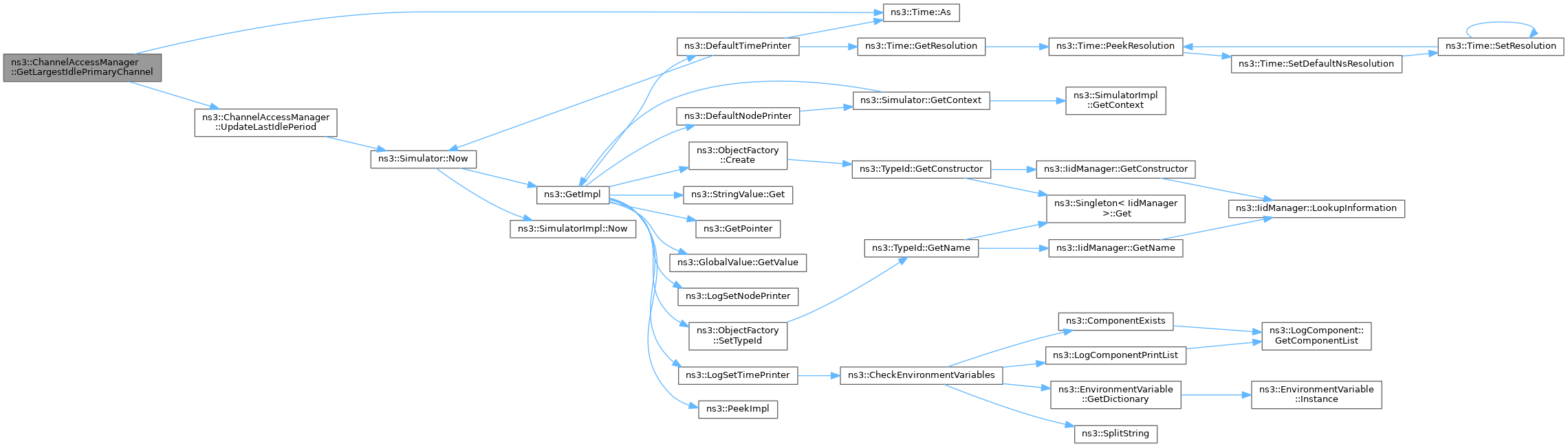

Here is the call graph for this function:

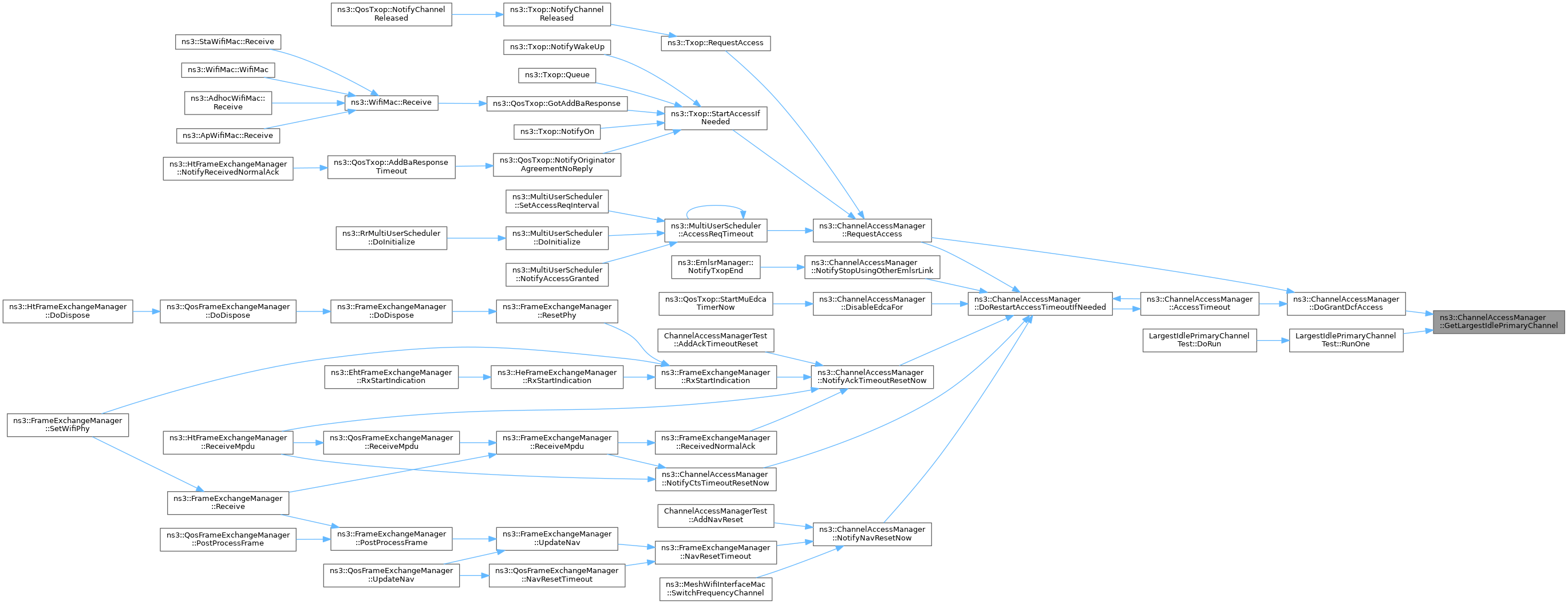

Here is the caller graph for this function:

◆ GetPer20MHzBusy()

bool ns3::ChannelAccessManager::GetPer20MHzBusy ( const std::set< uint8_t > & indices ) const

Parameters

indices a set of indices (starting at 0) specifying the 20 MHz channels to test

Returns: true if per-20 MHz CCA indicates busy for at least one of the specified 20 MHz channels, false otherwise

Definition at line 767 of file channel-access-manager.cc.

References ns3::WifiPhy::GetChannelWidth(), m_lastBusyEnd, m_lastPer20MHzBusyEnd, m_phy, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, and ns3::WIFI_CHANLIST_PRIMARY.

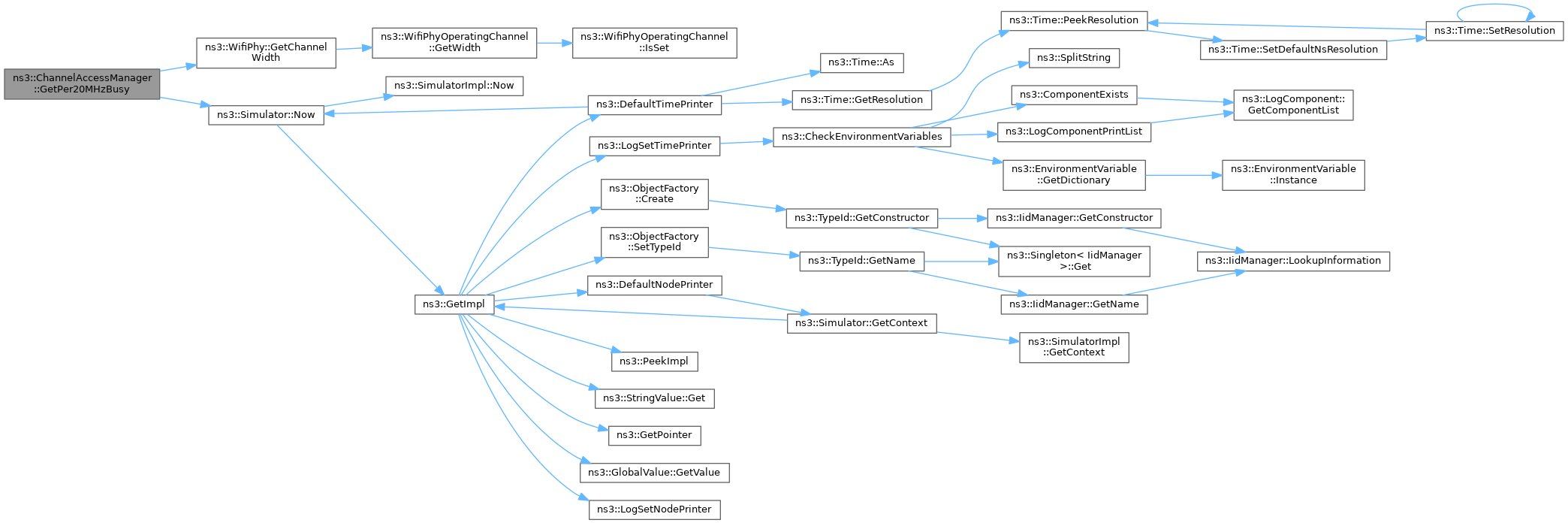

Here is the call graph for this function:

◆ GetPhyListener()

PhyListener * ns3::ChannelAccessManager::GetPhyListener ( Ptr< WifiPhy > phy ) const

private

Get current registered listener for PHY events on the given PHY.

Parameters

phy	the given PHY

Returns: the current registered listener for PHY events on the given PHY

Definition at line 216 of file channel-access-manager.cc.

References m_phyListeners.

Referenced by DeactivatePhyListener(), RemovePhyListener(), and SetupPhyListener().

Here is the caller graph for this function:

◆ GetSifs()

Time ns3::ChannelAccessManager::GetSifs ( ) const

privatevirtual

Return the Short Interframe Space (SIFS) for this PHY.

Returns: the SIFS duration

Reimplemented in ChannelAccessManagerStub.

Definition at line 323 of file channel-access-manager.cc.

References ns3::WifiPhy::GetSifs(), and m_phy.

Referenced by DoGrantDcfAccess(), GetAccessGrantStart(), NeedBackoffUponAccess(), and NotifyTxStartNow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSlot()

Time ns3::ChannelAccessManager::GetSlot ( ) const

privatevirtual

Return the slot duration for this PHY.

Returns: the slot duration

Reimplemented in ChannelAccessManagerStub.

Definition at line 317 of file channel-access-manager.cc.

References ns3::WifiPhy::GetSlot(), and m_phy.

Referenced by DoGrantDcfAccess(), GetBackoffEndFor(), GetBackoffStartFor(), NeedBackoffUponAccess(), RequestAccess(), and UpdateBackoff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InitLastBusyStructs()

void ns3::ChannelAccessManager::InitLastBusyStructs ( )

private

Initialize the structures holding busy end times per channel type (primary, secondary, etc.) and per 20 MHz channel.

Definition at line 342 of file channel-access-manager.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhy::GetStandard(), ns3::WifiPhyOperatingChannel::IsOfdm(), m_lastBusyEnd, m_lastIdle, m_lastPer20MHzBusyEnd, m_phy, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::WIFI_CHANLIST_PRIMARY, ns3::WIFI_CHANLIST_SECONDARY, ns3::WIFI_CHANLIST_SECONDARY40, ns3::WIFI_CHANLIST_SECONDARY80, and ns3::WIFI_STANDARD_80211ax.

Referenced by DoInitialize(), ResetState(), and SetupPhyListener().

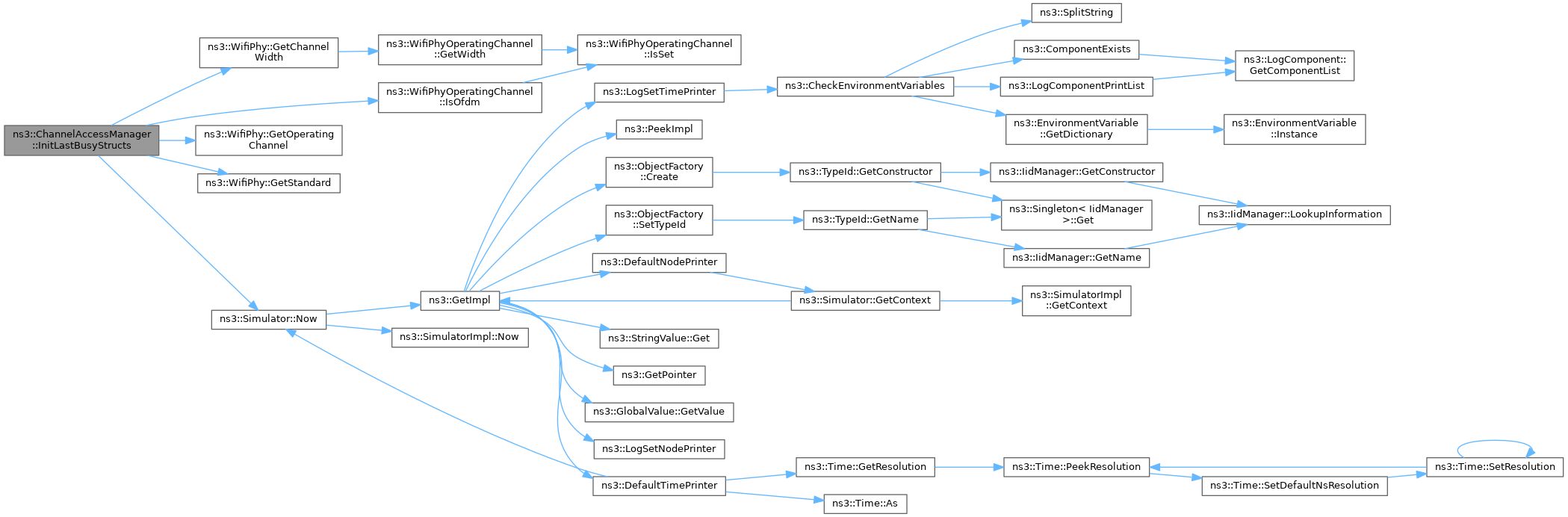

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsBusy()

bool ns3::ChannelAccessManager::IsBusy ( ) const

Check if the device is busy sending or receiving, or NAV or CCA busy.

Returns: true if the device is busy, false otherwise

Definition at line 383 of file channel-access-manager.cc.

References ns3::ChannelAccessManager::Timespan::end, m_lastBusyEnd, m_lastNavEnd, m_lastRx, m_lastTxEnd, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::WIFI_CHANLIST_PRIMARY.

Referenced by NeedBackoffUponAccess().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NeedBackoffUponAccess()

bool ns3::ChannelAccessManager::NeedBackoffUponAccess ( Ptr< Txop > txop )

Determine if a new backoff needs to be generated when a packet is queued for transmission.

Parameters

txop	the Txop requesting to generate a backoff

Returns: true if backoff needs to be generated, false otherwise

Definition at line 396 of file channel-access-manager.cc.

References GetSifs(), GetSlot(), ns3::Txop::GRANTED, IsBusy(), m_linkId, m_off, m_sleeping, m_usingOtherEmlsrLink, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Seconds(), and UpdateBackoff().

Referenced by ns3::Txop::Queue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyAckTimeoutResetNow()

void ns3::ChannelAccessManager::NotifyAckTimeoutResetNow ( )

Notify that ack timer has reset.

Definition at line 1063 of file channel-access-manager.cc.

References DoRestartAccessTimeoutIfNeeded(), m_lastAckTimeoutEnd, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ChannelAccessManagerTest< TxopType >::AddAckTimeoutReset(), ns3::FrameExchangeManager::ReceivedNormalAck(), ns3::HtFrameExchangeManager::ReceiveMpdu(), and ns3::FrameExchangeManager::RxStartIndication().

Here is the call graph for this function:

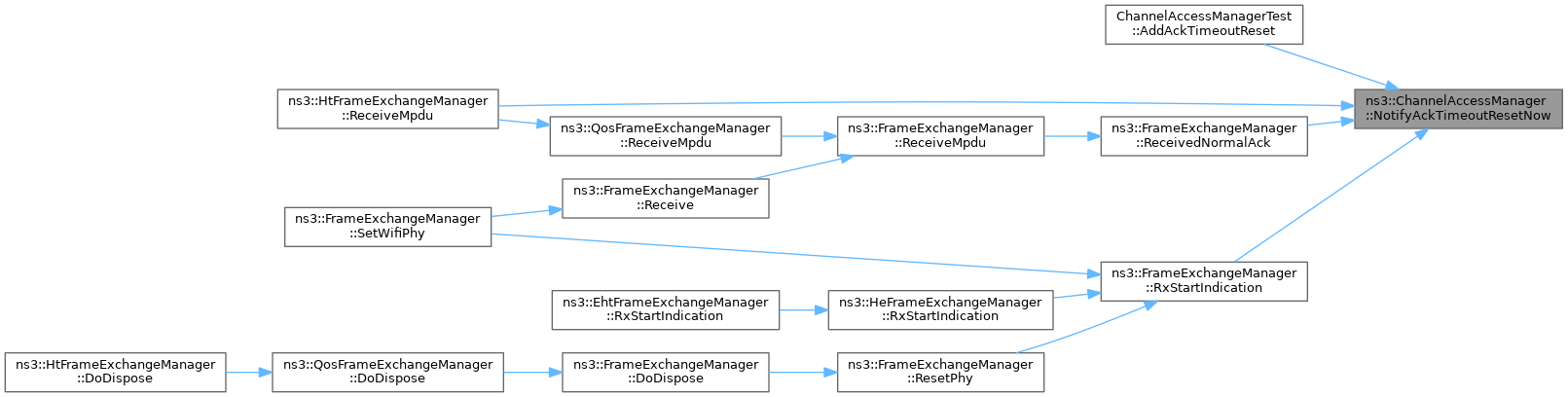

Here is the caller graph for this function:

◆ NotifyAckTimeoutStartNow()

void ns3::ChannelAccessManager::NotifyAckTimeoutStartNow ( Time duration )

Notify that ack timer has started for the given duration.

Parameters

duration the duration of the timer

Definition at line 1055 of file channel-access-manager.cc.

References m_lastAckTimeoutEnd, ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::FrameExchangeManager::SendMpdu(), ns3::HtFrameExchangeManager::SendPsdu(), and ns3::HeFrameExchangeManager::SendPsduMap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyCcaBusyStartNow()

void ns3::ChannelAccessManager::NotifyCcaBusyStartNow	(	Time	duration,
		WifiChannelListType	channelType,
		const std::vector< Time > &	per20MhzDurations
	)

Parameters

duration	expected duration of CCA busy period
channelType	the channel type for which the CCA busy state is reported.
per20MhzDurations	vector that indicates for how long each 20 MHz subchannel (corresponding to the index of the element in the vector) is busy and where a zero duration indicates that the subchannel is idle. The vector is non-empty if the PHY supports 802.11ax or later and if the operational channel width is larger than 20 MHz.

Notify the Txop that a CCA busy period has just started.

Definition at line 858 of file channel-access-manager.cc.

References m_lastBusyEnd, m_lastPer20MHzBusyEnd, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, UpdateBackoff(), and UpdateLastIdlePeriod().

Referenced by ChannelAccessManagerTest< TxopType >::AddCcaBusyEvt(), ChannelAccessManagerTest< TxopType >::AddRxErrorEvt(), ns3::PhyListener::NotifyCcaBusyStart(), and LargestIdlePrimaryChannelTest::RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyCtsTimeoutResetNow()

void ns3::ChannelAccessManager::NotifyCtsTimeoutResetNow ( )

Notify that CTS timer has reset.

Definition at line 1078 of file channel-access-manager.cc.

References DoRestartAccessTimeoutIfNeeded(), m_lastCtsTimeoutEnd, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::FrameExchangeManager::ReceiveMpdu(), and ns3::HtFrameExchangeManager::ReceiveMpdu().

Here is the call graph for this function:

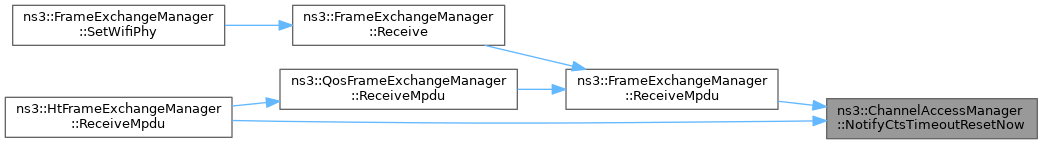

Here is the caller graph for this function:

◆ NotifyCtsTimeoutStartNow()

void ns3::ChannelAccessManager::NotifyCtsTimeoutStartNow ( Time duration )

Notify that CTS timer has started for the given duration.

Parameters

duration the duration of the timer

Definition at line 1071 of file channel-access-manager.cc.

References m_lastCtsTimeoutEnd, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::HeFrameExchangeManager::SendMuRts(), and ns3::FrameExchangeManager::SendRts().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyNavResetNow()

void ns3::ChannelAccessManager::NotifyNavResetNow ( Time duration )

Parameters

duration the value of the received NAV.

Called at end of RX

If the NAV reset indicates an end-of-NAV which is earlier than the previous end-of-NAV, the expected end of backoff might be later than previously thought so, we might need to restart a new access timeout.

Definition at line 1030 of file channel-access-manager.cc.

References DoRestartAccessTimeoutIfNeeded(), m_lastNavEnd, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and UpdateBackoff().

Referenced by ChannelAccessManagerTest< TxopType >::AddNavReset(), ns3::FrameExchangeManager::NavResetTimeout(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyNavStartNow()

void ns3::ChannelAccessManager::NotifyNavStartNow ( Time duration )

Parameters

duration the value of the received NAV.

Called at end of RX

Definition at line 1046 of file channel-access-manager.cc.

References m_lastNavEnd, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and UpdateBackoff().

Referenced by ChannelAccessManagerTest< TxopType >::AddNavStart(), and ns3::FrameExchangeManager::UpdateNav().

Here is the call graph for this function:

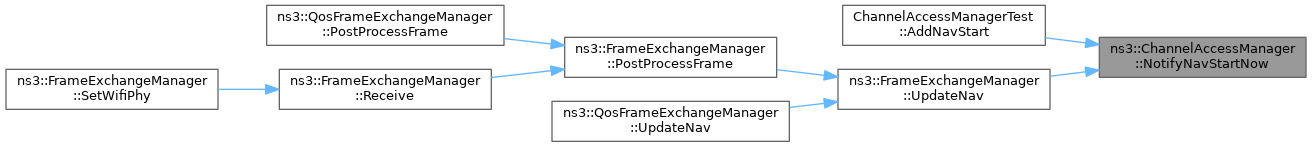

Here is the caller graph for this function:

◆ NotifyOffNow()

void ns3::ChannelAccessManager::NotifyOffNow ( )

Notify the Txop that the device has been put in off mode.

Definition at line 988 of file channel-access-manager.cc.

References ns3::EventId::Cancel(), ns3::EventId::IsRunning(), m_accessTimeout, m_off, m_txops, and NS_LOG_FUNCTION.

Referenced by ns3::PhyListener::NotifyOff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyOnNow()

void ns3::ChannelAccessManager::NotifyOnNow ( )

Notify the Txop that the device has been resumed from off mode.

Definition at line 1018 of file channel-access-manager.cc.

References m_off, m_txops, NS_LOG_FUNCTION, and ResetBackoff().

Referenced by ns3::PhyListener::NotifyOn().

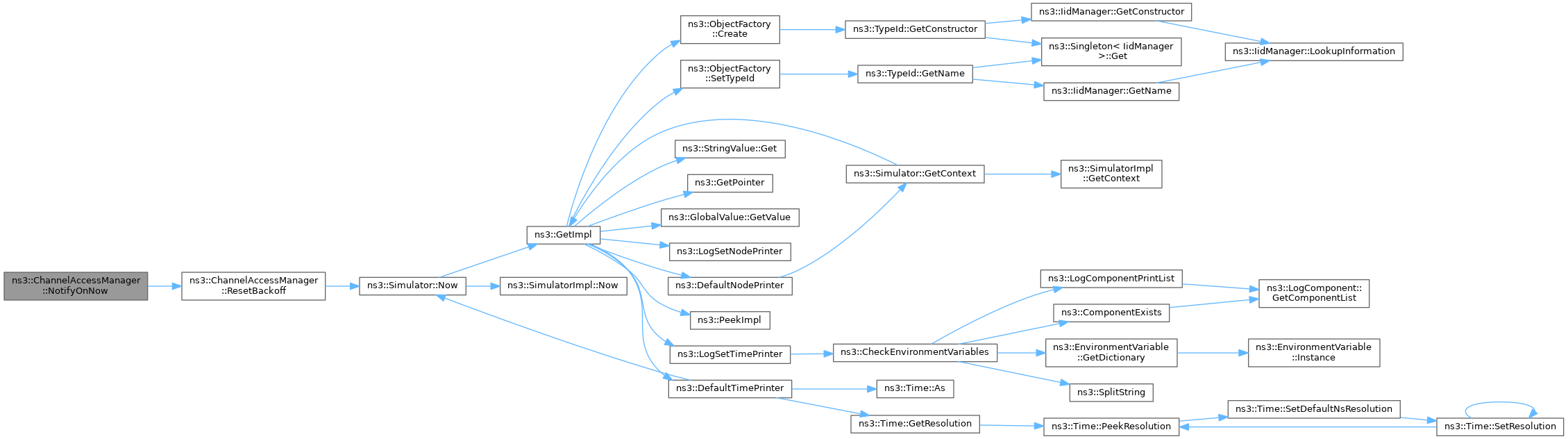

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyRxEndErrorNow()

void ns3::ChannelAccessManager::NotifyRxEndErrorNow ( )

Notify the Txop that a packet reception was just completed unsuccessfuly.

Definition at line 826 of file channel-access-manager.cc.

References ns3::ChannelAccessManager::Timespan::end, m_lastRx, m_lastRxReceivedOk, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ChannelAccessManagerTest< TxopType >::AddRxErrorEvt(), and ns3::PhyListener::NotifyRxEndError().

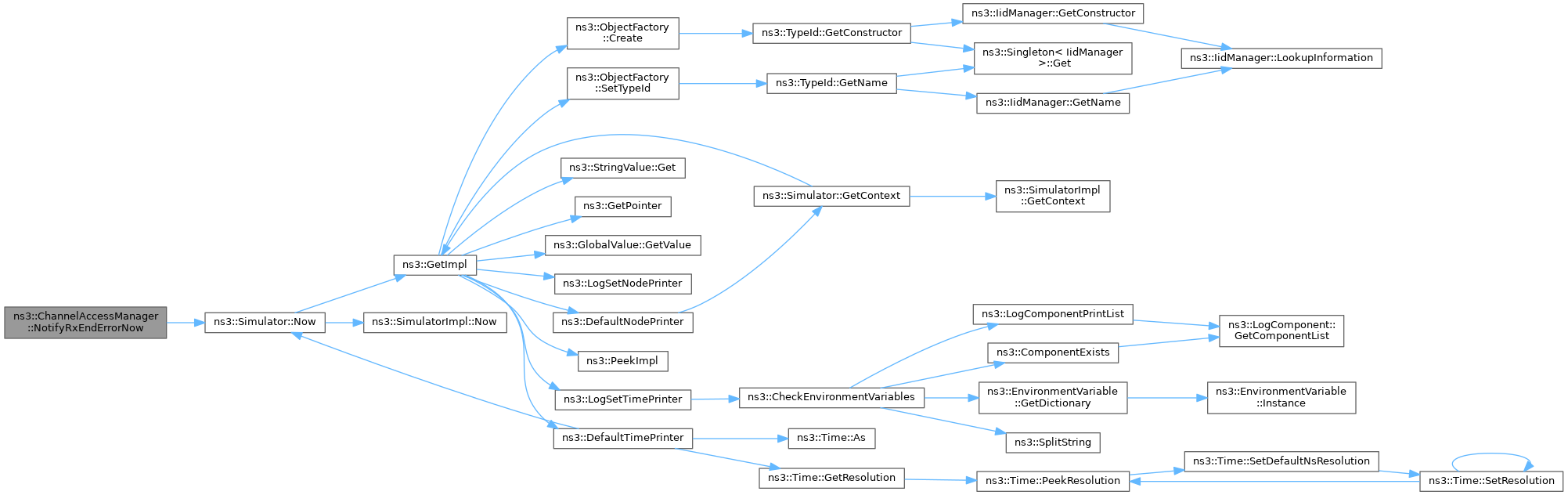

Here is the call graph for this function:

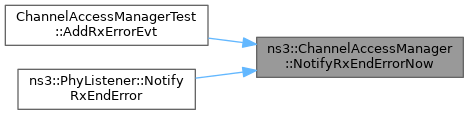

Here is the caller graph for this function:

◆ NotifyRxEndOkNow()

void ns3::ChannelAccessManager::NotifyRxEndOkNow ( )

Notify the Txop that a packet reception was just completed successfully.

Definition at line 817 of file channel-access-manager.cc.

References ns3::ChannelAccessManager::Timespan::end, m_lastRx, m_lastRxReceivedOk, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ChannelAccessManagerTest< TxopType >::AddRxOkEvt(), and ns3::PhyListener::NotifyRxEndOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyRxStartNow()

void ns3::ChannelAccessManager::NotifyRxStartNow ( Time duration )

Parameters

duration expected duration of reception

Notify the Txop that a packet reception started for the expected duration.

Definition at line 805 of file channel-access-manager.cc.

References ns3::ChannelAccessManager::Timespan::end, m_lastRx, m_lastRxReceivedOk, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ChannelAccessManager::Timespan::start, UpdateBackoff(), and UpdateLastIdlePeriod().

Referenced by ChannelAccessManagerTest< TxopType >::AddRxErrorEvt(), ChannelAccessManagerTest< TxopType >::AddRxInsideSifsEvt(), ChannelAccessManagerTest< TxopType >::AddRxOkEvt(), ChannelAccessManagerTest< TxopType >::AddRxStartEvt(), ns3::PhyListener::NotifyRxStart(), and LargestIdlePrimaryChannelTest::RunOne().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifySleepNow()

void ns3::ChannelAccessManager::NotifySleepNow ( )

Notify the Txop that the device has been put in sleep mode.

Definition at line 970 of file channel-access-manager.cc.

References ns3::EventId::Cancel(), ns3::EventId::IsRunning(), m_accessTimeout, m_linkId, m_sleeping, m_txops, and NS_LOG_FUNCTION.

Referenced by ns3::PhyListener::NotifySleep().

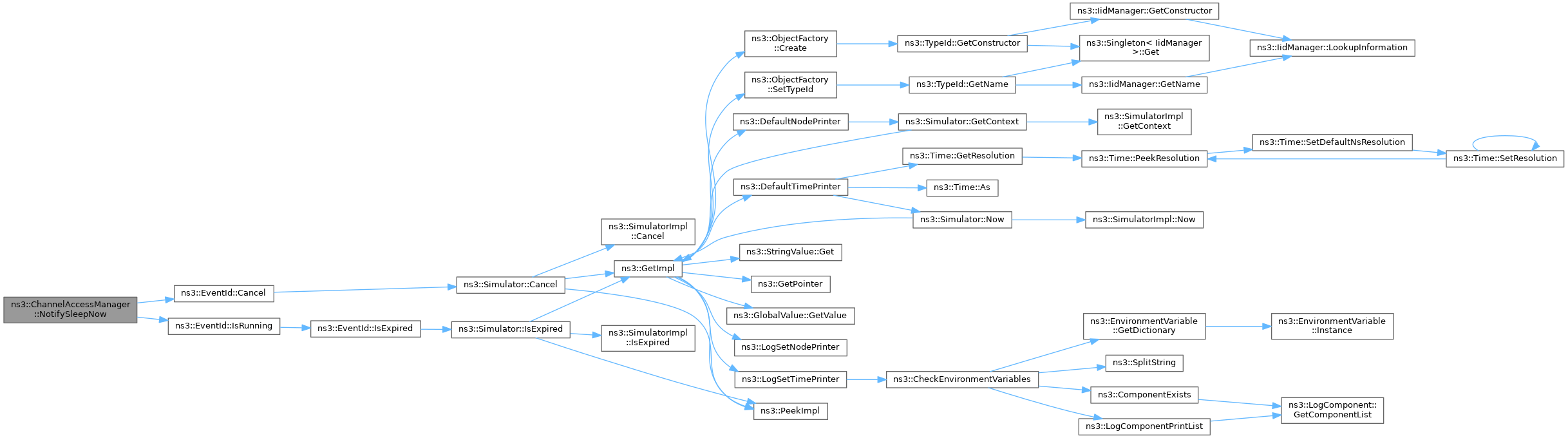

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyStartUsingOtherEmlsrLink()

void ns3::ChannelAccessManager::NotifyStartUsingOtherEmlsrLink ( )

Notify that another EMLSR link is being used, hence medium access should be disabled.

Definition at line 1086 of file channel-access-manager.cc.

References ns3::EventId::Cancel(), ns3::EventId::IsRunning(), m_accessTimeout, m_phy, m_usingOtherEmlsrLink, NS_LOG_FUNCTION, UpdateBackoff(), and UpdateLastIdlePeriod().

Referenced by ns3::EmlsrManager::NotifyIcfReceived(), and ns3::EmlsrManager::NotifyUlTxopStart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyStopUsingOtherEmlsrLink()

void ns3::ChannelAccessManager::NotifyStopUsingOtherEmlsrLink ( )

Notify that another EMLSR link is no longer being used, hence medium access can be resumed.

Definition at line 1104 of file channel-access-manager.cc.

References DoRestartAccessTimeoutIfNeeded(), m_lastUsingOtherEmlsrLinkEnd, m_usingOtherEmlsrLink, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::EmlsrManager::NotifyTxopEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifySwitchingEmlsrLink()

void ns3::ChannelAccessManager::NotifySwitchingEmlsrLink	(	Ptr< WifiPhy >	phy,
		const WifiPhyOperatingChannel &	channel,
		uint8_t	linkId
	)

Notify that the given PHY is about to switch to the given operating channel, which is used by the given link.

This notification is sent by the EMLSR Manager when a PHY object switches operating channel to operate on another link.

Parameters

phy	the PHY object that is going to switch channel
channel	the new operating channel of the given PHY
linkId	the ID of the link on which the given PHY is going to operate

Definition at line 291 of file channel-access-manager.cc.

References m_switchingEmlsrLinks, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::EmlsrManager::ApplyMaxChannelWidthOnAuxPhys(), ns3::DefaultEmlsrManager::NotifyMainPhySwitch(), and ns3::EmlsrManager::SwitchMainPhy().

Here is the caller graph for this function:

◆ NotifySwitchingStartNow()

void ns3::ChannelAccessManager::NotifySwitchingStartNow	(	PhyListener *	phyListener,
		Time	duration
	)

Parameters

phyListener	the PHY listener that sent this notification
duration	expected duration of channel switching period

Notify the Txop that a channel switching period has just started. During switching state, new packets can be enqueued in Txop/QosTxop but they won't access to the medium until the end of the channel switching.

Definition at line 883 of file channel-access-manager.cc.

References m_feManager, m_lastSwitchingEnd, m_lastTxEnd, m_phyListeners, m_switchingEmlsrLinks, m_txops, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, RemovePhyListener(), ResetBackoff(), and ResetState().

Referenced by ChannelAccessManagerTest< TxopType >::AddSwitchingEvt(), and ns3::PhyListener::NotifySwitchingStart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyTxStartNow()

void ns3::ChannelAccessManager::NotifyTxStartNow ( Time duration )

Parameters

duration expected duration of transmission

Notify the Txop that a packet transmission was just started and is expected to last for the specified duration.

Definition at line 836 of file channel-access-manager.cc.

References ns3::ChannelAccessManager::Timespan::end, GetSifs(), m_lastRx, m_lastRxReceivedOk, m_lastTxEnd, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ChannelAccessManager::Timespan::start, UpdateBackoff(), and UpdateLastIdlePeriod().

Referenced by ChannelAccessManagerTest< TxopType >::AddTxEvt(), and ns3::PhyListener::NotifyTxStart().

Here is the call graph for this function:

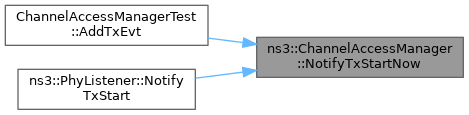

Here is the caller graph for this function:

◆ NotifyWakeupNow()

void ns3::ChannelAccessManager::NotifyWakeupNow ( )

Notify the Txop that the device has been resumed from sleep mode.

Definition at line 1006 of file channel-access-manager.cc.

References m_linkId, m_sleeping, m_txops, NS_LOG_FUNCTION, and ResetBackoff().

Referenced by ns3::PhyListener::NotifyWakeup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemovePhyListener()

void ns3::ChannelAccessManager::RemovePhyListener ( Ptr< WifiPhy > phy )

Remove current registered listener for PHY events on the given PHY.

Parameters

phy	the WifiPhy to listen to

Definition at line 261 of file channel-access-manager.cc.

References GetPhyListener(), m_phy, m_phyListeners, and NS_LOG_FUNCTION.

Referenced by LargestIdlePrimaryChannelTest::DoRun(), and NotifySwitchingStartNow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RequestAccess()

void ns3::ChannelAccessManager::RequestAccess ( Ptr< Txop > txop )

Parameters

txop a Txop

Notify the ChannelAccessManager that a specific Txop needs access to the medium. The ChannelAccessManager is then responsible for starting an access timer and, invoking FrameExchangeManager::StartTransmission when the access is granted if it ever gets granted.

Definition at line 453 of file channel-access-manager.cc.

References DoGrantDcfAccess(), DoRestartAccessTimeoutIfNeeded(), GetAccessGrantStart(), GetSlot(), m_linkId, m_off, m_phy, m_sleeping, m_usingOtherEmlsrLink, ns3::WifiPhy::NotifyChannelAccessRequested(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Txop::REQUESTED, and UpdateBackoff().

Referenced by ns3::MultiUserScheduler::AccessReqTimeout(), ns3::Txop::RequestAccess(), and ns3::Txop::StartAccessIfNeeded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetBackoff()

void ns3::ChannelAccessManager::ResetBackoff ( Ptr< Txop > txop )

Reset the backoff for the given DCF/EDCAF.

Parameters

txop	the given DCF/EDCAF

Definition at line 955 of file channel-access-manager.cc.

References m_linkId, ns3::Txop::NOT_REQUESTED, ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by NotifyOnNow(), NotifySwitchingStartNow(), and NotifyWakeupNow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetState()

void ns3::ChannelAccessManager::ResetState ( )

Reset the state variables of this channel access manager.

Definition at line 933 of file channel-access-manager.cc.

References ns3::EventId::Cancel(), ns3::ChannelAccessManager::Timespan::end, InitLastBusyStructs(), ns3::EventId::IsRunning(), m_accessTimeout, m_lastAckTimeoutEnd, m_lastCtsTimeoutEnd, m_lastNavEnd, m_lastRx, m_lastRxReceivedOk, ns3::Simulator::Now(), NS_LOG_FUNCTION, and UpdateLastIdlePeriod().

Referenced by NotifySwitchingStartNow().

Here is the call graph for this function:

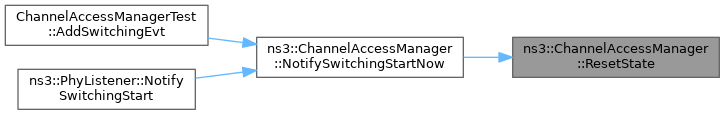

Here is the caller graph for this function:

◆ SetLinkId()

void ns3::ChannelAccessManager::SetLinkId ( uint8_t linkId )

Set the ID of the link this Channel Access Manager is associated with.

Parameters

linkId the ID of the link this Channel Access Manager is associated with

Definition at line 302 of file channel-access-manager.cc.

References m_linkId, and NS_LOG_FUNCTION.

◆ SetupFrameExchangeManager()

void ns3::ChannelAccessManager::SetupFrameExchangeManager ( Ptr< FrameExchangeManager > feManager )

Set up the Frame Exchange Manager.

Parameters

feManager the Frame Exchange Manager

Definition at line 309 of file channel-access-manager.cc.

References m_feManager, and NS_LOG_FUNCTION.

◆ SetupPhyListener()

void ns3::ChannelAccessManager::SetupPhyListener ( Ptr< WifiPhy > phy )

Set up (or reactivate) listener for PHY events on the given PHY.

The new (or reactivated) listener becomes the active listener and the previous active listener attached to another PHY, if any, is deactivated.

Parameters

phy	the WifiPhy to listen to

Definition at line 226 of file channel-access-manager.cc.

References DeactivatePhyListener(), GetPhyListener(), InitLastBusyStructs(), m_lastSwitchingEnd, m_phy, m_phyListeners, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by LargestIdlePrimaryChannelTest::DoRun().

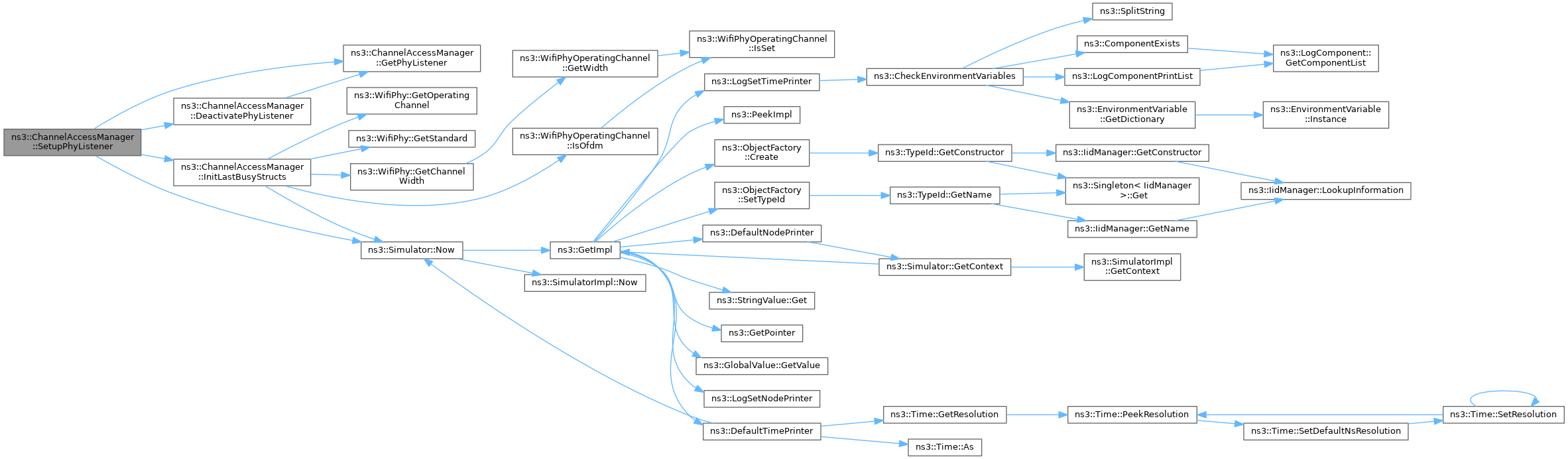

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateBackoff()

void ns3::ChannelAccessManager::UpdateBackoff ( )

private

Update backoff slots for all Txops.

Definition at line 657 of file channel-access-manager.cc.

References GetBackoffStartFor(), GetSlot(), m_linkId, m_txops, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by AccessTimeout(), DisableEdcaFor(), NeedBackoffUponAccess(), NotifyCcaBusyStartNow(), NotifyNavResetNow(), NotifyNavStartNow(), NotifyRxStartNow(), NotifyStartUsingOtherEmlsrLink(), NotifyTxStartNow(), and RequestAccess().

Here is the call graph for this function:

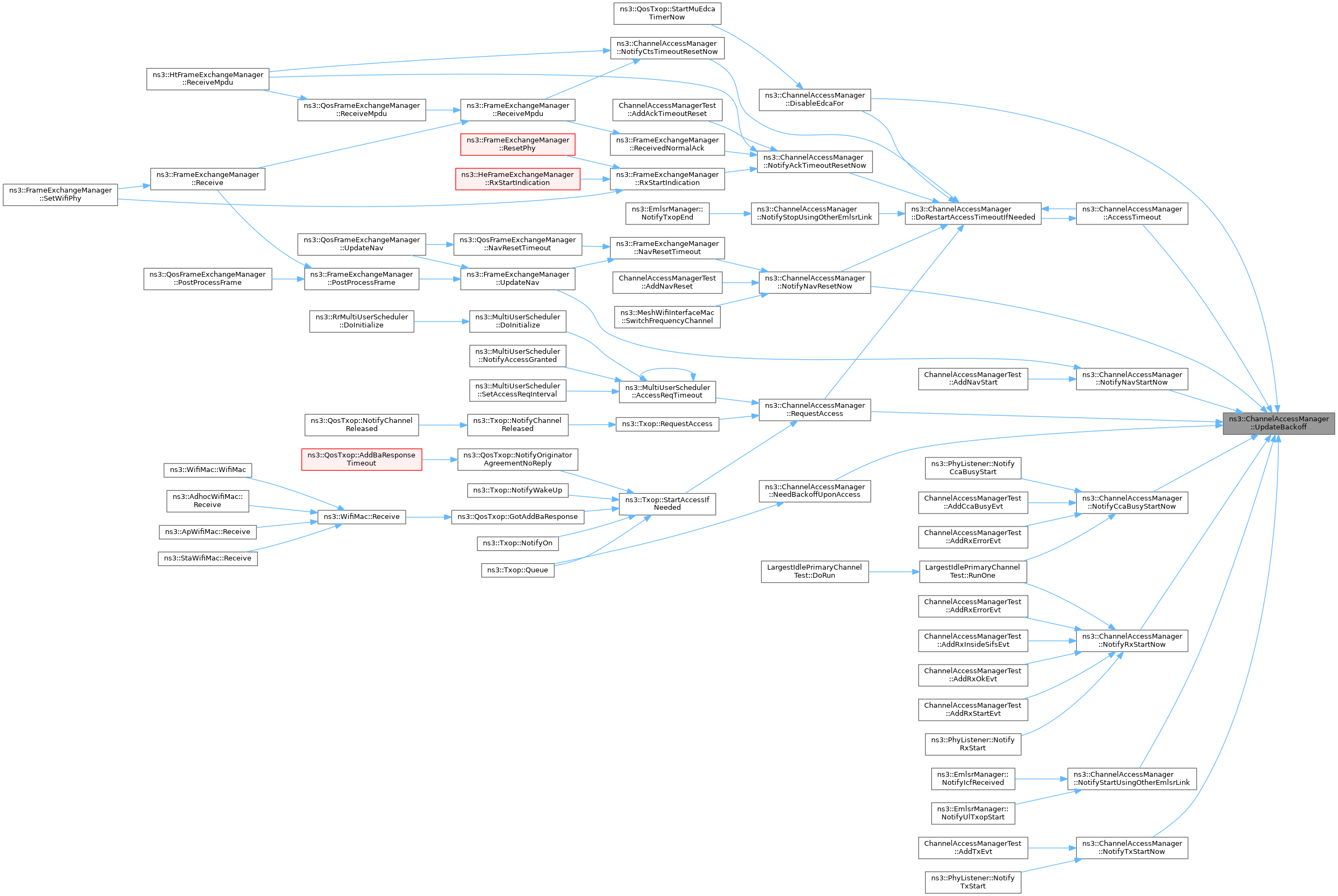

Here is the caller graph for this function:

◆ UpdateLastIdlePeriod()

void ns3::ChannelAccessManager::UpdateLastIdlePeriod ( )

private

This method determines whether the medium has been idle during a period (of non-null duration) immediately preceding the time this method is called.

If so, the last idle start time and end time for each channel type are updated. Otherwise, no change is made by this method. This method is normally called when we are notified of the start of a transmission, reception, CCA Busy or switching to correctly maintain the information about the last idle period.

Definition at line 1113 of file channel-access-manager.cc.

References ns3::ChannelAccessManager::Timespan::end, m_lastBusyEnd, m_lastIdle, m_lastRx, m_lastSwitchingEnd, m_lastTxEnd, m_lastUsingOtherEmlsrLinkEnd, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Time::S.

Referenced by GetLargestIdlePrimaryChannel(), NotifyCcaBusyStartNow(), NotifyRxStartNow(), NotifyStartUsingOtherEmlsrLink(), NotifyTxStartNow(), and ResetState().

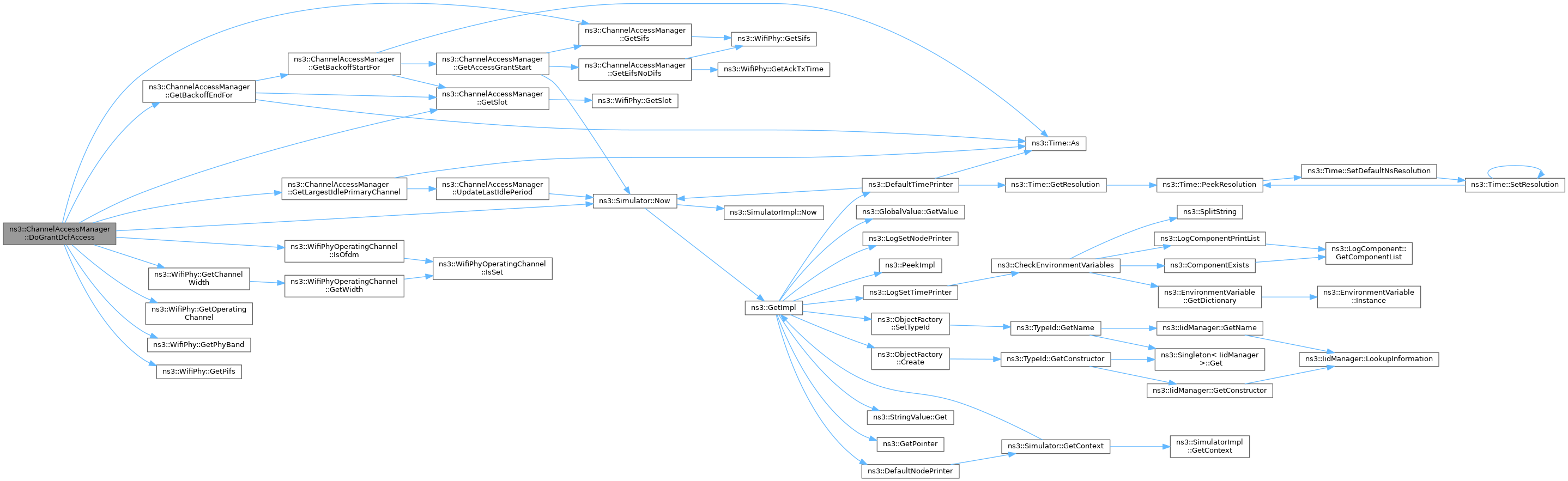

Here is the call graph for this function:

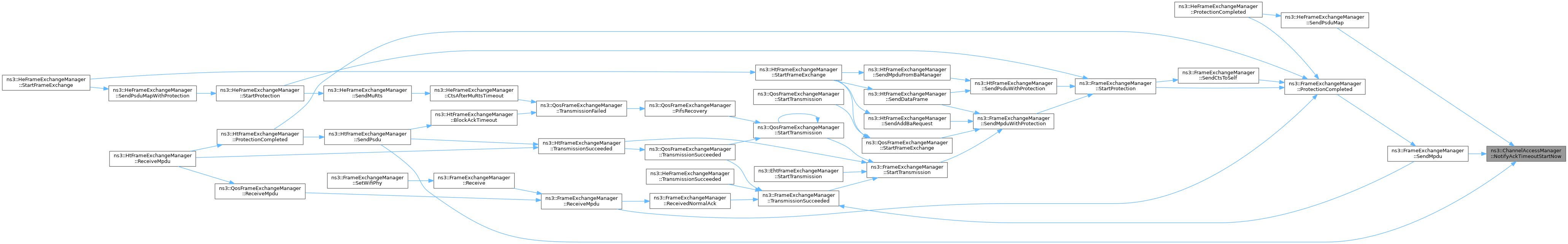

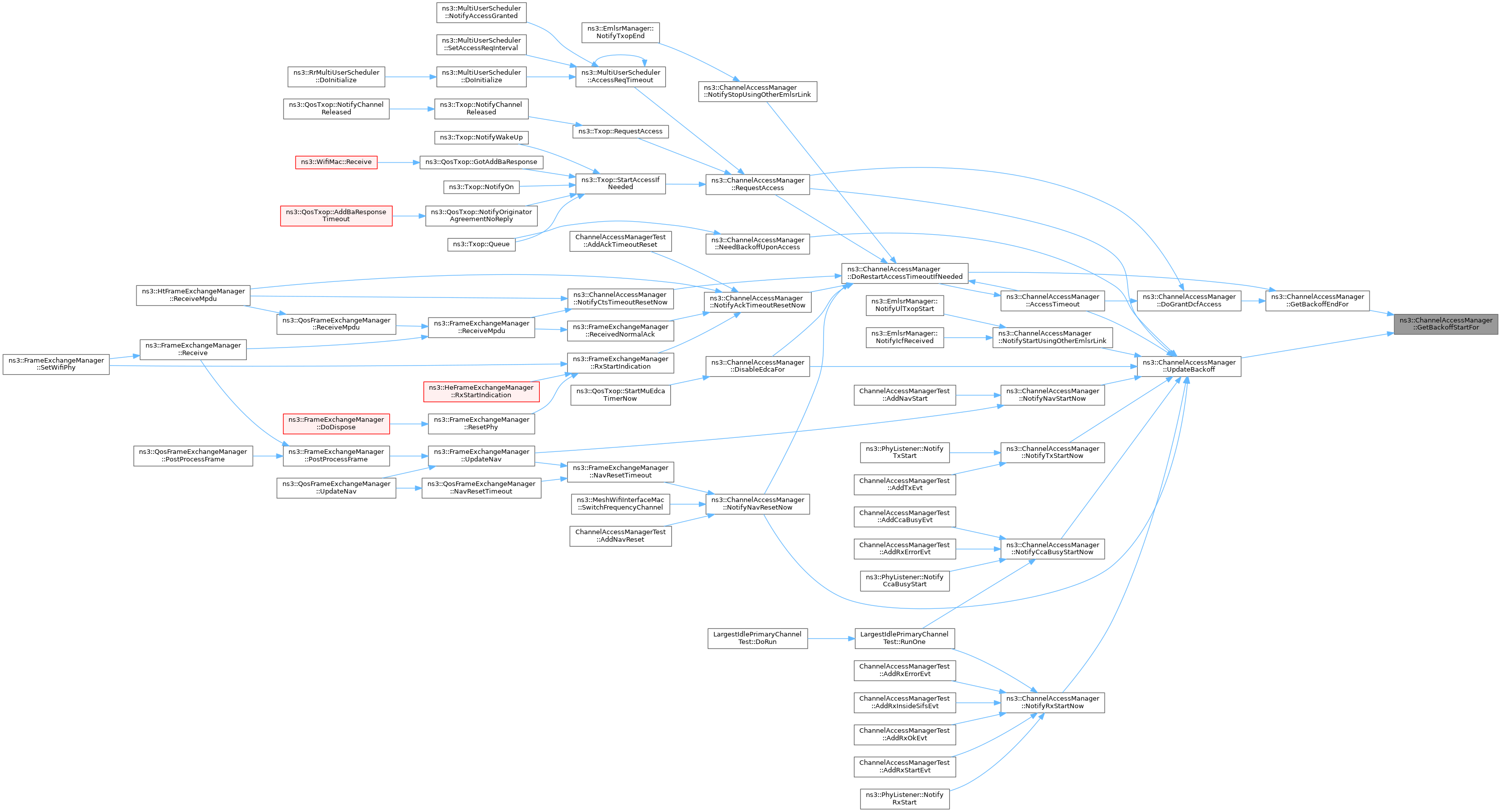

Here is the caller graph for this function:

Member Data Documentation

◆ m_accessTimeout

EventId ns3::ChannelAccessManager::m_accessTimeout

private

the access timeout ID

Definition at line 424 of file channel-access-manager.h.

Referenced by DoRestartAccessTimeoutIfNeeded(), NotifyOffNow(), NotifySleepNow(), NotifyStartUsingOtherEmlsrLink(), and ResetState().

◆ m_eifsNoDifs

Time ns3::ChannelAccessManager::m_eifsNoDifs

private

EIFS no DIFS time.

Definition at line 423 of file channel-access-manager.h.

◆ m_feManager

Ptr<FrameExchangeManager> ns3::ChannelAccessManager::m_feManager

private

pointer to the Frame Exchange Manager

Definition at line 441 of file channel-access-manager.h.

Referenced by DoDispose(), DoGrantDcfAccess(), NotifySwitchingStartNow(), and SetupFrameExchangeManager().

◆ m_lastAckTimeoutEnd

Time ns3::ChannelAccessManager::m_lastAckTimeoutEnd

private

the last Ack timeout end time

Definition at line 405 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), NotifyAckTimeoutResetNow(), NotifyAckTimeoutStartNow(), and ResetState().

◆ m_lastBusyEnd

std::map<WifiChannelListType, Time> ns3::ChannelAccessManager::m_lastBusyEnd

private

the last busy end time for each channel type

Definition at line 412 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), GetPer20MHzBusy(), InitLastBusyStructs(), IsBusy(), NotifyCcaBusyStartNow(), and UpdateLastIdlePeriod().

◆ m_lastCtsTimeoutEnd

Time ns3::ChannelAccessManager::m_lastCtsTimeoutEnd

private

the last CTS timeout end time

Definition at line 406 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), NotifyCtsTimeoutResetNow(), NotifyCtsTimeoutStartNow(), and ResetState().

◆ m_lastIdle

std::map<WifiChannelListType, Timespan> ns3::ChannelAccessManager::m_lastIdle

private

the last idle start and end time for each channel type

Definition at line 416 of file channel-access-manager.h.

Referenced by GetLargestIdlePrimaryChannel(), InitLastBusyStructs(), and UpdateLastIdlePeriod().

◆ m_lastNavEnd

Time ns3::ChannelAccessManager::m_lastNavEnd

private

the last NAV end time

Definition at line 407 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), IsBusy(), NotifyNavResetNow(), NotifyNavStartNow(), and ResetState().

◆ m_lastPer20MHzBusyEnd

std::vector<Time> ns3::ChannelAccessManager::m_lastPer20MHzBusyEnd

private

the last busy end time per 20 MHz channel (HE stations and channel width > 20 MHz only)

Definition at line 413 of file channel-access-manager.h.

Referenced by GetPer20MHzBusy(), InitLastBusyStructs(), and NotifyCcaBusyStartNow().

◆ m_lastRx

Timespan ns3::ChannelAccessManager::m_lastRx

private

the last receive start and end time

Definition at line 408 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), IsBusy(), NotifyRxEndErrorNow(), NotifyRxEndOkNow(), NotifyRxStartNow(), NotifyTxStartNow(), ResetState(), and UpdateLastIdlePeriod().

◆ m_lastRxReceivedOk

bool ns3::ChannelAccessManager::m_lastRxReceivedOk

private

the last receive OK

Definition at line 409 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), NotifyRxEndErrorNow(), NotifyRxEndOkNow(), NotifyRxStartNow(), NotifyTxStartNow(), and ResetState().

◆ m_lastSwitchingEnd

Time ns3::ChannelAccessManager::m_lastSwitchingEnd

private

the last switching end time

Definition at line 417 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), NotifySwitchingStartNow(), SetupPhyListener(), and UpdateLastIdlePeriod().

◆ m_lastTxEnd

Time ns3::ChannelAccessManager::m_lastTxEnd

private

the last transmit end time

Definition at line 410 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), IsBusy(), NotifySwitchingStartNow(), NotifyTxStartNow(), and UpdateLastIdlePeriod().

◆ m_lastUsingOtherEmlsrLinkEnd

Time ns3::ChannelAccessManager::m_lastUsingOtherEmlsrLinkEnd

private

the last time we were blocked because using another EMLSR link

Definition at line 419 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), NotifyStopUsingOtherEmlsrLink(), and UpdateLastIdlePeriod().

◆ m_linkId

uint8_t ns3::ChannelAccessManager::m_linkId

private

the ID of the link this object is associated with

Definition at line 442 of file channel-access-manager.h.

Referenced by DisableEdcaFor(), DoGrantDcfAccess(), DoRestartAccessTimeoutIfNeeded(), GetBackoffEndFor(), GetBackoffStartFor(), NeedBackoffUponAccess(), NotifySleepNow(), NotifyWakeupNow(), RequestAccess(), ResetBackoff(), SetLinkId(), and UpdateBackoff().

◆ m_off

bool ns3::ChannelAccessManager::m_off

private

flag whether it is in off state

Definition at line 422 of file channel-access-manager.h.

Referenced by NeedBackoffUponAccess(), NotifyOffNow(), NotifyOnNow(), and RequestAccess().

◆ m_phy

Ptr<WifiPhy> ns3::ChannelAccessManager::m_phy

private

pointer to the unique active PHY

Definition at line 440 of file channel-access-manager.h.

Referenced by DeactivatePhyListener(), DoDispose(), DoGrantDcfAccess(), GetEifsNoDifs(), GetPer20MHzBusy(), GetSifs(), GetSlot(), InitLastBusyStructs(), NotifyStartUsingOtherEmlsrLink(), RemovePhyListener(), RequestAccess(), and SetupPhyListener().

◆ m_phyListeners

PhyListenerMap ns3::ChannelAccessManager::m_phyListeners

private

the PHY listeners

Definition at line 439 of file channel-access-manager.h.

Referenced by DoDispose(), GetPhyListener(), NotifySwitchingStartNow(), RemovePhyListener(), and SetupPhyListener().

◆ m_sleeping

bool ns3::ChannelAccessManager::m_sleeping

private

flag whether it is in sleeping state

Definition at line 421 of file channel-access-manager.h.

Referenced by NeedBackoffUponAccess(), NotifySleepNow(), NotifyWakeupNow(), and RequestAccess().

◆ m_switchingEmlsrLinks

std::unordered_map<Ptr<WifiPhy>, EmlsrLinkSwitchInfo> ns3::ChannelAccessManager::m_switchingEmlsrLinks

private

Store information about the PHY objects that are going to operate on another EMLSR link.

Definition at line 434 of file channel-access-manager.h.

Referenced by NotifySwitchingEmlsrLink(), and NotifySwitchingStartNow().

◆ m_txops

Txops ns3::ChannelAccessManager::m_txops

private

the vector of managed Txops

Definition at line 404 of file channel-access-manager.h.

Referenced by Add(), DoDispose(), DoGrantDcfAccess(), DoRestartAccessTimeoutIfNeeded(), NotifyOffNow(), NotifyOnNow(), NotifySleepNow(), NotifySwitchingStartNow(), NotifyWakeupNow(), and UpdateBackoff().

◆ m_usingOtherEmlsrLink

bool ns3::ChannelAccessManager::m_usingOtherEmlsrLink

private

whether another EMLSR link is being used

Definition at line 418 of file channel-access-manager.h.

Referenced by GetAccessGrantStart(), NeedBackoffUponAccess(), NotifyStartUsingOtherEmlsrLink(), NotifyStopUsingOtherEmlsrLink(), and RequestAccess().

The documentation for this class was generated from the following files:

src/wifi/model/channel-access-manager.h
src/wifi/model/channel-access-manager.cc

Classes

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ PhyListenerMap

◆ Txops

Constructor & Destructor Documentation

◆ ChannelAccessManager()

◆ ~ChannelAccessManager()

Member Function Documentation

◆ AccessTimeout()

◆ Add()

◆ DeactivatePhyListener()

◆ DisableEdcaFor()

◆ DoDispose()

◆ DoGrantDcfAccess()

◆ DoInitialize()

◆ DoRestartAccessTimeoutIfNeeded()

◆ GetAccessGrantStart()

◆ GetBackoffEndFor()

◆ GetBackoffStartFor()

◆ GetEifsNoDifs()

◆ GetLargestIdlePrimaryChannel()

◆ GetPer20MHzBusy()

◆ GetPhyListener()

◆ GetSifs()

◆ GetSlot()

◆ InitLastBusyStructs()

◆ IsBusy()

◆ NeedBackoffUponAccess()

◆ NotifyAckTimeoutResetNow()

◆ NotifyAckTimeoutStartNow()

◆ NotifyCcaBusyStartNow()

◆ NotifyCtsTimeoutResetNow()

◆ NotifyCtsTimeoutStartNow()

◆ NotifyNavResetNow()

◆ NotifyNavStartNow()

◆ NotifyOffNow()

◆ NotifyOnNow()

◆ NotifyRxEndErrorNow()

◆ NotifyRxEndOkNow()

◆ NotifyRxStartNow()

◆ NotifySleepNow()

◆ NotifyStartUsingOtherEmlsrLink()

◆ NotifyStopUsingOtherEmlsrLink()

◆ NotifySwitchingEmlsrLink()

◆ NotifySwitchingStartNow()

◆ NotifyTxStartNow()

◆ NotifyWakeupNow()

◆ RemovePhyListener()

◆ RequestAccess()

◆ ResetBackoff()

◆ ResetState()

◆ SetLinkId()

◆ SetupFrameExchangeManager()

◆ SetupPhyListener()

◆ UpdateBackoff()

◆ UpdateLastIdlePeriod()

Member Data Documentation

◆ m_accessTimeout

◆ m_eifsNoDifs

◆ m_feManager

◆ m_lastAckTimeoutEnd

◆ m_lastBusyEnd

◆ m_lastCtsTimeoutEnd

◆ m_lastIdle

◆ m_lastNavEnd

◆ m_lastPer20MHzBusyEnd

◆ m_lastRx

◆ m_lastRxReceivedOk

◆ m_lastSwitchingEnd

◆ m_lastTxEnd

◆ m_lastUsingOtherEmlsrLinkEnd

◆ m_linkId

◆ m_off
