ns3::MlmeAssociateRequestParams Struct Reference

MLME-ASSOCIATE.request params. More...

#include "lr-wpan-mac.h"

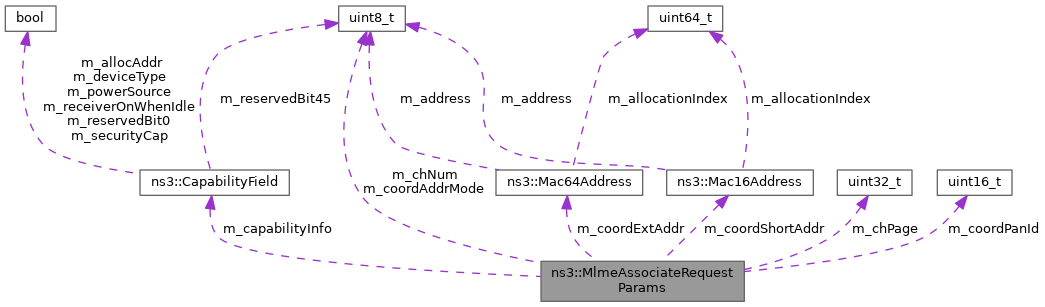

Collaboration diagram for ns3::MlmeAssociateRequestParams:

Public Attributes
CapabilityField	m_capabilityInfo
	Specifies the operational capabilities of the associating device.
uint8_t	m_chNum {11}
	The channel number on which to attempt association.
uint32_t	m_chPage {0}
	The channel page on which to attempt association.
uint8_t	m_coordAddrMode
	The coordinator addressing mode for this primitive and subsequent MPDU.
Mac64Address	m_coordExtAddr
	The extended address of the coordinator with which to associate.
uint16_t	m_coordPanId {0}
	The identifier of the PAN with which to associate.
Mac16Address	m_coordShortAddr
	The short address of the coordinator with which to associate.

Detailed Description

MLME-ASSOCIATE.request params.

See 802.15.4-2011 Section 6.2.2.1

Definition at line 568 of file lr-wpan-mac.h.

Member Data Documentation

m_capabilityInfo

CapabilityField ns3::MlmeAssociateRequestParams::m_capabilityInfo

Specifies the operational capabilities of the associating device.

Definition at line 580 of file lr-wpan-mac.h.

Referenced by ScanConfirm(), and ns3::LrWpanMac::SendAssocRequestCommand().

m_chNum

uint8_t ns3::MlmeAssociateRequestParams::m_chNum {11}

The channel number on which to attempt association.

Definition at line 570 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PlmeSetAttributeConfirm(), and ScanConfirm().

m_chPage

uint32_t ns3::MlmeAssociateRequestParams::m_chPage {0}

The channel page on which to attempt association.

Definition at line 571 of file lr-wpan-mac.h.

Referenced by ScanConfirm().

m_coordAddrMode

uint8_t ns3::MlmeAssociateRequestParams::m_coordAddrMode

Initial value:

{
        SHORT_ADDR}

The coordinator addressing mode for this primitive and subsequent MPDU.

Definition at line 572 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndAssociateRequest(), ScanConfirm(), and ns3::LrWpanMac::SendAssocRequestCommand().

m_coordExtAddr

Mac64Address ns3::MlmeAssociateRequestParams::m_coordExtAddr

The extended address of the coordinator with which to associate.

Definition at line 578 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndAssociateRequest(), ScanConfirm(), and ns3::LrWpanMac::SendAssocRequestCommand().

m_coordPanId

uint16_t ns3::MlmeAssociateRequestParams::m_coordPanId {0}

The identifier of the PAN with which to associate.

Definition at line 574 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndAssociateRequest(), ScanConfirm(), and ns3::LrWpanMac::SendAssocRequestCommand().

m_coordShortAddr

Mac16Address ns3::MlmeAssociateRequestParams::m_coordShortAddr

The short address of the coordinator with which to associate.

Definition at line 576 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndAssociateRequest(), ScanConfirm(), and ns3::LrWpanMac::SendAssocRequestCommand().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
