ns3::ConstantRandomVariable Class Reference
Core » Random Variables

The Random Number Generator (RNG) that returns a constant. More...

#include "random-variable-stream.h"

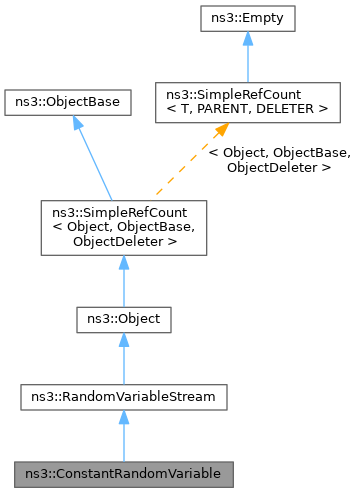

+ Inheritance diagram for ns3::ConstantRandomVariable:

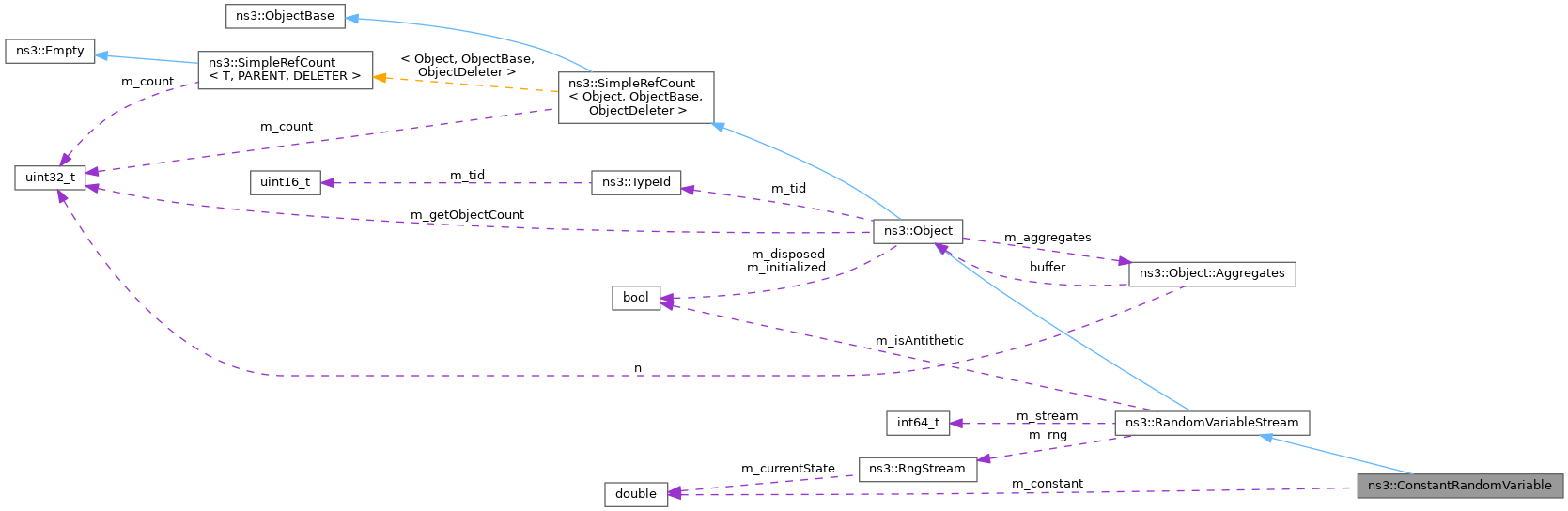

+ Collaboration diagram for ns3::ConstantRandomVariable:

Public Member Functions

 ConstantRandomVariable ()
 Creates a constant RNG with the default constant value.

double GetConstant () const
 Get the constant value returned by this RNG stream.

virtual uint32_t GetInteger ()
 Get the next random value drawn from the distribution.

uint32_t GetInteger (uint32_t constant)
 Get the next random value drawn from the distribution.

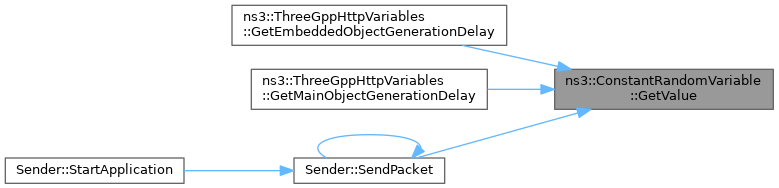

double GetValue () override
 Get the next random value drawn from the distribution.

double GetValue (double constant)
 Get the next random value drawn from the distribution.

- Public Member Functions inherited from ns3::RandomVariableStream
 RandomVariableStream ()
 Default constructor.

 RandomVariableStream (const RandomVariableStream &)=delete

 ~RandomVariableStream () override
 Destructor.

virtual uint32_t GetInteger ()
 Get the next random value drawn from the distribution.

int64_t GetStream () const
 Returns the stream number for the RngStream.

virtual double GetValue ()=0
 Get the next random value drawn from the distribution.

bool IsAntithetic () const
 Check if antithetic values will be generated.

RandomVariableStream & operator= (const RandomVariableStream &)=delete

void SetAntithetic (bool isAntithetic)
 Specify whether antithetic values should be generated.

void SetStream (int64_t stream)
 Specifies the stream number for the RngStream.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< Object > GetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object > GetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

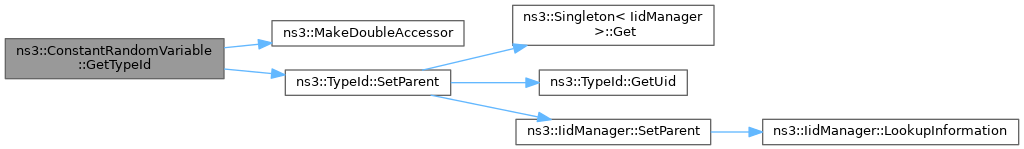

static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::RandomVariableStream
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

double m_constant
 The constant value returned by this RNG stream.


Additional Inherited Members

- Protected Member Functions inherited from ns3::RandomVariableStream
RngStream * Peek () const
 Get the pointer to the underlying RngStream.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid ()
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.


Detailed Description

The Random Number Generator (RNG) that returns a constant.

This RNG returns the same Constant value for every sample.

This distribution has mean equal to the Constant and zero variance.

Antithetic Values.

This RNG ignores the antithetic setting.

Config Paths

ns3::ConstantRandomVariable is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::StaWifiMac/ProbeDelay/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/ForwardingDelay/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SixLowPanNetDevice/MeshUnderJitter/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::DhcpClient/Transactions/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/X/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Y/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Z/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Direction/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Speed/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter/$ns3::ConstantRandomVariable"
  • "/NodeList/[i]/$ns3::Icmpv6L4Protocol/RsRetransmissionJitter/$ns3::ConstantRandomVariable"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::ConstantRandomVariable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::ConstantRandomVariable"

Attributes

  • Constant: The constant value returned by this RNG stream.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread

Attributes defined in parent class ns3::RandomVariableStream

  • Antithetic: Set this RNG stream to generate antithetic values
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: constructwriteread
  • Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
    • Set with class: ns3::IntegerValue
    • Underlying type: int64_t -9223372036854775808:9223372036854775807
    • Initial value: -1
    • Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).

Definition at line 307 of file random-variable-stream.h.

Constructor & Destructor Documentation

◆ ConstantRandomVariable()

ns3::ConstantRandomVariable::ConstantRandomVariable ( )

Creates a constant RNG with the default constant value.

Definition at line 246 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetConstant()

double ns3::ConstantRandomVariable::GetConstant ( ) const

Get the constant value returned by this RNG stream.

Returns
The constant value.

Definition at line 253 of file random-variable-stream.cc.

References m_constant, and NS_LOG_FUNCTION.

◆ GetInteger() [1/2]

uint32_t ns3::RandomVariableStream::GetInteger ( )
virtual

Get the next random value drawn from the distribution.

Returns
A random value.

Reimplemented from ns3::RandomVariableStream.

Definition at line 154 of file random-variable-stream.cc.

◆ GetInteger() [2/2]

uint32_t ns3::ConstantRandomVariable::GetInteger ( uint32_t  constant)

Get the next random value drawn from the distribution.

Returns
A random value.
Parameters
[in]constantThe value to return.

Definition at line 267 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ThreeGppHttpVariables::GetRequestSize().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ConstantRandomVariable::GetTypeId ( )
static

Register this type.

Returns
The object TypeId.

Definition at line 232 of file random-variable-stream.cc.

References m_constant, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ GetValue() [1/2]

double ns3::ConstantRandomVariable::GetValue ( )
overridevirtual

Get the next random value drawn from the distribution.

Returns
A random value.

Implements ns3::RandomVariableStream.

Definition at line 274 of file random-variable-stream.cc.

References GetValue(), m_constant, and NS_LOG_FUNCTION.

Referenced by GetValue().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetValue() [2/2]

double ns3::ConstantRandomVariable::GetValue ( double  constant)

Get the next random value drawn from the distribution.

Returns
A random value.
Parameters
[in]constantThe value to return.

Definition at line 260 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ThreeGppHttpVariables::GetEmbeddedObjectGenerationDelay(), ns3::ThreeGppHttpVariables::GetMainObjectGenerationDelay(), and Sender::SendPacket().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_constant

double ns3::ConstantRandomVariable::m_constant
private

The constant value returned by this RNG stream.

Definition at line 346 of file random-variable-stream.h.

Referenced by GetConstant(), GetTypeId(), and GetValue().

The documentation for this class was generated from the following files:
