UniformPlanarArrayTestCase Class Reference

UniformPlanarArray Test Case. More...

Inheritance diagram for UniformPlanarArrayTestCase:

Collaboration diagram for UniformPlanarArrayTestCase:

Public Member Functions
	UniformPlanarArrayTestCase (Ptr< AntennaModel > element, uint32_t rows, uint32_t cols, double rowSpace, double colSpace, double alpha, double beta, Angles direction, double expectedGainDb)
	The constructor of the test case.
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor.
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Static Public Member Functions
static std::string	BuildNameString (Ptr< AntennaModel > element, uint32_t rows, uint32_t cols, double rowSpace, double colSpace, double alpha, double beta, Angles direction)
	Generate a string containing all relevant parameters.

Private Member Functions
double	ComputeGain (Ptr< UniformPlanarArray > a)
	Compute the gain of the antenna array.
void	DoRun () override
	Run the test.

Private Attributes
double	m_alpha
	the bearing angle [rad]
double	m_beta
	the titling angle [rad]
uint32_t	m_cols
	the number of columns
double	m_colSpace
	the column spacing
Angles	m_direction
	the testing direction
Ptr< AntennaModel >	m_element
	the antenna element
double	m_expectedGain
	the expected antenna gain [dB]
uint32_t	m_rows
	the number of rows
double	m_rowSpace
	the row spacing

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.
TestCase *	GetParent () const
	Get the parent of this TestCase.
bool	IsStatusFailure () const
	Check if any tests failed.
bool	IsStatusSuccess () const
	Check if all tests passed.
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.
bool	MustAssertOnFailure () const
	Check if this run should assert on failure.
bool	MustContinueOnFailure () const
	Check if this run should continue on failure.
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

UniformPlanarArray Test Case.

Definition at line 42 of file test-uniform-planar-array.cc.

Constructor & Destructor Documentation

UniformPlanarArrayTestCase()

UniformPlanarArrayTestCase::UniformPlanarArrayTestCase	(	Ptr< AntennaModel >	element,
		uint32_t	rows,
		uint32_t	cols,
		double	rowSpace,
		double	colSpace,
		double	alpha,
		double	beta,
		Angles	direction,
		double	expectedGainDb
	)

The constructor of the test case.

Parameters

element	the antenna element
rows	the number of rows
cols	the number of columns
rowSpace	the row spacing
colSpace	the column spacing
alpha	the bearing angle
beta	the tilting angle
direction	the direction
expectedGainDb	the expected antenna gain [dB]

Definition at line 129 of file test-uniform-planar-array.cc.

Member Function Documentation

BuildNameString()

std::string UniformPlanarArrayTestCase::BuildNameString ( Ptr< AntennaModel >  element, uint32_t  rows, uint32_t  cols, double  rowSpace, double  colSpace, double  alpha, double  beta, Angles  direction  )

static

Generate a string containing all relevant parameters.

Parameters

element	the antenna element
rows	the number of rows
cols	the number of columns
rowSpace	the row spacing
colSpace	the column spacing
alpha	the bearing angle
beta	the tilting angle
direction	the direction

Returns

the string containing all relevant parameters

Definition at line 111 of file test-uniform-planar-array.cc.

References ns3::RadiansToDegrees().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

ComputeGain()

double UniformPlanarArrayTestCase::ComputeGain ( Ptr< UniformPlanarArray >  a )

private

Compute the gain of the antenna array.

Parameters

a	the antenna array

Returns

the gain of the antenna array [dB]

Definition at line 152 of file test-uniform-planar-array.cc.

References ns3::ValArray< T >::GetSize(), m_direction, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void UniformPlanarArrayTestCase::DoRun ( )

overrideprivatevirtual

Run the test.

Implements ns3::TestCase.

Definition at line 181 of file test-uniform-planar-array.cc.

References BuildNameString(), ComputeGain(), m_alpha, m_beta, m_cols, m_colSpace, m_direction, m_element, m_expectedGain, m_rows, m_rowSpace, NS_LOG_FUNCTION, and NS_TEST_EXPECT_MSG_EQ_TOL.

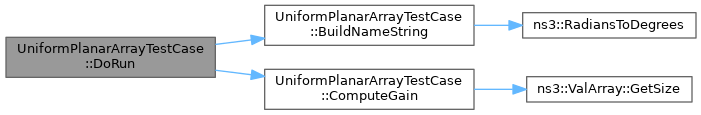

Here is the call graph for this function:

Member Data Documentation

m_alpha

double UniformPlanarArrayTestCase::m_alpha

private

the bearing angle [rad]

Definition at line 104 of file test-uniform-planar-array.cc.

Referenced by DoRun().

m_beta

double UniformPlanarArrayTestCase::m_beta

private

the titling angle [rad]

Definition at line 105 of file test-uniform-planar-array.cc.

Referenced by DoRun().

m_cols

uint32_t UniformPlanarArrayTestCase::m_cols

private

the number of columns

Definition at line 101 of file test-uniform-planar-array.cc.

Referenced by DoRun().

m_colSpace

double UniformPlanarArrayTestCase::m_colSpace

private

the column spacing

Definition at line 103 of file test-uniform-planar-array.cc.

Referenced by DoRun().

m_direction

Angles UniformPlanarArrayTestCase::m_direction

private

the testing direction

Definition at line 106 of file test-uniform-planar-array.cc.

Referenced by ComputeGain(), and DoRun().

m_element

Ptr<AntennaModel> UniformPlanarArrayTestCase::m_element

private

the antenna element

Definition at line 99 of file test-uniform-planar-array.cc.

Referenced by DoRun().

m_expectedGain

double UniformPlanarArrayTestCase::m_expectedGain

private

the expected antenna gain [dB]

Definition at line 107 of file test-uniform-planar-array.cc.

Referenced by DoRun().

m_rows

uint32_t UniformPlanarArrayTestCase::m_rows

private

the number of rows

Definition at line 100 of file test-uniform-planar-array.cc.

Referenced by DoRun().

m_rowSpace

double UniformPlanarArrayTestCase::m_rowSpace

private

the row spacing

Definition at line 102 of file test-uniform-planar-array.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/antenna/test/test-uniform-planar-array.cc
