WifiMuRtsCtsProtection specifies that MU-RTS/CTS protection method is used. More...

#include "wifi-protection.h"

Inheritance diagram for ns3::WifiMuRtsCtsProtection:

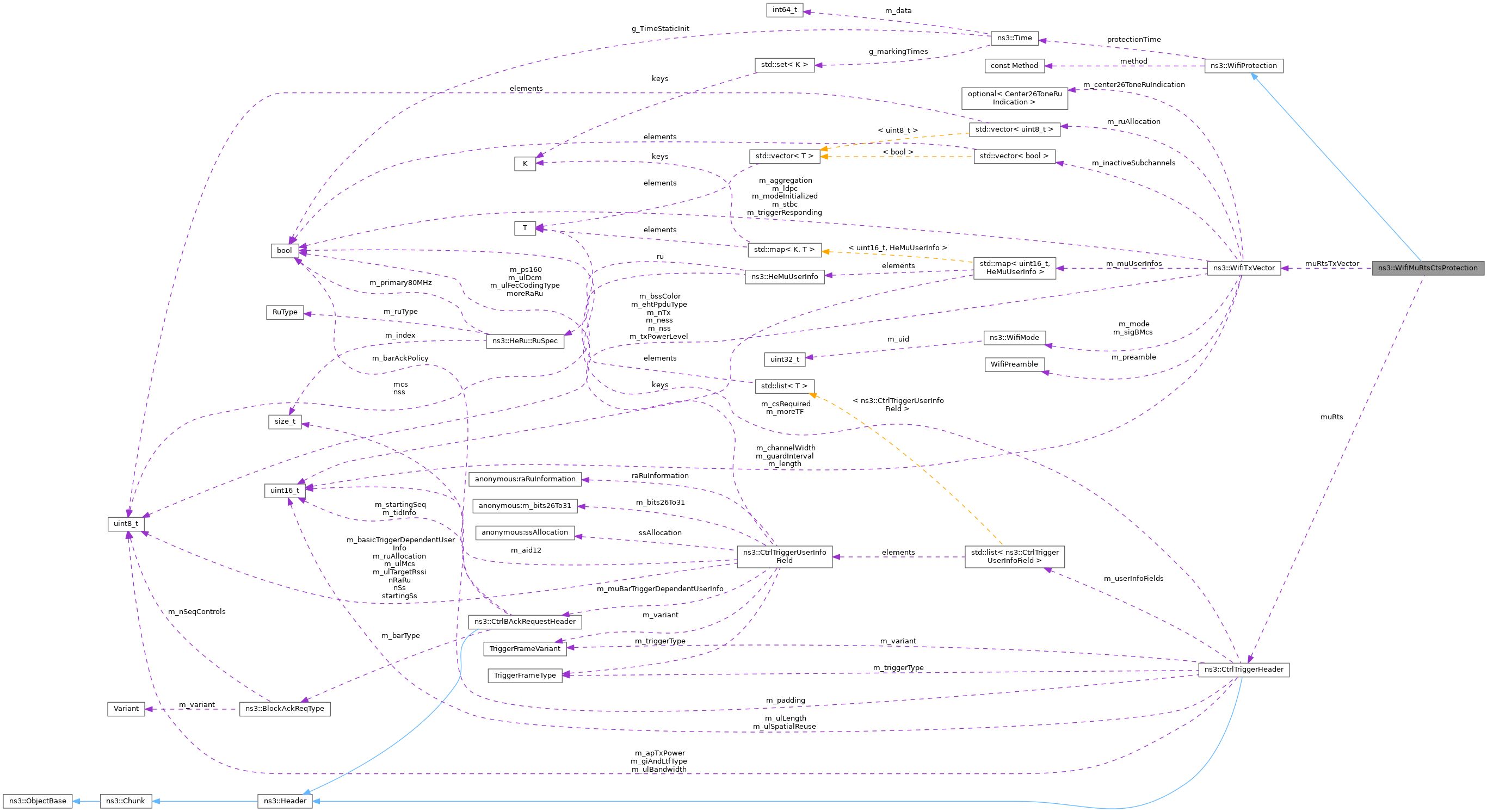

Collaboration diagram for ns3::WifiMuRtsCtsProtection:

Public Member Functions
	WifiMuRtsCtsProtection ()

std::unique_ptr< WifiProtection >	Copy () const override
	Clone this object.

void	Print (std::ostream &os) const override
	Print the object contents.

Public Member Functions inherited from ns3::WifiProtection
	WifiProtection (Method m)
	Constructor.

virtual	~WifiProtection ()

virtual std::unique_ptr< WifiProtection >	Copy () const =0
	Clone this object.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Attributes
CtrlTriggerHeader	muRts
	MU-RTS.

WifiTxVector	muRtsTxVector
	MU-RTS TXVECTOR.

Public Attributes inherited from ns3::WifiProtection
const Method	method
	protection method

Time	protectionTime
	time required by the protection method

Additional Inherited Members
Public Types inherited from ns3::WifiProtection
enum	Method { NONE = 0 , RTS_CTS , CTS_TO_SELF , MU_RTS_CTS }
	Available protection methods. More...

Detailed Description

WifiMuRtsCtsProtection specifies that MU-RTS/CTS protection method is used.

Definition at line 126 of file wifi-protection.h.

Constructor & Destructor Documentation

◆ WifiMuRtsCtsProtection()

ns3::WifiMuRtsCtsProtection::WifiMuRtsCtsProtection ( )

Definition at line 109 of file wifi-protection.cc.

Member Function Documentation

◆ Copy()

std::unique_ptr< WifiProtection > ns3::WifiMuRtsCtsProtection::Copy ( ) const

overridevirtual

Clone this object.

Returns: a pointer to the cloned object

Implements ns3::WifiProtection.

Definition at line 115 of file wifi-protection.cc.

◆ Print()

void ns3::WifiMuRtsCtsProtection::Print ( std::ostream & os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiProtection.

Definition at line 121 of file wifi-protection.cc.

Member Data Documentation

◆ muRts

CtrlTriggerHeader ns3::WifiMuRtsCtsProtection::muRts

MU-RTS.

Definition at line 134 of file wifi-protection.h.

Referenced by ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu().

◆ muRtsTxVector

WifiTxVector ns3::WifiMuRtsCtsProtection::muRtsTxVector

MU-RTS TXVECTOR.

Definition at line 135 of file wifi-protection.h.
