WifiProtection is an abstract base struct. More...

#include "wifi-protection.h"

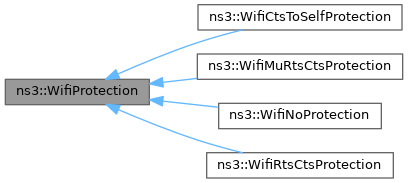

Inheritance diagram for ns3::WifiProtection:

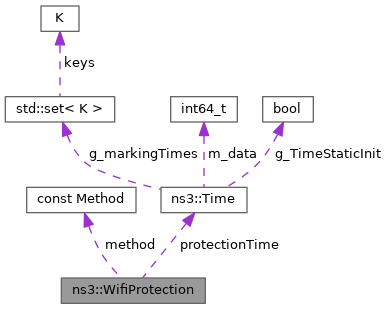

Collaboration diagram for ns3::WifiProtection:

Public Types
enum	Method { NONE = 0 , RTS_CTS , CTS_TO_SELF , MU_RTS_CTS }
	Available protection methods. More...

Public Member Functions
	WifiProtection (Method m)
	Constructor.

virtual	~WifiProtection ()

virtual std::unique_ptr< WifiProtection >	Copy () const =0
	Clone this object.

virtual void	Print (std::ostream &os) const =0
	Print the object contents.

Public Attributes
const Method	method
	protection method

Time	protectionTime
	time required by the protection method

Detailed Description

WifiProtection is an abstract base struct.

Each derived struct defines a protection method and stores the information needed to perform protection according to that method.

Definition at line 40 of file wifi-protection.h.

Member Enumeration Documentation

◆ Method

enum ns3::WifiProtection::Method

Available protection methods.

Enumerator
NONE
RTS_CTS
CTS_TO_SELF
MU_RTS_CTS

Definition at line 46 of file wifi-protection.h.

Constructor & Destructor Documentation

◆ WifiProtection()

ns3::WifiProtection::WifiProtection ( Method m )

Constructor.

Parameters

m	the protection method for this object

Definition at line 31 of file wifi-protection.cc.

◆ ~WifiProtection()

ns3::WifiProtection::~WifiProtection ( )

virtual

Definition at line 37 of file wifi-protection.cc.

Member Function Documentation

◆ Copy()

virtual std::unique_ptr< WifiProtection > ns3::WifiProtection::Copy ( ) const

pure virtual

Clone this object.

Returns: a pointer to the cloned object

Implemented in ns3::WifiNoProtection, ns3::WifiRtsCtsProtection, ns3::WifiCtsToSelfProtection, and ns3::WifiMuRtsCtsProtection.

◆ Print()

virtual void ns3::WifiProtection::Print ( std::ostream & os ) const

pure virtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implemented in ns3::WifiNoProtection, ns3::WifiRtsCtsProtection, ns3::WifiCtsToSelfProtection, and ns3::WifiMuRtsCtsProtection.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Member Data Documentation

◆ method

const Method ns3::WifiProtection::method

protection method

Definition at line 73 of file wifi-protection.h.

Referenced by ns3::FrameExchangeManager::CalculateProtectionTime(), and ns3::HeFrameExchangeManager::CalculateProtectionTime().

◆ protectionTime

Time ns3::WifiProtection::protectionTime

time required by the protection method

Definition at line 74 of file wifi-protection.h.

Referenced by ns3::WifiNoProtection::WifiNoProtection(), and ns3::FrameExchangeManager::CalculateProtectionTime().

The documentation for this struct was generated from the following files:

src/wifi/model/wifi-protection.h
src/wifi/model/wifi-protection.cc
