SpectrumPhy implementation that creates a customizable TV transmitter which transmits a PSD spectrum specified by user-set attributes. More...

#include "tv-spectrum-transmitter.h"

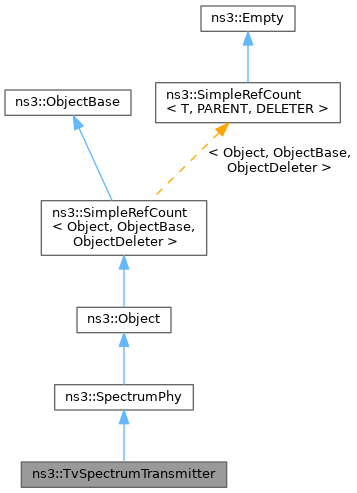

Inheritance diagram for ns3::TvSpectrumTransmitter:

Collaboration diagram for ns3::TvSpectrumTransmitter:

Public Types
enum	TvType { TVTYPE_ANALOG , TVTYPE_8VSB , TVTYPE_COFDM }
	types of TV transmitters: analog, digital 8-VSB, or digital COFDM More...

Public Member Functions
	TvSpectrumTransmitter ()

	~TvSpectrumTransmitter () override

virtual void	CreateTvPsd ()
	Creates power spectral density (PSD) spectrum of the TV transmitter and sets it for transmission.

Ptr< Object >	GetAntenna () const override
	Get the AntennaModel used by this SpectrumPhy instance for transmission and/or reception.

Ptr< SpectrumChannel >	GetChannel () const
	Get the spectrum channel.

Ptr< NetDevice >	GetDevice () const override
	Get the associated NetDevice instance.

Ptr< MobilityModel >	GetMobility () const override
	Get the associated MobilityModel instance.

Ptr< const SpectrumModel >	GetRxSpectrumModel () const override

Ptr< SpectrumValue >	GetTxPsd () const
	Get the power spectral density of the TV transmitter's signal.

void	SetChannel (Ptr< SpectrumChannel > c) override
	Set the channel attached to this device.

void	SetDevice (Ptr< NetDevice > d) override
	Set the associated NetDevice instance.

void	SetMobility (Ptr< MobilityModel > m) override
	Set the mobility model associated with this device.

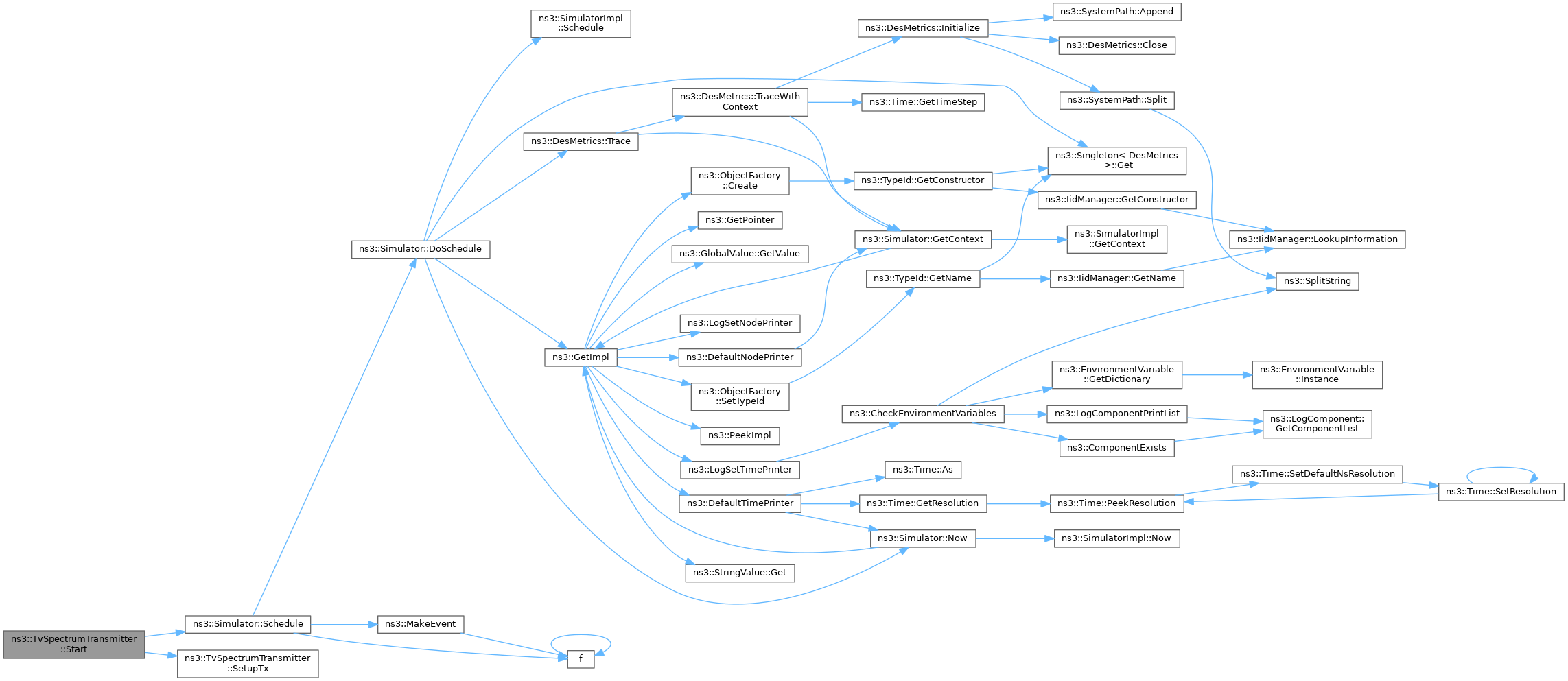

virtual void	Start ()
	Starts the TV Transmitter's transmission on the spectrum channel.

void	StartRx (Ptr< SpectrumSignalParameters > params) override
	Notify the SpectrumPhy instance of an incoming signal.

virtual void	Stop ()
	Stops the TV Transmitter's transmission on the spectrum channel.

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

	SpectrumPhy (const SpectrumPhy &)=delete

	~SpectrumPhy () override

virtual Ptr< Object >	GetAntenna () const =0
	Get the AntennaModel used by this SpectrumPhy instance for transmission and/or reception.

virtual Ptr< NetDevice >	GetDevice () const =0
	Get the associated NetDevice instance.

virtual Ptr< MobilityModel >	GetMobility () const =0
	Get the associated MobilityModel instance.

virtual Ptr< const SpectrumModel >	GetRxSpectrumModel () const =0

SpectrumPhy &	operator= (const SpectrumPhy &)=delete

virtual void	SetChannel (Ptr< SpectrumChannel > c)=0
	Set the channel attached to this device.

virtual void	SetDevice (Ptr< NetDevice > d)=0
	Set the associated NetDevice instance.

virtual void	SetMobility (Ptr< MobilityModel > m)=0
	Set the mobility model associated with this device.

virtual void	StartRx (Ptr< SpectrumSignalParameters > params)=0
	Notify the SpectrumPhy instance of an incoming signal.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions

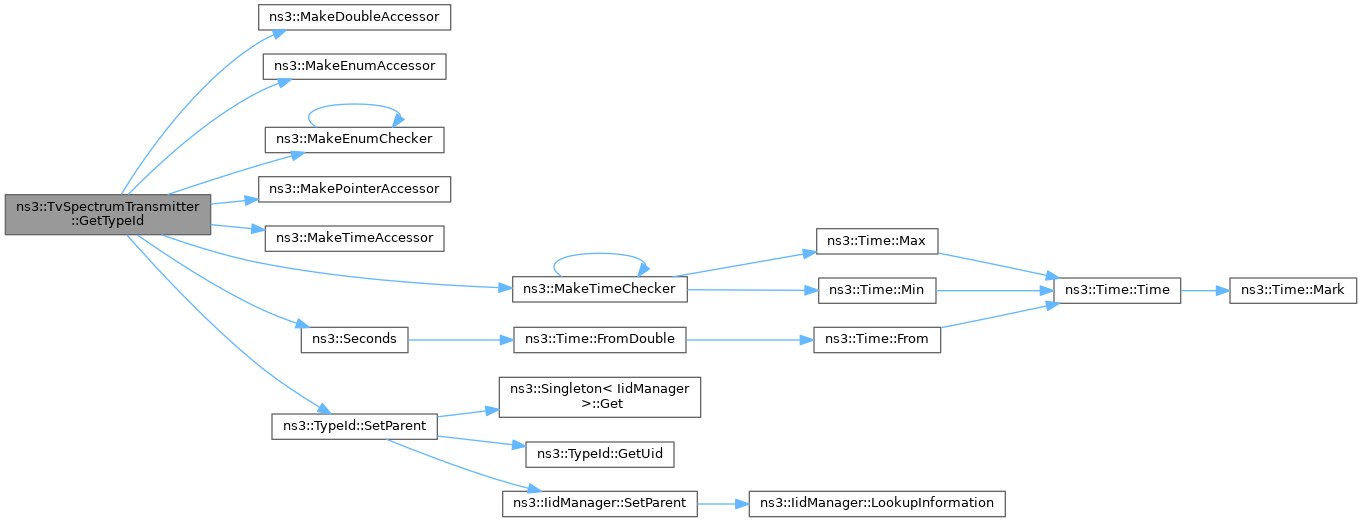

static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Member Functions
virtual void	SetupTx ()
	Sets up signal to be transmitted.

Private Attributes
bool	m_active
	True if TV transmitter is transmitting.

Ptr< AntennaModel >	m_antenna
	Pointer to antenna model object.

double	m_basePsd
	Base power spectral density value (in dBm/Hz) of TV transmitter's signal.

Ptr< SpectrumChannel >	m_channel
	Pointer to spectrum channel object.

double	m_channelBandwidth
	Bandwidth (in Hz) of TV transmitter's signal.

Ptr< MobilityModel >	m_mobility
	Pointer to mobility model object.

Ptr< NetDevice >	m_netDevice
	Pointer to net device object.

double	m_startFrequency
	Start frequency (in Hz) of TV transmitter's signal.

Time	m_startingTime
	Timepoint after simulation begins that TV transmitter will begin transmitting.

Time	m_transmitDuration
	Length of time that TV transmitter will transmit for.

TvType	m_tvType
	Type of TV transmitter.

Ptr< SpectrumValue >	m_txPsd
	Pointer to power spectral density of TV transmitter's signal.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

SpectrumPhy implementation that creates a customizable TV transmitter which transmits a PSD spectrum specified by user-set attributes.

Introspection did not find any typical Config paths.

This PHY model supports a single antenna model instance which is used for transmission (this PHY model never receives).

Attributes

Antenna: The AntennaModel to be used. Allows classes inherited from ns3::AntennaModel. Defaults to ns3::IsotropicAntennaModel.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::AntennaModel>
- Initial value: ns3::IsotropicAntennaModel
- Flags: constructwriteread
BasePsd: The base power spectral density (in dBm/Hz) of the TV transmitter's transmitted spectrum. Base PSD is the maximum PSD of the spectrum excluding pilots. For analog and COFDM transmitters this is the maximum PSD, but for 8-VSB transmitters this is the maximum PSD of the main signal spectrum (flat-top segment) since the pilot actually has the maximum PSD overall.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: constructwriteread
ChannelBandwidth: The bandwidth (in Hz) of the TV transmitter's signal. Must be greater than or equal to 0.
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 6e+06
- Flags: constructwriteread
StartFrequency: The lower end frequency (in Hz) of the TV transmitter's signal. Must be greater than or equal to 0.
- Set with class: ns3::DoubleValue
- Underlying type: double 0:1.79769e+308
- Initial value: 5e+08
- Flags: constructwriteread
StartingTime: The time point after the simulation begins in which the TV transmitter will begin transmitting.
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread
TransmitDuration: The duration of time that the TV transmitter will transmit for.
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +2e+08ns
- Flags: constructwriteread
TvType: The type of TV transmitter/modulation to be used.
- Set with class: ns3::EnumValue
- Underlying type: 8vsb|cofdm|analog
- Initial value: 8vsb
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 128 bytes (on a 64-bit architecture).

Definition at line 45 of file tv-spectrum-transmitter.h.

Member Enumeration Documentation

◆ TvType

enum ns3::TvSpectrumTransmitter::TvType

types of TV transmitters: analog, digital 8-VSB, or digital COFDM

Enumerator
TVTYPE_ANALOG
TVTYPE_8VSB
TVTYPE_COFDM

Definition at line 51 of file tv-spectrum-transmitter.h.

Constructor & Destructor Documentation

◆ TvSpectrumTransmitter()

ns3::TvSpectrumTransmitter::TvSpectrumTransmitter ( )

Definition at line 42 of file tv-spectrum-transmitter.cc.

References NS_LOG_FUNCTION.

◆ ~TvSpectrumTransmitter()

ns3::TvSpectrumTransmitter::~TvSpectrumTransmitter ( )

override

Definition at line 59 of file tv-spectrum-transmitter.cc.

References m_antenna, m_channel, m_mobility, m_netDevice, m_txPsd, and NS_LOG_FUNCTION.

Member Function Documentation

◆ CreateTvPsd()

void ns3::TvSpectrumTransmitter::CreateTvPsd ( )

virtual

Creates power spectral density (PSD) spectrum of the TV transmitter and sets it for transmission.

8-VSB PSD approximated from Figure 3 of the following article: Baron, Stanley.

Before calling this method, must set attributes and parameters that are applicable to your transmitter.

8-VSB PSD approximated from Figure 3 of the following article: Baron, Stanley. "First-Hand:Digital Television: The Digital Terrestrial Television Broadcasting (DTTB) Standard." IEEE Global History Network. <http://www.ieeeghn.org/wiki/index.php/First-Hand:Digital_Television:The Digital_Terrestrial_Television_Broadcasting_(DTTB)_Standard>.

COFDM PSD approximated from Figure 12 (8k mode) of the following article: Kopp, Carlo. "High Definition Television." High Definition Television. Air Power Australia. http://www.ausairpower.net/AC-1100.html.

Analog PSD approximated from Figure 4 of the following paper: Stephen Shellhammer, Ahmed Sadek, and Wenyi Zhang. "Technical Challenges for Cognitive Radio in the TV White Space Spectrum." Qualcomm Incorporated.

"First-Hand:Digital Television: The Digital Terrestrial Television Broadcasting (DTTB) Standard." IEEE Global History Network. <http://www.ieeeghn.org/wiki/index.php/First-Hand:Digital_Television:The_Digital_Terrestrial_Television_Broadcasting(DTTB)_Standard>.

COFDM PSD approximated from Figure 12 (8k mode) of the following article: Kopp, Carlo. "High Definition Television." High Definition Television. Air Power Australia. http://www.ausairpower.net/AC-1100.html.

Analog PSD approximated from Figure 4 of the following paper: Stephen Shellhammer, Ahmed Sadek, and Wenyi Zhang. "Technical Challenges for Cognitive Radio in the TV White Space Spectrum." Qualcomm Incorporated.

Definition at line 243 of file tv-spectrum-transmitter.cc.

References ns3::BandInfo::fc, ns3::BandInfo::fh, ns3::BandInfo::fl, ns3::g_tvSpectrumModelMap, m_basePsd, m_channelBandwidth, m_startFrequency, m_tvType, m_txPsd, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, TVTYPE_8VSB, TVTYPE_ANALOG, and TVTYPE_COFDM.

◆ GetAntenna()

Ptr< Object > ns3::TvSpectrumTransmitter::GetAntenna ( ) const

overridevirtual

Get the AntennaModel used by this SpectrumPhy instance for transmission and/or reception.

Note that in general and depending on each module design, there can be multiple SpectrumPhy instances per NetDevice.

Returns: a Ptr to the AntennaModel used by this SpectrumPhy instance for transmission and/or reception

Implements ns3::SpectrumPhy.

Definition at line 173 of file tv-spectrum-transmitter.cc.

References m_antenna, and NS_LOG_FUNCTION.

◆ GetChannel()

Ptr< SpectrumChannel > ns3::TvSpectrumTransmitter::GetChannel ( ) const

Get the spectrum channel.

Returns: a pointer to the assigned spectrum channel

Definition at line 186 of file tv-spectrum-transmitter.cc.

References m_channel, and NS_LOG_FUNCTION.

◆ GetDevice()

Ptr< NetDevice > ns3::TvSpectrumTransmitter::GetDevice ( ) const

overridevirtual

Get the associated NetDevice instance.

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 159 of file tv-spectrum-transmitter.cc.

References m_netDevice, and NS_LOG_FUNCTION.

◆ GetMobility()

Ptr< MobilityModel > ns3::TvSpectrumTransmitter::GetMobility ( ) const

overridevirtual

Get the associated MobilityModel instance.

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 152 of file tv-spectrum-transmitter.cc.

References m_mobility, and NS_LOG_FUNCTION.

◆ GetRxSpectrumModel()

Ptr< const SpectrumModel > ns3::TvSpectrumTransmitter::GetRxSpectrumModel ( ) const

overridevirtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 166 of file tv-spectrum-transmitter.cc.

References NS_LOG_FUNCTION.
