Make sure that the correct channel width and center frequency have been set for OFDM basic rate transmissions and BSS channel widths larger than 20 MHz. More...

Inheritance diagram for Bug2843TestCase:

Collaboration diagram for Bug2843TestCase:

Public Member Functions
	Bug2843TestCase ()

	~Bug2843TestCase () override

void	DoRun () override
	Implementation to actually run this TestCase.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Types
typedef std::tuple< double, uint16_t, uint32_t, WifiModulationClass >	FreqWidthSubbandModulationTuple
	A tuple of {starting frequency, channelWidth, Number of subbands in SpectrumModel, modulation type}.

Private Member Functions
void	SendPacketBurst (uint8_t numPackets, Ptr< NetDevice > sourceDevice, Address &destination) const
	Triggers the arrival of a burst of 1000 Byte-long packets in the source device.

void	StoreDistinctTuple (std::string context, Ptr< SpectrumSignalParameters > txParams)
	Stores the distinct {starting frequency, channelWidth, Number of subbands in SpectrumModel, modulation type} tuples that have been used during the testcase run.

Private Attributes
uint16_t	m_channelWidth
	channel width (in MHz)

std::vector< FreqWidthSubbandModulationTuple >	m_distinctTuples
	vector of distinct {starting frequency, channelWidth, Number of subbands in SpectrumModel, modulation type} tuples

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Make sure that the correct channel width and center frequency have been set for OFDM basic rate transmissions and BSS channel widths larger than 20 MHz.

The scenario considers a UDP transmission between a 40 MHz 802.11ac station and a 40 MHz 802.11ac access point. All transmission parameters are checked so as to ensure that only 2 {starting frequency, channelWidth, Number of subbands in SpectrumModel, modulation type} tuples are used.

See Bug 2843

Definition at line 1512 of file wifi-test.cc.

Member Typedef Documentation

◆ FreqWidthSubbandModulationTuple

typedef std::tuple<double, uint16_t, uint32_t, WifiModulationClass> Bug2843TestCase::FreqWidthSubbandModulationTuple

private

A tuple of {starting frequency, channelWidth, Number of subbands in SpectrumModel, modulation type}.

Definition at line 1525 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ Bug2843TestCase()

Bug2843TestCase::Bug2843TestCase ( )

Definition at line 1550 of file wifi-test.cc.

◆ ~Bug2843TestCase()

Bug2843TestCase::~Bug2843TestCase ( )

override

Definition at line 1556 of file wifi-test.cc.

Member Function Documentation

◆ DoRun()

void Bug2843TestCase::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1607 of file wifi-test.cc.

References ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::Simulator::Destroy(), ns3::NetDeviceContainer::Get(), m_distinctTuples, ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), SendPacketBurst(), ns3::WifiPhyHelper::Set(), ns3::SpectrumWifiPhyHelper::SetChannel(), ns3::WifiPhyHelper::SetErrorRateModel(), ns3::Simulator::Stop(), StoreDistinctTuple(), and ns3::WIFI_STANDARD_80211ac.

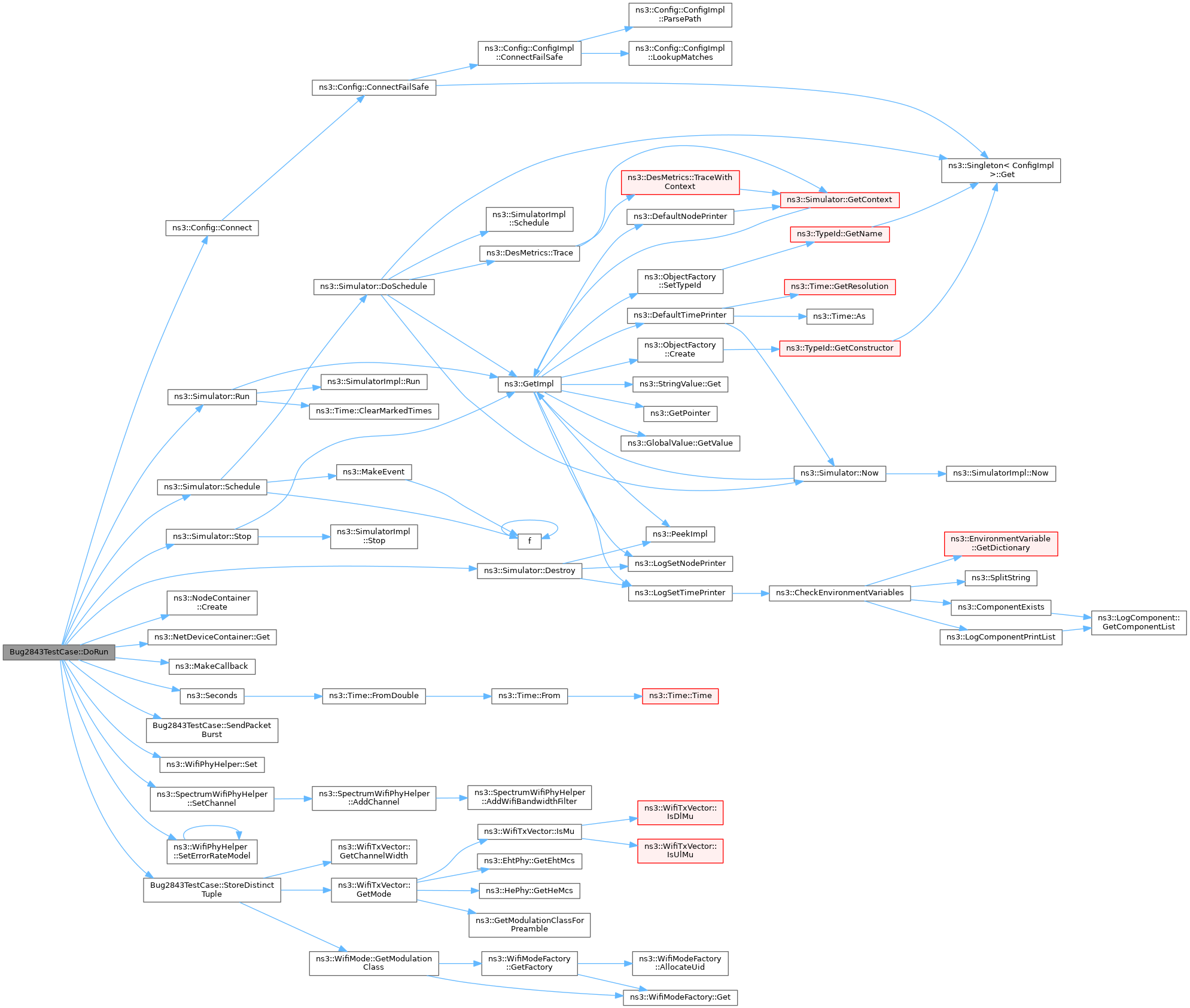

Here is the call graph for this function:

◆ SendPacketBurst()

void Bug2843TestCase::SendPacketBurst	(	uint8_t	numPackets,
		Ptr< NetDevice >	sourceDevice,
		Address &	destination
	)		const

private

Triggers the arrival of a burst of 1000 Byte-long packets in the source device.

Parameters

numPackets	number of packets in burst
sourceDevice	pointer to the source NetDevice
destination	address of the destination device

Definition at line 1595 of file wifi-test.cc.

Referenced by DoRun().

Here is the caller graph for this function:

◆ StoreDistinctTuple()

void Bug2843TestCase::StoreDistinctTuple	(	std::string	context,
		Ptr< SpectrumSignalParameters >	txParams
	)

private

Stores the distinct {starting frequency, channelWidth, Number of subbands in SpectrumModel, modulation type} tuples that have been used during the testcase run.

Parameters

context	the context
txParams	spectrum signal parameters set by transmitter

Definition at line 1561 of file wifi-test.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), m_channelWidth, and m_distinctTuples.

Referenced by DoRun().

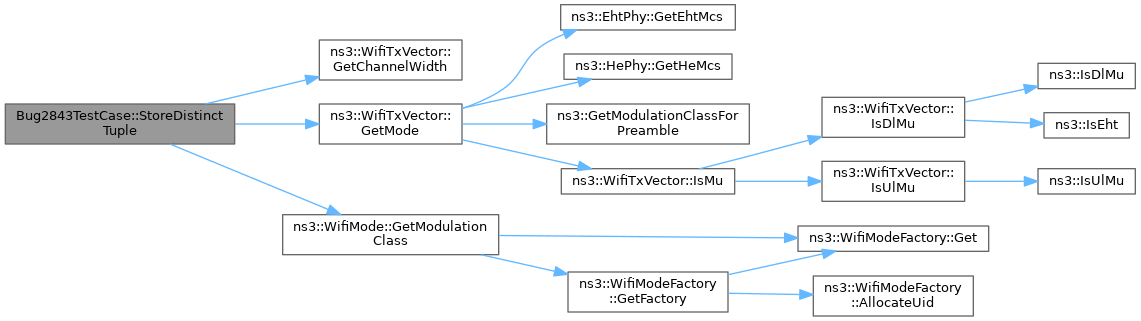

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_channelWidth

uint16_t Bug2843TestCase::m_channelWidth

private

channel width (in MHz)

Definition at line 1547 of file wifi-test.cc.

Referenced by StoreDistinctTuple().

◆ m_distinctTuples

std::vector<FreqWidthSubbandModulationTuple> Bug2843TestCase::m_distinctTuples

private

vector of distinct {starting frequency, channelWidth, Number of subbands in SpectrumModel, modulation type} tuples

Definition at line 1527 of file wifi-test.cc.

Referenced by DoRun(), and StoreDistinctTuple().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-test.cc
