UDP Socket Loopback over IPv4 Test. More...

Inheritance diagram for UdpSocketLoopbackTest:

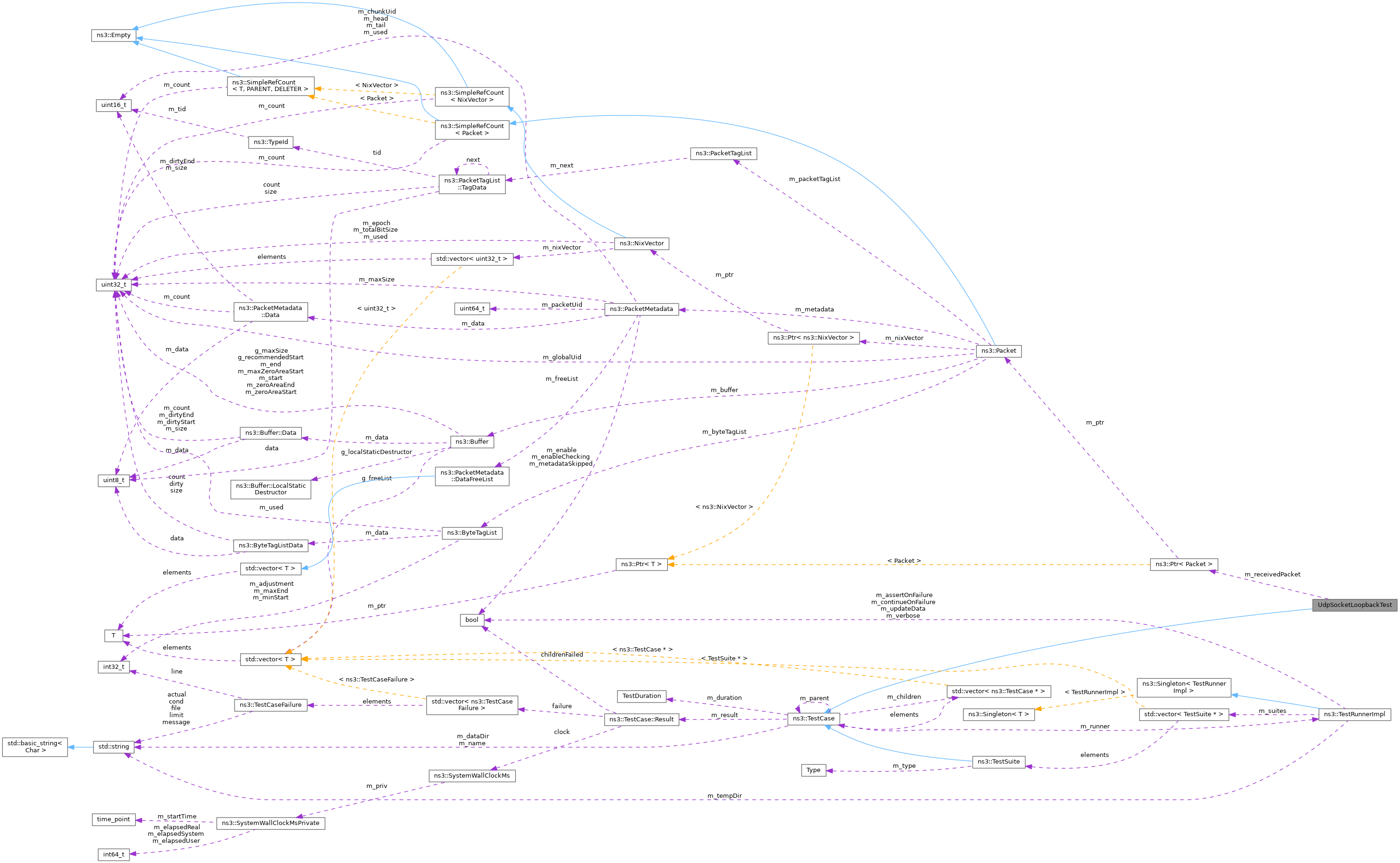

Collaboration diagram for UdpSocketLoopbackTest:

Public Member Functions
	UdpSocketLoopbackTest ()

void	DoRun () override
	Implementation to actually run this TestCase.

void	ReceivePkt (Ptr< Socket > socket)
	Receive a packet.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Public Attributes
Ptr< Packet >	m_receivedPacket
	Received packet.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

UDP Socket Loopback over IPv4 Test.

Definition at line 63 of file udp-test.cc.

Constructor & Destructor Documentation

◆ UdpSocketLoopbackTest()

UdpSocketLoopbackTest::UdpSocketLoopbackTest ( )

Definition at line 77 of file udp-test.cc.

Member Function Documentation

◆ DoRun()

void UdpSocketLoopbackTest::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 94 of file udp-test.cc.

References ns3::Simulator::Destroy(), ns3::Ipv4Address::GetAny(), ns3::Packet::GetSize(), m_receivedPacket, ns3::MakeCallback(), NS_TEST_EXPECT_MSG_EQ, ReceivePkt(), and ns3::Simulator::Run().

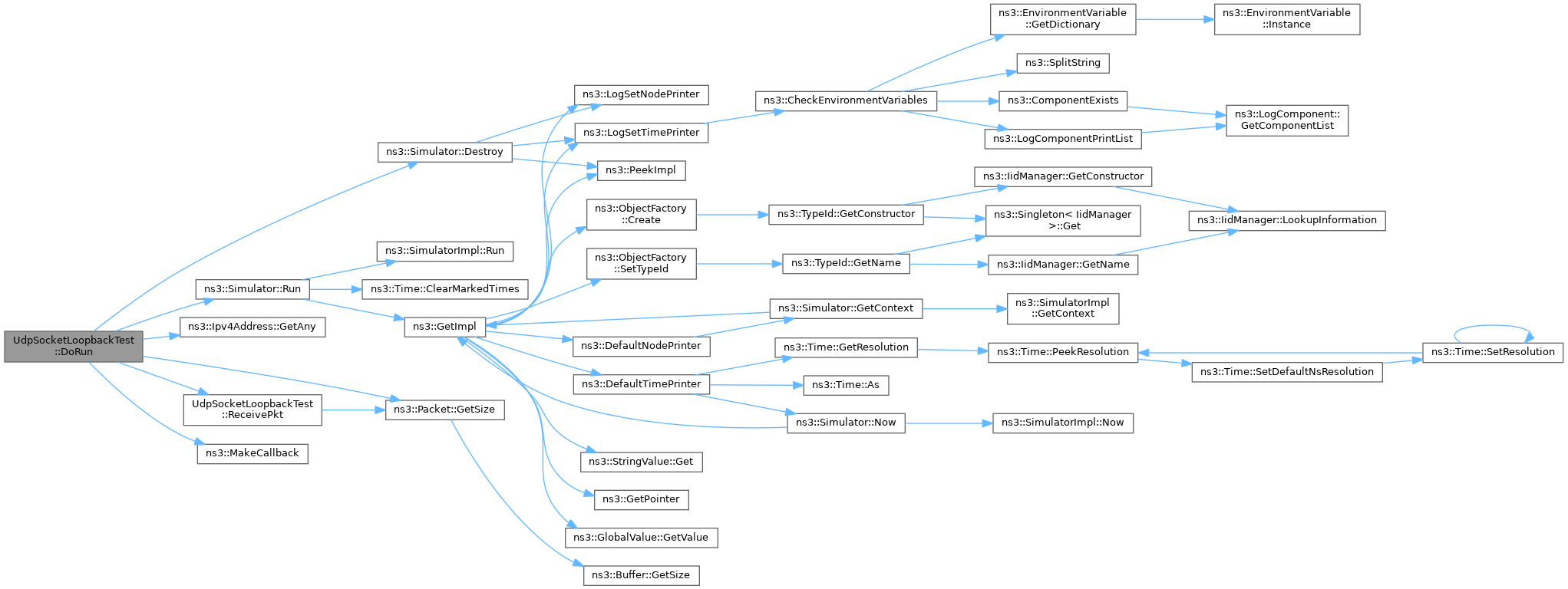

Here is the call graph for this function:

◆ ReceivePkt()

void UdpSocketLoopbackTest::ReceivePkt ( Ptr< Socket > socket )

Receive a packet.

Parameters

socket The receiving socket.

Definition at line 83 of file udp-test.cc.

References ns3::Packet::GetSize(), m_receivedPacket, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_receivedPacket

Ptr<Packet> UdpSocketLoopbackTest::m_receivedPacket

Received packet.

Definition at line 74 of file udp-test.cc.

Referenced by DoRun(), and ReceivePkt().

The documentation for this class was generated from the following file:

src/internet/test/udp-test.cc
