wifi-rate-adaptation-distance.cc File Reference

#include "ns3/boolean.h"
#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/gnuplot.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/mobility-model.h"
#include "ns3/on-off-helper.h"
#include "ns3/packet-sink-helper.h"
#include "ns3/ssid.h"
#include "ns3/string.h"
#include "ns3/uinteger.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"

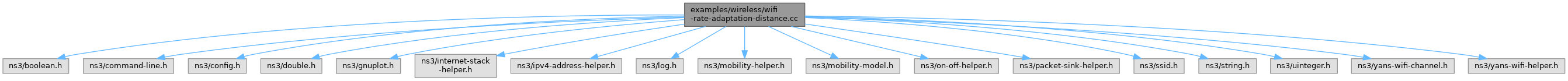

Include dependency graph for wifi-rate-adaptation-distance.cc:

Go to the source code of this file.

Classes
class	NodeStatistics
	Class to collect node statistics. More...

Functions
void	RateCallback (uint64_t oldRate, uint64_t newRate)
	Callback for 'Rate' trace source.

Detailed Description

Usage

$ ./ns3 run "wifi-rate-adaptation-distance [Program Options]"

Program Options

--staManager

Rate adaptation manager of the STA [ns3::MinstrelHtWifiManager]

--apManager

Rate adaptation manager of the AP [ns3::MinstrelHtWifiManager]

--standard

Wifi standard (a/b/g/n/ac only) [802.11n-5GHz]

--shortGuardInterval

Enable Short Guard Interval in all stations [false]

--channelWidth

Channel width of all the stations [20]

--rtsThreshold

RTS threshold [65535]

--BeMaxAmpduSize

BE Mac A-MPDU size [65535]

--outputFileName

Output filename [minstrelHT]

--steps

How many different distances to try [100]

--stepsTime

Time on each step [1]

--stepsSize

Distance between steps [1]

--AP1_x

Position of AP1 in x coordinate [0]

--AP1_y

Position of AP1 in y coordinate [0]

--STA1_x

Position of STA1 in x coordinate [5]

--STA1_y

Position of STA1 in y coordinate [0]

Definition in file wifi-rate-adaptation-distance.cc.

Function Documentation

RateCallback()

void RateCallback	(	uint64_t	oldRate,
		uint64_t	newRate
	)

Callback for 'Rate' trace source.

Parameters

oldRate	old MCS rate (bits/sec)
newRate	new MCS rate (bits/sec)

Definition at line 180 of file wifi-rate-adaptation-distance.cc.

References NS_LOG_INFO.
