Class to collect node statistics. More...

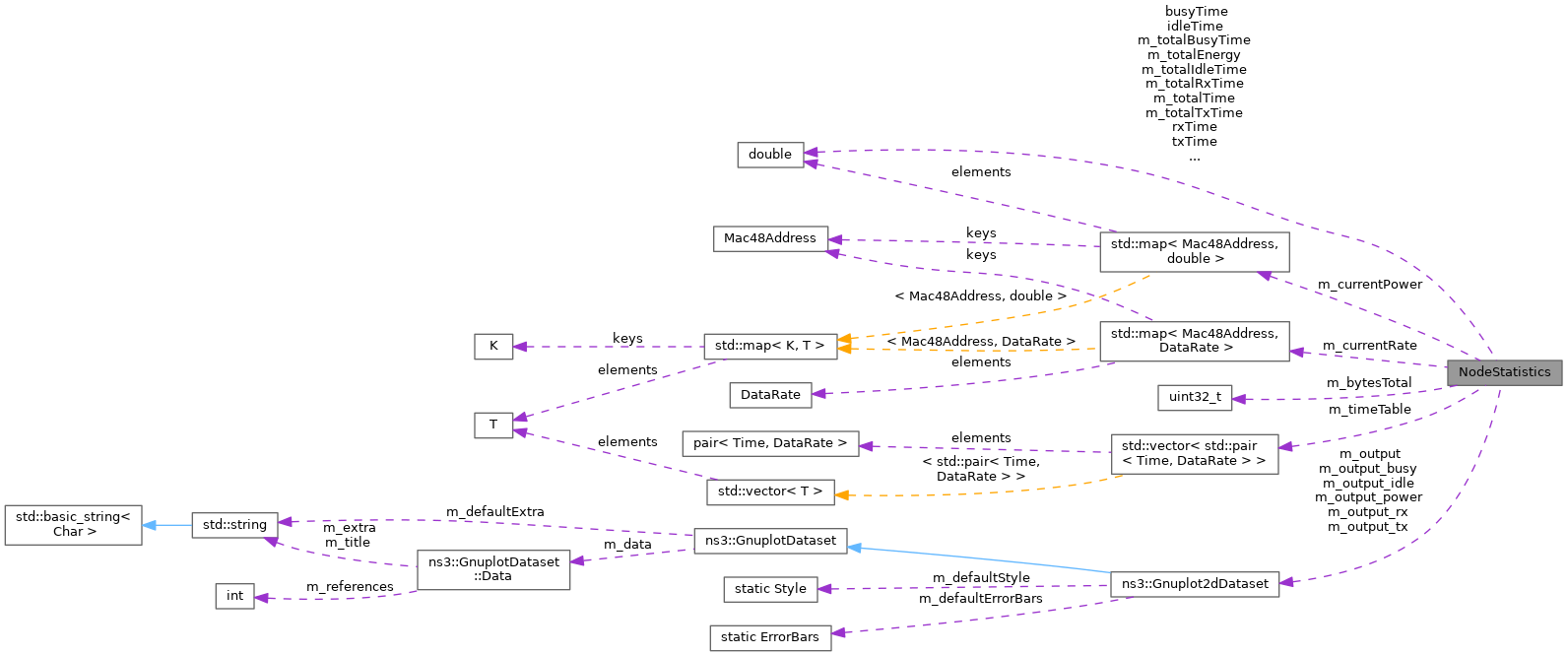

Collaboration diagram for NodeStatistics:

Public Member Functions
	NodeStatistics (NetDeviceContainer aps, NetDeviceContainer stas)
	Constructor.

	NodeStatistics (NetDeviceContainer aps, NetDeviceContainer stas)
	Constructor.

	NodeStatistics (NetDeviceContainer aps, NetDeviceContainer stas)
	Constructor.

void	AdvancePosition (Ptr< Node > node, int stepsSize, int stepsTime)
	Move a node.

void	AdvancePosition (Ptr< Node > node, int stepsSize, int stepsTime)
	Advance node position.

void	CheckStatistics (double time)
	Collects the statistics at a given time.

Gnuplot2dDataset	GetBusyDatafile ()
	Get the BUSY state output data.

double	GetBusyTime () const
	Get the Busy time.

Gnuplot2dDataset	GetDatafile ()
	Get the Throughput output data.

Gnuplot2dDataset	GetDatafile ()
	Get the Throughput output data.

Gnuplot2dDataset	GetDatafile ()

Gnuplot2dDataset	GetIdleDatafile ()
	Get the IDLE state output data.

Vector	GetPosition (Ptr< Node > node)
	Get the Position of a node.

Vector	GetPosition (Ptr< Node > node)
	Get node position.

Gnuplot2dDataset	GetPowerDatafile ()
	Get the Power output data.

Gnuplot2dDataset	GetPowerDatafile ()
	Get the Power output data.

Gnuplot2dDataset	GetRxDatafile ()
	Get the RX state output data.

Gnuplot2dDataset	GetTxDatafile ()
	Get the TX state output data.

void	PhyCallback (std::string path, Ptr< const Packet > packet, double powerW)
	Callback called by WifiNetDevice/Phy/PhyTxBegin.

void	PhyCallback (std::string path, Ptr< const Packet > packet, double powerW)
	Callback called by WifiNetDevice/Phy/PhyTxBegin.

void	PowerCallback (std::string path, double oldPower, double newPower, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange.

void	PowerCallback (std::string path, double oldPower, double newPower, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange.

void	RateCallback (std::string path, DataRate oldRate, DataRate newRate, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/RateChange.

void	RateCallback (std::string path, DataRate oldRate, DataRate newRate, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/RateChange.

void	RxCallback (std::string path, Ptr< const Packet > packet, const Address &from)
	Callback called by PacketSink/Rx.

void	RxCallback (std::string path, Ptr< const Packet > packet, const Address &from)
	Callback called by PacketSink/Rx.

void	RxCallback (std::string path, Ptr< const Packet > packet, const Address &from)
	RX callback.

void	SetPosition (Ptr< Node > node, Vector position)
	Set the Position of a node.

void	SetPosition (Ptr< Node > node, Vector position)
	Set node position.

void	StateCallback (std::string path, Time init, Time duration, WifiPhyState state)
	Callback called by YansWifiPhy/State/State.

Private Types
typedef std::vector< std::pair< Time, DataRate > >	TxTime
	Time, DataRate pair vector.

typedef std::vector< std::pair< Time, DataRate > >	TxTime
	Time, DataRate pair vector.

Private Member Functions
Time	GetCalcTxTime (DataRate rate)
	Get the time at which a given datarate has been recorded.

Time	GetCalcTxTime (DataRate rate)
	Get the time at which a given datarate has been recorded.

void	SetupPhy (Ptr< WifiPhy > phy)
	Setup the WifiPhy object.

void	SetupPhy (Ptr< WifiPhy > phy)
	Setup the WifiPhy object.

Private Attributes
double	busyTime
	BUSY time.

double	idleTime
	IDLE time.

uint32_t	m_bytesTotal
	Number of received bytes on a given state.

std::map< Mac48Address, double >	m_currentPower
	Current Tx power for each sender.

std::map< Mac48Address, DataRate >	m_currentRate
	Current Tx rate for each sender.

Gnuplot2dDataset	m_output
	Throughput output data.

Gnuplot2dDataset	m_output_busy
	BUSY output data.

Gnuplot2dDataset	m_output_idle
	IDLE output data.

Gnuplot2dDataset	m_output_power
	Power output data.

Gnuplot2dDataset	m_output_rx
	RX output data.

Gnuplot2dDataset	m_output_tx
	TX output data.

TxTime	m_timeTable
	Time, DataRate table.

double	m_totalBusyTime
	Total time in BUSY state.

double	m_totalEnergy
	Energy used on a given state.

double	m_totalIdleTime
	Total time in IDLE state.

double	m_totalRxTime
	Total time in RX state.

double	m_totalTime
	Time spent on a given state.

double	m_totalTxTime
	Total time in TX state.

double	rxTime
	RX time.

double	txTime
	TX time.

Detailed Description

Class to collect node statistics.

Node statistics.

Definition at line 116 of file wifi-power-adaptation-distance.cc.

Member Typedef Documentation

◆ TxTime [1/2]

typedef std::vector<std::pair<Time, DataRate> > NodeStatistics::TxTime

private

Time, DataRate pair vector.

Definition at line 198 of file wifi-power-adaptation-distance.cc.

◆ TxTime [2/2]

typedef std::vector<std::pair<Time, DataRate> > NodeStatistics::TxTime

private

Time, DataRate pair vector.

Definition at line 196 of file wifi-power-adaptation-interference.cc.

Constructor & Destructor Documentation

◆ NodeStatistics() [1/3]

NodeStatistics::NodeStatistics	(	NetDeviceContainer	aps,
		NetDeviceContainer	stas
	)

Constructor.

Parameters

aps	Access points
stas	WiFi Stations.

Definition at line 223 of file wifi-power-adaptation-distance.cc.

References ns3::NetDeviceContainer::Get(), ns3::NetDeviceContainer::GetN(), m_bytesTotal, m_currentPower, m_currentRate, m_output, m_output_power, m_totalEnergy, m_totalTime, ns3::GnuplotDataset::SetTitle(), and SetupPhy().

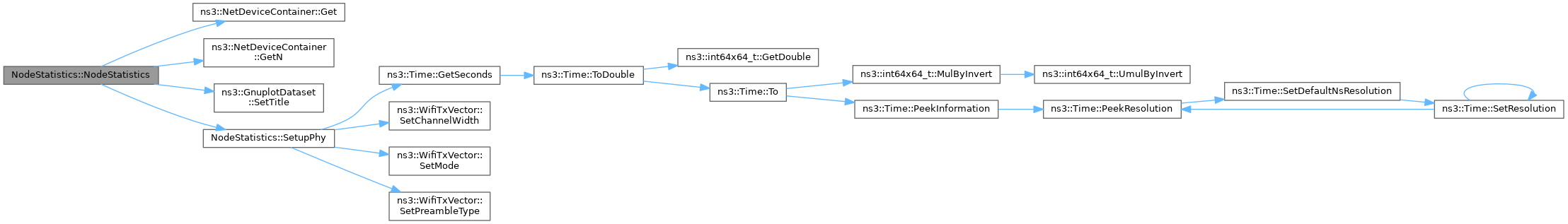

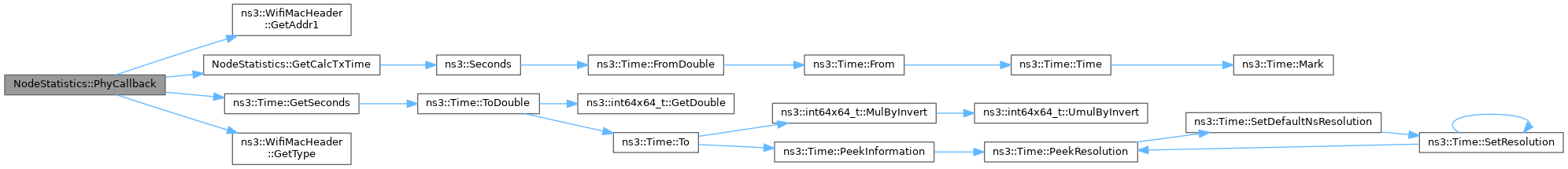

Here is the call graph for this function:

◆ NodeStatistics() [2/3]

NodeStatistics::NodeStatistics	(	NetDeviceContainer	aps,
		NetDeviceContainer	stas
	)

Constructor.

Parameters

aps	Access points
stas	WiFi Stations.

◆ NodeStatistics() [3/3]

NodeStatistics::NodeStatistics	(	NetDeviceContainer	aps,
		NetDeviceContainer	stas
	)

Constructor.

Parameters

aps	AP devices
stas	STA devices

Member Function Documentation

◆ AdvancePosition() [1/2]

void NodeStatistics::AdvancePosition	(	Ptr< Node >	node,
		int	stepsSize,
		int	stepsTime
	)

Move a node.

Parameters

node	The node.
stepsSize	The step size.
stepsTime	Time on each step.

Definition at line 328 of file wifi-power-adaptation-distance.cc.

References ns3::Gnuplot2dDataset::Add(), AdvancePosition(), GetPosition(), m_bytesTotal, m_output, m_output_power, m_totalEnergy, m_totalTime, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), ns3::Seconds(), and SetPosition().

Referenced by AdvancePosition().

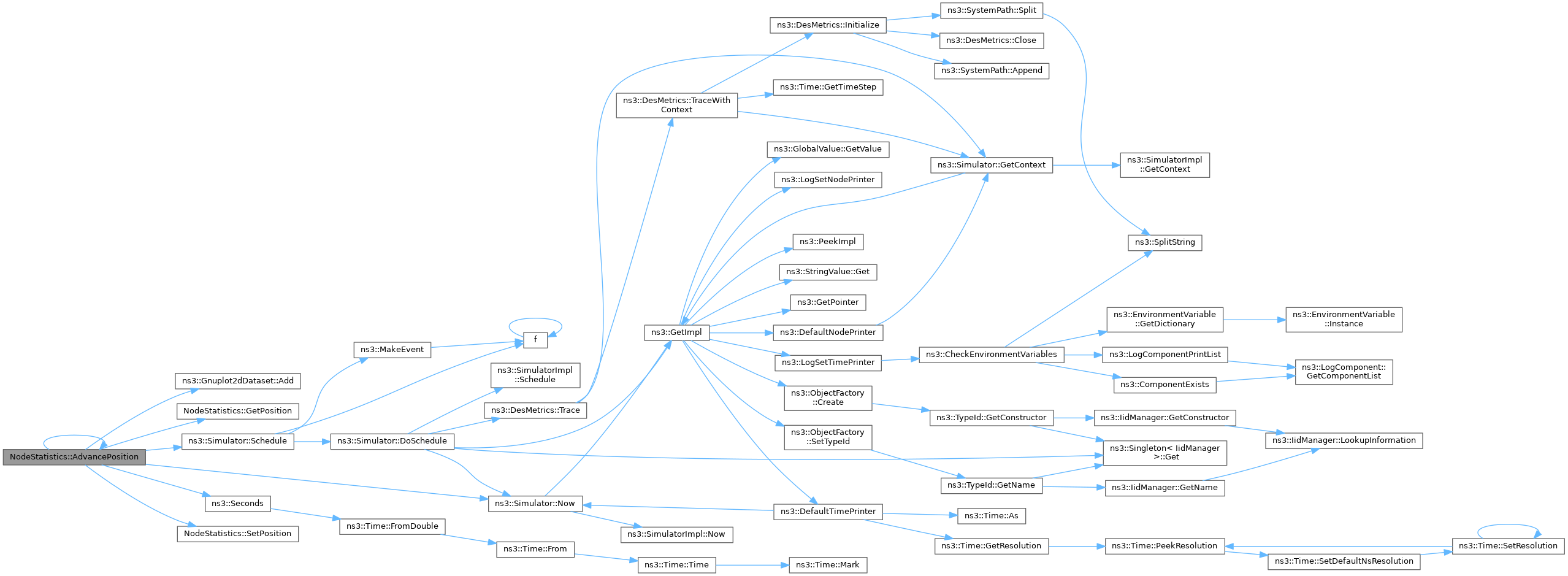

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AdvancePosition() [2/2]

void NodeStatistics::AdvancePosition	(	Ptr< Node >	node,
		int	stepsSize,
		int	stepsTime
	)

Advance node position.

Parameters

node	the node
stepsSize	the size of a step
stepsTime	the time interval between steps

◆ CheckStatistics()

void NodeStatistics::CheckStatistics ( double time )

Collects the statistics at a given time.

Parameters

time	Time at which the statistics are collected.

Definition at line 360 of file wifi-power-adaptation-interference.cc.

References ns3::Gnuplot2dDataset::Add(), busyTime, CheckStatistics(), idleTime, m_bytesTotal, m_output, m_output_busy, m_output_idle, m_output_power, m_output_rx, m_output_tx, m_totalEnergy, m_totalTime, ns3::Simulator::Now(), rxTime, ns3::Simulator::Schedule(), ns3::Seconds(), and txTime.

Referenced by CheckStatistics().

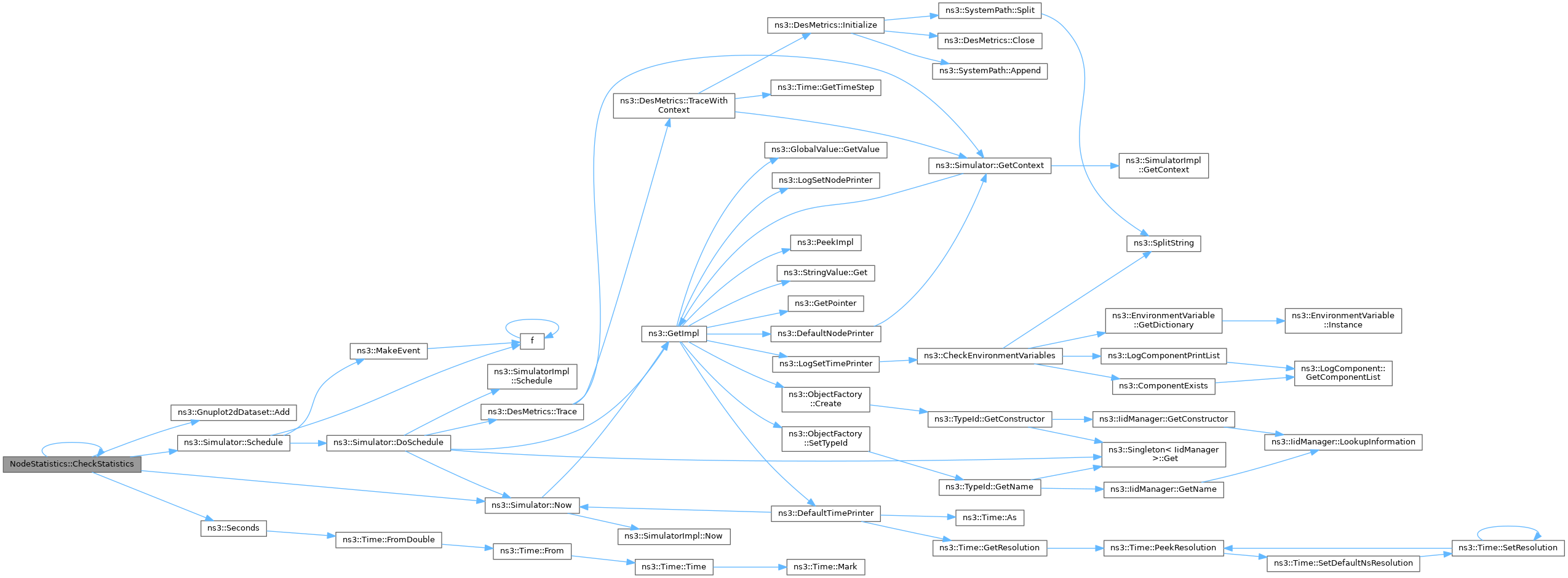

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBusyDatafile()

Gnuplot2dDataset NodeStatistics::GetBusyDatafile ( )

Get the BUSY state output data.

Returns: the BUSY state output data.

Definition at line 401 of file wifi-power-adaptation-interference.cc.

References m_output_busy.

◆ GetBusyTime()

double NodeStatistics::GetBusyTime ( ) const

Get the Busy time.

Returns: the busy time.

Definition at line 419 of file wifi-power-adaptation-interference.cc.

References m_totalBusyTime, and m_totalRxTime.

◆ GetCalcTxTime() [1/2]

Time NodeStatistics::GetCalcTxTime ( DataRate rate )

private

Get the time at which a given datarate has been recorded.

Parameters

rate	The datarate to search.

Returns: the time.

Definition at line 264 of file wifi-power-adaptation-distance.cc.

References m_timeTable, NS_ASSERT, and ns3::Seconds().

Referenced by PhyCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCalcTxTime() [2/2]

Time NodeStatistics::GetCalcTxTime ( DataRate rate )

private

Get the time at which a given datarate has been recorded.

Parameters

rate	The datarate to search.

Returns: the time.

◆ GetDatafile() [1/3]

Gnuplot2dDataset NodeStatistics::GetDatafile ( )

Get the Throughput output data.

Returns: the Throughput output data.

Definition at line 351 of file wifi-power-adaptation-distance.cc.

References m_output.

◆ GetDatafile() [2/3]

Gnuplot2dDataset NodeStatistics::GetDatafile ( )

Get the Throughput output data.

Returns: the Throughput output data.

◆ GetDatafile() [3/3]

Gnuplot2dDataset NodeStatistics::GetDatafile ( )

Returns: the gnuplot 2d dataset

◆ GetIdleDatafile()

Gnuplot2dDataset NodeStatistics::GetIdleDatafile ( )

Get the IDLE state output data.

Returns: the IDLE state output data.

Definition at line 395 of file wifi-power-adaptation-interference.cc.

References m_output_idle.

◆ GetPosition() [1/2]

Vector NodeStatistics::GetPosition ( Ptr< Node > node )

Get the Position of a node.

Parameters

node The node.

Returns: the position of the node.

Definition at line 321 of file wifi-power-adaptation-distance.cc.

Referenced by AdvancePosition().

Here is the caller graph for this function:

◆ GetPosition() [2/2]

Vector NodeStatistics::GetPosition ( Ptr< Node > node )

Get node position.

Parameters

node the node

Returns: the position

◆ GetPowerDatafile() [1/2]

Gnuplot2dDataset NodeStatistics::GetPowerDatafile ( )

Get the Power output data.

Returns: the Power output data.

Definition at line 357 of file wifi-power-adaptation-distance.cc.

References m_output_power.

◆ GetPowerDatafile() [2/2]

Gnuplot2dDataset NodeStatistics::GetPowerDatafile ( )

Get the Power output data.

Returns: the Power output data.

◆ GetRxDatafile()

Gnuplot2dDataset NodeStatistics::GetRxDatafile ( )

Get the RX state output data.

Returns: the RX state output data.

Definition at line 407 of file wifi-power-adaptation-interference.cc.

References m_output_rx.

◆ GetTxDatafile()

Gnuplot2dDataset NodeStatistics::GetTxDatafile ( )

Get the TX state output data.

Returns: the TX state output data.

Definition at line 413 of file wifi-power-adaptation-interference.cc.

References m_output_tx.

◆ PhyCallback() [1/2]

void NodeStatistics::PhyCallback	(	std::string	path,
		Ptr< const Packet >	packet,
		double	powerW
	)

Callback called by WifiNetDevice/Phy/PhyTxBegin.

Parameters

path	The trace path.
packet	The sent packet.
powerW	The Tx power.

Definition at line 278 of file wifi-power-adaptation-distance.cc.

References ns3::WifiMacHeader::GetAddr1(), GetCalcTxTime(), ns3::Time::GetSeconds(), ns3::WifiMacHeader::GetType(), m_currentPower, m_currentRate, m_totalEnergy, m_totalTime, and ns3::WIFI_MAC_DATA.

Here is the call graph for this function:

◆ PhyCallback() [2/2]

void NodeStatistics::PhyCallback	(	std::string	path,
		Ptr< const Packet >	packet,
		double	powerW
	)

Callback called by WifiNetDevice/Phy/PhyTxBegin.

Parameters

path	The trace path.
packet	The sent packet.
powerW	The Tx power.

◆ PowerCallback() [1/2]

void NodeStatistics::PowerCallback	(	std::string	path,
		double	oldPower,
		double	newPower,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange.

Parameters

path	The trace path.
oldPower	Old Tx power.
newPower	Actual Tx power.
dest	Destination of the transmission.

Definition at line 293 of file wifi-power-adaptation-distance.cc.

References m_currentPower.

◆ PowerCallback() [2/2]

void NodeStatistics::PowerCallback	(	std::string	path,
		double	oldPower,
		double	newPower,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange.

Parameters

path	The trace path.
oldPower	Old Tx power.
newPower	Actual Tx power.
dest	Destination of the transmission.

◆ RateCallback() [1/2]

void NodeStatistics::RateCallback	(	std::string	path,
		DataRate	oldRate,
		DataRate	newRate,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/RateChange.

Parameters

path	The trace path.
oldRate	Old rate.
newRate	Actual rate.
dest	Destination of the transmission.

Definition at line 299 of file wifi-power-adaptation-distance.cc.

References m_currentRate.

◆ RateCallback() [2/2]

void NodeStatistics::RateCallback	(	std::string	path,
		DataRate	oldRate,
		DataRate	newRate,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/RateChange.

Parameters

path	The trace path.
oldRate	Old rate.
newRate	Actual rate.
dest	Destination of the transmission.

◆ RxCallback() [1/3]

void NodeStatistics::RxCallback	(	std::string	path,
		Ptr< const Packet >	packet,
		const Address &	from
	)

Callback called by PacketSink/Rx.

Parameters

path	The trace path.
packet	The received packet.
from	The sender address.

Definition at line 308 of file wifi-power-adaptation-distance.cc.

References m_bytesTotal.

◆ RxCallback() [2/3]

void NodeStatistics::RxCallback	(	std::string	path,
		Ptr< const Packet >	packet,
		const Address &	from
	)

Callback called by PacketSink/Rx.

Parameters

path	The trace path.
packet	The received packet.
from	The sender address.

◆ RxCallback() [3/3]

void NodeStatistics::RxCallback	(	std::string	path,
		Ptr< const Packet >	packet,
		const Address &	from
	)

RX callback.

Parameters

path	path
packet	received packet
from	sender

◆ SetPosition() [1/2]

void NodeStatistics::SetPosition	(	Ptr< Node >	node,
		Vector	position
	)

Set the Position of a node.

Parameters

node	The node.
position	The position.

Definition at line 314 of file wifi-power-adaptation-distance.cc.

Referenced by AdvancePosition().

Here is the caller graph for this function:

◆ SetPosition() [2/2]

void NodeStatistics::SetPosition	(	Ptr< Node >	node,
		Vector	position
	)

Set node position.

Parameters

node	the node
position	the position

◆ SetupPhy() [1/2]

void NodeStatistics::SetupPhy ( Ptr< WifiPhy > phy )

private

Setup the WifiPhy object.

Parameters

phy	The WifiPhy to setup.

Definition at line 248 of file wifi-power-adaptation-distance.cc.

References ns3::Time::GetSeconds(), m_timeTable, NS_LOG_DEBUG, packetSize, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetPreambleType(), and ns3::WIFI_PREAMBLE_LONG.

Referenced by NodeStatistics().

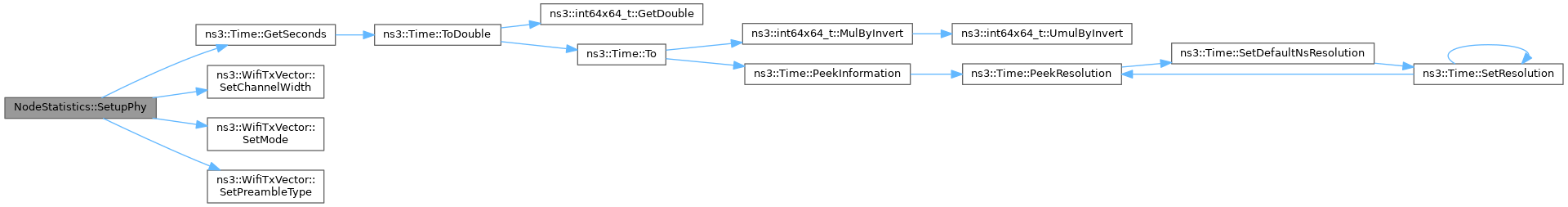

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupPhy() [2/2]

void NodeStatistics::SetupPhy ( Ptr< WifiPhy > phy )

private

Setup the WifiPhy object.

Parameters

phy	The WifiPhy to setup.

◆ StateCallback()

void NodeStatistics::StateCallback	(	std::string	path,
		Time	init,
		Time	duration,
		WifiPhyState	state
	)

Callback called by YansWifiPhy/State/State.

Parameters

path	The trace path.
init	Time when the state started.
duration	Amount of time we've been in (or will be in) the state.
state	The state.

Definition at line 329 of file wifi-power-adaptation-interference.cc.

References busyTime, ns3::Time::GetSeconds(), idleTime, m_totalBusyTime, m_totalIdleTime, m_totalRxTime, m_totalTxTime, rxTime, and txTime.

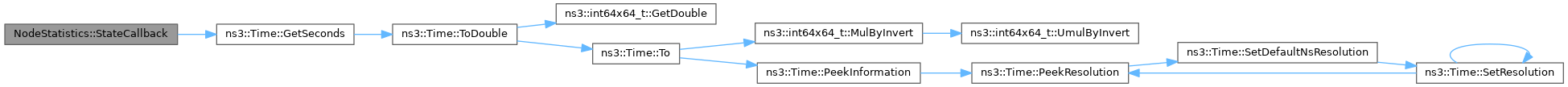

Here is the call graph for this function:

Member Data Documentation

◆ busyTime

double NodeStatistics::busyTime

private

BUSY time.

Definition at line 216 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and StateCallback().

◆ idleTime

double NodeStatistics::idleTime

private

IDLE time.

Definition at line 217 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and StateCallback().

◆ m_bytesTotal

uint32_t NodeStatistics::m_bytesTotal

private

Number of received bytes on a given state.

total bytes

Number of received bytes.

Definition at line 215 of file wifi-power-adaptation-distance.cc.

Referenced by NodeStatistics(), AdvancePosition(), CheckStatistics(), and RxCallback().

◆ m_currentPower

std::map< Mac48Address, double > NodeStatistics::m_currentPower

private

Current Tx power for each sender.

Definition at line 213 of file wifi-power-adaptation-distance.cc.

Referenced by NodeStatistics(), PhyCallback(), and PowerCallback().

◆ m_currentRate

std::map< Mac48Address, DataRate > NodeStatistics::m_currentRate

private

Current Tx rate for each sender.

Definition at line 214 of file wifi-power-adaptation-distance.cc.

Referenced by NodeStatistics(), PhyCallback(), and RateCallback().

◆ m_output

Gnuplot2dDataset NodeStatistics::m_output

private

Throughput output data.

gnuplot 2d dataset

Definition at line 219 of file wifi-power-adaptation-distance.cc.

Referenced by NodeStatistics(), AdvancePosition(), CheckStatistics(), and GetDatafile().

◆ m_output_busy

Gnuplot2dDataset NodeStatistics::m_output_busy

private

BUSY output data.

Definition at line 228 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and GetBusyDatafile().

◆ m_output_idle

Gnuplot2dDataset NodeStatistics::m_output_idle

private

IDLE output data.

Definition at line 227 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and GetIdleDatafile().

◆ m_output_power

Gnuplot2dDataset NodeStatistics::m_output_power

private

Power output data.

Definition at line 220 of file wifi-power-adaptation-distance.cc.

Referenced by NodeStatistics(), AdvancePosition(), CheckStatistics(), and GetPowerDatafile().

◆ m_output_rx

Gnuplot2dDataset NodeStatistics::m_output_rx

private

RX output data.

Definition at line 229 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and GetRxDatafile().

◆ m_output_tx

Gnuplot2dDataset NodeStatistics::m_output_tx

private

TX output data.

Definition at line 230 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and GetTxDatafile().

◆ m_timeTable

TxTime NodeStatistics::m_timeTable

private

Time, DataRate table.

Definition at line 218 of file wifi-power-adaptation-distance.cc.

Referenced by GetCalcTxTime(), and SetupPhy().

◆ m_totalBusyTime

double NodeStatistics::m_totalBusyTime

private

Total time in BUSY state.

Definition at line 220 of file wifi-power-adaptation-interference.cc.

Referenced by GetBusyTime(), and StateCallback().

◆ m_totalEnergy

double NodeStatistics::m_totalEnergy

private

Energy used on a given state.

Energy used.

Definition at line 216 of file wifi-power-adaptation-distance.cc.

Referenced by NodeStatistics(), AdvancePosition(), CheckStatistics(), and PhyCallback().

◆ m_totalIdleTime

double NodeStatistics::m_totalIdleTime

private

Total time in IDLE state.

Definition at line 221 of file wifi-power-adaptation-interference.cc.

Referenced by StateCallback().

◆ m_totalRxTime

double NodeStatistics::m_totalRxTime

private

Total time in RX state.

Definition at line 223 of file wifi-power-adaptation-interference.cc.

Referenced by GetBusyTime(), and StateCallback().

◆ m_totalTime

double NodeStatistics::m_totalTime

private

Time spent on a given state.

Time spent.

Definition at line 217 of file wifi-power-adaptation-distance.cc.

Referenced by NodeStatistics(), AdvancePosition(), CheckStatistics(), and PhyCallback().

◆ m_totalTxTime

double NodeStatistics::m_totalTxTime

private

Total time in TX state.

Definition at line 222 of file wifi-power-adaptation-interference.cc.

Referenced by StateCallback().

◆ rxTime

double NodeStatistics::rxTime

private

RX time.

Definition at line 219 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and StateCallback().

◆ txTime

double NodeStatistics::txTime

private

TX time.

Definition at line 218 of file wifi-power-adaptation-interference.cc.

Referenced by CheckStatistics(), and StateCallback().

The documentation for this class was generated from the following files:

examples/wireless/wifi-power-adaptation-distance.cc
examples/wireless/wifi-power-adaptation-interference.cc
examples/wireless/wifi-rate-adaptation-distance.cc

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ TxTime [1/2]

◆ TxTime [2/2]

Constructor & Destructor Documentation

◆ NodeStatistics() [1/3]

◆ NodeStatistics() [2/3]

◆ NodeStatistics() [3/3]

Member Function Documentation

◆ AdvancePosition() [1/2]

◆ AdvancePosition() [2/2]

◆ CheckStatistics()

◆ GetBusyDatafile()

◆ GetBusyTime()

◆ GetCalcTxTime() [1/2]

◆ GetCalcTxTime() [2/2]

◆ GetDatafile() [1/3]

◆ GetDatafile() [2/3]

◆ GetDatafile() [3/3]

◆ GetIdleDatafile()

◆ GetPosition() [1/2]

◆ GetPosition() [2/2]

◆ GetPowerDatafile() [1/2]

◆ GetPowerDatafile() [2/2]

◆ GetRxDatafile()

◆ GetTxDatafile()

◆ PhyCallback() [1/2]

◆ PhyCallback() [2/2]

◆ PowerCallback() [1/2]

◆ PowerCallback() [2/2]

◆ RateCallback() [1/2]

◆ RateCallback() [2/2]

◆ RxCallback() [1/3]

◆ RxCallback() [2/3]

◆ RxCallback() [3/3]

◆ SetPosition() [1/2]

◆ SetPosition() [2/2]

◆ SetupPhy() [1/2]

◆ SetupPhy() [2/2]

◆ StateCallback()

Member Data Documentation

◆ busyTime

◆ idleTime

◆ m_bytesTotal

◆ m_currentPower

◆ m_currentRate

◆ m_output

◆ m_output_busy

◆ m_output_idle

◆ m_output_power

◆ m_output_rx

◆ m_output_tx

◆ m_timeTable

◆ m_totalBusyTime

◆ m_totalEnergy

◆ m_totalIdleTime

◆ m_totalRxTime

◆ m_totalTime

◆ m_totalTxTime

◆ rxTime

◆ txTime
