Test the WifiPhyOperatingChannel::Get20MHzIndicesCoveringRu() method. More...

Inheritance diagram for Wifi20MHzIndicesCoveringRuTest:

Collaboration diagram for Wifi20MHzIndicesCoveringRuTest:

Public Member Functions
	Wifi20MHzIndicesCoveringRuTest ()
	Constructor.

	~Wifi20MHzIndicesCoveringRuTest () override=default

void	RunOne (uint8_t primary20, HeRu::RuSpec ru, uint16_t width, const std::set< uint8_t > &indices)
	Check that the indices of the 20 MHz channels covering the given RU as computed by WifiPhyOperatingChannel::Get20MHzIndicesCoveringRu() are correct.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase.

Private Attributes
WifiPhyOperatingChannel	m_channel
	operating channel

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Test the WifiPhyOperatingChannel::Get20MHzIndicesCoveringRu() method.

Definition at line 33 of file wifi-ru-allocation-test.cc.

Constructor & Destructor Documentation

◆ Wifi20MHzIndicesCoveringRuTest()

Wifi20MHzIndicesCoveringRuTest::Wifi20MHzIndicesCoveringRuTest ( )

Constructor.

Definition at line 63 of file wifi-ru-allocation-test.cc.

◆ ~Wifi20MHzIndicesCoveringRuTest()

Wifi20MHzIndicesCoveringRuTest::~Wifi20MHzIndicesCoveringRuTest ( )

overridedefault

Member Function Documentation

◆ DoRun()

void Wifi20MHzIndicesCoveringRuTest::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 97 of file wifi-ru-allocation-test.cc.

References m_channel, ns3::HeRu::RU_106_TONE, ns3::HeRu::RU_242_TONE, ns3::HeRu::RU_26_TONE, ns3::HeRu::RU_2x996_TONE, ns3::HeRu::RU_484_TONE, ns3::HeRu::RU_52_TONE, ns3::HeRu::RU_996_TONE, RunOne(), ns3::WifiPhyOperatingChannel::SetDefault(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_STANDARD_80211ax.

Here is the call graph for this function:

◆ RunOne()

void Wifi20MHzIndicesCoveringRuTest::RunOne	(	uint8_t	primary20,
		HeRu::RuSpec	ru,
		uint16_t	width,
		const std::set< uint8_t > &	indices
	)

Check that the indices of the 20 MHz channels covering the given RU as computed by WifiPhyOperatingChannel::Get20MHzIndicesCoveringRu() are correct.

Parameters

primary20	the index of the primary20 channel to configure
ru	the given RU
width	the width in MHz of the channel to which the given RU refers to; normally, it is the width in MHz of the PPDU for which the RU is allocated
indices	the expected indices

Definition at line 69 of file wifi-ru-allocation-test.cc.

References ns3::WifiPhyOperatingChannel::Get20MHzIndicesCoveringRu(), ns3::WifiPhyOperatingChannel::GetWidth(), m_channel, NS_TEST_ASSERT_MSG_EQ, and ns3::WifiPhyOperatingChannel::SetPrimary20Index().

Referenced by DoRun().

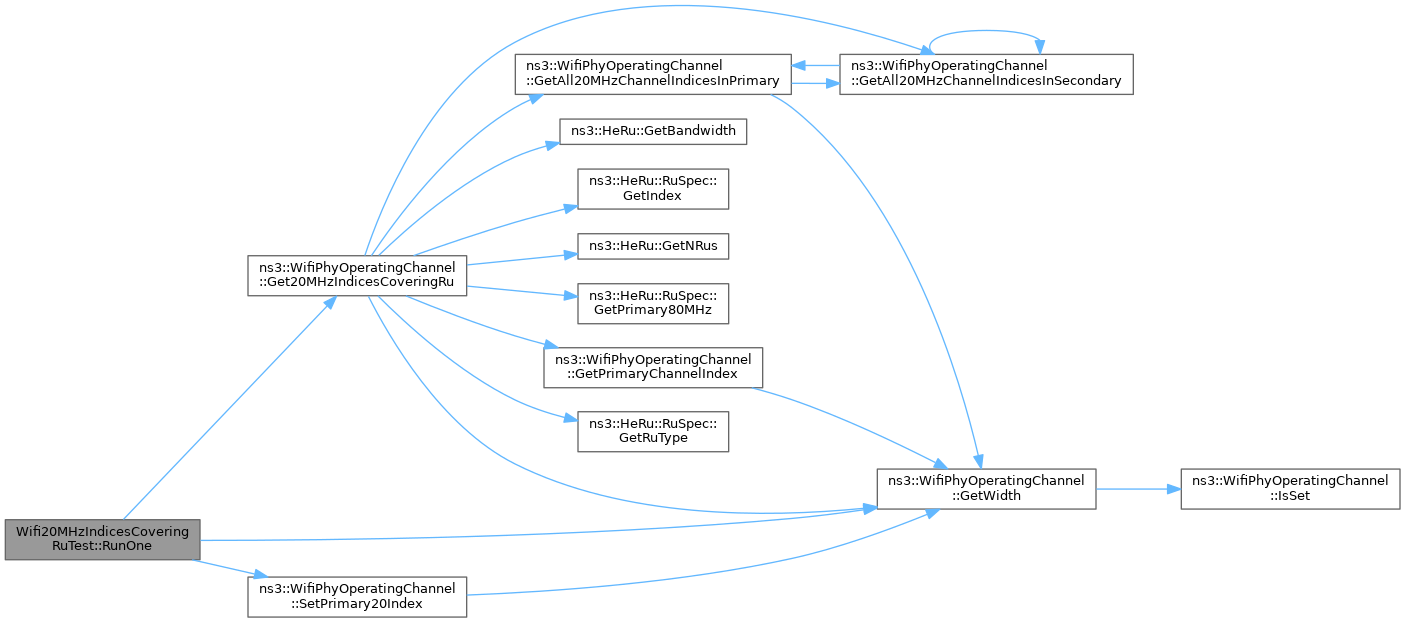

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_channel

WifiPhyOperatingChannel Wifi20MHzIndicesCoveringRuTest::m_channel

private

operating channel

Definition at line 60 of file wifi-ru-allocation-test.cc.

Referenced by DoRun(), and RunOne().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-ru-allocation-test.cc
