SpectrumIdealPhyTestCase Class Reference

Ideal Spectrum PHY Test. More...

Inheritance diagram for SpectrumIdealPhyTestCase:

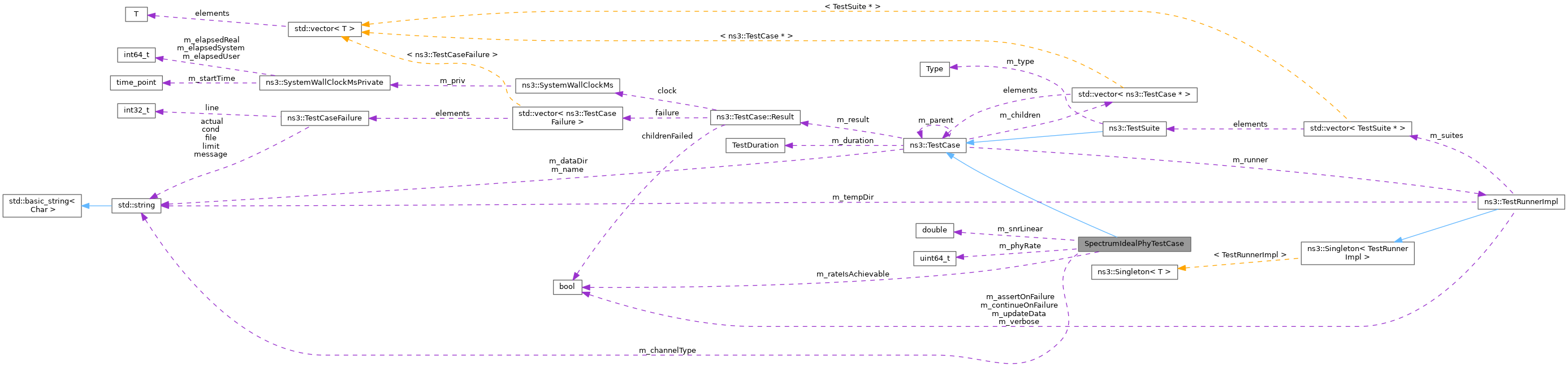

Collaboration diagram for SpectrumIdealPhyTestCase:

Public Member Functions
	SpectrumIdealPhyTestCase (double snrLinear, uint64_t phyRate, bool rateIsAchievable, std::string channelType)
	Constructor.
	~SpectrumIdealPhyTestCase () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor.
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase.

Static Private Member Functions
static std::string	Name (std::string channelType, double snrLinear, uint64_t phyRate)
	Get the test name.

Private Attributes
std::string	m_channelType
	Channel type.
uint64_t	m_phyRate
	PHY rate (bps)
bool	m_rateIsAchievable
	Check if the rate is achievable.
double	m_snrLinear
	SNR (linear)

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.
TestCase *	GetParent () const
	Get the parent of this TestCase.
bool	IsStatusFailure () const
	Check if any tests failed.
bool	IsStatusSuccess () const
	Check if all tests passed.
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.
bool	MustAssertOnFailure () const
	Check if this run should assert on failure.
bool	MustContinueOnFailure () const
	Check if this run should continue on failure.
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

Ideal Spectrum PHY Test.

Definition at line 70 of file spectrum-ideal-phy-test.cc.

Constructor & Destructor Documentation

SpectrumIdealPhyTestCase()

SpectrumIdealPhyTestCase::SpectrumIdealPhyTestCase	(	double	snrLinear,
		uint64_t	phyRate,
		bool	rateIsAchievable,
		std::string	channelType
	)

Constructor.

Parameters

snrLinear	SNR (linear)
phyRate	PHY rate (bps)
rateIsAchievable	Check if the rate is achievable
channelType	Channel type

Definition at line 112 of file spectrum-ideal-phy-test.cc.

~SpectrumIdealPhyTestCase()

SpectrumIdealPhyTestCase::~SpectrumIdealPhyTestCase ( )

override

Definition at line 124 of file spectrum-ideal-phy-test.cc.

Member Function Documentation

DoRun()

void SpectrumIdealPhyTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 129 of file spectrum-ideal-phy-test.cc.

References ns3::Node::AddApplication(), ns3::SpectrumChannelHelper::AddPropagationLoss(), ns3::Config::Connect(), ns3::SpectrumChannelHelper::Create(), ns3::NodeContainer::Create(), ns3::SpectrumValue5MhzFactory::CreateConstant(), ns3::SpectrumValue5MhzFactory::CreateTxPowerSpectralDensity(), ns3::Simulator::Destroy(), g_bandwidth, g_rxBytes, ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::AdhocAlohaNoackIdealPhyHelper::Install(), ns3::PacketSocketHelper::Install(), m_channelType, m_phyRate, m_rateIsAchievable, m_snrLinear, ns3::MakeCallback(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_EQ_TOL, PhyRxEndOkTrace(), pktSize, ns3::Simulator::Run(), ns3::Seconds(), ns3::AdhocAlohaNoackIdealPhyHelper::SetChannel(), ns3::SpectrumChannelHelper::SetChannel(), ns3::AdhocAlohaNoackIdealPhyHelper::SetNoisePowerSpectralDensity(), ns3::AdhocAlohaNoackIdealPhyHelper::SetPhyAttribute(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::SpectrumChannelHelper::SetPropagationDelay(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketAddress::SetSingleDevice(), ns3::AdhocAlohaNoackIdealPhyHelper::SetTxPowerSpectralDensity(), and ns3::Simulator::Stop().

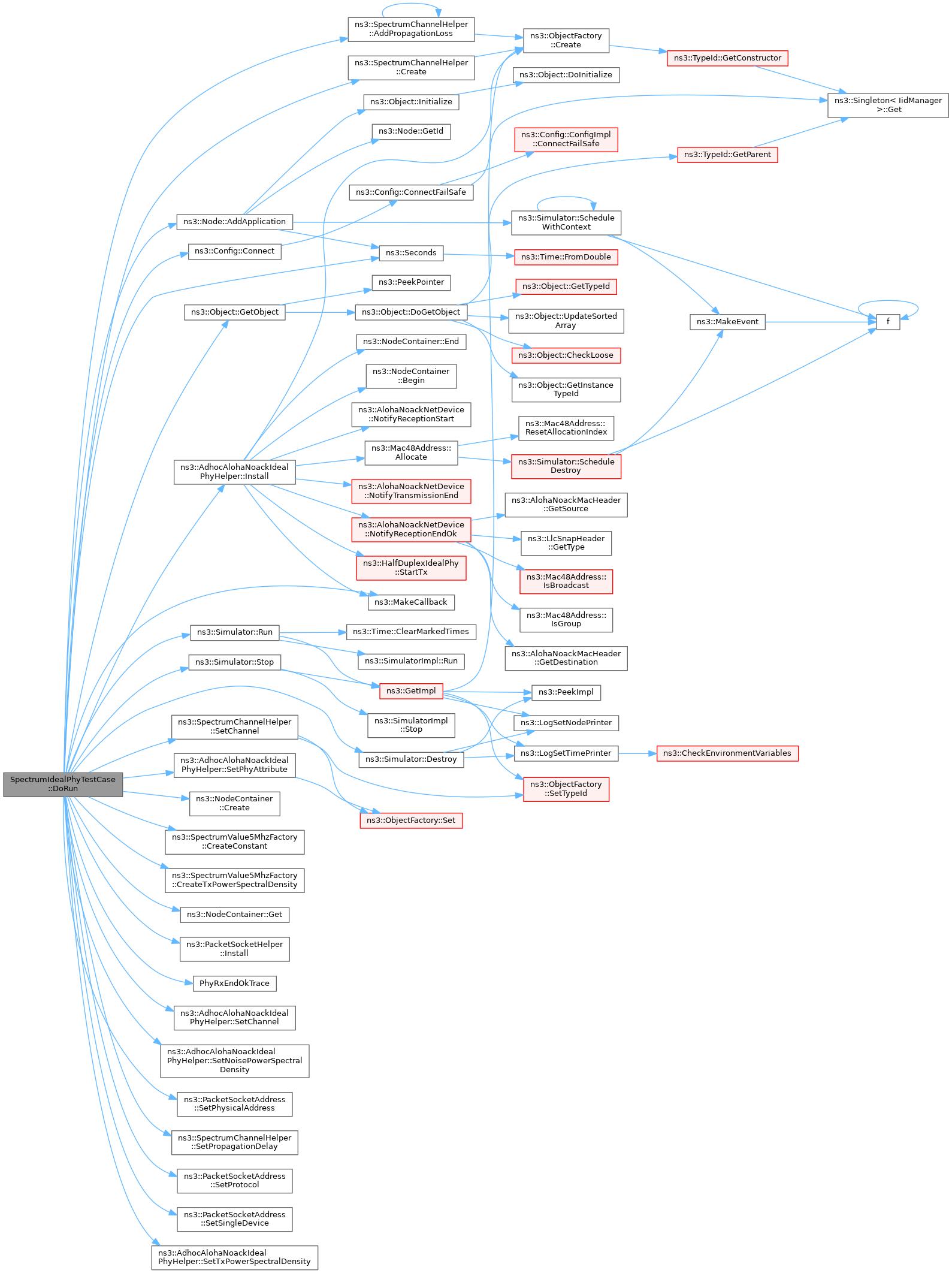

Here is the call graph for this function:

Name()

std::string SpectrumIdealPhyTestCase::Name ( std::string  channelType, double  snrLinear, uint64_t  phyRate  )

staticprivate

Get the test name.

Parameters

channelType	Channel type
snrLinear	SNR (linear)
phyRate	PHY rate (bps)

Returns

the test name

Definition at line 104 of file spectrum-ideal-phy-test.cc.

Member Data Documentation

m_channelType

std::string SpectrumIdealPhyTestCase::m_channelType

private

Channel type.

Definition at line 100 of file spectrum-ideal-phy-test.cc.

Referenced by DoRun().

m_phyRate

uint64_t SpectrumIdealPhyTestCase::m_phyRate

private

PHY rate (bps)

Definition at line 98 of file spectrum-ideal-phy-test.cc.

Referenced by DoRun().

m_rateIsAchievable

bool SpectrumIdealPhyTestCase::m_rateIsAchievable

private

Check if the rate is achievable.

Definition at line 99 of file spectrum-ideal-phy-test.cc.

Referenced by DoRun().

m_snrLinear

double SpectrumIdealPhyTestCase::m_snrLinear

private

SNR (linear)

Definition at line 97 of file spectrum-ideal-phy-test.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/spectrum/test/spectrum-ideal-phy-test.cc
