lr-wpan-data.cc File Reference

#include <ns3/constant-position-mobility-model.h>
#include <ns3/core-module.h>
#include <ns3/log.h>
#include <ns3/lr-wpan-module.h>
#include <ns3/packet.h>
#include <ns3/propagation-delay-model.h>
#include <ns3/propagation-loss-model.h>
#include <ns3/simulator.h>
#include <ns3/single-model-spectrum-channel.h>
#include <iostream>

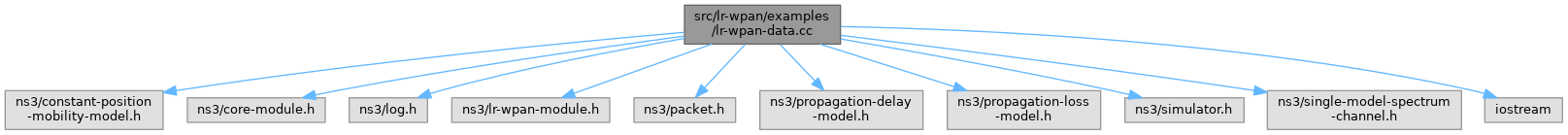

Include dependency graph for lr-wpan-data.cc:

Go to the source code of this file.

Functions
static void	DataConfirm (McpsDataConfirmParams params)
	Function called when a Data confirm is invoked.
static void	DataIndication (McpsDataIndicationParams params, Ptr< Packet > p)
	Function called when a Data indication is invoked.
static void	StateChangeNotification (std::string context, Time now, LrWpanPhyEnumeration oldState, LrWpanPhyEnumeration newState)
	Function called when a the PHY state changes.

Detailed Description

Usage

$ ./ns3 run "lr-wpan-data [Program Options]"

Program Options

--verbose

turn on all log components [false]

--extended

use extended addressing [false]

Definition in file lr-wpan-data.cc.

Function Documentation

DataConfirm()

static void DataConfirm ( McpsDataConfirmParams  params )

static

Function called when a Data confirm is invoked.

Parameters

params

MCPS data confirm parameters

Definition at line 57 of file lr-wpan-data.cc.

References NS_LOG_UNCOND.

DataIndication()

static void DataIndication ( McpsDataIndicationParams  params, Ptr< Packet >  p  )

static

Function called when a Data indication is invoked.

Parameters

params	MCPS data indication parameters
p	packet

Definition at line 47 of file lr-wpan-data.cc.

References NS_LOG_UNCOND.

StateChangeNotification()

static void StateChangeNotification ( std::string  context, Time  now, LrWpanPhyEnumeration  oldState, LrWpanPhyEnumeration  newState  )

static

Function called when a the PHY state changes.

Parameters

context	context
now	time at which the function is called
oldState	old PHY state
newState	new PHY state

Definition at line 70 of file lr-wpan-data.cc.

References ns3::Time::As(), ns3::LrWpanHelper::LrWpanPhyEnumerationPrinter(), NS_LOG_UNCOND, and ns3::Time::S.

Here is the call graph for this function:
