BoxLineIntersectionTestCase Class Reference

TestCase to check the box line intersection. More...

#include "box-line-intersection-test.h"

Inheritance diagram for BoxLineIntersectionTestCase:

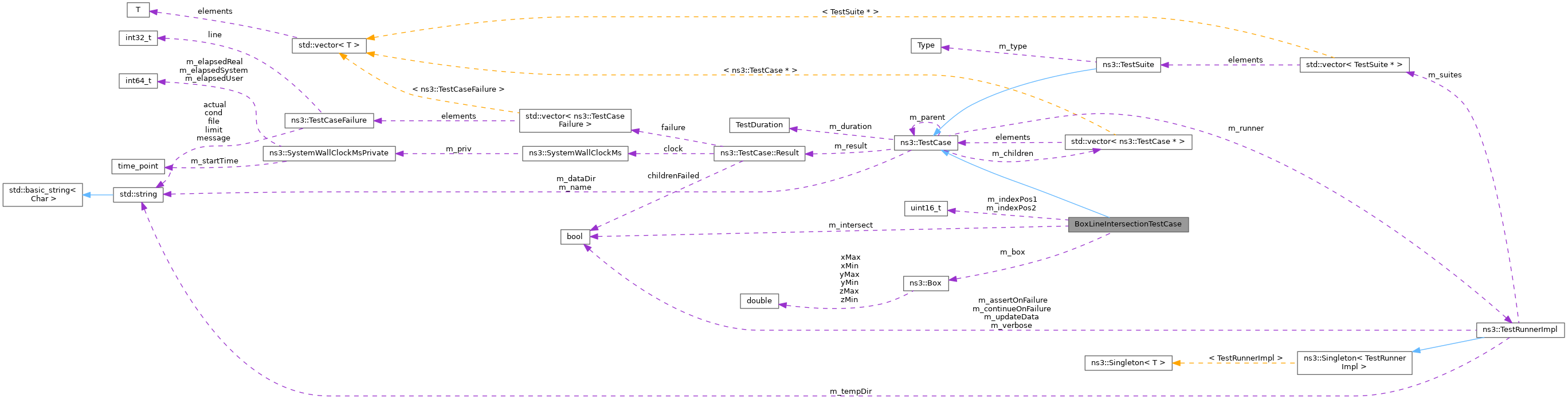

Collaboration diagram for BoxLineIntersectionTestCase:

Public Member Functions
	BoxLineIntersectionTestCase (uint16_t indexPos1, uint16_t indexPos2, Box box, bool intersect)
	Create BoxLineIntersectionTestCase.
	~BoxLineIntersectionTestCase () override
	Destructor.
std::string	BuildNameString (uint16_t indexPos1, uint16_t indexPos2, Box box, bool intersect)
	Builds the test name string based on provided parameter values.
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor.
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
Vector	CreatePosition (uint16_t index, double boxHeight)
	Create the position as per the given index.
void	DoRun () override
	Setup the simulation according to the configuration set by the class constructor, run it, and verify the result.

Private Attributes
Box	m_box
	The box to check the intersection with.
uint16_t	m_indexPos1 {0}
	First position index.
uint16_t	m_indexPos2 {0}
	Second position index.
bool	m_intersect {false}
	Flag to indicate the intersection.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.
TestCase *	GetParent () const
	Get the parent of this TestCase.
bool	IsStatusFailure () const
	Check if any tests failed.
bool	IsStatusSuccess () const
	Check if all tests passed.
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.
bool	MustAssertOnFailure () const
	Check if this run should assert on failure.
bool	MustContinueOnFailure () const
	Check if this run should continue on failure.
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

TestCase to check the box line intersection.

Definition at line 45 of file box-line-intersection-test.h.

Constructor & Destructor Documentation

BoxLineIntersectionTestCase()

BoxLineIntersectionTestCase::BoxLineIntersectionTestCase	(	uint16_t	indexPos1,
		uint16_t	indexPos2,
		Box	box,
		bool	intersect
	)

Create BoxLineIntersectionTestCase.

TestCase.

Parameters

indexPos1	Index of the first position to generate
indexPos2	Index of the second position to generate
box	The 3D box
intersect	The expected result of the test. True for intersection, false otherwise

Definition at line 75 of file box-line-intersection-test.cc.

~BoxLineIntersectionTestCase()

BoxLineIntersectionTestCase::~BoxLineIntersectionTestCase ( )

override

Destructor.

Definition at line 87 of file box-line-intersection-test.cc.

Member Function Documentation

BuildNameString()

std::string BoxLineIntersectionTestCase::BuildNameString	(	uint16_t	indexPos1,
		uint16_t	indexPos2,
		Box	box,
		bool	intersect
	)

Builds the test name string based on provided parameter values.

Parameters

indexPos1	Index of the first position to generate
indexPos2	Index of the second position to generate
box	The 3D box
intersect	The expected result of the test. True for intersection, false otherwise

Returns

The name string

Definition at line 92 of file box-line-intersection-test.cc.

References ns3::Box::xMax, ns3::Box::xMin, ns3::Box::yMax, ns3::Box::yMin, ns3::Box::zMax, and ns3::Box::zMin.

CreatePosition()

Vector BoxLineIntersectionTestCase::CreatePosition ( uint16_t  index, double  boxHeight  )

private

Create the position as per the given index.

Parameters

index	The index of the position to be created
boxHeight	The height if the box. It is used to place the position above the height of the box

Returns

The ns-3 3D Vector specifying the position

Definition at line 121 of file box-line-intersection-test.cc.

References NS_FATAL_ERROR.

Referenced by DoRun().

Here is the caller graph for this function:

DoRun()

void BoxLineIntersectionTestCase::DoRun ( )

overrideprivatevirtual

Setup the simulation according to the configuration set by the class constructor, run it, and verify the result.

Implements ns3::TestCase.

Definition at line 107 of file box-line-intersection-test.cc.

References CreatePosition(), ns3::Simulator::Destroy(), ns3::Box::IsIntersect(), m_box, m_indexPos1, m_indexPos2, m_intersect, NS_TEST_ASSERT_MSG_EQ, ns3::Box::zMax, and ns3::Box::zMin.

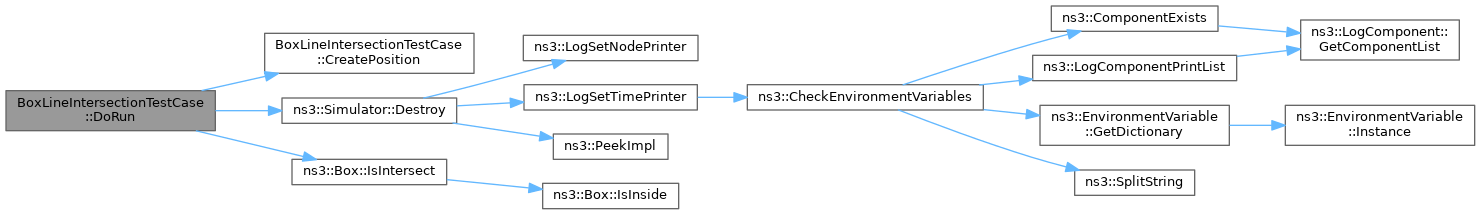

Here is the call graph for this function:

Member Data Documentation

m_box

Box BoxLineIntersectionTestCase::m_box

private

The box to check the intersection with.

Definition at line 91 of file box-line-intersection-test.h.

Referenced by DoRun().

m_indexPos1

uint16_t BoxLineIntersectionTestCase::m_indexPos1 {0}

private

First position index.

Definition at line 89 of file box-line-intersection-test.h.

Referenced by DoRun().

m_indexPos2

uint16_t BoxLineIntersectionTestCase::m_indexPos2 {0}

private

Second position index.

Definition at line 90 of file box-line-intersection-test.h.

Referenced by DoRun().

m_intersect

bool BoxLineIntersectionTestCase::m_intersect {false}

private

Flag to indicate the intersection.

True, for intersection, false otherwise.

Definition at line 92 of file box-line-intersection-test.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/mobility/test/box-line-intersection-test.h
• src/mobility/test/box-line-intersection-test.cc
