Base class providing common user-level ascii trace operations for helpers representing net devices. More...
#include <trace-helper.h>
Public Member Functions | |
AsciiTraceHelperForDevice () | |
Construct an AsciiTraceHelperForDevice. | |
virtual | ~AsciiTraceHelperForDevice () |
Destroy an AsciiTraceHelperForDevice. | |
virtual void | EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)=0 |
Enable ascii trace output on the indicated net device. | |
void | EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false) |
Enable ascii trace output on the indicated net device. | |
void | EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd) |
Enable ascii trace output on the indicated net device. | |
void | EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false) |
Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. | |
void | EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName) |
Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. | |
void | EnableAscii (std::string prefix, NetDeviceContainer d) |
Enable ascii trace output on each device in the container which is of the appropriate type. | |
void | EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d) |
Enable ascii trace output on each device in the container which is of the appropriate type. | |
void | EnableAscii (std::string prefix, NodeContainer n) |
Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. | |
void | EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n) |
Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. | |
void | EnableAsciiAll (std::string prefix) |
Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. | |
void | EnableAsciiAll (Ptr< OutputStreamWrapper > stream) |
Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. | |
void | EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename) |
Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. | |
void | EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid) |
Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. |

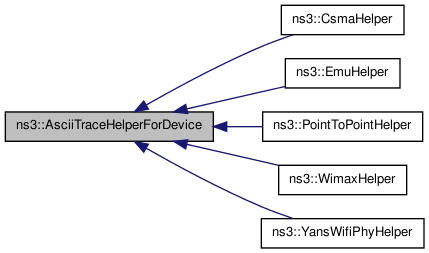

Base class providing common user-level ascii trace operations for helpers representing net devices.
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | std::string | prefix, | |
Ptr< NetDevice > | nd, | |||
bool | explicitFilename = false | |||
) |
Enable ascii trace output on the indicated net device.
prefix | Filename prefix to use for ascii files. | |
nd | Net device for which you want to enable tracing. | |
explicitFilename | Treat the prefix as an explicit filename if true |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | Ptr< OutputStreamWrapper > | stream, | |
uint32_t | nodeid, | |||
uint32_t | deviceid | |||
) |
Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.
stream | An OutputStreamWrapper representing an existing file to use when writing trace data. | |
nodeid | The node identifier/number of the node on which to enable ascii tracing | |
deviceid | The device identifier/index of the device on which to enable ascii tracing |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | std::string | prefix, | |
uint32_t | nodeid, | |||
uint32_t | deviceid, | |||
bool | explicitFilename | |||
) |
Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id.
prefix | Filename prefix to use when creating ascii trace files | |
nodeid | The node identifier/number of the node on which to enable ascii tracing | |
deviceid | The device identifier/index of the device on which to enable ascii tracing | |
explicitFilename | Treat the prefix as an explicit filename if true |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | std::string | prefix, | |
std::string | ndName, | |||
bool | explicitFilename = false | |||
) |
Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.
prefix | filename prefix to use for ascii files. | |
ndName | The name of the net device in which you want to enable tracing. | |
explicitFilename | Treat the prefix as an explicit filename if true |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | std::string | prefix, | |
NodeContainer | n | |||
) |
Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.
prefix | Filename prefix to use for ascii files. | |
n | container of nodes. |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | Ptr< OutputStreamWrapper > | stream, | |
NodeContainer | n | |||
) |
Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container.
stream | An OutputStreamWrapper representing an existing file to use when writing trace data. | |
n | container of nodes. |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | Ptr< OutputStreamWrapper > | stream, | |
std::string | ndName | |||
) |
Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.
stream | An OutputStreamWrapper representing an existing file to use when writing trace data. | |
ndName | The name of the net device in which you want to enable tracing. |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | Ptr< OutputStreamWrapper > | stream, | |
NetDeviceContainer | d | |||
) |
Enable ascii trace output on each device in the container which is of the appropriate type.
stream | An OutputStreamWrapper representing an existing file to use when writing trace data. | |
d | container of devices of type ns3::CsmaNetDevice |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | std::string | prefix, | |
NetDeviceContainer | d | |||
) |
Enable ascii trace output on each device in the container which is of the appropriate type.
prefix | Filename prefix to use for ascii files. | |
d | container of devices of type ns3::CsmaNetDevice |
void ns3::AsciiTraceHelperForDevice::EnableAscii | ( | Ptr< OutputStreamWrapper > | stream, | |
Ptr< NetDevice > | nd | |||
) |
Enable ascii trace output on the indicated net device.
stream | An OutputStreamWrapper representing an existing file to use when writing trace data. | |
nd | Net device for which you want to enable tracing. |
void ns3::AsciiTraceHelperForDevice::EnableAsciiAll | ( | std::string | prefix | ) |
Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.
prefix | Filename prefix to use for ascii files. |
void ns3::AsciiTraceHelperForDevice::EnableAsciiAll | ( | Ptr< OutputStreamWrapper > | stream | ) |
Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.
stream | An OutputStreamWrapper representing an existing file to use when writing trace data. |
