ns3::CsmaNetDevice Class Reference

A Device for a Csma Network Link. More...

#include <csma-net-device.h>

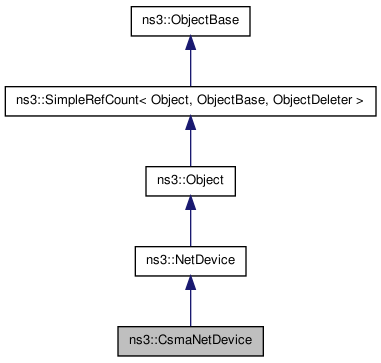

Inheritance diagram for ns3::CsmaNetDevice:
Inheritance graph
[legend]

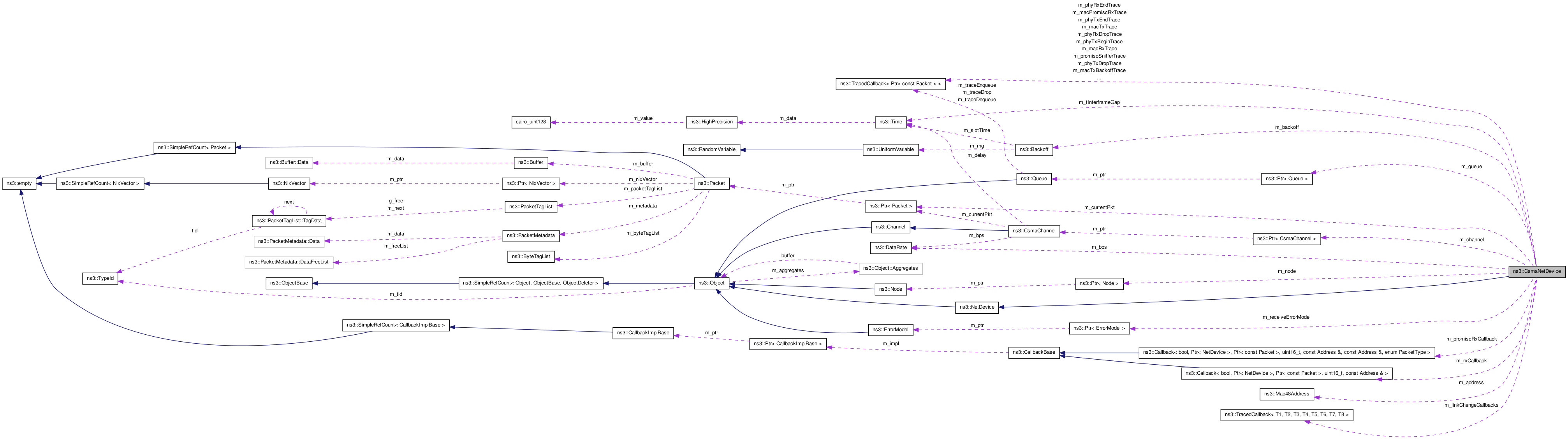

Collaboration diagram for ns3::CsmaNetDevice:
Collaboration graph
[legend]

List of all members.

Public Types

enum  EncapsulationMode { ILLEGAL, DIX, LLC }

Public Member Functions

 CsmaNetDevice ()
virtual ~CsmaNetDevice ()
void SetInterframeGap (Time t)
void SetBackoffParams (Time slotTime, uint32_t minSlots, uint32_t maxSlots, uint32_t maxRetries, uint32_t ceiling)
bool Attach (Ptr< CsmaChannel > ch)
void SetQueue (Ptr< Queue > queue)
Ptr< Queue > GetQueue (void) const
void SetReceiveErrorModel (Ptr< ErrorModel > em)
void Receive (Ptr< Packet > p, Ptr< CsmaNetDevice > sender)
bool IsSendEnabled (void)
void SetSendEnable (bool enable)
bool IsReceiveEnabled (void)
void SetReceiveEnable (bool enable)
void SetEncapsulationMode (CsmaNetDevice::EncapsulationMode mode)
CsmaNetDevice::EncapsulationMode GetEncapsulationMode (void)
virtual void SetIfIndex (const uint32_t index)
virtual uint32_t GetIfIndex (void) const
virtual Ptr< Channel > GetChannel (void) const
virtual bool SetMtu (const uint16_t mtu)
virtual uint16_t GetMtu (void) const
virtual void SetAddress (Address address)
virtual Address GetAddress (void) const
virtual bool IsLinkUp (void) const
virtual void AddLinkChangeCallback (Callback< void > callback)
virtual bool IsBroadcast (void) const
virtual Address GetBroadcast (void) const
virtual bool IsMulticast (void) const
virtual Address GetMulticast (Ipv4Address multicastGroup) const
 Make and return a MAC multicast address using the provided multicast group.
virtual bool IsPointToPoint (void) const
virtual bool IsBridge (void) const
virtual bool Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual bool SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual Ptr< Node > GetNode (void) const
virtual void SetNode (Ptr< Node > node)
virtual bool NeedsArp (void) const
virtual void SetReceiveCallback (NetDevice::ReceiveCallback cb)
virtual Address GetMulticast (Ipv6Address addr) const
 Get the MAC multicast address corresponding to the IPv6 address provided.
virtual void SetPromiscReceiveCallback (PromiscReceiveCallback cb)
virtual bool SupportsSendFrom (void) const

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::CsmaNetDevice.

Protected Member Functions

virtual void DoDispose (void)
void AddHeader (Ptr< Packet > p, Mac48Address source, Mac48Address dest, uint16_t protocolNumber)

Detailed Description

A Device for a Csma Network Link.

The Csma net device class is analogous to layer 1 and 2 of the TCP stack. The NetDevice takes a raw packet of bytes and creates a protocol specific packet from them.

Member Enumeration Documentation

enum ns3::CsmaNetDevice::EncapsulationMode

Enumeration of the types of packets supported in the class.

Enumerator:
ILLEGAL

Encapsulation mode not set

DIX

DIX II / Ethernet II packet

LLC

802.2 LLC/SNAP Packet

Constructor & Destructor Documentation

ns3::CsmaNetDevice::CsmaNetDevice (  )

Construct a CsmaNetDevice

This is the default constructor for a CsmaNetDevice.

virtual ns3::CsmaNetDevice::~CsmaNetDevice (  )  [virtual]

Destroy a CsmaNetDevice

This is the destructor for a CsmaNetDevice.

Member Function Documentation

void ns3::CsmaNetDevice::AddHeader ( Ptr< Packet >  p,
Mac48Address  source,
Mac48Address  dest,
uint16_t  protocolNumber
) [protected]

Adds the necessary headers and trailers to a packet of data in order to respect the packet type

Parameters:
p Packet to which header should be added
source MAC source address from which packet should be sent
dest MAC destination address to which packet should be sent
protocolNumber In some protocols, identifies the type of payload contained in this packet.
virtual void ns3::CsmaNetDevice::AddLinkChangeCallback ( Callback< void >  callback  )  [virtual]
Parameters:
callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

bool ns3::CsmaNetDevice::Attach ( Ptr< CsmaChannel >  ch  )

Attach the device to a channel.

The function Attach is used to add a CsmaNetDevice to a CsmaChannel.

See also:
SetDataRate ()
SetInterframeGap ()
Parameters:
ch a pointer to the channel to which this object is being attached.
virtual void ns3::CsmaNetDevice::DoDispose ( void   )  [protected, virtual]

Perform any object release functionality required to break reference cycles in reference counted objects held by the device.

Reimplemented from ns3::Object.

virtual Address ns3::CsmaNetDevice::GetAddress ( void   )  const [virtual]
Returns:
the current Address of this interface.

Implements ns3::NetDevice.

virtual Address ns3::CsmaNetDevice::GetBroadcast ( void   )  const [virtual]
Returns:
the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

virtual Ptr<Channel> ns3::CsmaNetDevice::GetChannel ( void   )  const [virtual]
Returns:
the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers _must_ check for zero and be ready to handle it.

Implements ns3::NetDevice.

CsmaNetDevice::EncapsulationMode ns3::CsmaNetDevice::GetEncapsulationMode ( void   )

Get the encapsulation mode of this device.

Returns:
The encapsulation mode of this device.
virtual uint32_t ns3::CsmaNetDevice::GetIfIndex ( void   )  const [virtual]
Returns:
index ifIndex of the device

Implements ns3::NetDevice.

virtual uint16_t ns3::CsmaNetDevice::GetMtu ( void   )  const [virtual]
Returns:
the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

virtual Address ns3::CsmaNetDevice::GetMulticast ( Ipv6Address  addr  )  const [virtual]

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters:
addr IPv6 address
Returns:
the MAC multicast address
Warning:
Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

virtual Address ns3::CsmaNetDevice::GetMulticast ( Ipv4Address  multicastGroup  )  const [virtual]

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex).

This method performs the multicast address creation function appropriate to an EUI-48-based CSMA device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact address format.

Parameters:
multicastGroup The IP address for the multicast group destination of the packet.
Returns:
The MAC multicast Address used to send packets to the provided multicast group.
See also:
Ipv4Address
Mac48Address
Address

Implements ns3::NetDevice.

virtual Ptr<Node> ns3::CsmaNetDevice::GetNode ( void   )  const [virtual]

Get the node to which this device is attached.

Returns:
Ptr to the Node to which the device is attached.

Implements ns3::NetDevice.

Ptr<Queue> ns3::CsmaNetDevice::GetQueue ( void   )  const

Get a copy of the attached Queue.

Returns:
a pointer to the queue.
static TypeId ns3::CsmaNetDevice::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::CsmaNetDevice.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::CsmaNetDevice
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::CsmaNetDevice

Attributes defined for this type:

  • Address: The MAC address of this device.
  • Mtu: The MAC-level Maximum Transmission Unit
  • EncapsulationMode: The link-layer encapsulation type to use.
    • Set with class: ns3::EnumValue
    • Underlying type: Dix|Llc
    • Initial value: Dix
    • Flags: construct write
  • SendEnable: Enable or disable the transmitter section of the device.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • ReceiveEnable: Enable or disable the receiver section of the device.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • ReceiveErrorModel: The receiver error model used to simulate packet loss
  • TxQueue: A queue to use as the transmit queue in the device.

TraceSources defined for this type:

  • MacTx: Trace source indicating a packet has arrived for transmission by this device
  • MacTxDrop: Trace source indicating a packet has been dropped by the device before transmission
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
  • MacTxBackoff: Trace source indicating a packet has been delayed by the CSMA backoff process
  • PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel
  • PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel
  • PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
  • PhyRxEnd: Trace source indicating a packet has been completely received by the device
  • PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
  • Sniffer: Trace source simulating a non-promiscuous packet sniffer attached to the device
  • PromiscSniffer: Trace source simulating a promiscuous packet sniffer attached to the device

Reimplemented from ns3::NetDevice.

virtual bool ns3::CsmaNetDevice::IsBridge ( void   )  const [virtual]

Is this a bridge?

Returns:
false.

Implements ns3::NetDevice.

virtual bool ns3::CsmaNetDevice::IsBroadcast ( void   )  const [virtual]
Returns:
true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

virtual bool ns3::CsmaNetDevice::IsLinkUp ( void   )  const [virtual]
Returns:
true if link is up; false otherwise

Implements ns3::NetDevice.

virtual bool ns3::CsmaNetDevice::IsMulticast ( void   )  const [virtual]
Returns:
value of m_isMulticast flag

Implements ns3::NetDevice.

virtual bool ns3::CsmaNetDevice::IsPointToPoint ( void   )  const [virtual]

Is this a point to point link?

Returns:
false.

Implements ns3::NetDevice.

bool ns3::CsmaNetDevice::IsReceiveEnabled ( void   )

Is the receive side of the network device enabled?

Returns:
True if the receiver side is enabled, otherwise false.
bool ns3::CsmaNetDevice::IsSendEnabled ( void   )

Is the send side of the network device enabled?

Returns:
True if the send side is enabled, otherwise false.
virtual bool ns3::CsmaNetDevice::NeedsArp ( void   )  const [virtual]

Does this device need to use the address resolution protocol?

Returns:
True if the encapsulation mode is set to a value that requires ARP (IP_ARP or LLC).

Implements ns3::NetDevice.

void ns3::CsmaNetDevice::Receive ( Ptr< Packet >  p,
Ptr< CsmaNetDevice >  sender
)

Receive a packet from a connected CsmaChannel.

The CsmaNetDevice receives packets from its connected channel and forwards them up the protocol stack. This is the public method used by the channel to indicate that the last bit of a packet has arrived at the device.

See also:
CsmaChannel
Parameters:
p a reference to the received packet
sender the CsmaNetDevice that transmitted the packet in the first place
virtual bool ns3::CsmaNetDevice::Send ( Ptr< Packet >  packet,
const Address &  dest,
uint16_t  protocolNumber
) [virtual]

Start sending a packet down the channel.

Parameters:
packet packet to send
dest layer 2 destination address
protocolNumber protocol number
Returns:
true if successfull, false otherwise (drop, ...)

Implements ns3::NetDevice.

virtual bool ns3::CsmaNetDevice::SendFrom ( Ptr< Packet >  packet,
const Address &  source,
const Address &  dest,
uint16_t  protocolNumber
) [virtual]

Start sending a packet down the channel, with MAC spoofing

Parameters:
packet packet to send
source layer 2 source address
dest layer 2 destination address
protocolNumber protocol number
Returns:
true if successfull, false otherwise (drop, ...)

Implements ns3::NetDevice.

virtual void ns3::CsmaNetDevice::SetAddress ( Address  address  )  [virtual]

Set the address of this interface

Parameters:
address address to set

Implements ns3::NetDevice.

void ns3::CsmaNetDevice::SetBackoffParams ( Time  slotTime,
uint32_t  minSlots,
uint32_t  maxSlots,
uint32_t  maxRetries,
uint32_t  ceiling
)

Set the backoff parameters used to determine the wait to retry transmitting a packet when the channel is busy.

See also:
Attach ()
Parameters:
slotTime Length of a packet slot (or average packet time)
minSlots Minimum number of slots to wait
maxSlots Maximum number of slots to wait
maxRetries Maximum number of retries before packet is discard
ceiling Cap on the exponential function when calculating max slots
void ns3::CsmaNetDevice::SetEncapsulationMode ( CsmaNetDevice::EncapsulationMode  mode  )

Set the encapsulation mode of this device.

Parameters:
mode The encapsulation mode of this device.
virtual void ns3::CsmaNetDevice::SetIfIndex ( const uint32_t  index  )  [virtual]
Parameters:
index ifIndex of the device

Implements ns3::NetDevice.

void ns3::CsmaNetDevice::SetInterframeGap ( Time  t  )

Set the interframe gap used to separate packets. The interframe gap defines the minimum space required between packets sent by this device. As in Ethernet, it defaults to 96 bit times.

Parameters:
t the interframe gap time
virtual bool ns3::CsmaNetDevice::SetMtu ( const uint16_t  mtu  )  [virtual]
Parameters:
mtu MTU value, in bytes, to set for the device
Returns:
whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

virtual void ns3::CsmaNetDevice::SetNode ( Ptr< Node >  node  )  [virtual]

Set the node to which this device is being attached.

Parameters:
node Ptr to the Node to which the device is being attached.

Implements ns3::NetDevice.

virtual void ns3::CsmaNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback  cb  )  [virtual]
Parameters:
cb callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means _all_ packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

void ns3::CsmaNetDevice::SetQueue ( Ptr< Queue >  queue  )

Attach a queue to the CsmaNetDevice.

The CsmaNetDevice "owns" a queue. This queue may be set by higher level topology objects to implement a particular queueing method such as DropTail or RED.

See also:
Queue
DropTailQueue
Parameters:
queue a Ptr to the queue for being assigned to the device.
virtual void ns3::CsmaNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback  cb  )  [virtual]

Set the callback to be used to notify higher layers when a packet has been received.

Parameters:
cb The callback.

Implements ns3::NetDevice.

void ns3::CsmaNetDevice::SetReceiveEnable ( bool  enable  )

Enable or disable the receive side of the network device.

Parameters:
enable Enable the receive side if true, otherwise disable.
void ns3::CsmaNetDevice::SetReceiveErrorModel ( Ptr< ErrorModel >  em  )

Attach a receive ErrorModel to the CsmaNetDevice.

The CsmaNetDevice may optionally include an ErrorModel in the packet receive chain to simulate data errors in during transmission.

See also:
ErrorModel
Parameters:
em a pointer to the ErrorModel
void ns3::CsmaNetDevice::SetSendEnable ( bool  enable  )

Enable or disable the send side of the network device.

Parameters:
enable Enable the send side if true, otherwise disable.
virtual bool ns3::CsmaNetDevice::SupportsSendFrom ( void   )  const [virtual]
Returns:
true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

The documentation for this class was generated from the following files:
Generated on Fri Feb 18 2011 15:54:51 for NS-3 by  doxygen 1.7.1
