build a set of CsmaNetDevice objects More...

#include <csma-helper.h>

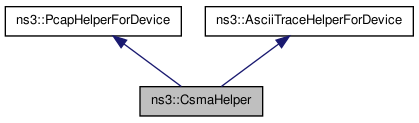

Inheritance diagram for ns3::CsmaHelper:

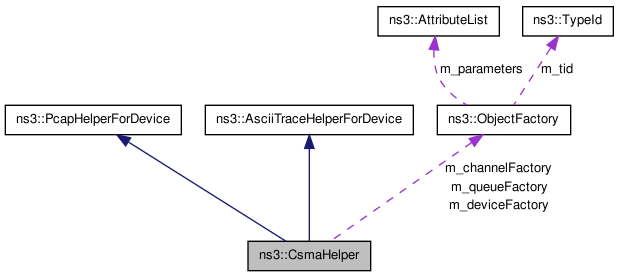

Collaboration diagram for ns3::CsmaHelper:

Public Member Functions
	CsmaHelper ()
void	SetQueue (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue())
void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
void	SetChannelAttribute (std::string n1, const AttributeValue &v1)
NetDeviceContainer	Install (Ptr< Node > node) const
NetDeviceContainer	Install (std::string name) const
NetDeviceContainer	Install (Ptr< Node > node, Ptr< CsmaChannel > channel) const
NetDeviceContainer	Install (Ptr< Node > node, std::string channelName) const
NetDeviceContainer	Install (std::string nodeName, Ptr< CsmaChannel > channel) const
NetDeviceContainer	Install (std::string nodeName, std::string channelName) const
NetDeviceContainer	Install (const NodeContainer &c) const
NetDeviceContainer	Install (const NodeContainer &c, Ptr< CsmaChannel > channel) const
NetDeviceContainer	Install (const NodeContainer &c, std::string channelName) const

Detailed Description

build a set of CsmaNetDevice objects

Normally we eschew multiple inheritance, however, the classes PcapUserHelperForDevice and AsciiTraceUserHelperForDevice are treated as "mixins". A mixin is a self-contained class that encapsulates a general attribute or a set of functionality that may be of interest to many other classes.

Constructor & Destructor Documentation

ns3::CsmaHelper::CsmaHelper ( )

Construct a CsmaHelper.

Member Function Documentation

NetDeviceContainer ns3::CsmaHelper::Install ( Ptr< Node > node ) const

This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.

Parameters:

node

The node to install the device in

Returns:: A container holding the added net device.

NetDeviceContainer ns3::CsmaHelper::Install ( std::string name ) const

This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.

Parameters:

name

The name of the node to install the device in

Returns:: A container holding the added net device.

NetDeviceContainer ns3::CsmaHelper::Install	(	const NodeContainer &	c,
		Ptr< CsmaChannel >	channel
	)			const

For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.

Parameters:

	c	The NodeContainer holding the nodes to be changed.
	channel	The channel to attach to the devices.

Returns:: A container holding the added net devices.

NetDeviceContainer ns3::CsmaHelper::Install	(	std::string	nodeName,
		Ptr< CsmaChannel >	channel
	)			const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters:

	nodeName	The name of the node to install the device in
	channel	The channel to attach to the device.

Returns:: A container holding the added net device.

NetDeviceContainer ns3::CsmaHelper::Install	(	std::string	nodeName,
		std::string	channelName
	)			const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters:

	nodeName	The name of the node to install the device in
	channelName	The name of the channel to attach to the device.

Returns:: A container holding the added net device.

NetDeviceContainer ns3::CsmaHelper::Install ( const NodeContainer & c ) const

This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute. For each Ptr<node> in the provided container: it creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the channel to the device.

Parameters:

c

The NodeContainer holding the nodes to be changed.

Returns:: A container holding the added net devices.

NetDeviceContainer ns3::CsmaHelper::Install	(	Ptr< Node >	node,
		std::string	channelName
	)			const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters:

	node	The node to install the device in
	channelName	The name of the channel to attach to the device.

Returns:: A container holding the added net device.

NetDeviceContainer ns3::CsmaHelper::Install	(	const NodeContainer &	c,
		std::string	channelName
	)			const

For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.

Parameters:

	c	The NodeContainer holding the nodes to be changed.
	channelName	The name of the channel to attach to the devices.

Returns:: A container holding the added net devices.

NetDeviceContainer ns3::CsmaHelper::Install	(	Ptr< Node >	node,
		Ptr< CsmaChannel >	channel
	)			const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters:

	node	The node to install the device in
	channel	The channel to attach to the device.

Returns:: A container holding the added net device.

void ns3::CsmaHelper::SetChannelAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters:

	n1	the name of the attribute to set
	v1	the value of the attribute to set

Set these attributes on each ns3::CsmaChannel created by CsmaHelper::Install

void ns3::CsmaHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters:

	n1	the name of the attribute to set
	v1	the value of the attribute to set

Set these attributes on each ns3::CsmaNetDevice created by CsmaHelper::Install

void ns3::CsmaHelper::SetQueue	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue()`
	)

Parameters:

	type	the type of queue
	n1	the name of the attribute to set on the queue
	v1	the value of the attribute to set on the queue
	n2	the name of the attribute to set on the queue
	v2	the value of the attribute to set on the queue
	n3	the name of the attribute to set on the queue
	v3	the value of the attribute to set on the queue
	n4	the name of the attribute to set on the queue
	v4	the value of the attribute to set on the queue

Set the type of queue to create and associated to each CsmaNetDevice created through CsmaHelper::Install.

The documentation for this class was generated from the following file:

src/helper/csma-helper.h
