ns3::CsmaStarHelper Class Reference

A helper to make it easier to create a star topology with Csma links. More...

#include <csma-star-helper.h>

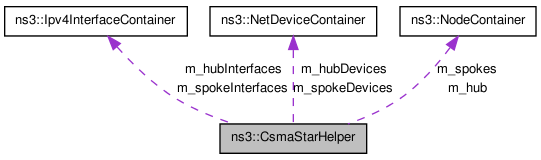

Collaboration diagram for ns3::CsmaStarHelper:

List of all members.

Public Member Functions
	CsmaStarHelper (uint32_t numSpokes, CsmaHelper csmaHelper)
Ptr< Node >	GetHub () const
Ptr< Node >	GetSpokeNode (uint32_t i) const
NetDeviceContainer	GetHubDevices () const
NetDeviceContainer	GetSpokeDevices () const
Ipv4Address	GetHubIpv4Address (uint32_t i) const
Ipv4Address	GetSpokeIpv4Address (uint32_t i) const
uint32_t	SpokeCount () const
void	InstallStack (InternetStackHelper stack)
void	AssignIpv4Addresses (Ipv4AddressHelper address)

---

Detailed Description

A helper to make it easier to create a star topology with Csma links.

---

Constructor & Destructor Documentation

ns3::CsmaStarHelper::CsmaStarHelper	(	uint32_t	numSpokes,
		CsmaHelper	csmaHelper
	)

Create a CsmaStarHelper in order to easily create star topologies using Csma links

Parameters:

	numSpokes	the number of links attached to the hub node, creating a total of numSpokes + 1 nodes
	csmaHelper	the link helper for Csma links, used to link nodes together

---

Member Function Documentation

void ns3::CsmaStarHelper::AssignIpv4Addresses

(

Ipv4AddressHelper

address

)

Parameters:

address

an Ipv4AddressHelper which is used to install Ipv4 addresses on all the node interfaces in the star

Ptr<Node> ns3::CsmaStarHelper::GetHub

(

)

const

Returns:

a node pointer to the hub node in the star, i.e., the center node

NetDeviceContainer ns3::CsmaStarHelper::GetHubDevices

(

)

const

Returns:

the net-device container which contains all of the devices on the hub node

Ipv4Address ns3::CsmaStarHelper::GetHubIpv4Address

(

uint32_t

i

)

const

Parameters:

i

index into the hub interfaces

Returns:

Ipv4Address according to indexed hub interface

NetDeviceContainer ns3::CsmaStarHelper::GetSpokeDevices

(

)

const

Returns:

the net-device container which contains all of the spoke node devices

Ipv4Address ns3::CsmaStarHelper::GetSpokeIpv4Address

(

uint32_t

i

)

const

Parameters:

i

index into the spoke interfaces

Returns:

Ipv4Address according to indexed spoke interface

Ptr<Node> ns3::CsmaStarHelper::GetSpokeNode

(

uint32_t

i

)

const

Parameters:

i

an index into the spokes of the star

Returns:

a node pointer to the node at the indexed spoke

void ns3::CsmaStarHelper::InstallStack

(

InternetStackHelper

stack

)

Parameters:

stack

an InternetStackHelper which is used to install on every node in the star

uint32_t ns3::CsmaStarHelper::SpokeCount

(

)

const

Returns:

the total number of spokes in the star

---

The documentation for this class was generated from the following file:

• src/helper/csma-star-helper.h
