ns3::DsaReq Class Reference

Inheritance diagram for ns3::DsaReq:

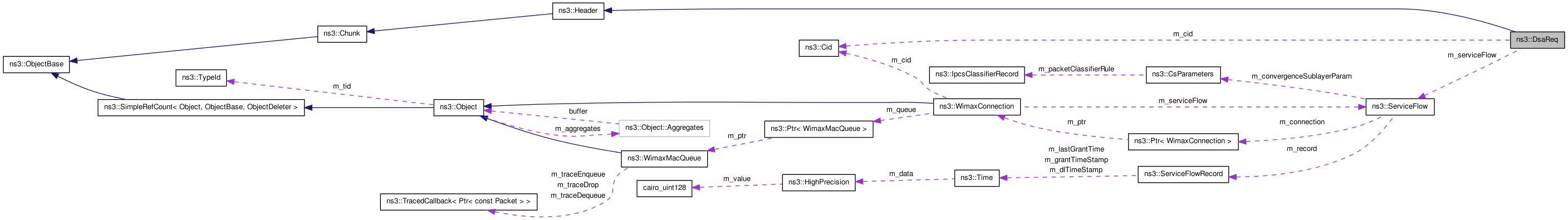

Collaboration diagram for ns3::DsaReq:

List of all members.

Public Member Functions
	DsaReq ()
	This class implements the ranging request message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.7 Registration request (REG-REQ) message, page 51.
	DsaReq (ServiceFlow sf)
void	SetTransactionId (uint16_t transactionId)
void	SetSfid (uint32_t sfid)
	set the service flow identifier
void	SetCid (Cid cid)
	set the connection identifier
void	SetServiceFlow (ServiceFlow sf)
	specify a service flow to be requested by this message
ServiceFlow	GetServiceFlow (void) const
uint16_t	GetTransactionId (void) const
uint32_t	GetSfid (void) const
Cid	GetCid (void) const
std::string	GetName (void) const
virtual TypeId	GetInstanceTypeId (void) const
void	Print (std::ostream &os) const
uint32_t	GetSerializedSize (void) const
void	Serialize (Buffer::Iterator start) const
uint32_t	Deserialize (Buffer::Iterator start)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::DsaReq.

---

Member Function Documentation

uint32_t ns3::DsaReq::Deserialize

(

Buffer::Iterator

start

)

[virtual]

Parameters:

start

an iterator which points to where the header should written.

Returns:

the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Cid ns3::DsaReq::GetCid

(

void

)

const

Returns:

the connection identifier

virtual TypeId ns3::DsaReq::GetInstanceTypeId

(

void

)

const [virtual]

Returns:

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

uint32_t ns3::DsaReq::GetSerializedSize

(

void

)

const [virtual]

Returns:

the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

ServiceFlow ns3::DsaReq::GetServiceFlow

(

void

)

const

Returns:

the service flow requested by this message

uint32_t ns3::DsaReq::GetSfid

(

void

)

const

Returns:

the service flow identifier

static TypeId ns3::DsaReq::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::DsaReq.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

void ns3::DsaReq::Print

(

std::ostream &

os

)

const [virtual]

Parameters:

os

output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

void ns3::DsaReq::Serialize

(

Buffer::Iterator

start

)

const [virtual]

Parameters:

start

an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

void ns3::DsaReq::SetCid

(

Cid

cid

)

set the connection identifier

Parameters:

cid

the connection identifier

void ns3::DsaReq::SetServiceFlow

(

ServiceFlow

sf

)

specify a service flow to be requested by this message

Parameters:

sf

the service flow

void ns3::DsaReq::SetSfid

(

uint32_t

sfid

)

set the service flow identifier

Parameters:

sfid

the service flow identifier

---

The documentation for this class was generated from the following files:

• src/devices/wimax/mac-messages.h
• doc/introspected-doxygen.h
