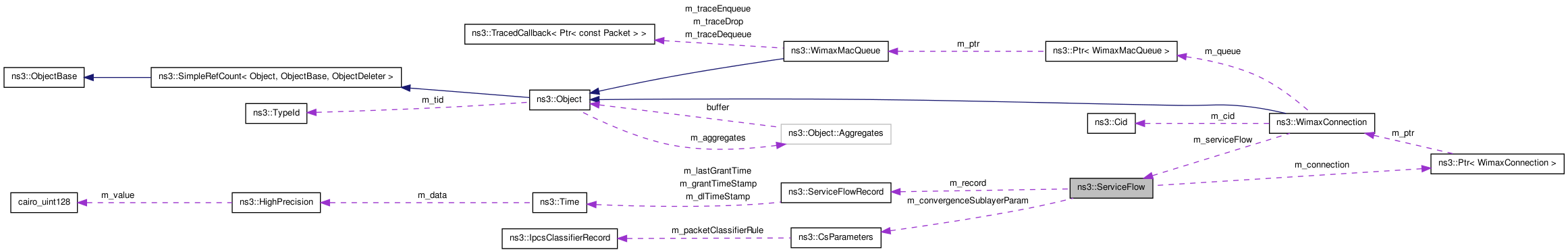

Collaboration diagram for ns3::ServiceFlow:
Public Types | |
| enum | Direction { SF_DIRECTION_DOWN, SF_DIRECTION_UP } |
| enum | Type { SF_TYPE_PROVISIONED, SF_TYPE_ADMITTED, SF_TYPE_ACTIVE } |
| enum | SchedulingType { SF_TYPE_NONE = 0, SF_TYPE_UNDEF = 1, SF_TYPE_BE = 2, SF_TYPE_NRTPS = 3, SF_TYPE_RTPS = 4, SF_TYPE_UGS = 6, SF_TYPE_ALL = 255 } |
| enum | CsSpecification { ATM = 99, IPV4 = 100, IPV6 = 101, ETHERNET = 102, VLAN = 103, IPV4_OVER_ETHERNET = 104, IPV6_OVER_ETHERNET = 105, IPV4_OVER_VLAN = 106, IPV6_OVER_VLAN = 107 } |
| enum | ModulationType { MODULATION_TYPE_BPSK_12, MODULATION_TYPE_QPSK_12, MODULATION_TYPE_QPSK_34, MODULATION_TYPE_QAM16_12, MODULATION_TYPE_QAM16_34, MODULATION_TYPE_QAM64_23, MODULATION_TYPE_QAM64_34 } |
Public Member Functions | |
| Tlv | ToTlv (void) const |
| creates a TLV from this service flow | |
| ServiceFlow (Tlv tlv) | |
| creates a service flow from a TLV | |
| bool | CheckClassifierMatch (Ipv4Address srcAddress, Ipv4Address dstAddress, uint16_t srcPort, uint16_t dstPort, uint8_t proto) const |
| ServiceFlow (enum Direction direction) | |
| ServiceFlow (const ServiceFlow &sf) | |
| ServiceFlow (uint32_t sfid, enum Direction direction, Ptr< WimaxConnection > connection) | |
| ServiceFlow & | operator= (ServiceFlow const &o) |
| void | InitValues (void) |
| void | SetDirection (enum Direction direction) |
| enum Direction | GetDirection (void) const |
| void | CopyParametersFrom (ServiceFlow sf) |
| void | SetType (enum Type type) |
| enum Type | GetType (void) const |
| void | SetConnection (Ptr< WimaxConnection > connection) |
| Ptr< WimaxConnection > | GetConnection (void) const |
| void | SetIsEnabled (bool isEnabled) |
| bool | GetIsEnabled (void) const |
| void | SetRecord (ServiceFlowRecord *record) |
| ServiceFlowRecord * | GetRecord (void) const |
| Ptr< WimaxMacQueue > | GetQueue (void) const |
| enum ServiceFlow::SchedulingType | GetSchedulingType (void) const |
| bool | HasPackets (void) const |
| bool | HasPackets (MacHeaderType::HeaderType packetType) const |
| void | CleanUpQueue (void) |
| void | PrintQoSParameters (void) const |
| char * | GetSchedulingTypeStr (void) const |
| uint32_t | GetSfid (void) const |
| uint16_t | GetCid (void) const |
| std::string | GetServiceClassName () const |
| uint8_t | GetQosParamSetType (void) const |
| uint8_t | GetTrafficPriority (void) const |
| uint32_t | GetMaxSustainedTrafficRate (void) const |
| uint32_t | GetMaxTrafficBurst (void) const |
| uint32_t | GetMinReservedTrafficRate (void) const |
| uint32_t | GetMinTolerableTrafficRate (void) const |
| enum ServiceFlow::SchedulingType | GetServiceSchedulingType (void) const |
| uint32_t | GetRequestTransmissionPolicy (void) const |
| uint32_t | GetToleratedJitter (void) const |
| uint32_t | GetMaximumLatency (void) const |
| uint8_t | GetFixedversusVariableSduIndicator (void) const |
| uint8_t | GetSduSize (void) const |
| uint16_t | GetTargetSAID (void) const |
| uint8_t | GetArqEnable (void) const |
| uint16_t | GetArqWindowSize (void) const |
| uint16_t | GetArqRetryTimeoutTx (void) const |
| uint16_t | GetArqRetryTimeoutRx (void) const |
| uint16_t | GetArqBlockLifeTime (void) const |
| uint16_t | GetArqSyncLoss (void) const |
| uint8_t | GetArqDeliverInOrder (void) const |
| uint16_t | GetArqPurgeTimeout (void) const |
| uint16_t | GetArqBlockSize (void) const |
| enum CsSpecification | GetCsSpecification (void) const |
| CsParameters | GetConvergenceSublayerParam (void) const |
| uint16_t | GetUnsolicitedGrantInterval (void) const |
| uint16_t | GetUnsolicitedPollingInterval (void) const |
| bool | GetIsMulticast (void) const |
| enum WimaxPhy::ModulationType | GetModulation (void) const |
| void | SetSfid (uint32_t) |
| void | SetServiceClassName (std::string) |
| void | SetQosParamSetType (uint8_t) |
| void | SetTrafficPriority (uint8_t) |
| void | SetMaxSustainedTrafficRate (uint32_t) |
| void | SetMaxTrafficBurst (uint32_t) |
| void | SetMinReservedTrafficRate (uint32_t) |
| void | SetMinTolerableTrafficRate (uint32_t) |
| void | SetServiceSchedulingType (enum ServiceFlow::SchedulingType) |
| void | SetRequestTransmissionPolicy (uint32_t) |
| void | SetToleratedJitter (uint32_t) |
| void | SetMaximumLatency (uint32_t) |
| void | SetFixedversusVariableSduIndicator (uint8_t) |
| void | SetSduSize (uint8_t) |
| void | SetTargetSAID (uint16_t) |
| void | SetArqEnable (uint8_t) |
| void | SetArqWindowSize (uint16_t) |
| void | SetArqRetryTimeoutTx (uint16_t) |
| void | SetArqRetryTimeoutRx (uint16_t) |
| void | SetArqBlockLifeTime (uint16_t) |
| void | SetArqSyncLoss (uint16_t) |
| void | SetArqDeliverInOrder (uint8_t) |
| void | SetArqPurgeTimeout (uint16_t) |
| void | SetArqBlockSize (uint16_t) |
| void | SetCsSpecification (enum CsSpecification) |
| void | SetConvergenceSublayerParam (CsParameters) |
| void | SetUnsolicitedGrantInterval (uint16_t) |
| void | SetUnsolicitedPollingInterval (uint16_t) |
| void | SetIsMulticast (bool isMulticast) |
| void | SetModulation (enum WimaxPhy::ModulationType modulationType) |
Member Enumeration Documentation
This class implements service flows as described by the IEEE-802.16 standard
Constructor & Destructor Documentation
| ns3::ServiceFlow::ServiceFlow | ( | Tlv | tlv | ) |
creates a service flow from a TLV
- Parameters:
-
tlv the tlv from which the service flow will be created
Member Function Documentation
| bool ns3::ServiceFlow::CheckClassifierMatch | ( | Ipv4Address | srcAddress, | |
| Ipv4Address | dstAddress, | |||
| uint16_t | srcPort, | |||
| uint16_t | dstPort, | |||
| uint8_t | proto | |||
| ) | const |
- Returns:
- true if the passed parameters match the classifier of the service flow, false otherwise
- Parameters:
-
srcAddress the source ip address dstAddress the destination ip address srcPort the source port dstPort the destination port proto the layer 4 protocol
| Tlv ns3::ServiceFlow::ToTlv | ( | void | ) | const |
creates a TLV from this service flow
- Returns:
- the created tlv
The documentation for this class was generated from the following file:
- src/devices/wimax/service-flow.h
