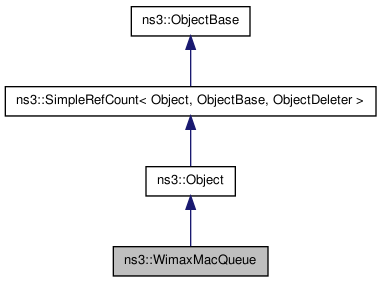

Inheritance diagram for ns3::WimaxMacQueue:

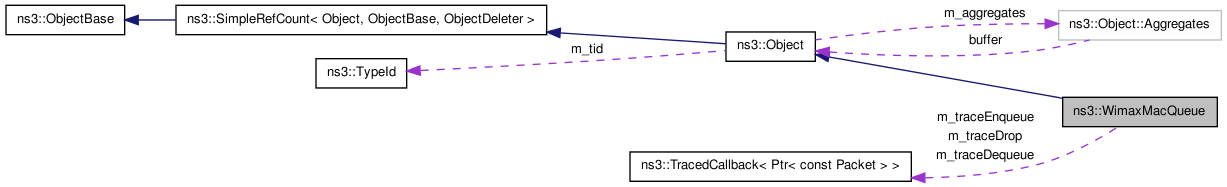

Collaboration diagram for ns3::WimaxMacQueue:
Classes | |
| struct | QueueElement |
Public Member Functions | |
| WimaxMacQueue (uint32_t maxSize) | |
| void | SetMaxSize (uint32_t maxSize) |
| set the maximum queue size | |
| uint32_t | GetMaxSize (void) const |
| bool | Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr) |
| Enqueue a packet. | |
| Ptr< Packet > | Dequeue (MacHeaderType::HeaderType packetType) |
| Dequeue a packet of type packetType from the queue. | |
| Ptr< Packet > | Dequeue (MacHeaderType::HeaderType packetType, uint32_t availableByte) |
| Dequeue a fragment of size availableByte from the queue. | |
| Ptr< Packet > | Peek (GenericMacHeader &hdr) const |
| Same as Dequeue but does not pop from queue. | |
| Ptr< Packet > | Peek (GenericMacHeader &hdr, Time &timeStamp) const |
| Ptr< Packet > | Peek (MacHeaderType::HeaderType packetType) const |
| Two versions for SS without Generic MAC Header parameter, as SS's scheduler does not require to know the CID in Generic MAC Header. | |
| Ptr< Packet > | Peek (MacHeaderType::HeaderType packetType, Time &timeStamp) const |
| bool | IsEmpty (void) const |
| bool | IsEmpty (MacHeaderType::HeaderType packetType) const |
| uint32_t | GetSize (void) const |
| uint32_t | GetNBytes (void) const |
| bool | CheckForFragmentation (MacHeaderType::HeaderType packetType) |
| Fragmentation utilities. | |
| uint32_t | GetFirstPacketHdrSize (MacHeaderType::HeaderType packetType) |
| uint32_t | GetFirstPacketPayloadSize (MacHeaderType::HeaderType packetType) |
| uint32_t | GetFirstPacketRequiredByte (MacHeaderType::HeaderType packetType) |
| uint32_t | GetQueueLengthWithMACOverhead (void) |
| void | SetFragmentation (MacHeaderType::HeaderType packetType) |
| void | SetFragmentNumber (MacHeaderType::HeaderType packetType) |
| void | SetFragmentOffset (MacHeaderType::HeaderType packetType, uint32_t offset) |
| const WimaxMacQueue::PacketQueue & | GetPacketQueue (void) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::WimaxMacQueue. | |
Member Function Documentation
| Ptr<Packet> ns3::WimaxMacQueue::Dequeue | ( | MacHeaderType::HeaderType | packetType | ) |
Dequeue a packet of type packetType from the queue.
- Parameters:
-
packetType the type of the packet
- Returns:
- the first packet in the queue
| Ptr<Packet> ns3::WimaxMacQueue::Dequeue | ( | MacHeaderType::HeaderType | packetType, | |
| uint32_t | availableByte | |||
| ) |
Dequeue a fragment of size availableByte from the queue.
- Parameters:
-
packetType the type of the packet availableByte the size of the fragment
- Returns:
- the first packet in the queue if its size is lower than availableByte, the first availableByte of the first packet otherwise
| bool ns3::WimaxMacQueue::Enqueue | ( | Ptr< Packet > | packet, | |
| const MacHeaderType & | hdrType, | |||
| const GenericMacHeader & | hdr | |||
| ) |
Enqueue a packet.
- Parameters:
-
packet the packet to enqueue hdrType the mac header type of the packet hdr the header of the packet
| uint32_t ns3::WimaxMacQueue::GetMaxSize | ( | void | ) | const |
- Returns:
- the maximum queue size
| static TypeId ns3::WimaxMacQueue::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::WimaxMacQueue.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxMacQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxConnection/TxQueue
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxMacQueue
Attributes defined for this type:
-
MaxSize: Maximum size
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1024
- Flags: construct write read
TraceSources defined for this type:
- Enqueue: Enqueue trace
- Dequeue: Dequeue trace
- Drop: Drop trace
Reimplemented from ns3::Object.
| Ptr<Packet> ns3::WimaxMacQueue::Peek | ( | GenericMacHeader & | hdr | ) | const |
| void ns3::WimaxMacQueue::SetMaxSize | ( | uint32_t | maxSize | ) |
set the maximum queue size
- Parameters:
-
maxSize the max queue size
The documentation for this class was generated from the following files:
- src/devices/wimax/wimax-mac-queue.h
- doc/introspected-doxygen.h
