ICMPv6 header. More...

#include <icmpv6-header.h>

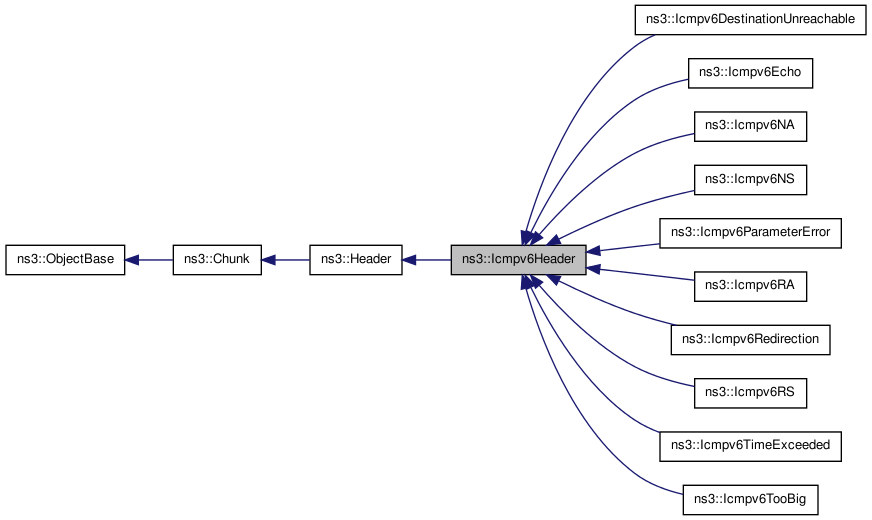

Inheritance diagram for ns3::Icmpv6Header:

Collaboration diagram for ns3::Icmpv6Header:

Public Types
enum	Type_e { ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR, ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT, ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION, ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST, ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT, ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code.
enum	OptionType_e { ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED, ICMPV6_OPT_MTU }
	ICMPv6 Option type code.
enum	ErrorDestinationUnreachable_e { ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE, ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable.
enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded.
enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error.
Public Member Functions
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
	Icmpv6Header ()
	Constructor.
virtual	~Icmpv6Header ()
	Destructor.
uint8_t	GetType () const
	Get the type field.
void	SetType (uint8_t type)
	Set the type.
uint8_t	GetCode () const
	Get the code field.
void	SetCode (uint8_t code)
	Set the code field.
uint16_t	GetChecksum () const
	Get the checksum.
void	SetChecksum (uint16_t checksum)
	Set the checksum.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.
Protected Attributes
bool	m_calcChecksum
	Checksum enable or not.
uint16_t	m_checksum
	The checksum.

Detailed Description

ICMPv6 header.

Member Function Documentation

void ns3::Icmpv6Header::CalculatePseudoHeaderChecksum	(	Ipv6Address	src,
		Ipv6Address	dst,
		uint16_t	length,
		uint8_t	protocol
	)

Calculate pseudo header checksum for IPv6.

Parameters:

	src	source address
	dst	destination address
	length	length
	protocol	the protocol number to use in the underlying IPv6 packet.

virtual uint32_t ns3::Icmpv6Header::Deserialize ( Buffer::Iterator start ) [virtual]

Deserialize the packet.

Parameters:

start

start offset

Returns:: length of packet

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

uint16_t ns3::Icmpv6Header::GetChecksum ( ) const

Get the checksum.

Returns:: checksum

uint8_t ns3::Icmpv6Header::GetCode ( ) const

Get the code field.

Returns:: code of ICMPv6 message

virtual TypeId ns3::Icmpv6Header::GetInstanceTypeId ( ) const [virtual]

Get the instance type ID.

Returns:: instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

virtual uint32_t ns3::Icmpv6Header::GetSerializedSize ( ) const [virtual]

Get the serialized size.

Returns:: serialized size

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

uint8_t ns3::Icmpv6Header::GetType ( ) const

Get the type field.

Returns:: type of ICMPv6 message

static TypeId ns3::Icmpv6Header::GetTypeId ( void ) [static]

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6Header.

Returns:: UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

virtual void ns3::Icmpv6Header::Print ( std::ostream & os ) const [virtual]

Print informations.

Parameters:

os

output stream

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

virtual void ns3::Icmpv6Header::Serialize ( Buffer::Iterator start ) const [virtual]

Serialize the packet.

Parameters:

start

start offset

Implements ns3::Header.

Reimplemented in ns3::Icmpv6NS, ns3::Icmpv6NA, ns3::Icmpv6RA, ns3::Icmpv6RS, ns3::Icmpv6Redirection, ns3::Icmpv6Echo, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6TooBig, ns3::Icmpv6TimeExceeded, and ns3::Icmpv6ParameterError.

void ns3::Icmpv6Header::SetChecksum ( uint16_t checksum )

Set the checksum.

Parameters:

checksum

to set

void ns3::Icmpv6Header::SetCode ( uint8_t code )

Set the code field.

Parameters:

code

code to set

void ns3::Icmpv6Header::SetType ( uint8_t type )

Set the type.

Parameters:

type

type to set

The documentation for this class was generated from the following files:

src/internet-stack/icmpv6-header.h
doc/introspected-doxygen.h
