ICMPv6 Neighbor Advertisement header. More...

#include <icmpv6-header.h>

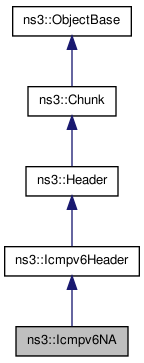

Inheritance diagram for ns3::Icmpv6NA:

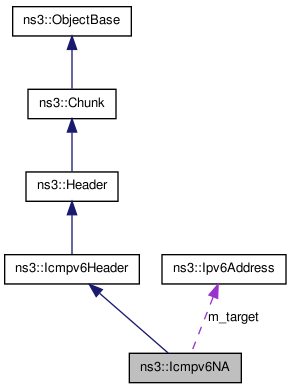

Collaboration diagram for ns3::Icmpv6NA:

Public Member Functions
	Icmpv6NA ()
	Constructor.
virtual	~Icmpv6NA ()
	Destructor.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint32_t	GetReserved () const
	Get the reserved field.
void	SetReserved (uint32_t reserved)
	Set the reserved field.
Ipv6Address	GetIpv6Target () const
	Get the IPv6 target field.
void	SetIpv6Target (Ipv6Address target)
	Set the IPv6 target field.
bool	GetFlagR () const
	Get the R flag.
void	SetFlagR (bool r)
	Set the R flag.
bool	GetFlagS () const
	Get the S flag.
void	SetFlagS (bool s)
	Set the S flag.
bool	GetFlagO () const
	Get the O flag.
void	SetFlagO (bool o)
	Set the O flag.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Detailed Description

ICMPv6 Neighbor Advertisement header.

Member Function Documentation

virtual uint32_t ns3::Icmpv6NA::Deserialize ( Buffer::Iterator start ) [virtual]

Deserialize the packet.

Parameters:

start

start offset

Returns:: length of packet

Reimplemented from ns3::Icmpv6Header.

bool ns3::Icmpv6NA::GetFlagO ( ) const

Get the O flag.

Returns:: O flag

bool ns3::Icmpv6NA::GetFlagR ( ) const

Get the R flag.

Returns:: R flag

bool ns3::Icmpv6NA::GetFlagS ( ) const

Get the S flag.

Returns:: S flag

virtual TypeId ns3::Icmpv6NA::GetInstanceTypeId ( ) const [virtual]

Get the instance type ID.

Returns:: instance type ID

Reimplemented from ns3::Icmpv6Header.

Ipv6Address ns3::Icmpv6NA::GetIpv6Target ( ) const

Get the IPv6 target field.

Returns:: IPv6 address

uint32_t ns3::Icmpv6NA::GetReserved ( ) const

Get the reserved field.

Returns:: reserved value

virtual uint32_t ns3::Icmpv6NA::GetSerializedSize ( ) const [virtual]

Get the serialized size.

Returns:: serialized size

Reimplemented from ns3::Icmpv6Header.

static TypeId ns3::Icmpv6NA::GetTypeId ( void ) [static]

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6NA.

Returns:: UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Icmpv6Header.

virtual void ns3::Icmpv6NA::Print ( std::ostream & os ) const [virtual]

Print informations.

Parameters:

os

output stream

Reimplemented from ns3::Icmpv6Header.

virtual void ns3::Icmpv6NA::Serialize ( Buffer::Iterator start ) const [virtual]

Serialize the packet.

Parameters:

start

start offset

Reimplemented from ns3::Icmpv6Header.

void ns3::Icmpv6NA::SetFlagO ( bool o )

Set the O flag.

Parameters:

o

value

void ns3::Icmpv6NA::SetFlagR ( bool r )

Set the R flag.

Parameters:

r

value

void ns3::Icmpv6NA::SetFlagS ( bool s )

Set the S flag.

Parameters:

s

value

void ns3::Icmpv6NA::SetIpv6Target ( Ipv6Address target )

Set the IPv6 target field.

Parameters:

target

IPv6 address

void ns3::Icmpv6NA::SetReserved ( uint32_t reserved )

Set the reserved field.

Parameters:

reserved

the reserved value

The documentation for this class was generated from the following files:

src/internet-stack/icmpv6-header.h
doc/introspected-doxygen.h
